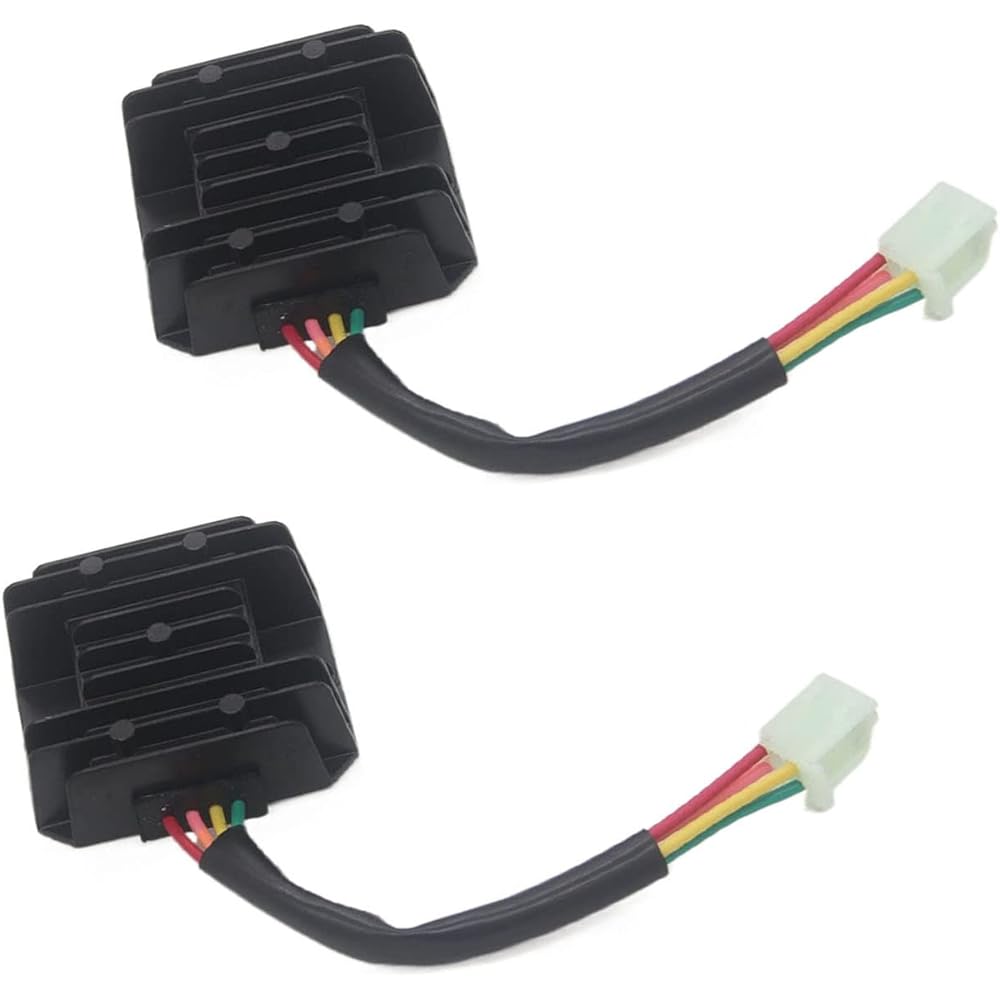

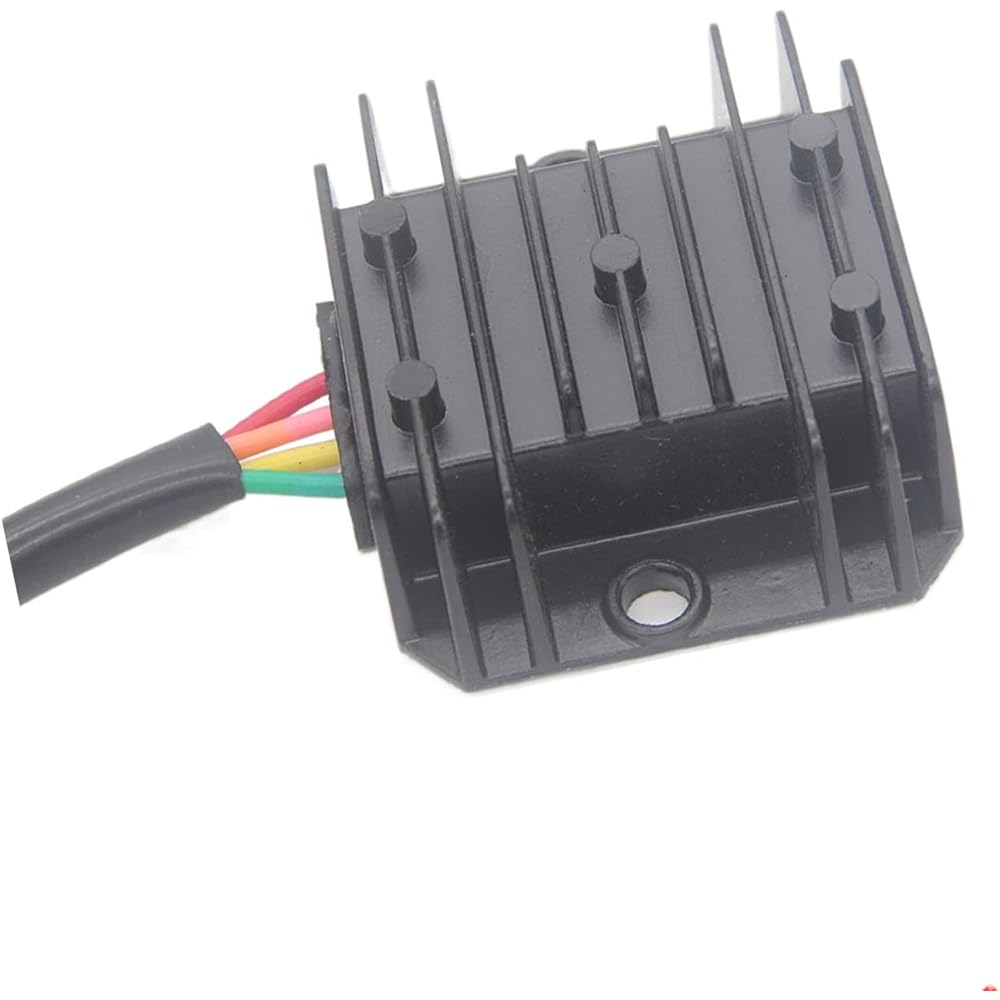

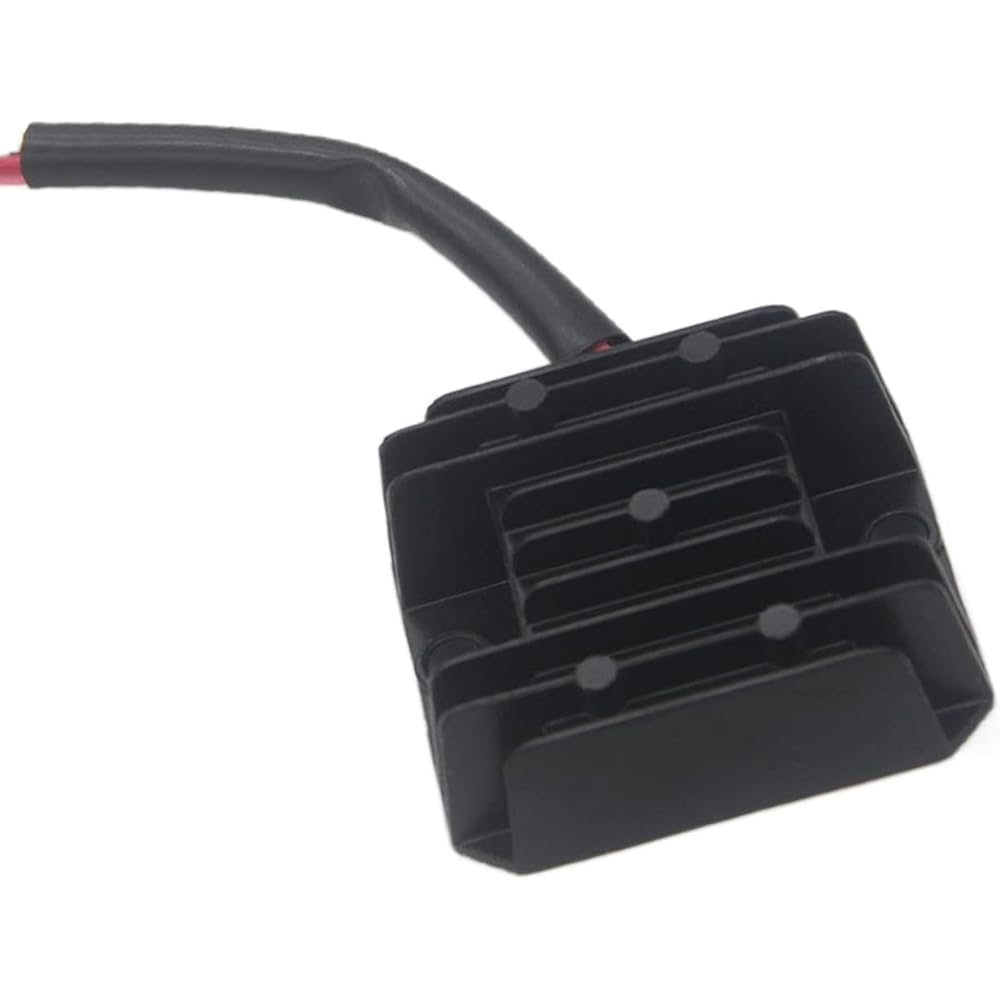

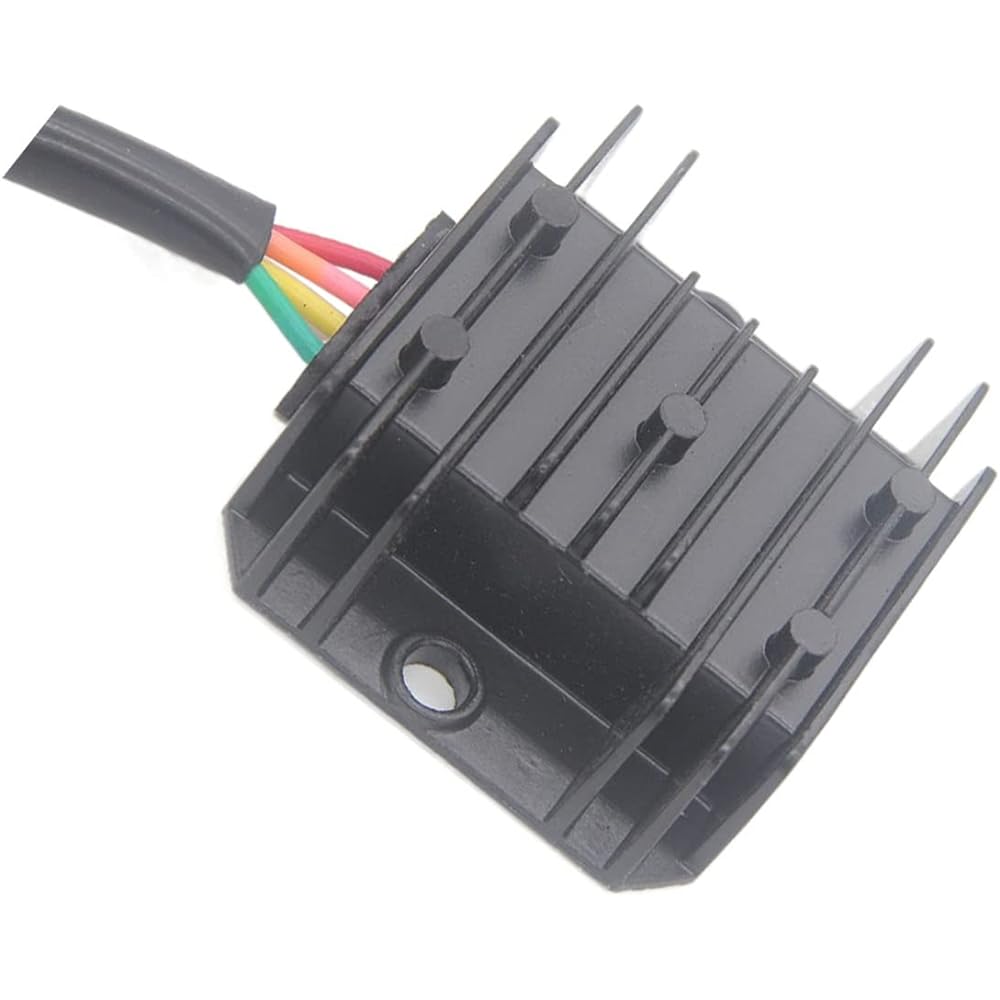

ZOOKOTO 4 Wire 12V Voltage Regulator Rectifier for GY6 125cc 150cc 250cc ATV Dirt Bike Go Kart Moped and Scooter 2pcs

2pcs 4-wire 12V Voltage Regulator Rectifier Red to Battery+, Green to Battery - Yellow and Pink AC Input, connected to magneto coil. This regulator rectifier must work together with a 12V battery. If there is no 12V battery, the output voltage will be much higher. Compatible with GY6 125cc 150cc 250cc engine and 12V battery, bulbs, lights, etc.

Specifications: AC input voltage: 20-60V. Unload output voltage (idling): 12.5~13v±0.5V. Charging output current: 0~4A Battery charging voltage: 14~14.5±0.5V. Operating temperature: -20°~60°. Voltage: Compatible with 12V battery. Color: Black Wiring Method: Red to +Output (Battery+) Green to Ground IE - (Negative) Connect to the other two wires, yellow and pink, AC input, magneto coil. Package Contents: 2 x 4 wire 12V voltage regulator rectifier.


Manufacturer: ‎zookoto
Brand: ‎ZOOKOTO
Packing size: ‎18.21 x 11.91 x 2.79 cm; 209 g
Product model number: ‎LT 4Pin 12VGY6 2pcs
>Product weight: ‎209 g
