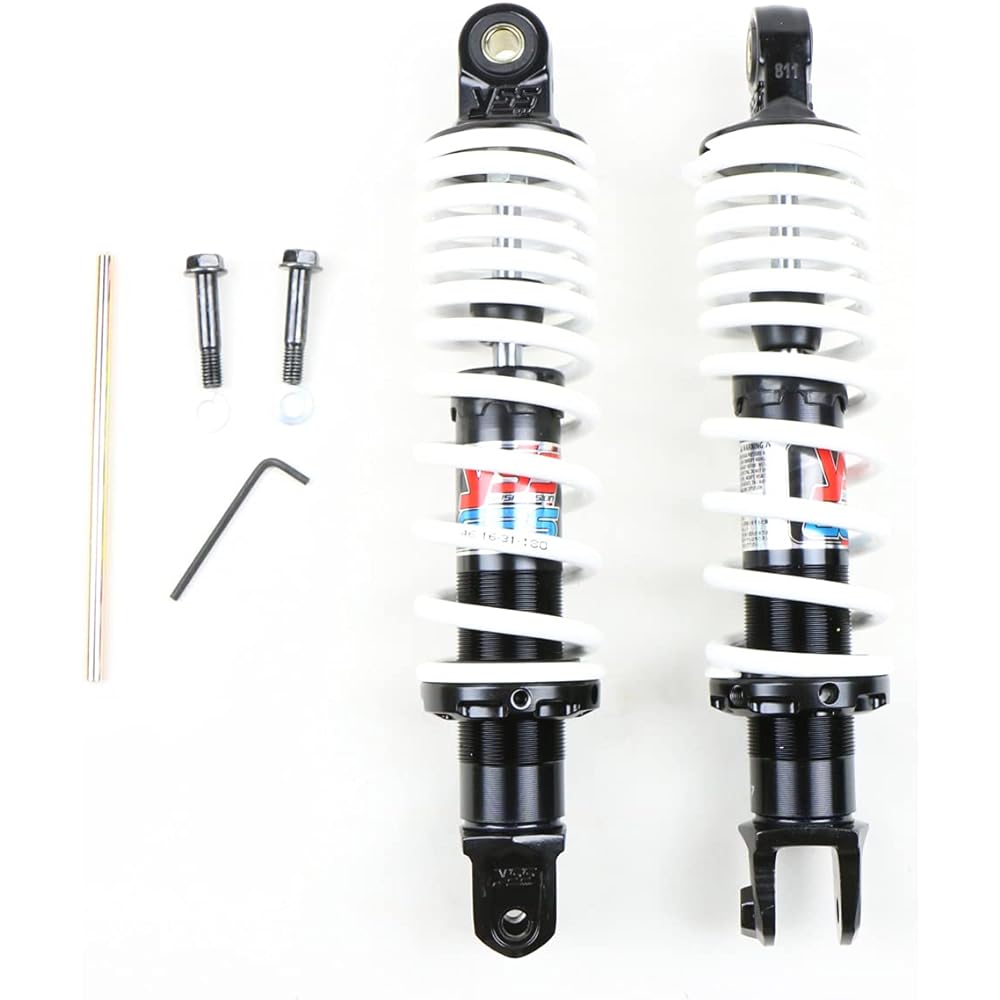

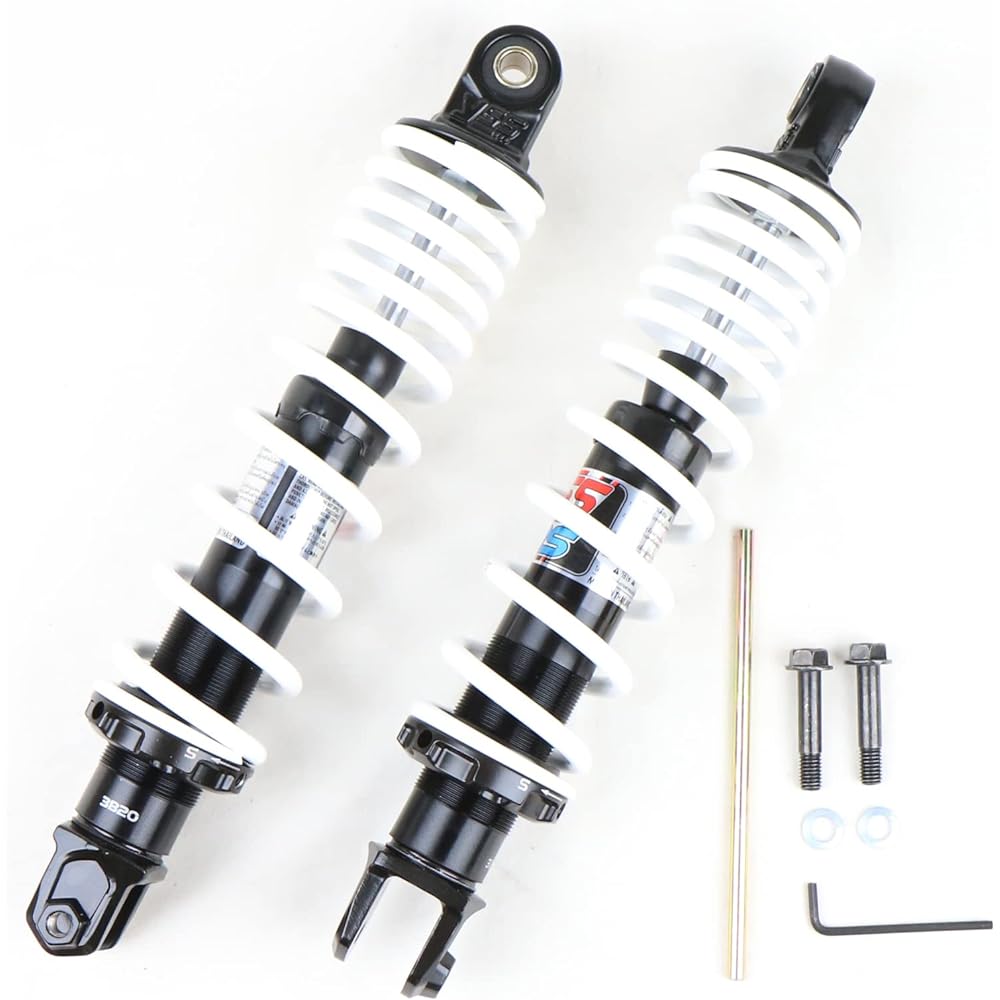

YSS DTG Gas Hybrid Rear Shock PCX(JF28/JF56/JF81) PCX150(KF12/KF18/KF30) (285mm, White)

Free length 285mm White spring (PF-YSS-002) DTG nitrogen gas and oil twin tube system Mounting part dimensions Upper side: Φ10x21 (mm), Lower side: Inner width 20xM8 (mm) Spring preload adjustment function Accessories: Rear shock body 1 set for left and right, preload adjustment tool

■Product name YSS DTG gas hybrid rear shock 285mm-350mm PCX PCX150 ■Manufacturer name YSS ■Manufacturer part number Free length 285mm Red spring (PF-YSS-001 TB220-285T-01-85P) Free length 285mm White spring (PF-YSS- 002 TB220-285T-01-82P) Free length 300mm Red spring (PF-YSS-081 TB220-300T-06-85P) Free length 300mm White spring (PF-YSS-082 TB222-300P-06-82) Free length 315mm Red spring (PF-YSS-083 TB220-315T-07-85P) Free length 315mm White spring (PF-YSS-084 TB220-315T-07-82P) Free length 335mm Red spring (PF-YSS-085 TB220-335T- 04-85P) ■Compatible models PCX JF28 (2010-2013) PCX JF56 (2014-2017 LED headlight model) PCX JF81 (2018) PCX150 KF12 (2012-2013) PCX150 KF18 (2014- 2017 LED headlight model) PCX150 KF30 (2018) **Note** Please refer to the genuine free length below and decide for yourself whether to go with the genuine specification or the lowered specification. For lowered specifications, please consult your bike shop regarding changes to related parts. ■Product details DTG nitrogen gas and oil twin tube system Free length,.285mm to 335mm selectable Mounting part dimensions Upper: Φ10x21 (mm), Lower: Inner width 20xM8 (mm) Spring preload adjustment function ■Accessories - Rear shock body 1 set left and right ・Preload adjustment tool ■Reference genuine rear shock length PCX125(JF28/JF56) …310mm PCX150(KF12/KF18) …310mm PCX125(JF81) …350mm PCX150(KF30) …350mm PCX125(JK05) …365mm PCX125 eHEV ( JK06) …365mm PCX160(KF47) …365mm


Manufacturer: ‎RED NINE
Brand: ‎POWER ULTIMATE RACING EQUIPMENT FORCE
Model name: ‎PCX
Manufacturer reference: ‎ PF-YSS-001
Color: ‎White
Certification: ‎No warranty
