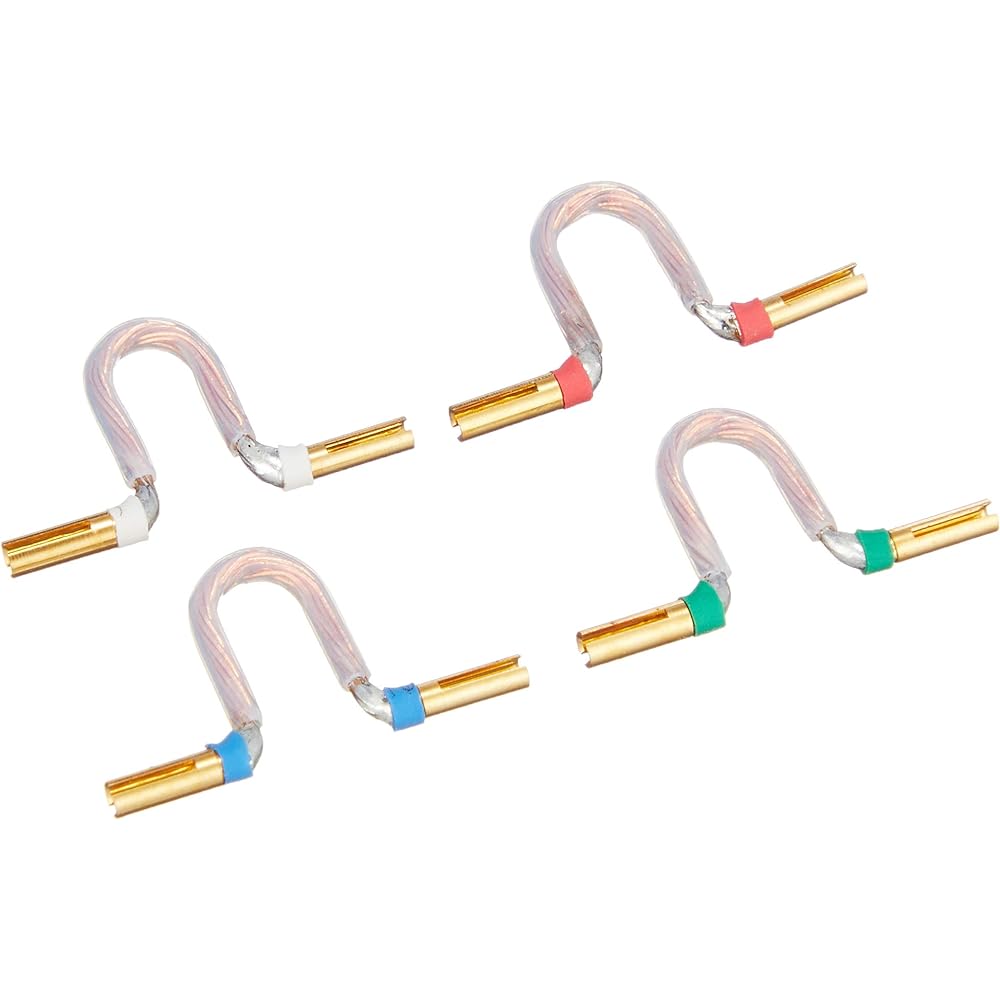

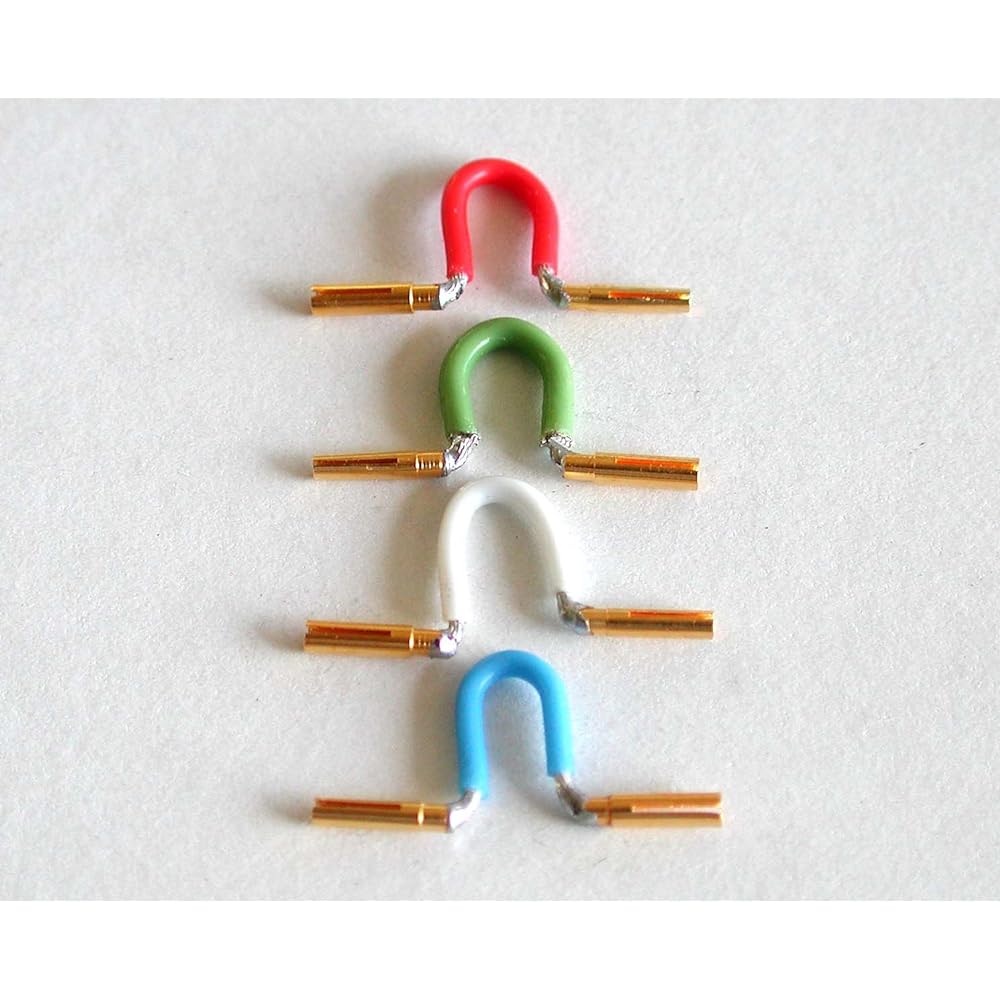

Yamamoto Acoustic Crafts Shell Lead Wire YR-02 YR-02

Type: Shell lead 4 color set (with terminal) Length approx. 1.5cm Insulation material: Teflon tube Terminal material: Adjacent bronze, 1μ gold plated with non-magnetic base Wire type: 6N copper wire 0.26φ10 pieces (cross section Approximately 0.5 scale)

◆High-quality head shell lead wire using high-purity 6N copper wire 10 high-purity copper wires with a diameter of 0.26 mm with a purity of 99.9999% or higher are used, and the wire material is extremely thick with a total of 0.5 scale. The insulating material used is Teflon, which has the best electrical properties, in the form of a tube.The wires are quite thick and hard, so they are formed into a U-shape from the beginning to make it easier to attach the cartridge. Adopts a product equivalent to the "YRT-01" on sale.The connector terminal shell lead terminal is machined from a phosphor bronze round rod with excellent spring construction.The arm side has a diameter of 1.0mmφ and the cartridge side has a diameter of 1.2mmφ.The sound quality is very finely finished. 1.0 micron thick gold plating is applied on top of a non-magnetic base.Generally, caulking is used to connect terminals and lead wires, but YR-02 uses more reliable soldering. Carefully selected lead-free high-quality solder is used for soldering / ■Specifications■Type: Set of 4 shell lead colors (with terminal) Length approx. 1.5cm Wire type: 6N copper wire 0.26φ10 pieces (cross-sectional area approx. 0.5 scale) Insulating material: Teflon tube Terminal material: 1μ gold plated with bronze and non-magnetic base


Brand: ‎Yamamoto Onkyo Kogei
Color: ‎Gold
Manufacturer: ‎Yamamoto Acoustic craft
Manufacturer model number: ‎YR-02
Battery included: ‎No
Package size: ‎13.1 x 9.1 x 2.5 cm; 8 g
Battery usage: ‎No
