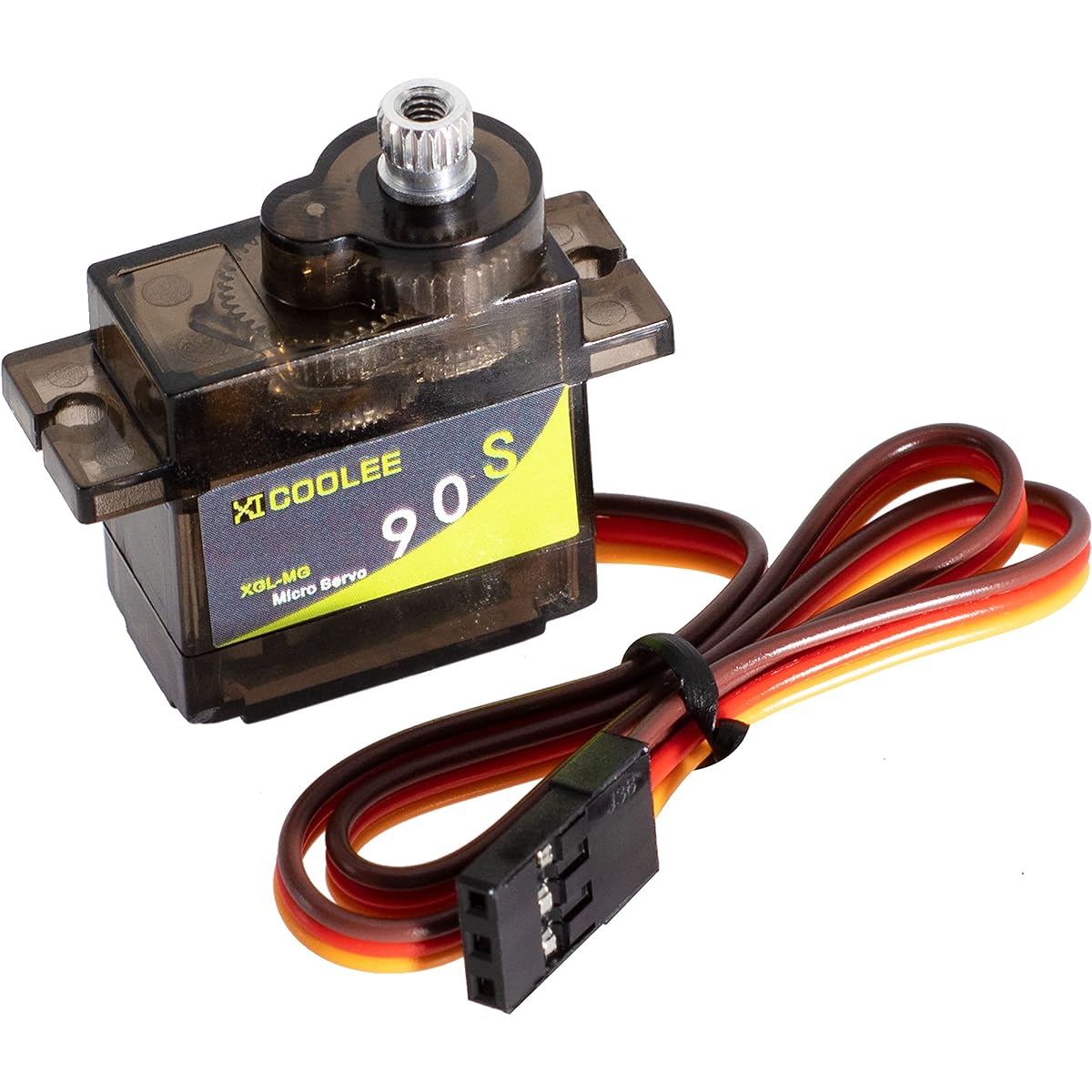

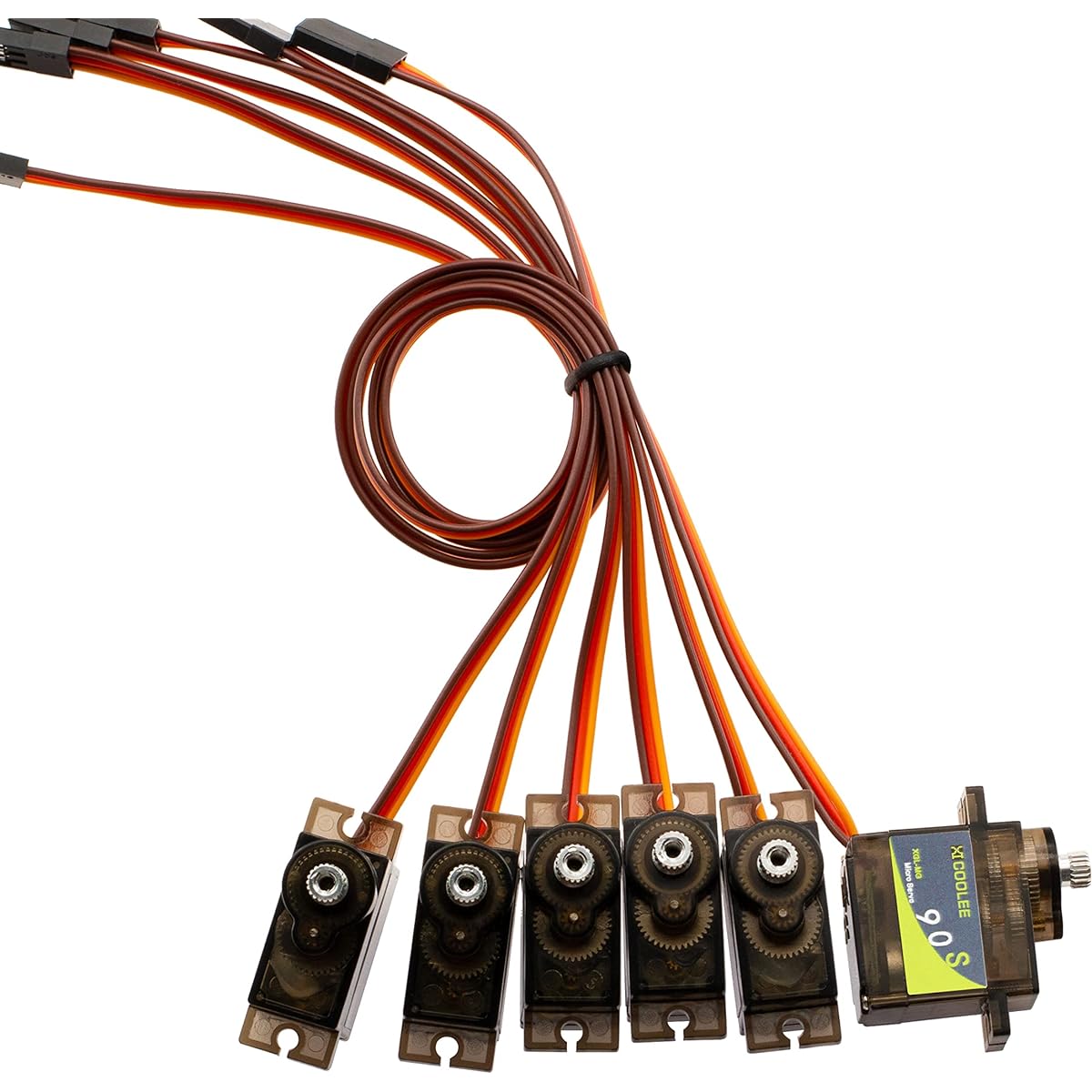

XICOOLEE 4pcs MG-90S Servo Micro 12g Servo Motor Metal Gear Digital Servo for RC Airplane Model Car Helicopter Robot Diving Equipment Racing Model

1. The best possible compatibility, whether it's a LEGO build program or a mechanical structure. 2.12g servo, the control is simple, accurate angle and fast response. 3. Suitable for various angle control models, such as RC helicopters, aircraft, ships, vehicles, etc. 4. High torque and quality metal servo motor. 5. 3-pin 2.54mm DuPont cable header; working voltage: 4.8V~6.0V.

Overview: You can control the rotation speed and direction of the output shaft. Made of environmentally friendly POM plastic. Small, light and not easily damaged. The built-in integrated reduction gear increases the torque, suitable for programmable remote control aircraft. Small steering gear, fixed-wing aircraft, RC helicopters, aircraft, boats. Specification: Storage temperature range: -20℃~60℃. Operating temperature range: -10℃~50℃. Operating voltage range: 4.8V~6.0. Weight: 12g. Operating speed (no load): 0.12±0.01sec/60(4.8V) 0.11±0.01sec/60(6V) Operating current (no load): 220±20mA(4.8V) 250±20mA(6V). Stall torque (locked): 1.5±0.01kg・cm(4.8V) 1.8±0.1kg・cm(6V). Stall current (locked): 700ma±50mA(4.8V) 900mma±50mA(6V). Idle current (stopped): 4±1mA (4.8V) 4±1mA (6V). Control system: change pulse width Amplifier type: analog controller. Operating range: 90°±5°(1000→2000μsec). Left and right movement angle deviation: ≤3° Centering deviation: ≤ 1° Neutral position: 1500μsec Dead band width: ≤3μsec. Rotation direction: Counterclockwise (1500→800μsec). Pulse width range: 800→2200μsec Maximum movement: About 145° (800→2200μsec). Connection wire definition: Red lead - VCC, Brown lead - GND, Yellow lead - PWM. Package Contents: 1. MG-90S servo x 4.


Color : ‎MG 90S(4pcs)
Battery included : ‎No
Battery used : ‎No
Brand name : ‎xicoolee
Manufacturer : ‎XICOOLEE
Package size : ‎12.98 x 7.49 x 4.5 cm; 99.79 g
