Auto Parts Tokyo

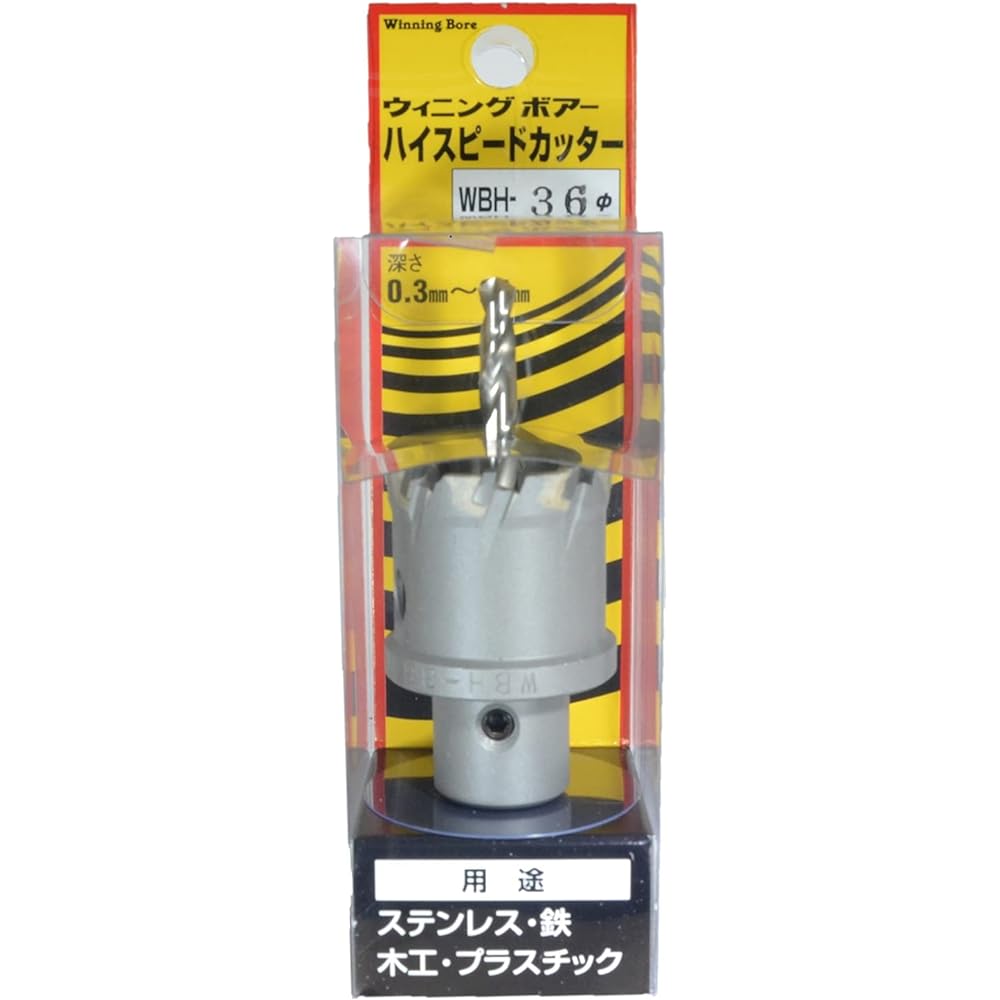

Winning Bore High Speed Cutter (Carbide Hole Saw) 36mm WBH-36 Gray
Winning Bore High Speed Cutter (Carbide Hole Saw) 36mm WBH-36 Gray
Regular price
$61.00 USD
Regular price
Sale price
$61.00 USD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Size: 36 mm, shank: 10 mm Effective length: 25 mm, center drill diameter: 6 mm (WBHD-C6) Compatible motor: Electric drill (rotation only), drilling machine Applicable plate thickness (when using an electric drill): Stainless steel plate 6 mm・Iron plate 10mm (varies depending on size and usage conditions) Cutting edge: Carbide tip, Center drill: Cobalt high speed steel

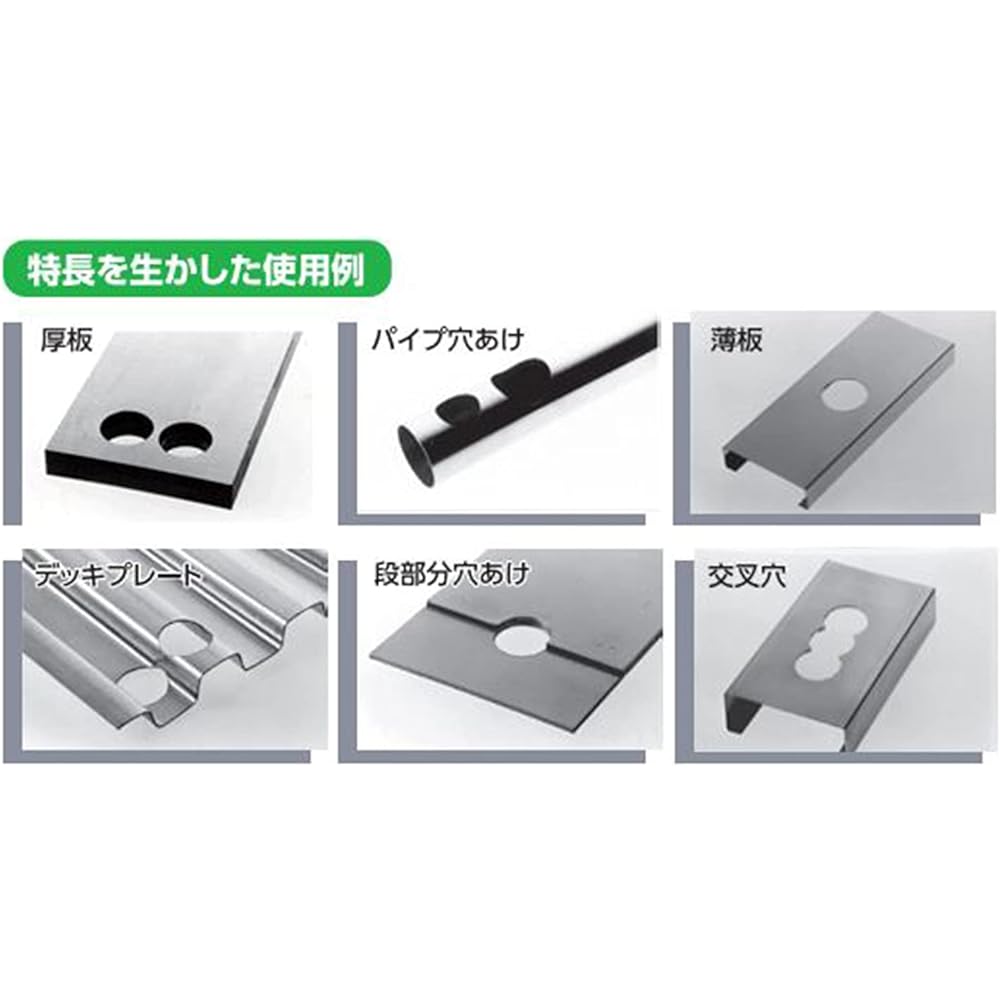

The 4-piece cutting blade configuration provides excellent sharpness and durability. [Applications] Drilling steel plates, stainless steel plates, aluminum, cast iron, FRP, PVC, etc. [Features] - Irregular hole saw that can drill deep holes at once with the chip evacuation mechanism.・The chip separation effect of the combined blade reduces cutting resistance, resulting in smooth cutting and long tool life. ・The carbide insert is an insertion type in which all three sides are in contact with the base material, so it can be used even under adverse conditions. There is little peeling of the tip [Caution] *Please be sure to wear protective equipment such as safety glasses when using. *Please be careful about what you wear when working, and do not wear anything that can easily get caught, such as the sleeves of your work clothes, necktie, or the hem of your pants. *Do not touch the rotating cutter part. *The cutter and workpiece will be hot immediately after use, so be careful not to get burned.
Brand: Winning Boar
Product model number: WBH-36
Package size: 15.2 x 4.6 x 4.6 cm; 190 g
Color: Gray
Name on nameplate: Industrial
Material: Stainless steel plate
Power source: None
Quantity: 1
Accessories: None
Battery included: No
Product Weight: 190 g
The 4-piece cutting blade configuration provides excellent sharpness and durability. [Applications] Drilling steel plates, stainless steel plates, aluminum, cast iron, FRP, PVC, etc. [Features] - Irregular hole saw that can drill deep holes at once with the chip evacuation mechanism.・The chip separation effect of the combined blade reduces cutting resistance, resulting in smooth cutting and long tool life. ・The carbide insert is an insertion type in which all three sides are in contact with the base material, so it can be used even under adverse conditions. There is little peeling of the tip [Caution] *Please be sure to wear protective equipment such as safety glasses when using. *Please be careful about what you wear when working, and do not wear anything that can easily get caught, such as the sleeves of your work clothes, necktie, or the hem of your pants. *Do not touch the rotating cutter part. *The cutter and workpiece will be hot immediately after use, so be careful not to get burned.
Brand: Winning Boar
Product model number: WBH-36
Package size: 15.2 x 4.6 x 4.6 cm; 190 g
Color: Gray
Name on nameplate: Industrial
Material: Stainless steel plate
Power source: None
Quantity: 1
Accessories: None
Battery included: No
Product Weight: 190 g
