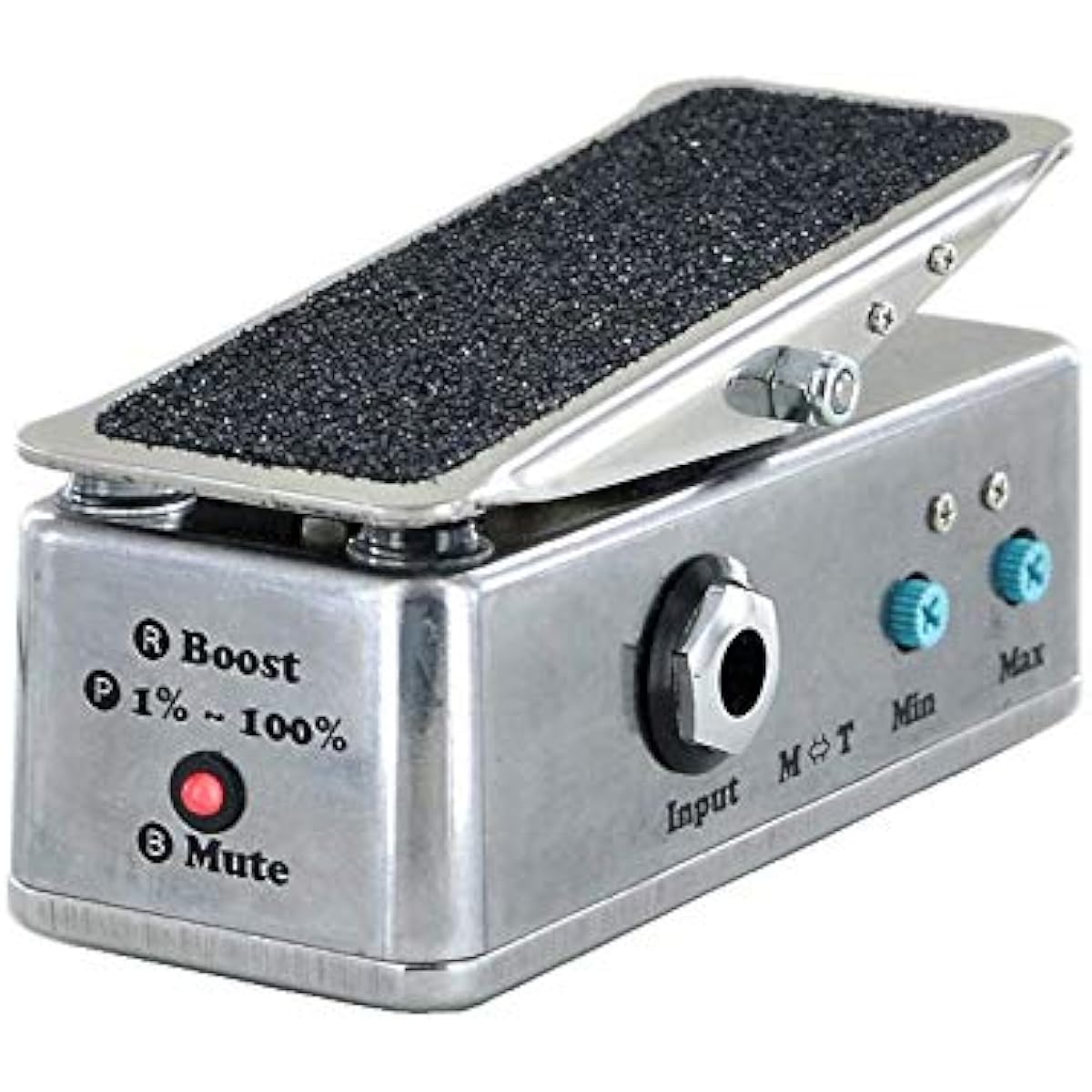

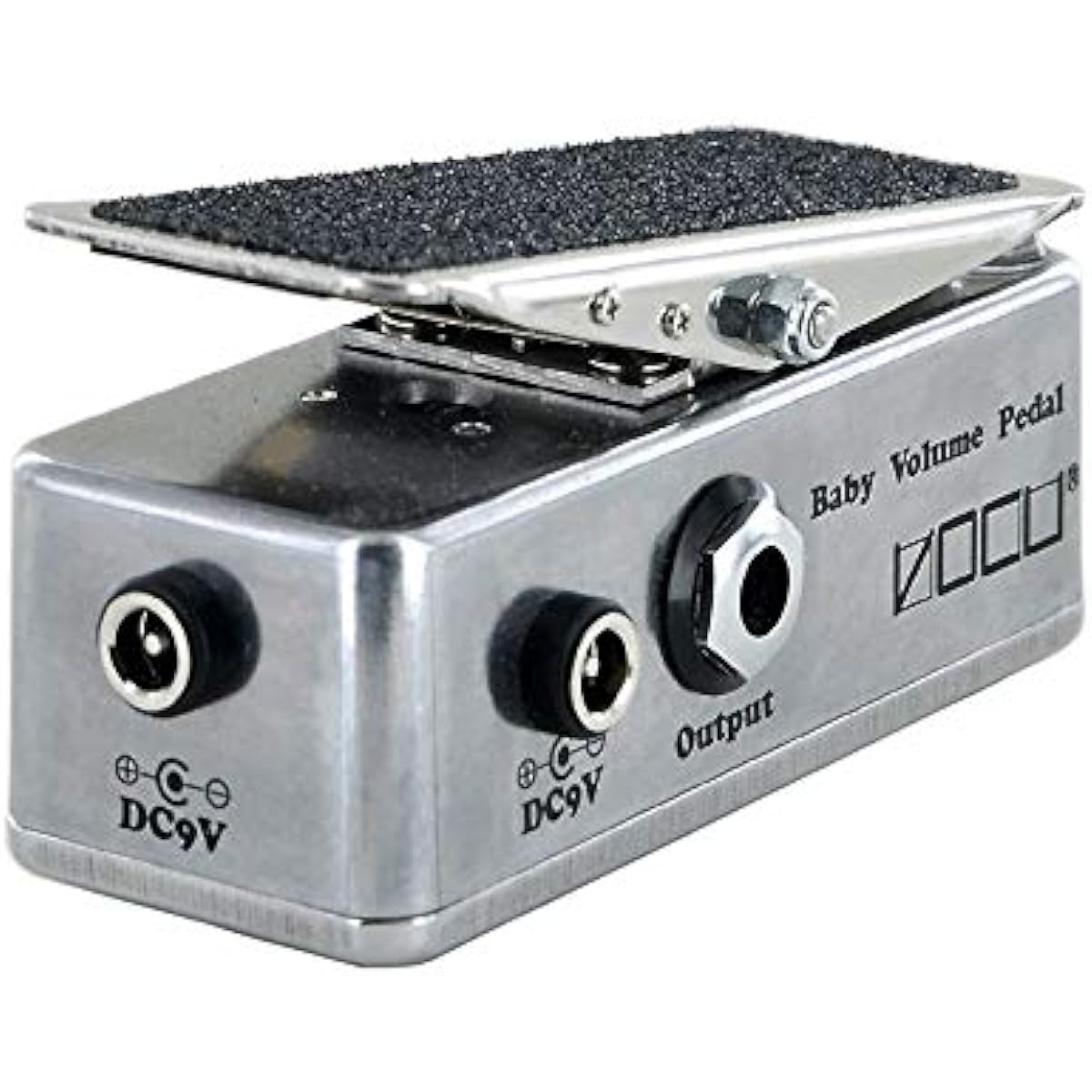

VOCU Guitar Effector Baby Volume Pedal

Because of the high impedance input/low impedance output design, it can be used with any device without worrying about impedance matching, and if you place it between poorly matched effects, it can also serve as a buffer amplifier. Note: This unit does not have a built-in battery for minimization. To use this unit, you will need to prepare an external power source such as an AC adapter (DC9V Center ?; 30mA or more) (one DC cable is included). ■Main features・Extremely small size that frees up a lot of space on your effects board・Active volume circuit that can control four levels・Smooth volume control with optical sensor pedal・Level boost function up to about +12dB・Level setting knob that allows you to set the desired level when the pedal is fully open and fully closed・Mute On/Off switch located on the heel side・Toggle/momentary switch that allows you to specify the operation of the mute function・Current level status is displayed by three-color LED illumination Blue = Mute (silence) Purple = Volume 1% -100% Red = Level boost ■Specifications・Size: Length 95mm x Width 45mm x Height 52mm・Weight: 185g・Current consumption: Less than 30mA Product images include images of use, etc. Please note that nothing other than what is specified in the is included.
