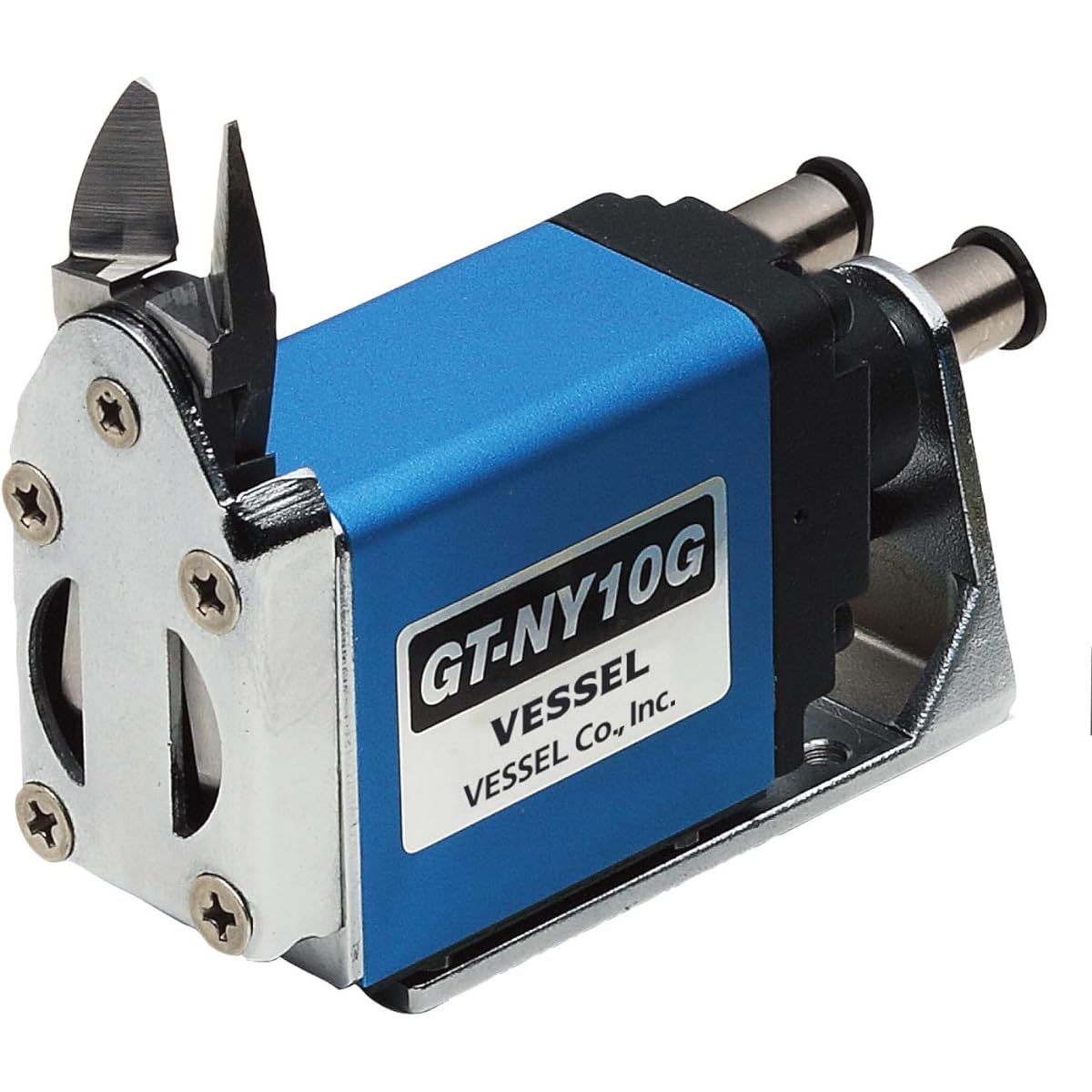

VESSEL Slide Air Nipper Horizontal Type (Capacity φmm: Soft Resin 3.5 Hard Resin 2.3) GT-NY10GR-4
VESSEL Slide Air Nipper Horizontal Type (Capacity φmm: Soft Resin 3.5 Hard Resin 2.3) GT-NY10GR-4
Regular price
$326.00 USD
Regular price
Sale price
$326.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
*Blade is sold separately. Capacity (Φmm): Soft resin 3.5/Hard resin 2.3 Air consumption (cm3/times): 68 Slide direction and range (mm): Push 0~3 Hose installation port specifications: With tube fitting Hose installation port size (Φmm): Inner diameter 2.5 x outer diameter 4 Operating air pressure (Mpa): 0.4~0.5

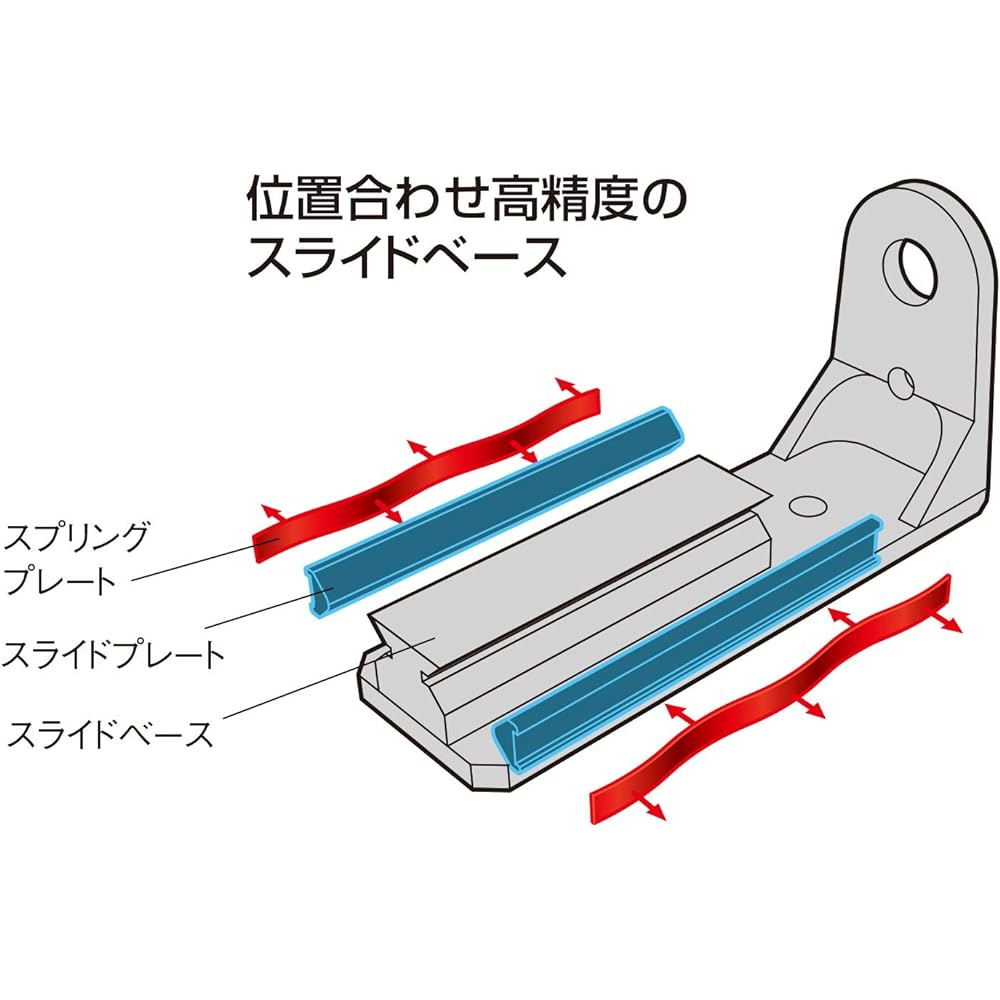

Patented V-shaped slide base that allows for smooth and always stable positioning. Highly accurate gate cutting is achieved because no uneven load is applied. *The images used are for illustrative purposes only and may differ in color and specifications from the actual product.
Brand: VESSEL
Product model number: GT-NY10GR-4
Product size: 8.26 x 5.4 x 2.8 cm; 275 g
Last name on nameplate : Sliding direction Push (tube joint) High precision type
Power supply: Pneumatic type
Laser class: High precision positioning is possible with no rattling or wobbling when sliding and no uncut residue.
br>Accessories: None
Product weight: 275 g
Patented V-shaped slide base that allows for smooth and always stable positioning. Highly accurate gate cutting is achieved because no uneven load is applied. *The images used are for illustrative purposes only and may differ in color and specifications from the actual product.
Brand: VESSEL
Product model number: GT-NY10GR-4
Product size: 8.26 x 5.4 x 2.8 cm; 275 g
Last name on nameplate : Sliding direction Push (tube joint) High precision type
Power supply: Pneumatic type
Laser class: High precision positioning is possible with no rattling or wobbling when sliding and no uncut residue.
br>Accessories: None
Product weight: 275 g
