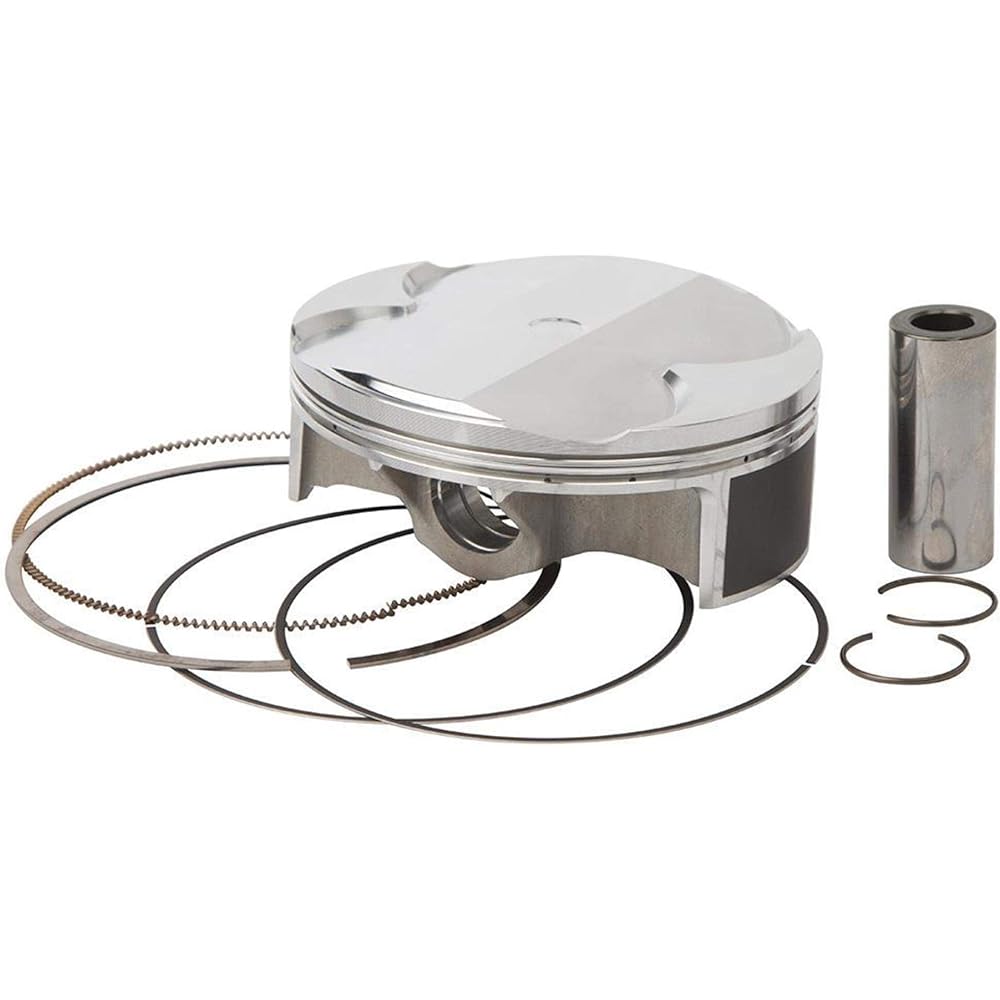

VERTEX Piston Kit KTM 250 SX-F 16 17 17, 250 XC-F 16 17 24097B

All pistons are heat treated with a T-5 hardening and tempering cycle.

Bore: 77.97mm Compression: 14.4:1 compression. Size: Standard Bore All pistons are heat treated with a T-5 hardening and tempering cycle. All piston skirts are coated with a high-tech molybdenum disulfate coating for faster break-in time and improved piston life. The cast piston kit is a gravity cast aluminum alloy (not forged) with 18% silicon content, creating a very light yet very strong piston. Forged pistons are forged from 2618 aluminum for superior strength and durability. Forged high compression piston increases power and torque throughout the rpm range. Big Bore pistons increase engine displacement, torque, and horsepower peaks. Forged replica pistons are forged OE replacements. Replica piston and all rings are OEM replacements. This item is compatible with the following vehicles: Compatible with GasGas MC 250F 2021 Compatible with Husqvarna FC250 2016-2021. Compatible with KTM 250 SX-F 2016-2021. Compatible with KTM 250 XC-F 2016-2021.


Manufacturer: ‎Vertex
Brand: ‎Vertex
Model name: ‎Vertex 24097B
Product size: ‎10.16 x 10.16 x 5.08 cm; 0.2 g
Product model Number: 24097B
Discontinued by the manufacturer: Yes
Exterior condition: Painted
Original part number: KTM 250 SX-F 16 17 18
Product dimensions Depth × Width × Height: ‎10.2 x 10.2 x 5.1 cm
Product weight: ‎0.2 g
