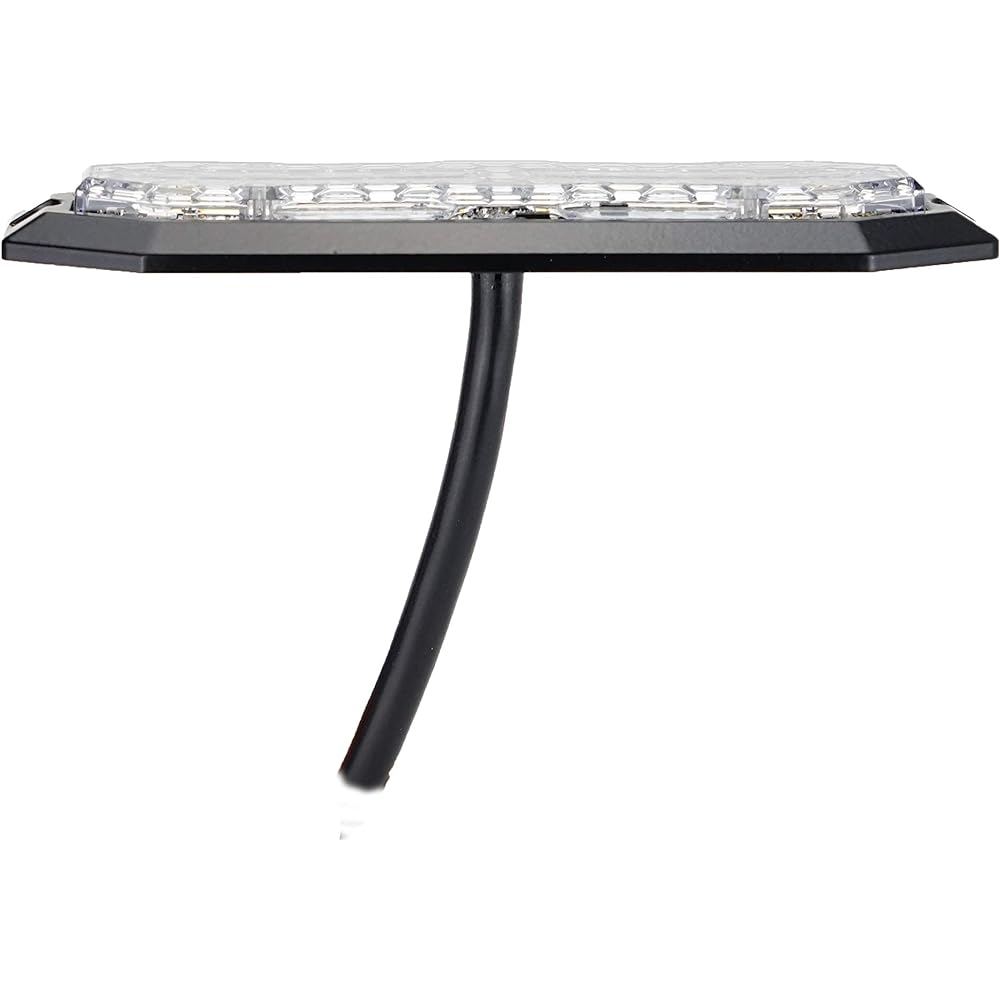

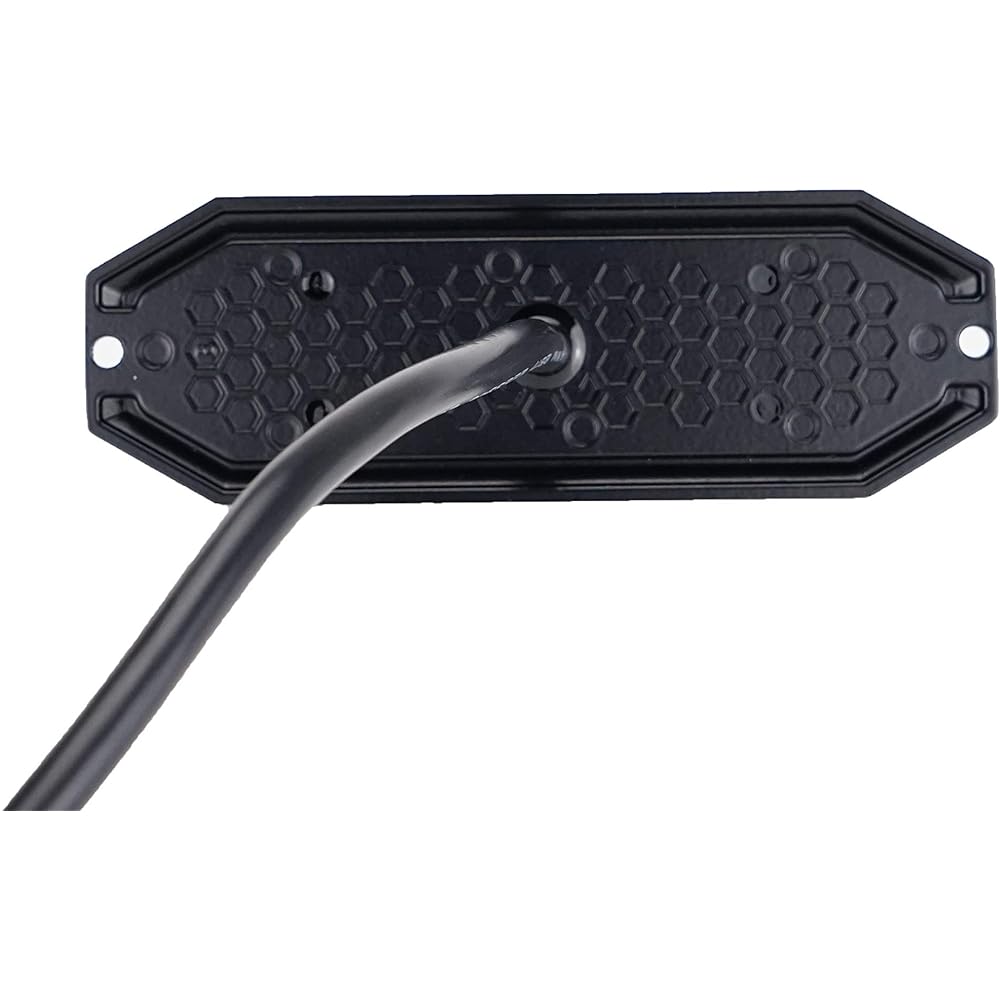

UNICORN Lighting UT01 Surface Mount Warning Emergency Strobe Grill Lighthead [SAE Class 1] [Dual Color]

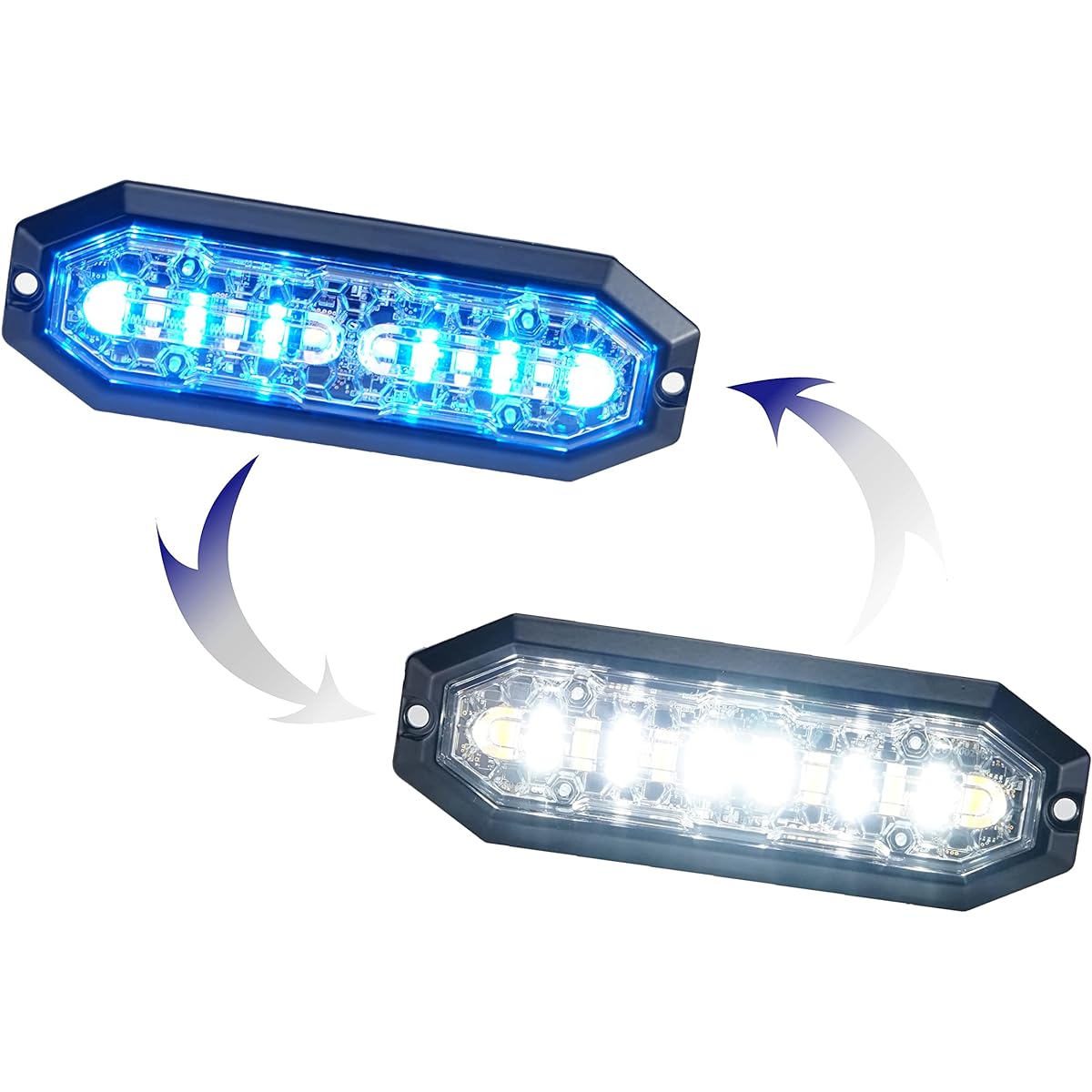

Independent Controls: Two separate wires control two different colors. Can be solid color or flashing instead. Dynamic indicator feature: Flowing running pattern. Can be used as turn/brake/tail light. Waterproof IP68: Tested under 1 meter of water for 1 hour. SAE Certificate: SAE J595 Class 1 and SAE CA Title 13 Class B. Comes with AMECA certificate paper. 3 Year Warranty: Made in Taiwan.

About Unicorn Lighting: Unicorn Lighting is a professional warning light manufacturer in Taiwan. We are committed to providing our customers with innovative and unique lightweight products. Please contact us regardless of your needs. Features: The first light head certified for its dynamic running pattern. Additional directional patterns for indicators and brake functions. Heavy duty aluminum housing improves weather and vibration resistance. 3 years warranty Dual colors with independent controls (2 colors control with different wires). Specifications: Dual Color: AB / AR / AW / BR / BW / RW Input: 12~24 Volt DC. LED: 3W high brightness LED. Number of LEDs: 6+6. Wattage: 18 watts for each color. Certification: SAE J595 Class 1/SAE CA Title 13 Class B Dimensions: 5.19" W x 1.77" H x 0.39" D. Waterproof rating: IP68. Cable length: 9.84 Patterns: 26 warning patterns, 4 dynamic running and 1 steady burning. 5-way pattern, 4 dynamic directivity and 1 stable combustion. Last pattern memory recall Synchronization with simultaneous or alternate flash. Package: UT01 light head x 1 1 x Gasket 1 x screw pack Instruction manual x 1 Note. To synchronize lights, please select simultaneous or alternate flash before installation. To use the directional pattern (excluding steady burn) as an indicator function, attach the green wire directly to the turn signal switch. Stable combustion patterns can be synchronized with indicators. Stable combustion pattern does not maintain full power output to prevent overheating.


Manufacturer: ‎Unicorn Lighting
Brand: ‎Unicorn Lighting
Product size: ‎13.18 x 4.5 x 0.99 cm; 95.25 g
Product model number: ‎UT01-B05122103< br>Position: ‎Back
Special notes: ‎Waterproof
Product dimensions: Depth x Width x Height: 13.2 x 4.5 x 1 cm
Color: ‎Blue/White
Product weight: ‎95.2 g
