XR250 Motard BAJA MD30 Regulator Rectifier Genuine Replacement Reinforcement Set

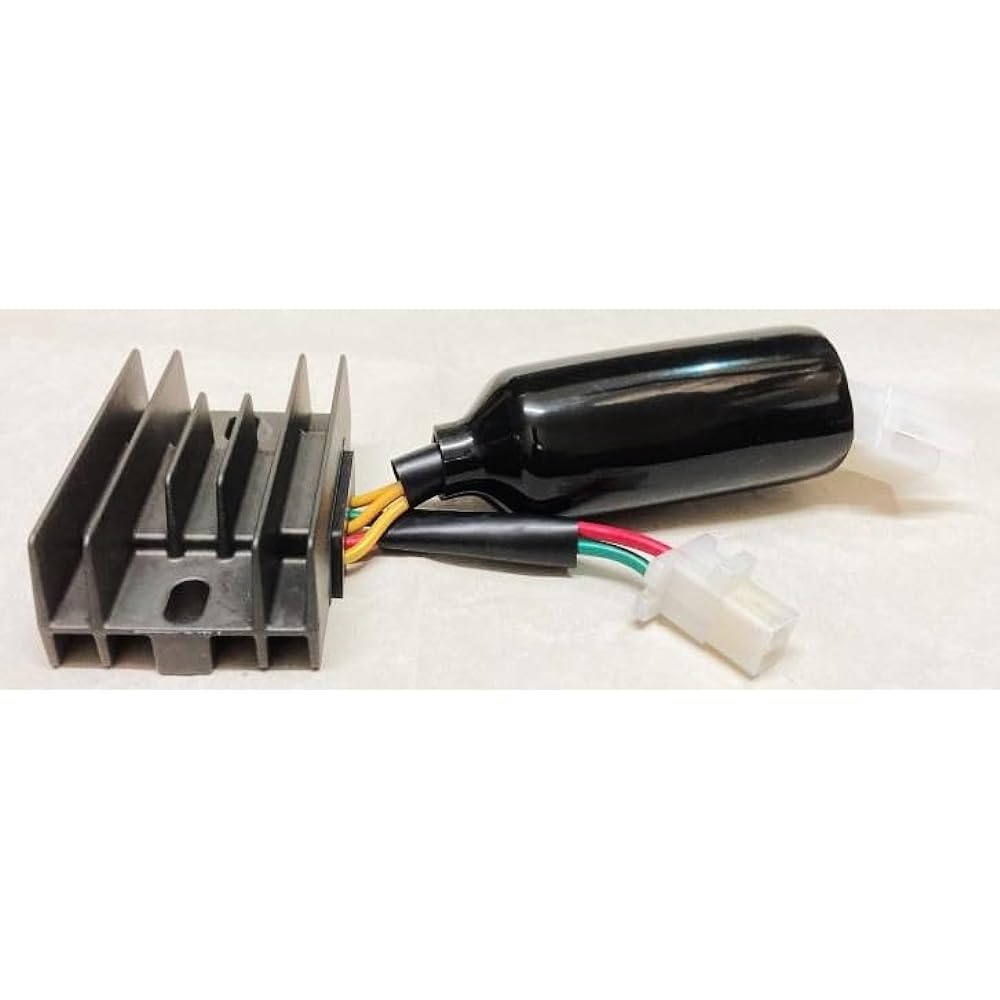

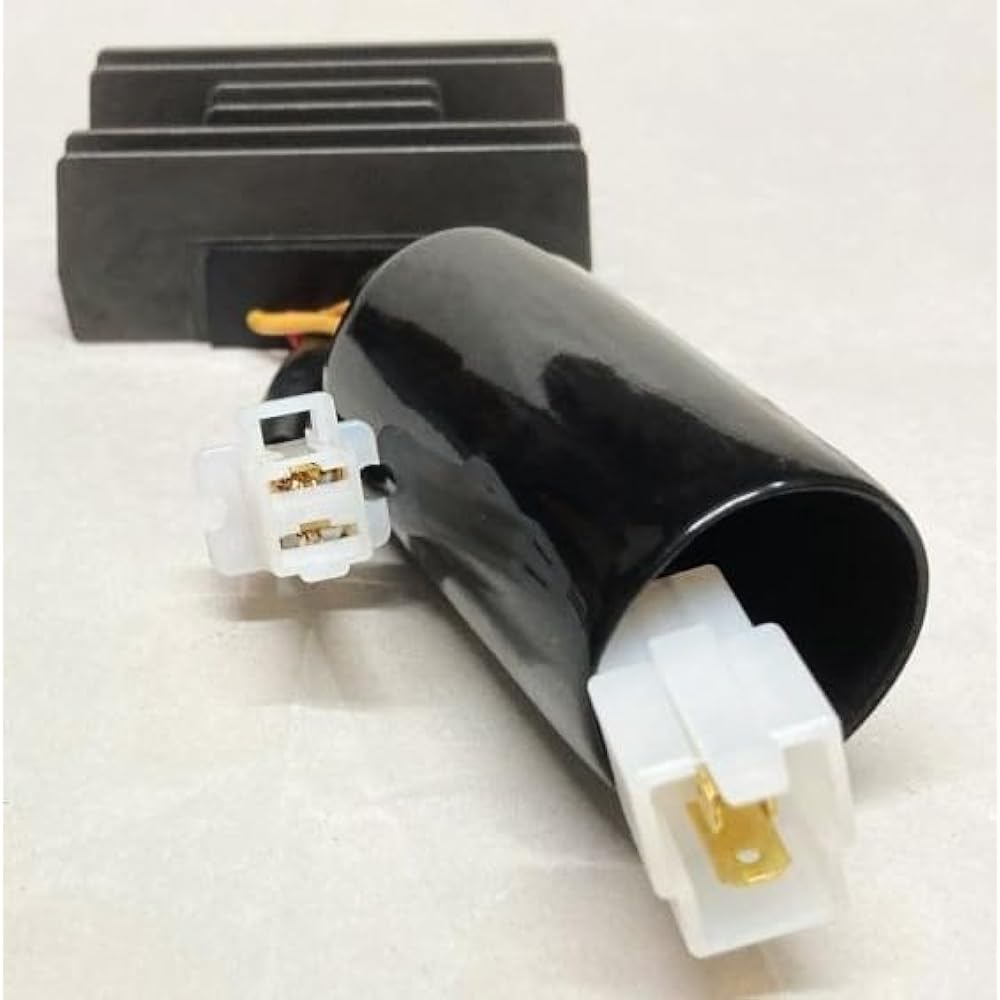

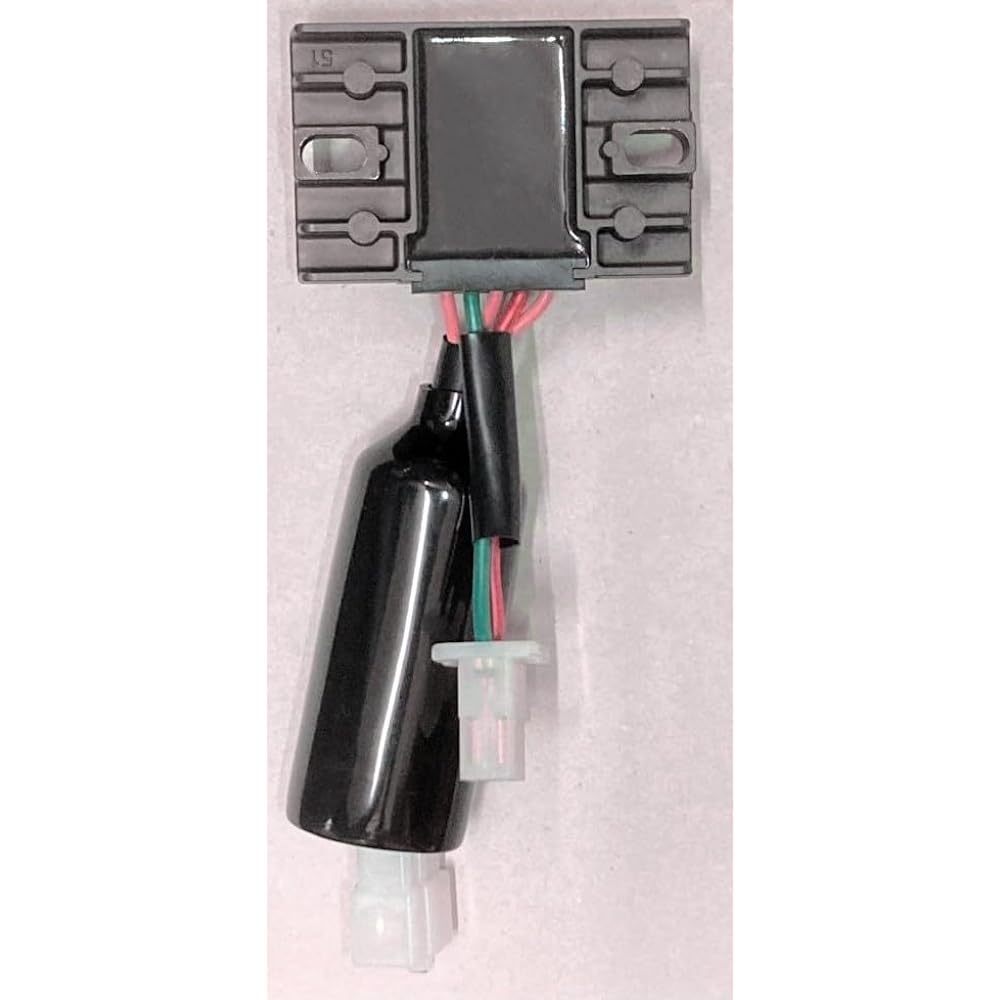

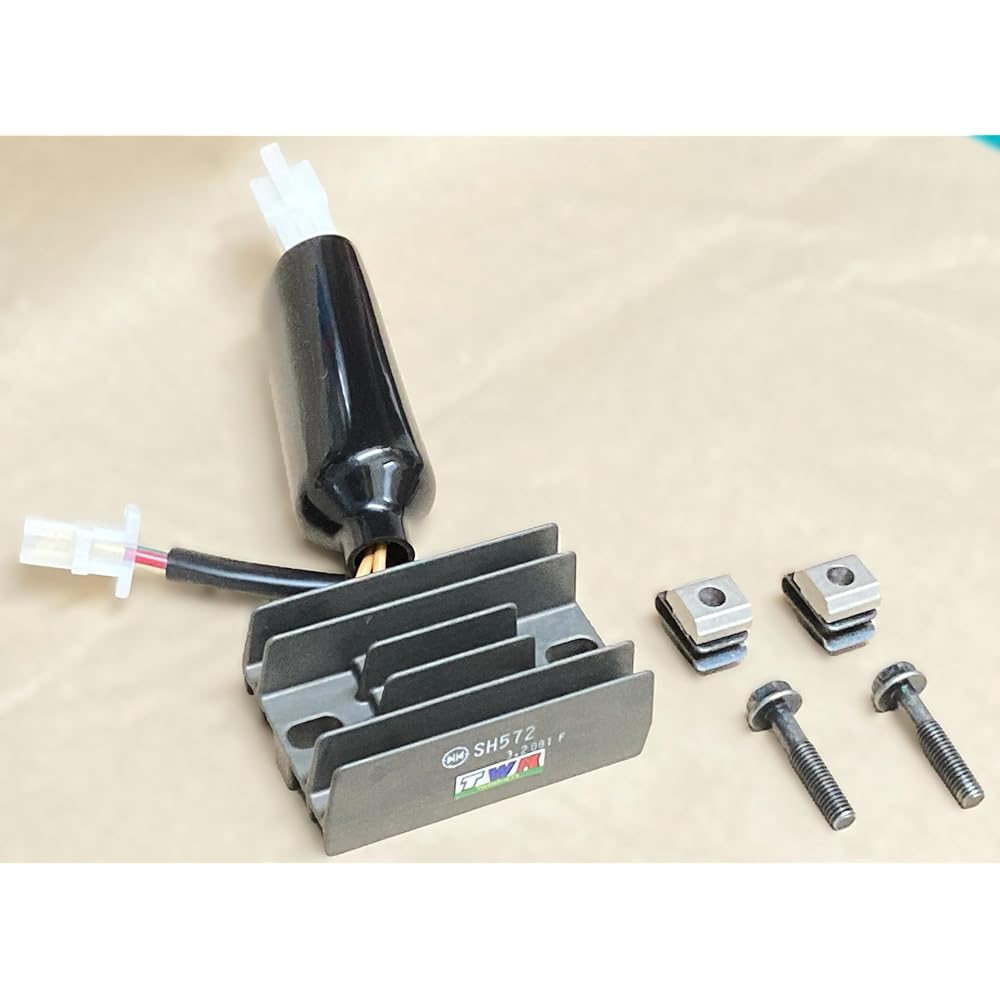

・The regulator/rectifier body is manufactured by a genuine domestic manufacturer to ensure quality and performance *Form: Thyristor *Control voltage: 14.0-14.8V *Control current: 0.5A [Specified values ​​are checked for each production. ] [Image 1-3] *Format: Thyristor *Control voltage: 14.0-14.8V *Control current: 0.5A [Specified values ​​are checked by a tester for each production] - The terminal cable diameter is larger than the genuine product, which reduces vibration and heat.・Connection couplers and terminals are genuine parts from domestic manufacturers, ensuring a reliable connection with the harness body and weather resistance to ensure conductivity [Image 4] ・Connection couplers and terminals are genuine products Uses components from domestic manufacturers to ensure a reliable connection with the harness body and weather resistance to ensure continuity performance [Image 4] - The generator terminal coupler side is equipped with a coupler cover with the same specifications as 2003 models and later models to prevent moisture. Protects from dirt and dust [Image 5] - The terminal cable does not bend like the genuine one and can be wired easily, avoiding internal disconnections due to vibration [Image 6 top: genuine *bottom: reinforced set] - The regulator body is not bent. By processing the floating set in the genuine mounting position, air outlets are created throughout the entire body including the bottom, improving ventilation and cooling efficiency, and greatly improving heat dissipation performance [Image 7 left: genuine * right: reinforced set] - Float In consideration of heat conduction, the block is dimpled on the entire surface, similar to the AI ​​system cancel plate that we are distributing, to achieve a surface area effect and achieve excellent heat dissipation performance, while also ensuring a space that does not affect the seat base [Image 8: Genuine * Image 9: Enhanced set]

★ A regulator/rectifier (hereinafter referred to as regulator) converts AC electricity generated by a generator into DC and adjusts it to a voltage value suitable for battery charging, starts the starter motor, ignites spark plugs, and controls the illuminance of headlights, turn signals, etc. This is an electronic part that converts the voltage to the optimum voltage and stably supplies electricity to each lighting device. However, when converting current using an internal semiconductor element, excess voltage is converted into heat and is constantly radiated to the outside of the main unit. Therefore, if semiconductor elements are exposed to heat for an accumulated period of time, they will deteriorate. In addition, there are some genuine units that have been operating for a long time and are thought to be maintenance-free, but even within the coupler, arcing and burning may occur due to poor contact of the terminals due to moisture or dust, or even minor contact. This is likely to occur, so if there is poor continuity, charging pressure will be insufficient and this will put a strain on the regulator. ★ The regulator plays an important role in charging the battery, and if it breaks down, the battery will naturally die, making it impossible to start or causing the engine to suddenly stop without warning while driving.It is a very important electronic part. Normally, regulators are consumable items that need to be replaced regularly, but since the genuine parts are no longer in production, some owners are replacing them with second-hand products or general-purpose non-brand products from overseas. However, many of the general-purpose parts on the market have quality and compatibility issues, which can also affect other electrical parts that are working properly. ★So, based on the opinions received from many owners of the XR250 series, we not only improved the quality and performance of the genuine parts, but also improved the installation method to significantly improve heat dissipation performance. We have prepared an enhanced replacement set that protects internal semiconductor elements and has a long service life. ★ Equipped with a regulator/rectifier that improves the weak points of the genuine product and a special stay specializing in heat dissipation measures, which is one of the few available today, it is possible to maintain the performance and durability of the main unit for a long time without changing the installation location. This is a replacement reinforcement set exclusively for the genuine XR250 series. ◆ This set is a sample of the results of installing a heat dissipation proto-stay on the genuine regulator/rectifier of a 97' Based on research, it is constructed with all new parts.


Manufacturer: ‎TWR PRODUCTS
Brand: ‎TWR
Manufacturer Reference: ‎XR250-MD30REG-LKS
