Auto Parts Tokyo
Tusnoda Crimping Tool for Bare Terminals and Sleeves 5.5/8/14/22 TP-22
Tusnoda Crimping Tool for Bare Terminals and Sleeves 5.5/8/14/22 TP-22
Regular price
$93.00 USD
Regular price
Sale price
$93.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

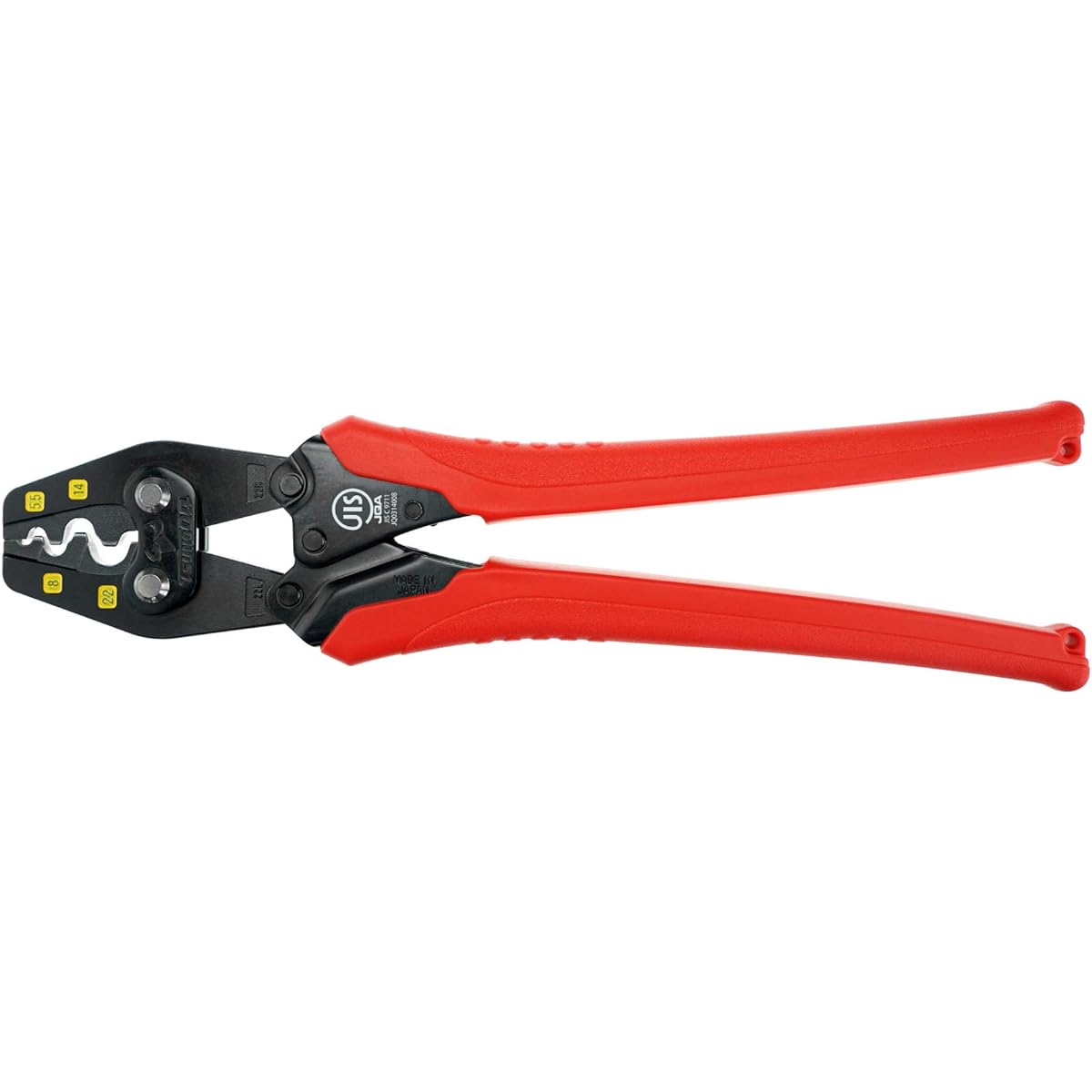

JIS certified product Size: Total length 345, Head width 63, Head thickness 7, Handle width 86mm, Weight: 760g Applicable terminal size (mm2): 5.5/8/14/22 Head material: For machine structure Alloy steel, handle covering: Elastomer molded grip Country of origin: Japan

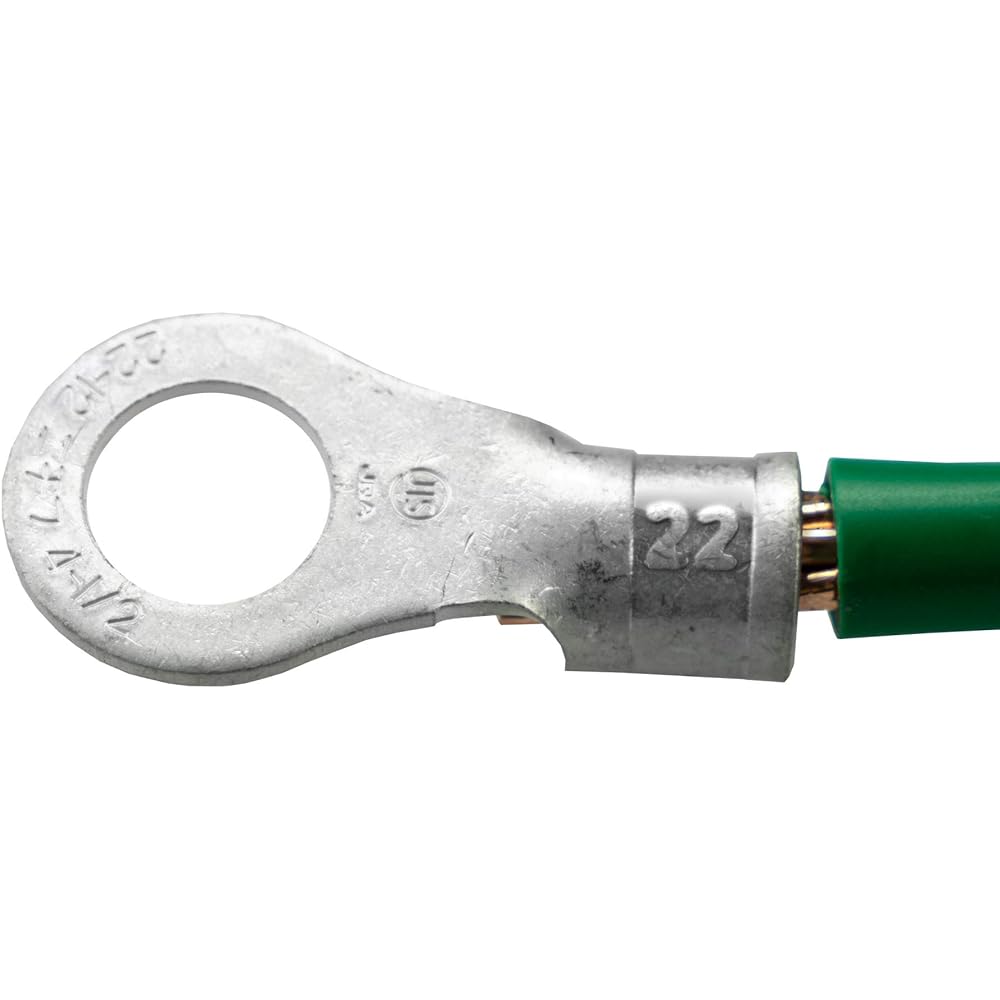

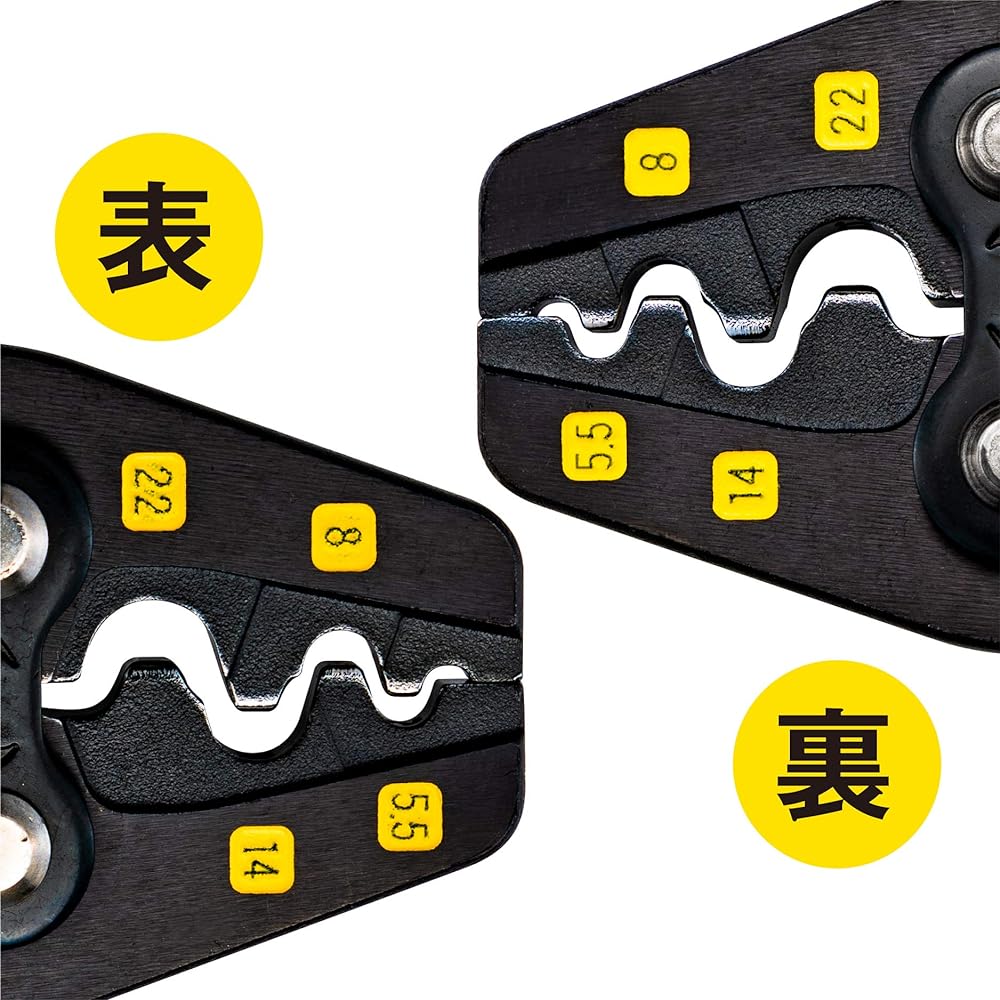

Safe and reliable for bare crimp terminals and bare crimp sleeves. Speedy crimp. JIS certified product Passed each test Durability Continuous testing 30,000 times Tensile load Vibration Fatigue Salt water spray Electrical resistance Heat cycle Temperature rise Easily holds terminals and sleeves of different sizes. Color markers on both sides make it easy to check the size and improve work efficiency. Adopts a toggle mechanism to reduce the required grip force per unit stroke. Even those with weak grip strength can obtain the necessary crimp force. The elastomer grip is gentle on the hands, allowing continuous work without fatigue. All products have a high-precision finish crimping mark made of lost wax (precision casting) that prevents the handle from opening unless the crimping is clearly completed. As this tool is used for wiring, all items are inspected for safety reasons.The grip has a safety cord hole.
Brand: Tsunoda
Product model number: TP-22
Product size: 34.5 x 8.6 x 2 cm; 760 g
Color: red,black
Name on nameplate: 5.5/8/14/22
Wallpaper pattern: Single item
Quantity: 1
Accessories: None
Battery included: No
Warranty: None
Product weight: 760 g
Safe and reliable for bare crimp terminals and bare crimp sleeves. Speedy crimp. JIS certified product Passed each test Durability Continuous testing 30,000 times Tensile load Vibration Fatigue Salt water spray Electrical resistance Heat cycle Temperature rise Easily holds terminals and sleeves of different sizes. Color markers on both sides make it easy to check the size and improve work efficiency. Adopts a toggle mechanism to reduce the required grip force per unit stroke. Even those with weak grip strength can obtain the necessary crimp force. The elastomer grip is gentle on the hands, allowing continuous work without fatigue. All products have a high-precision finish crimping mark made of lost wax (precision casting) that prevents the handle from opening unless the crimping is clearly completed. As this tool is used for wiring, all items are inspected for safety reasons.The grip has a safety cord hole.
Brand: Tsunoda
Product model number: TP-22
Product size: 34.5 x 8.6 x 2 cm; 760 g
Color: red,black
Name on nameplate: 5.5/8/14/22
Wallpaper pattern: Single item
Quantity: 1
Accessories: None
Battery included: No
Warranty: None
Product weight: 760 g
