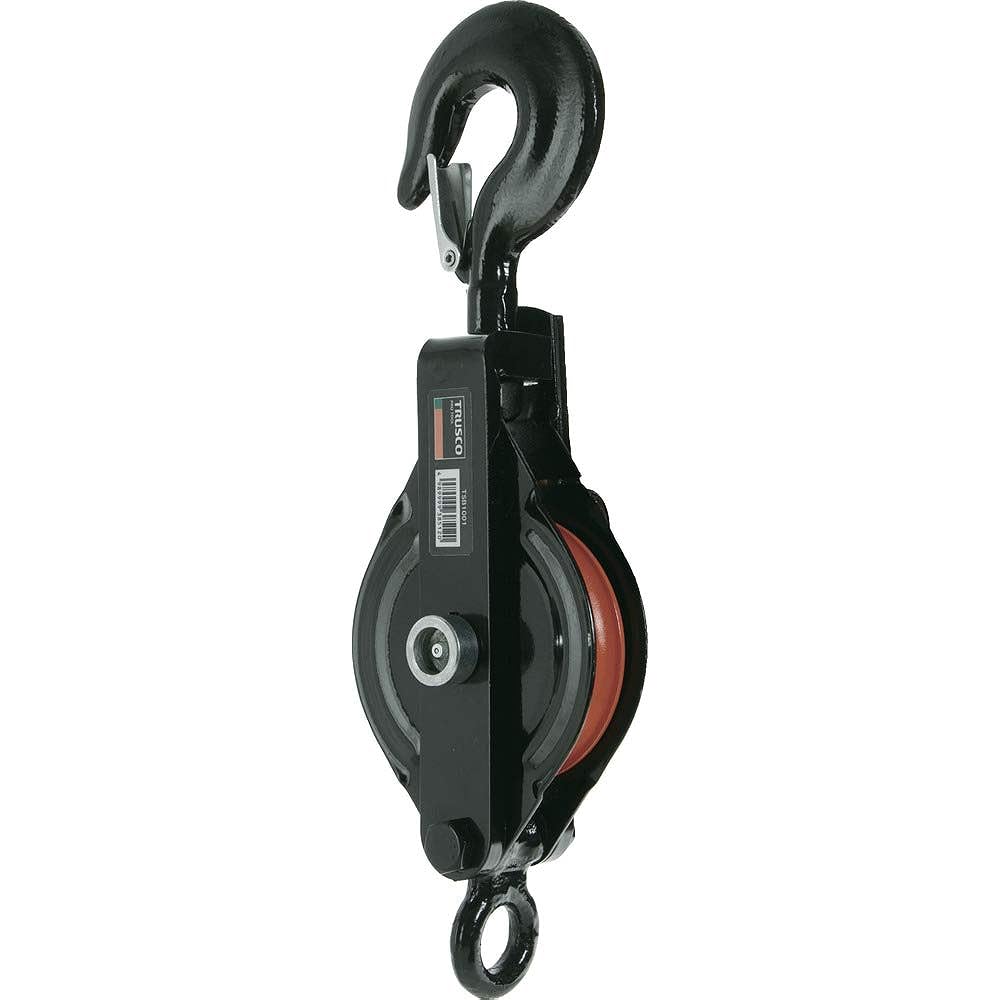

TRUSCO Strong Pulley Snatch Hook Type 100mm TSB1001

Basic operating load (t): 1.00 Vehicle diameter (mm): 100 Maximum operating rope diameter (mm): 16 Number of vehicles: 1 Dimensions (mm) A: 345 Dimensions (mm) B: 112 Dimensions (mm) C: 50 used Load (kN): 10 Sheave bearing: Gunmetal (copper alloy) Snatch type grease nipple with becket Steel

Since the side plate opens, it can be attached even from the middle of the rope. Comes with a grease nipple so you can lubricate without disassembling it. There is an oil reservoir inside the axle, so it is lubricated for a long time and rotation is stable. For lifting and pulling cargo etc. by passing a rope through it. Caution (Disclaimer) > Please read ●Delivery times cannot be specified.●The working load is the value for a movable pulley.If used as a fixed pulley, it will be halved.●Be sure to close the side plates. Please use it in this condition. ●When refueling, please do not use the chucking type nozzle of the grease gun. It may not come out.


Manufacturer: TRUSCO
Part number: ‎TSB1001
Item weight: ‎2.97 Kilograms
Packing size: ‎35.4 x 12.9 x 10.1 cm; 2.97 kg
Size: ‎100mm
Style: ‎One car
Material : ‎Steel
Accessories: ‎None
Uses batteries: ‎No
