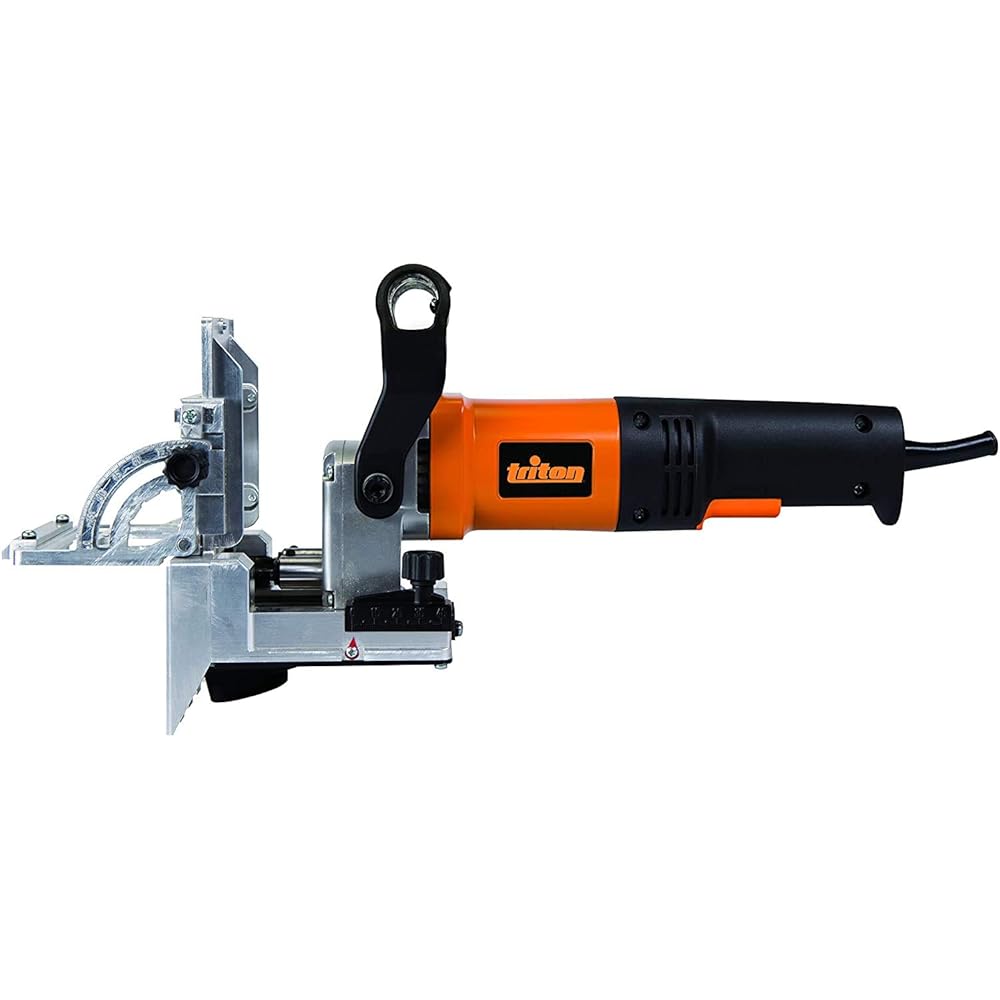

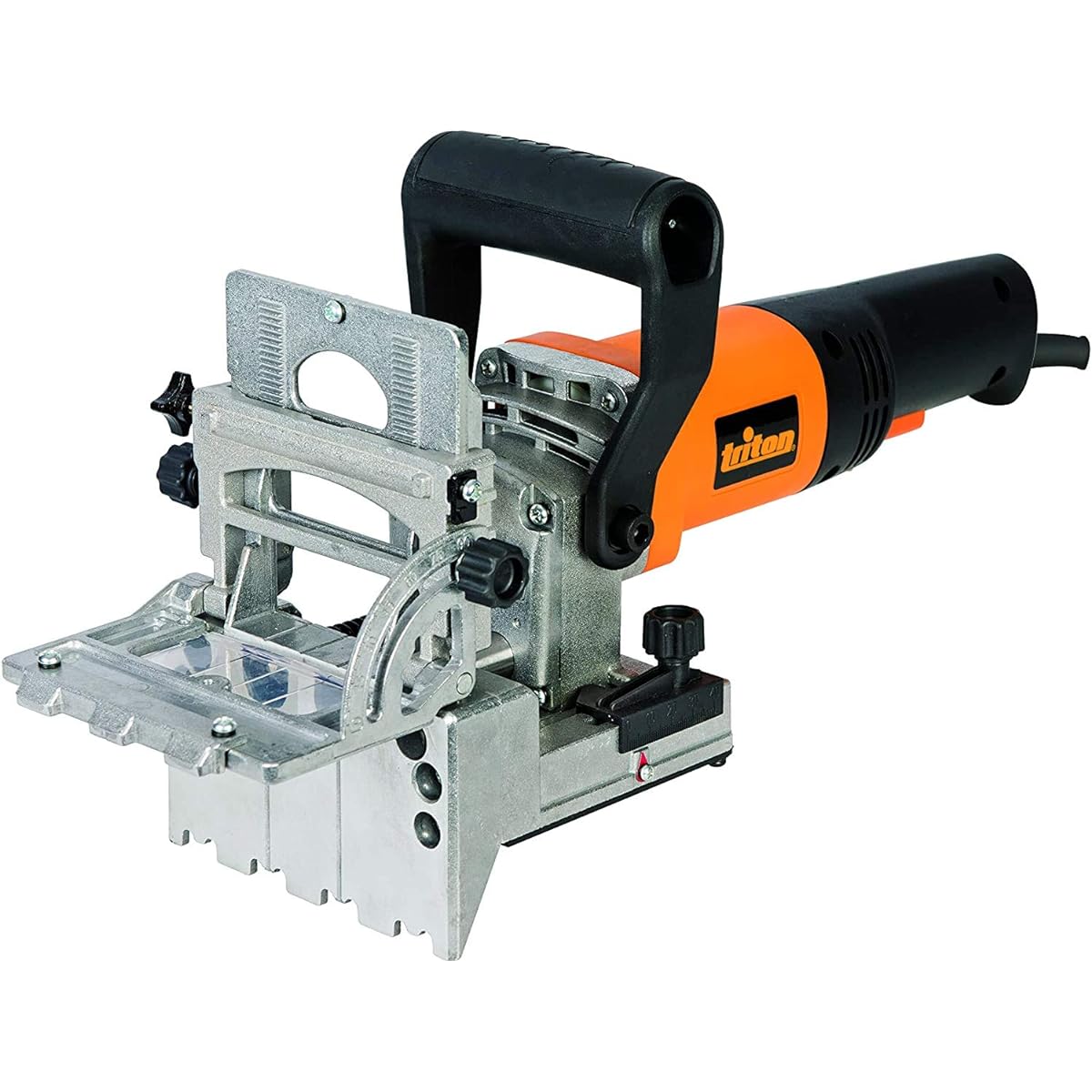

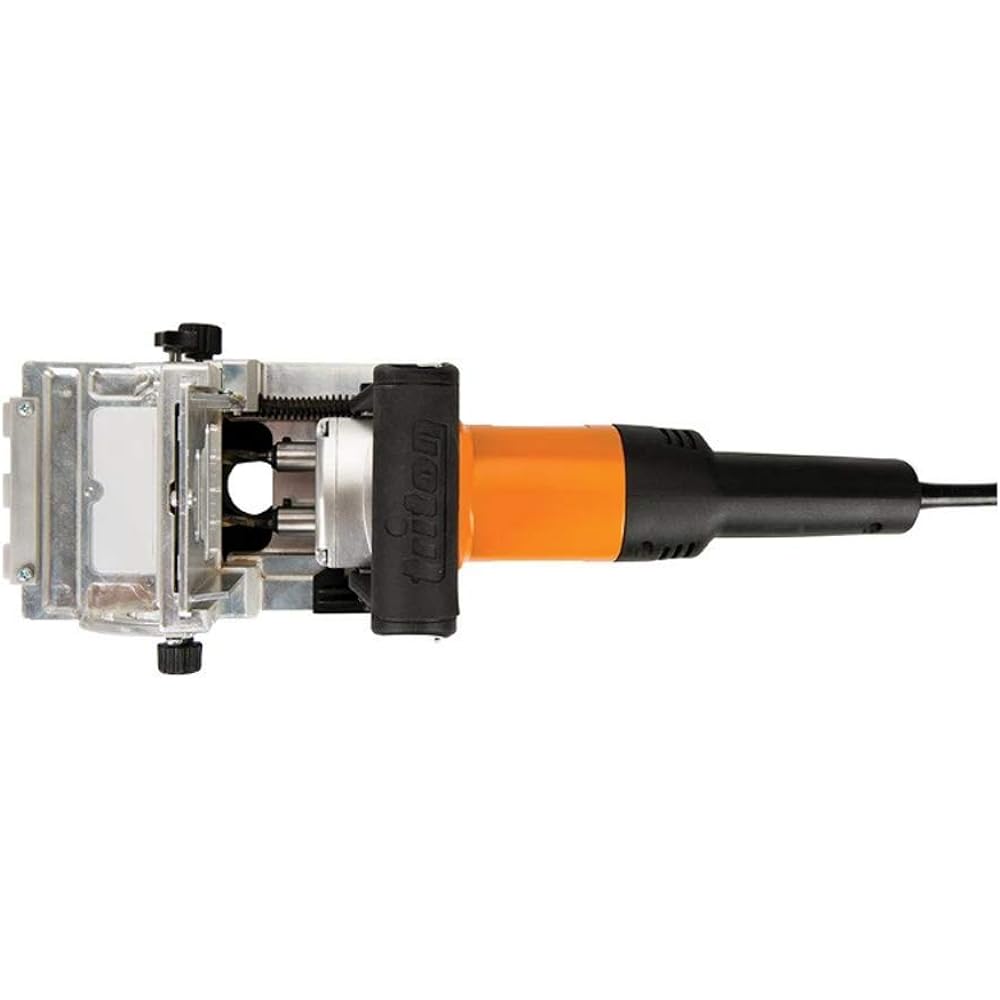

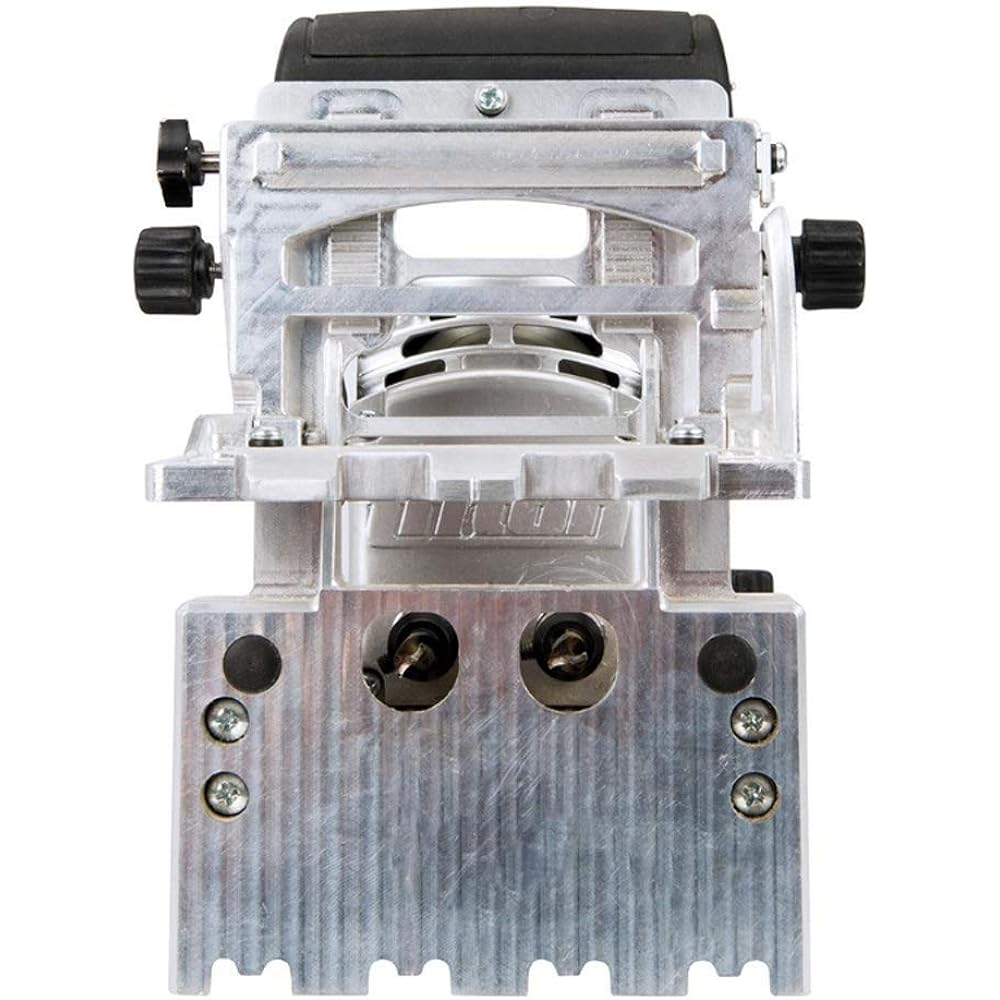

Triton Dowel Jointer 570W TDJ600 Drilling work

For drilling holes for dowel joints You can accurately control the height, depth, and angle of holes for dowel joints, and simultaneously drill two holes at 32 mm intervals with one action.Rotation speed: approx. 14,000 min-1 Hole depth Adjustment: 0 to 38mm, Hole spacing: 32mm Set contents: TDJ600 dowel jointer 570W x 1, 8mm drill bit x 2 (already installed), hex wrench x 1, replacement carbon brush x 1 set, Storage carry bag x 1, instruction manual x 1

The powerful 570W motor allows you to simultaneously drill two holes for dowel joining at 32mm intervals, making it convenient for making furniture, bookshelves, etc. Comes with a fence that can be adjusted from 0 to 90° depending on the work. The depth of the hole can be set from 0 to 38mm. Rack and pinion system allows precise height adjustment. The collapsible fence and transparent window with scales make it easy to see and work. A handle that can store a spanner for bit replacement. Includes two 8mm drill bits and a storage carrying bag. [Features] Rack and pinion type height adjustment function allows accurate height adjustment according to the thickness of the processed material. Depth setting is easy and allows you to accurately set the hole depth required for joining wood. Work is quick because you can drill two dowel holes at the same time. The fence can be adjusted to an angle of 0 to 90º. The transparent window with scale makes it easy to see and work. With front auxiliary handle. Comes with a dust collection port that allows you to connect a dust collector, creating a clean and safe working environment. Easy to operate with trigger switch. [Specifications] Voltage: 100V~ 50/60Hz Current consumption: 5.9A Power consumption: 570W Rotation speed: Approx. 14,000min-1 Hole spacing: 32mm Hole depth adjustment: 0 to 38mm Drill diameter: 8mm (2 pieces) Fence Angle adjustment: 0-90° Height adjustment: 9-43mm Protection class classification: IP20 Protection class: Class II construction (double insulation for additional protection) Cord length: 3m Body size: Approx. W470× H220×D155mm Weight: Approx. 2.9kg Rated time: 30 minutes Sound pressure LPA: 88.4dB(A) Sound power LWA: 99.4dB(A)


Brand: Triton
Product model number: ‎TDJ600
Package size: ‎40.13 x 23.11 x 16.51 cm; 3.92 kg
Name on nameplate: ‎a. Dowel jointer TDJ600 main body
Power supply: ‎Power cord type
Voltage: 100 Volts Wattage: 570 W Accessories: 2 8mm drill bits (installed), 1 hex wrench, 1 set of replacement carbon brushes, 1 storage carry bag pcs, instruction manual x 1 book
Maximum rotation speed (revolutions/min): ‎14000 rotations per minute
About the warranty: ‎6 months from the date of purchase *Based on the provisions of the warranty.
Product weight: ‎3.92 Kilograms
