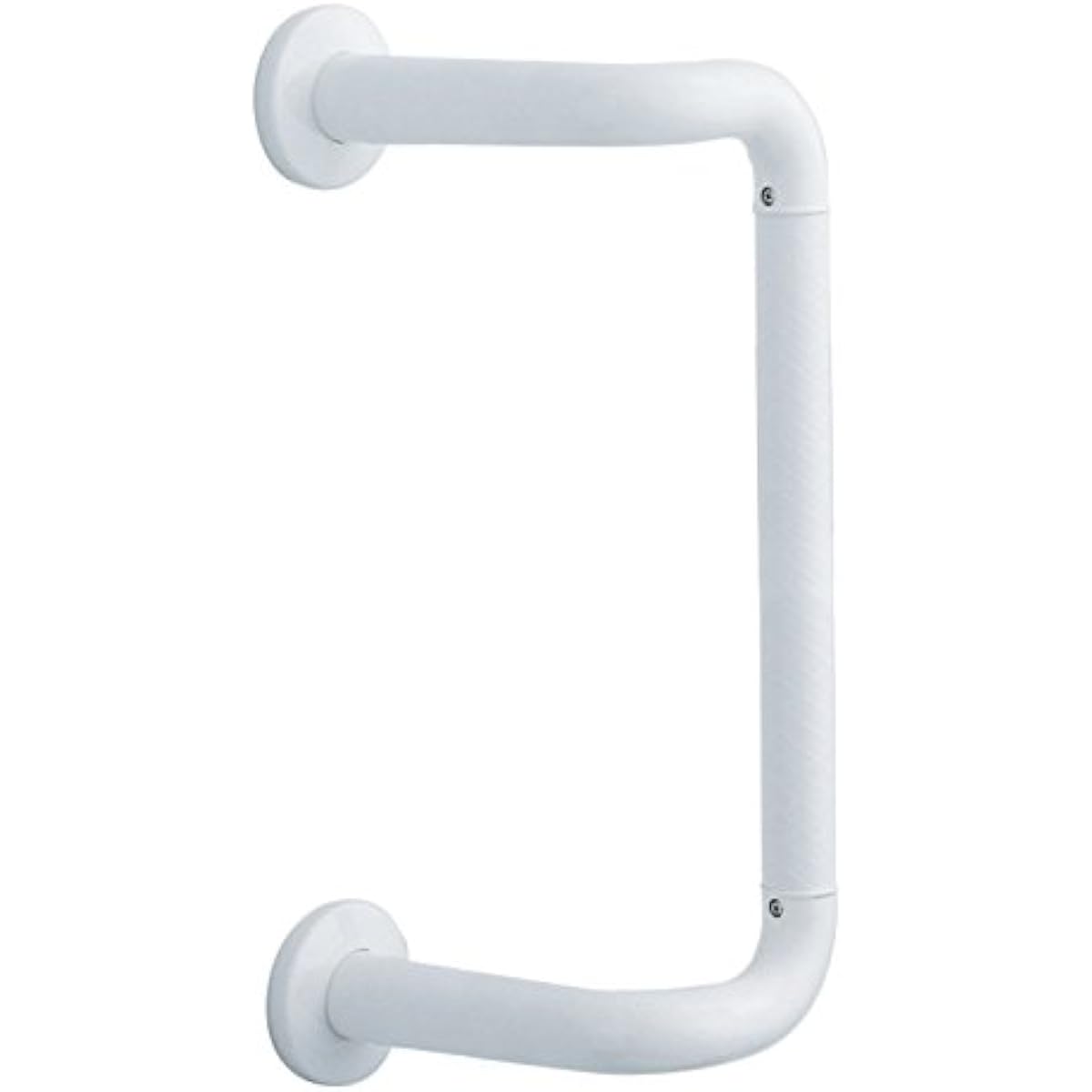

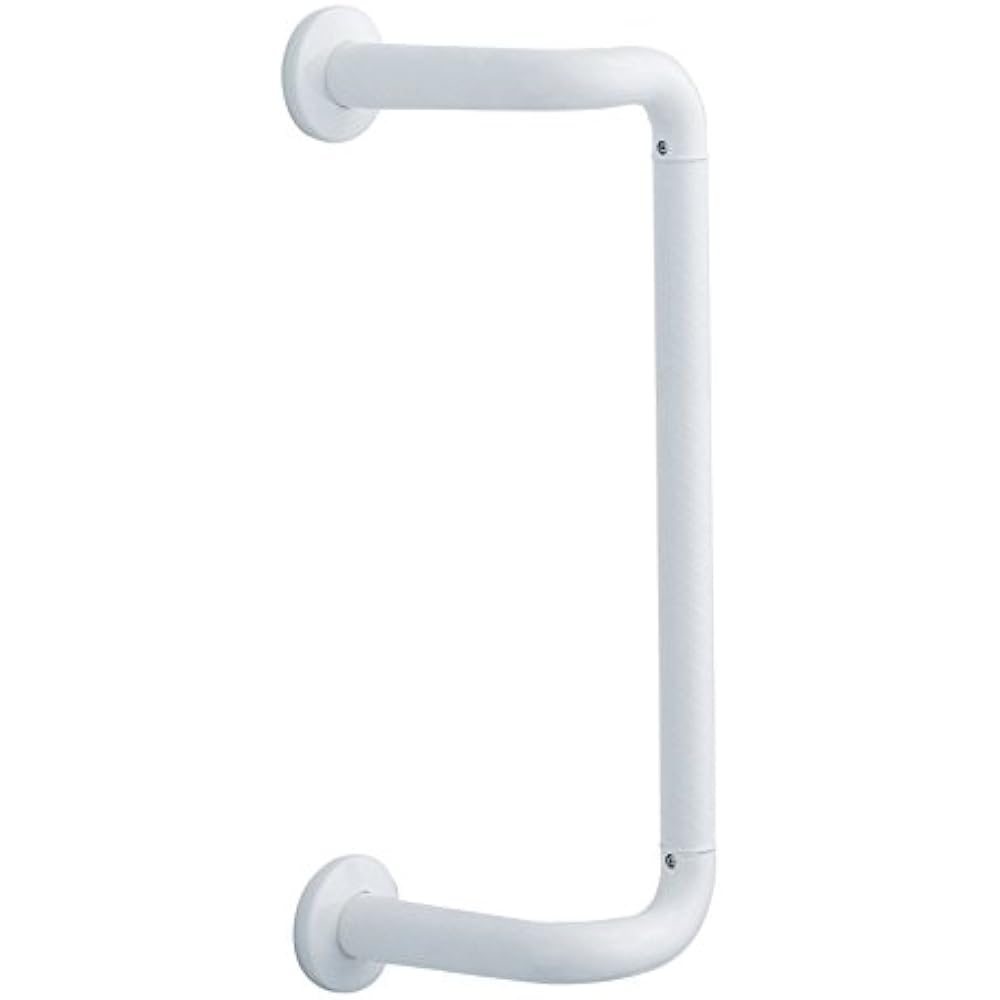

TOTO Residential handrail (offset type/for swinging doors) White TS136GEY4#NW1

Installation conditions: Requires plywood with a thickness of 1.2 cm or more, or a base material of an equivalent thickness. If installing on a concrete base, please purchase fixing fittings (resin plug) separately. Load capacity: Vertical load 1kN, horizontal load 800N Size: Mounting center 40cm, front dimension 12cm, grip diameter 3.2cm Soft mesh type: Soft resin with a soft feel, mesh pattern prevents slipping. (Grip material: stainless steel + soft resin, cover/elbow material: resin) 4 screws fixed (included) [Interior bar F series] Offset type/for hinged doors: For entrances and exits, place it in an easy-to-grip position near the door. For installation. *Cannot be used as a side handrail. Install 4cm away from the door frame.

The interior bar F series has evolved to be "non-slip" and "easy to grip," while also achieving an affordable price. The grip is made of soft resin and has a mesh pattern to prevent slipping.


Brand: ‎TOTO
Product model number: ‎TS136GEY4#NW1
Product size: ‎50 x 12 x 21 cm; 1.39 kg
Color: ‎White
Battery Included: ‎No
Product weight: ‎1.39 Kilograms
