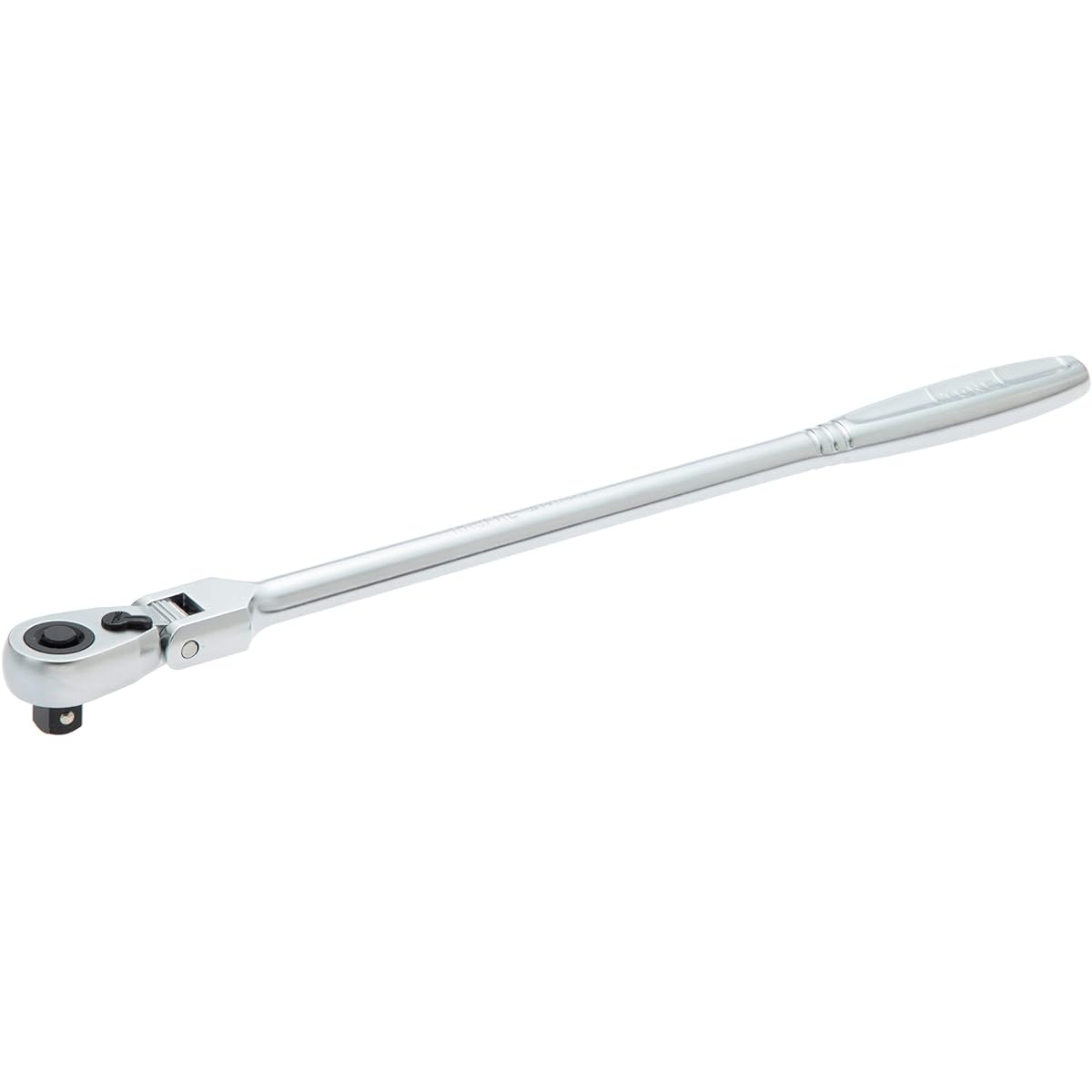

TONE Long Swing Ratchet Handle (Hold Type) RH3FHL Drive Angle 9.5mm (3/8")
TONE Long Swing Ratchet Handle (Hold Type) RH3FHL Drive Angle 9.5mm (3/8")
Regular price
$57.00 USD
Regular price
Sale price
$57.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Drive angle: 9.5 mm (3/8 inch) Dimensions: Total length 327 mm x Width 26.5 mm x Thickness 26.5 mm Mass: 390 g Number of teeth: 72 Wedge type Feed angle: 5° With socket hold mechanism
Although it has a form that eliminates the utmost in waste, it is equipped with high-dimensional functions that cannot be seen from the outside. The head has 72 gears built-in to achieve a feed angle of 5°. By increasing the number of teeth and using a new mechanism (wedge type) in which the gear and cam mesh in 8 stages, we have achieved both reliable work and efficient operability. The new click sound, which resonates slowly and lightly, will immerse you in your work. Don't give up on evolution. Utilizing technology and know-how, we have reduced waste to the utmost and achieved a thin, lightweight, and compact product. Pursuing high-dimensional operability and functionality. ``Sophisticated streamlined form'' that balances grip comfort and texture. The new oscillating ratchet handle has a new mechanism that allows you to adjust the angle in 15° increments when you want to access bolts etc. in narrow spaces, or in narrow spaces where the swing width is restricted and difficult to work with the standard ratchet handle. , allowing smooth continuous work without loss.
Brand: TONE
Product model number: RH3FHL
Product size: 32.7 x 2.65 x 2.65 cm; 390 g
Color: Gray
Name on nameplate: Long
Accessories: None
Product weight: 390 g
Although it has a form that eliminates the utmost in waste, it is equipped with high-dimensional functions that cannot be seen from the outside. The head has 72 gears built-in to achieve a feed angle of 5°. By increasing the number of teeth and using a new mechanism (wedge type) in which the gear and cam mesh in 8 stages, we have achieved both reliable work and efficient operability. The new click sound, which resonates slowly and lightly, will immerse you in your work. Don't give up on evolution. Utilizing technology and know-how, we have reduced waste to the utmost and achieved a thin, lightweight, and compact product. Pursuing high-dimensional operability and functionality. ``Sophisticated streamlined form'' that balances grip comfort and texture. The new oscillating ratchet handle has a new mechanism that allows you to adjust the angle in 15° increments when you want to access bolts etc. in narrow spaces, or in narrow spaces where the swing width is restricted and difficult to work with the standard ratchet handle. , allowing smooth continuous work without loss.
Brand: TONE
Product model number: RH3FHL
Product size: 32.7 x 2.65 x 2.65 cm; 390 g
Color: Gray
Name on nameplate: Long
Accessories: None
Product weight: 390 g
