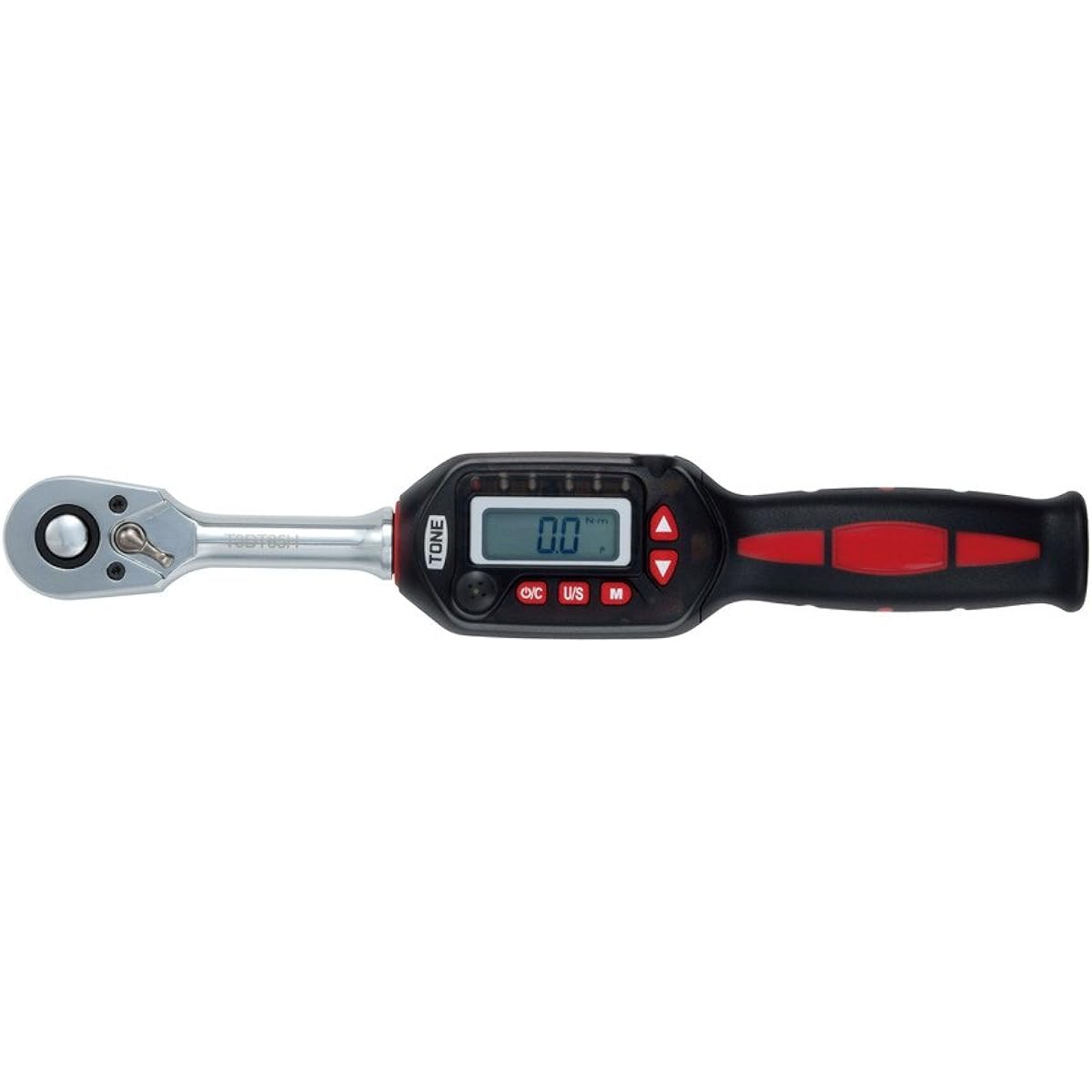

TONE Ratchet Digitorque T3DT85H Drive Angle 9.5mm (3/8") Black 85N・m
TONE Ratchet Digitorque T3DT85H Drive Angle 9.5mm (3/8") Black 85N・m
Regular price
$328.00 USD
Regular price
Sale price
$328.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

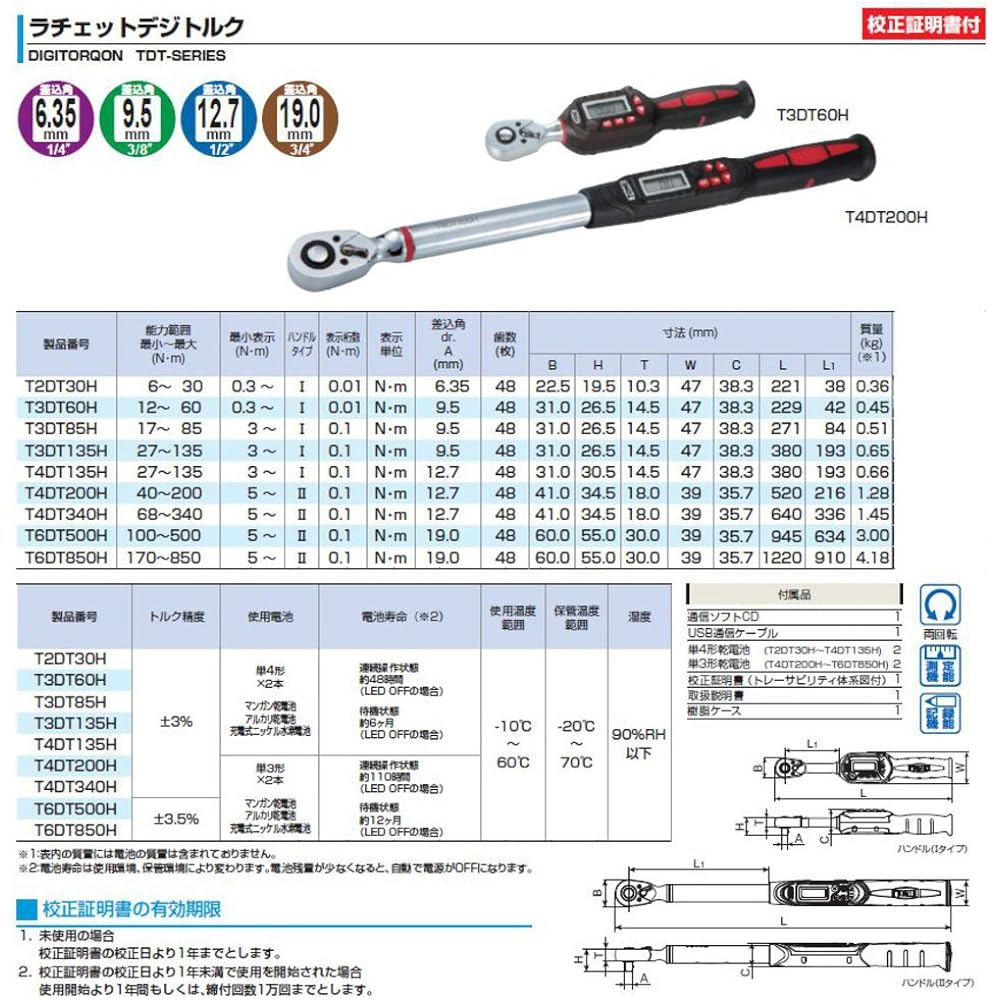

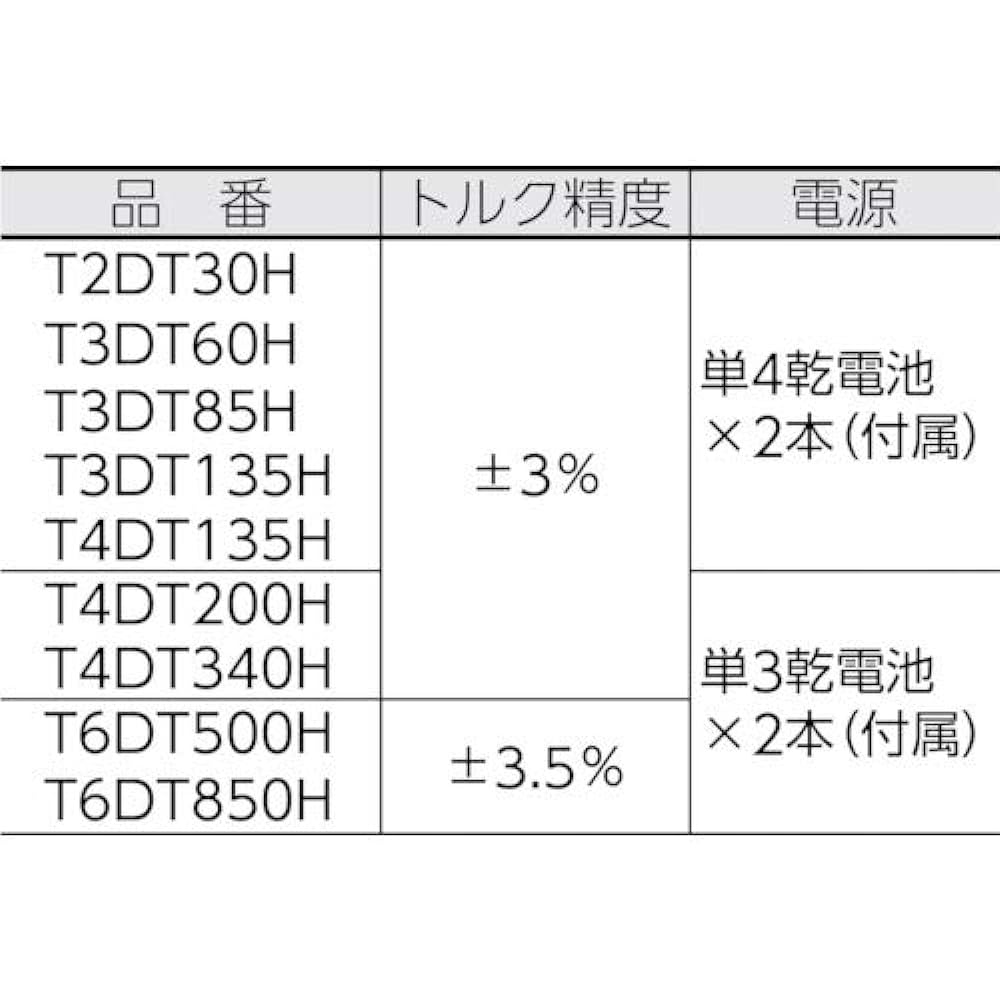

Drive angle dr.A (mm): 9.5 Specifications 1: Capacity range Minimum~Maximum (N・m) 17~85/Minimum display (N・m) 3~/Number of display digits (N・m) 0.1 /Display unit N・m/Number of teeth (pieces) 48/Torque accuracy +-3% Specification 2: Operating temperature range -10℃~60℃/Storage temperature range -20℃~70℃/Humidity 90%RH or less Specification 3 :Batteries used: 2 x AAA batteries / Usage life: Approximately 48 hours in continuous operation (when LED OFF), approximately 6 months in standby mode (when LED OFF) *Battery life varies depending on the usage and storage environment. When the battery level becomes low, the power will turn off automatically. Specification 4: Tightening status notification function, pass/fail judgment function, data storage/transfer function, measurement mode switching function, support for measurement in both left and right directions, calibration certificate included, sensor-equipped grip Dimensions: Total length 271 mm, weight 0.51 kg (battery weight included) (Not included) Accessories: Communication software CD x 1, USB communication cable x 1, AAA batteries x 2, calibration certificate (with traceability system diagram) x 1, instruction manual x 1, resin case x 1, calibration certificate Deadline: If unused, 1 year from the calibration date on the calibration certificate/If used less than 1 year from the calibration date on the calibration certificate, 1 year from the start of use, or up to 10,000 times. Masu.

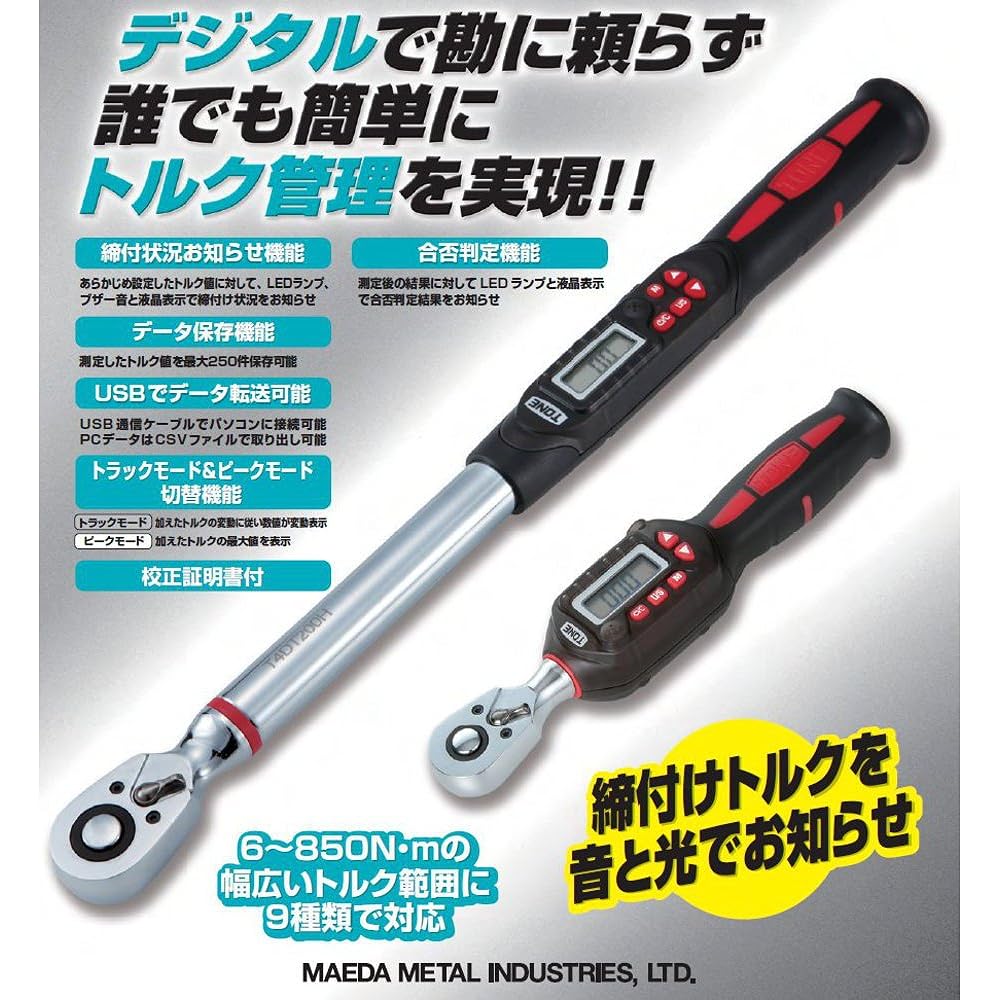

Anyone can easily manage torque using digital technology without relying on intuition. (Tightening status notification function) You can register a total of 9 target torques in advance. The tolerance for pass/fail judgment can be set in 1% increments, and if the pass/fail judgment function is set to ON, the pass/fail judgment result will be notified with an LED lamp, buzzer sound, and LCD display after measurement. (Pass/Fail Judgment Function) Up to 250 measured torque values can be registered. If you connect it to your computer using the included USB communication cable, you can transfer it as a CSV file. (Data storage/transfer function) Measurement is possible in track mode (displays numerical values that fluctuate according to changes in applied torque) and peak mode (displays the maximum value of applied torque). (Measurement mode switching function) Measurement in both left and right directions is possible. (Can measure in both left and right directions) Comes with a calibration certificate proving that it has been calibrated using the standard device used that is traced based on national standards. (Calibration certificate included) Even if the grip deviates from the center line of pressure, accurate torque measurement is possible using the sensor inside the grip. (Grip equipped with sensor) Socket can be attached and detached with one push operation. The socket is easy to replace and does not come off during work. Comes with a safety rope attachment hole, making it suitable for fall prevention when working at heights. Comes in a special resin case for convenient storage and transportation.
Brand: TONE
Product model number: T3DT85H
Package size: 32 x 13 x 7 cm; 510 g
Color: Black
Name on nameplate: T3DT85H: Drive angle: 9.5mm (3/8"), 17~85N・m
Torque: 85 Newton Meters
Accessories: None
Product weight: 510g
Anyone can easily manage torque using digital technology without relying on intuition. (Tightening status notification function) You can register a total of 9 target torques in advance. The tolerance for pass/fail judgment can be set in 1% increments, and if the pass/fail judgment function is set to ON, the pass/fail judgment result will be notified with an LED lamp, buzzer sound, and LCD display after measurement. (Pass/Fail Judgment Function) Up to 250 measured torque values can be registered. If you connect it to your computer using the included USB communication cable, you can transfer it as a CSV file. (Data storage/transfer function) Measurement is possible in track mode (displays numerical values that fluctuate according to changes in applied torque) and peak mode (displays the maximum value of applied torque). (Measurement mode switching function) Measurement in both left and right directions is possible. (Can measure in both left and right directions) Comes with a calibration certificate proving that it has been calibrated using the standard device used that is traced based on national standards. (Calibration certificate included) Even if the grip deviates from the center line of pressure, accurate torque measurement is possible using the sensor inside the grip. (Grip equipped with sensor) Socket can be attached and detached with one push operation. The socket is easy to replace and does not come off during work. Comes with a safety rope attachment hole, making it suitable for fall prevention when working at heights. Comes in a special resin case for convenient storage and transportation.
Brand: TONE
Product model number: T3DT85H
Package size: 32 x 13 x 7 cm; 510 g
Color: Black
Name on nameplate: T3DT85H: Drive angle: 9.5mm (3/8"), 17~85N・m
Torque: 85 Newton Meters
Accessories: None
Product weight: 510g
