TONE Driver Digitorque Set DBDT6S Bit Insertion Black 600cN・m

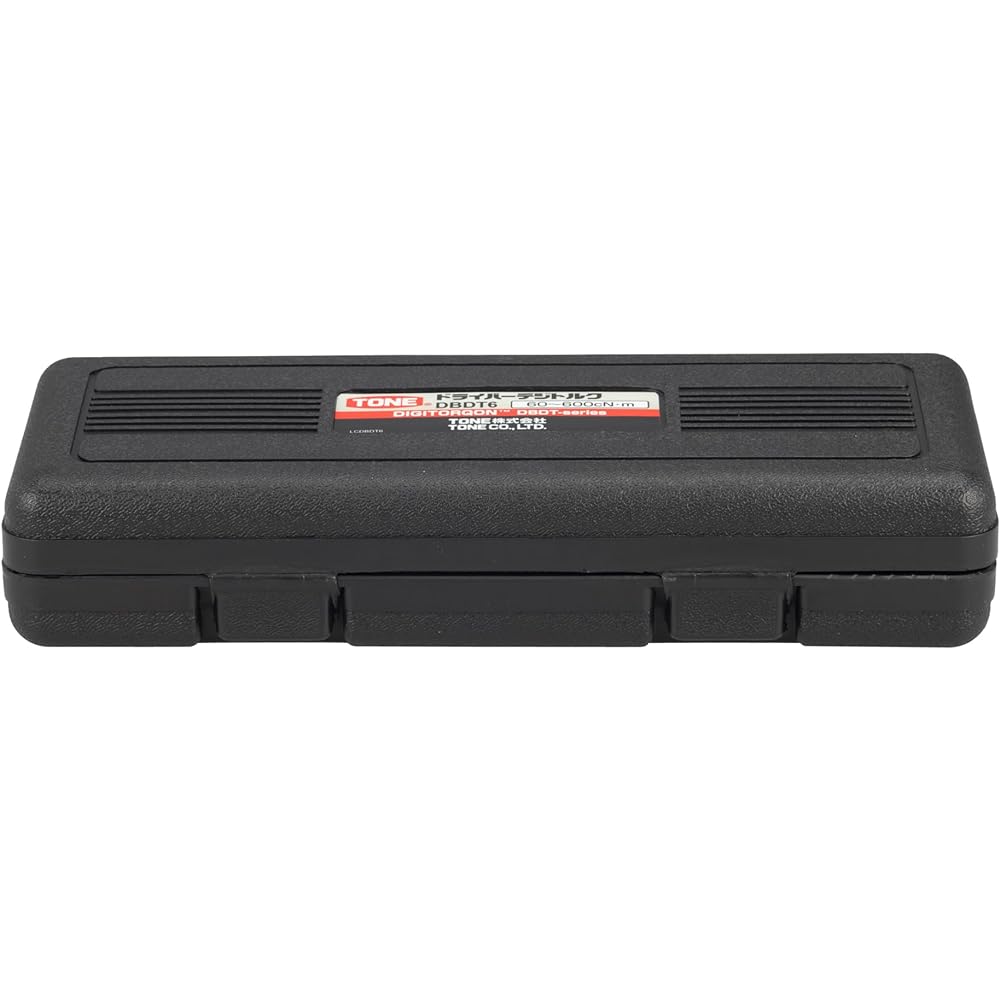

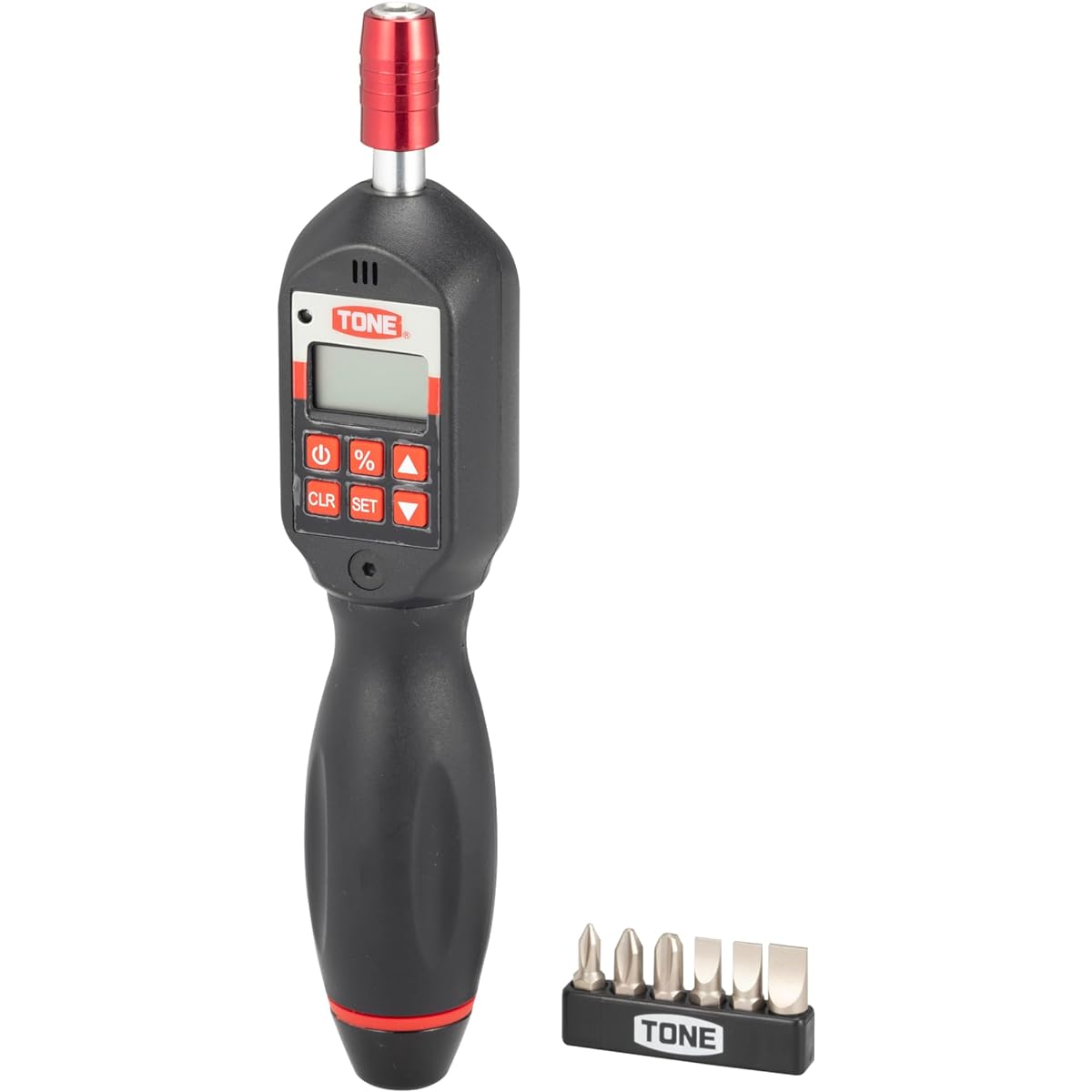

Applications: Tightening work, inspection work, precision tightening work, etc. Torque capacity range Minimum~Maximum (cN・m): 60~600 Torque accuracy: ±3% Bit width across flats: 6.35mm Batteries used: AAA x 2 This alkaline battery Operating temperature range: 5~42℃ Storage temperature range: -20~50℃ Dimensions: Total length 212mm x width 40mm x height 38.5mm Body weight: 150g Accessories: Driver bit set BTPM6S/driver bit (+) [ BT-P1, P2, P3]・Driver bit (-) [BT-M5.5, M6, M8]・Bit holder [BTB6]・Calibration certificate (with traceability system diagram) x 1・Instruction manual x 1・Resin case x 1 ・AAA alkaline battery x 2 Calibration certificate included ・Overtorque prevention function ・2 types of measurement modes Expiration date of calibration certificate/if unused: Up to one year from the calibration date of the calibration certificate. If you start using the product less than 1 year after the calibration date on the calibration certificate: You can tighten it up to 1 year from the start of use or 10,000 times. Repair/Inspection: Accuracy may be lost due to rough handling, long-term neglect, frequent use, etc. If accuracy is required, please request periodic inspection (charges apply). Torque equipment requires periodic inspection. As a guideline, please perform regular inspections once a year or once every 10,000 uses (charges apply). Increase the number of displayed items

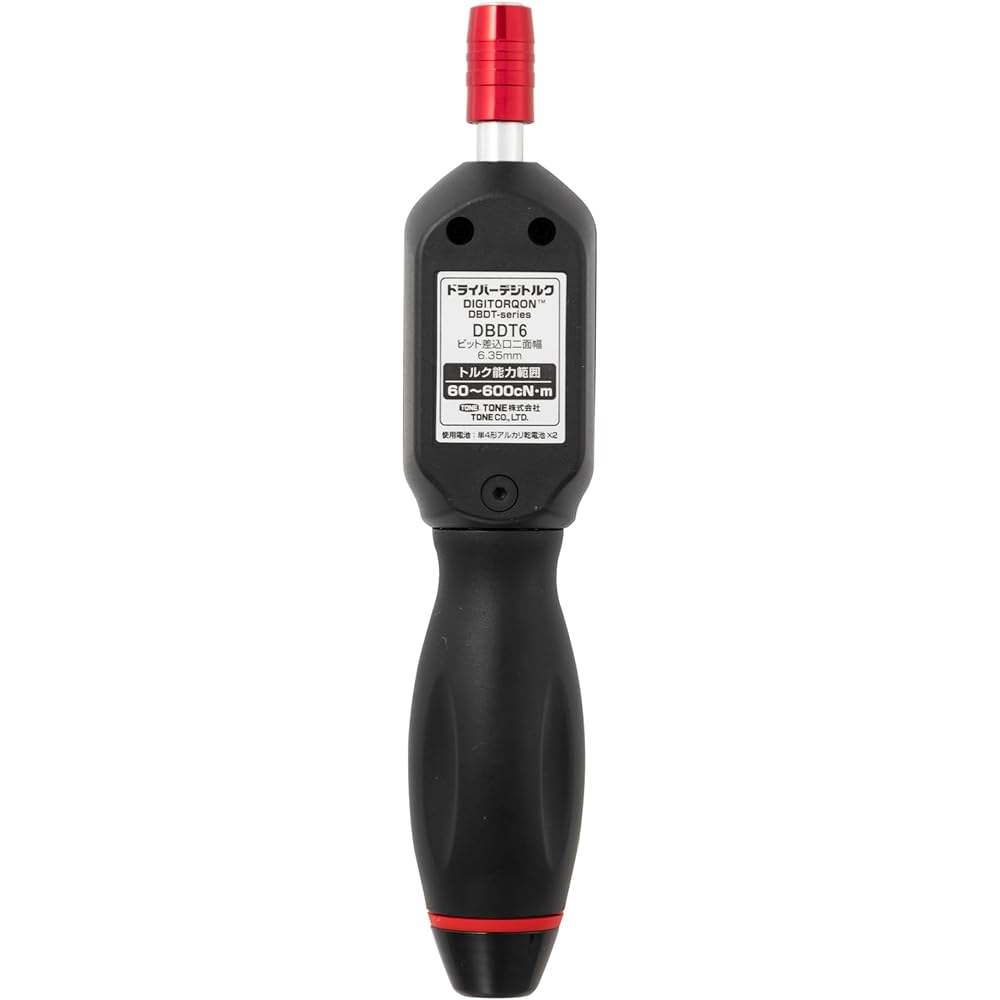

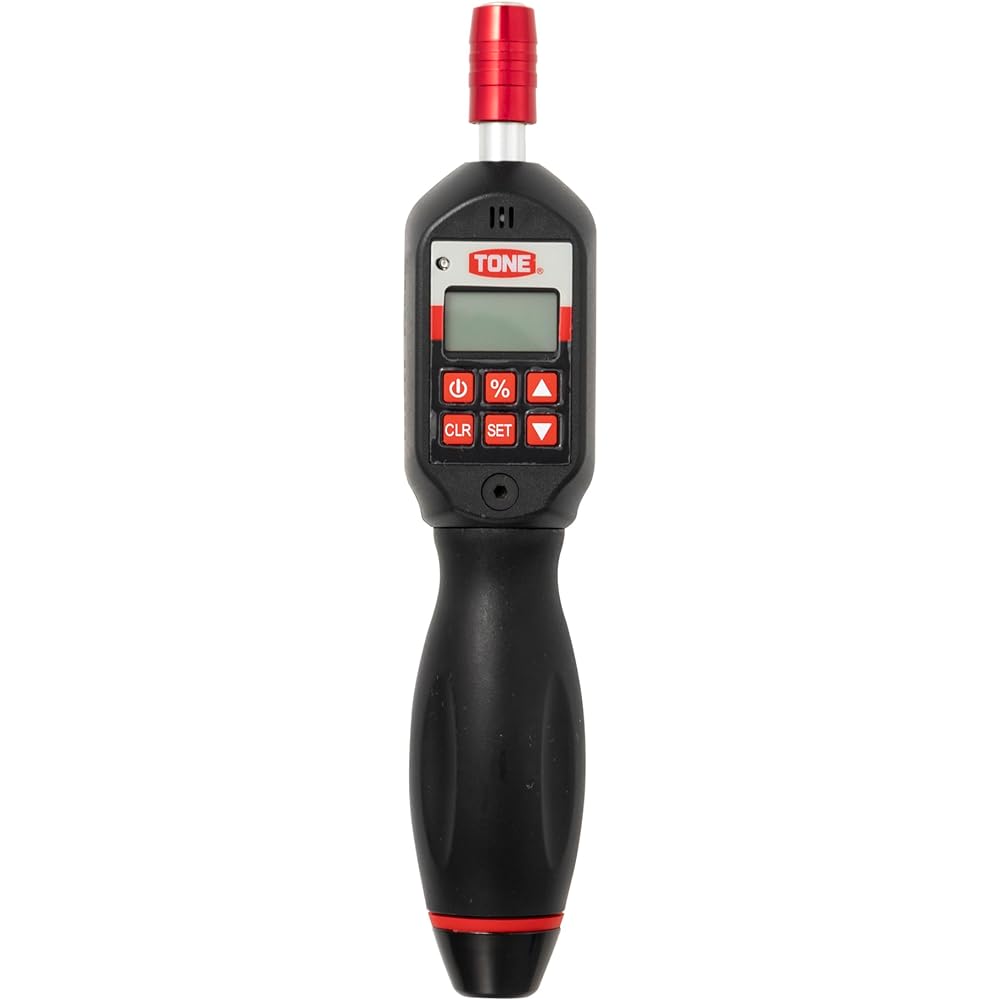

A screwdriver type digital torque wrench that supports small torque management. Notifies target torque with sound and light. This is a digital torque measuring device (driver type) that is used by inserting a bit into a holder at the tip. Equipped with an overtorque prevention function, you can set a tolerance value in the range of 50% to 95% of the target torque, and when the tolerance value is reached, a buzzer sounds and a red LED lights up to notify you of the tightening status. Comes with a calibration certificate proving that it has been calibrated using a working standard traced based on national standards. Compatible with both left and right rotation directions. Torque accuracy ±3%. Equipped with overtorque prevention function. 2 types of measurement modes. Peak mode and track mode. The tip is replaceable and comes in a special resin case.


Brand: TONE
Product model number: DBDT6S
Package size: 25.9 x 10.4 x 5.4 cm; 150 g
Nameplate name: DBDT6S: 60~600cN・m
Material: ‎ABS
Accessories: ‎None
Battery included: ‎No
Product weight: ‎150 g
