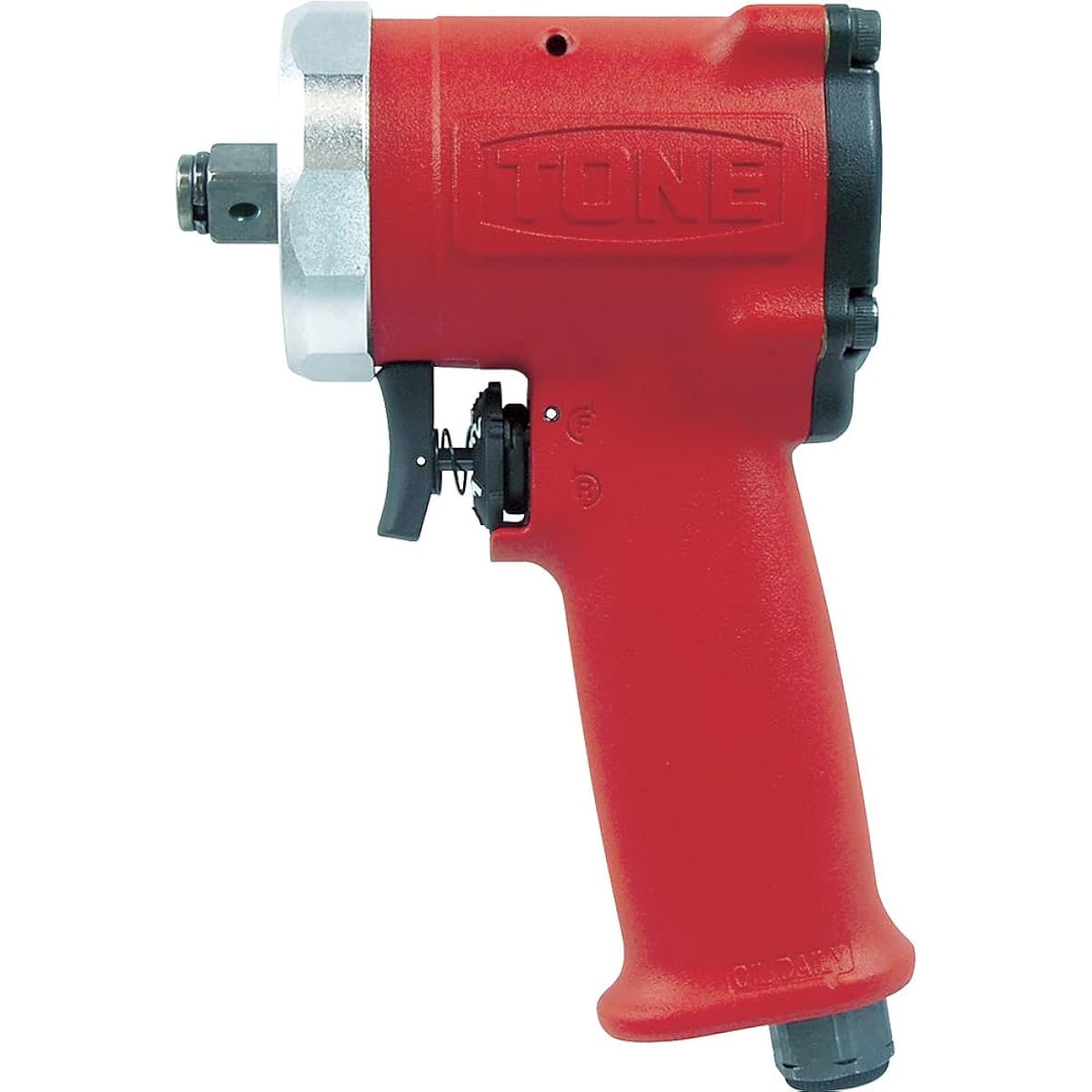

TONE Air Impact Wrench (Short Type) AI4200 Drive Angle 12.7mm (1/2") Red 700N・m
TONE Air Impact Wrench (Short Type) AI4200 Drive Angle 12.7mm (1/2") Red 700N・m
Regular price
$180.00 USD
Regular price
Sale price
$180.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

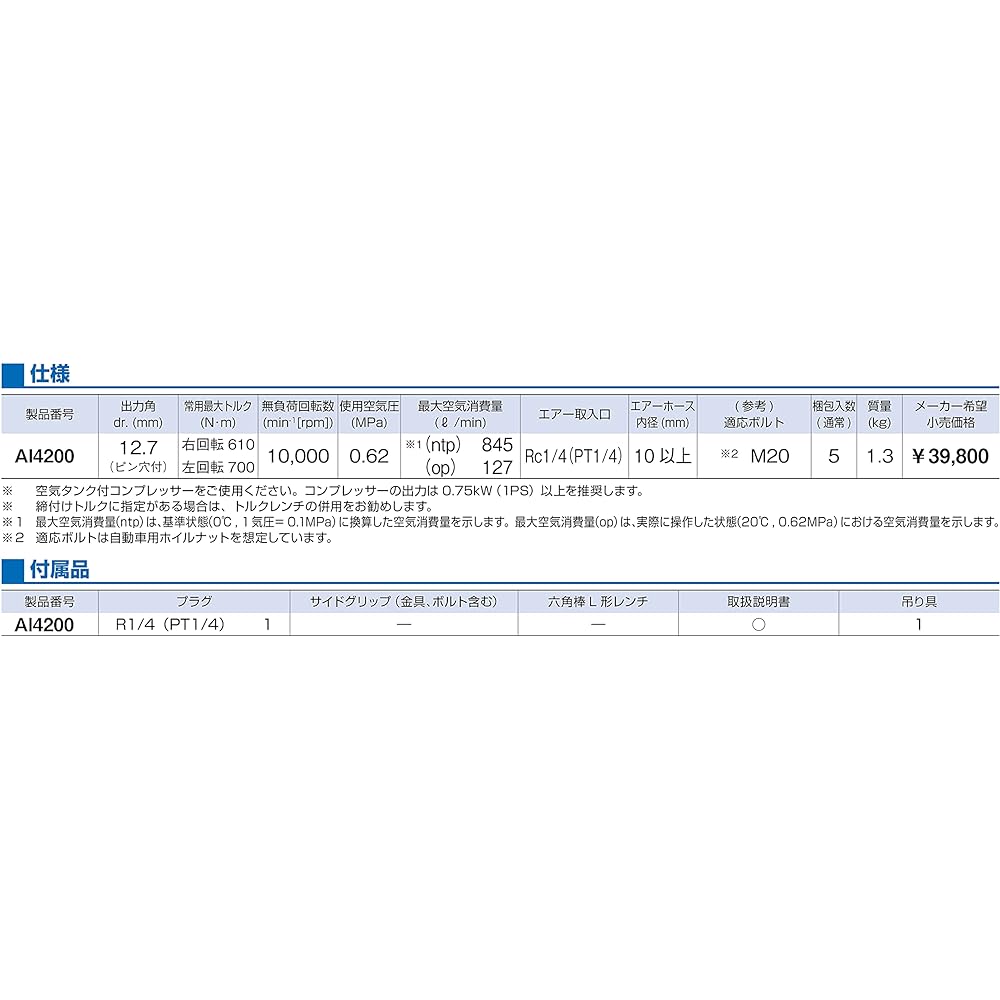

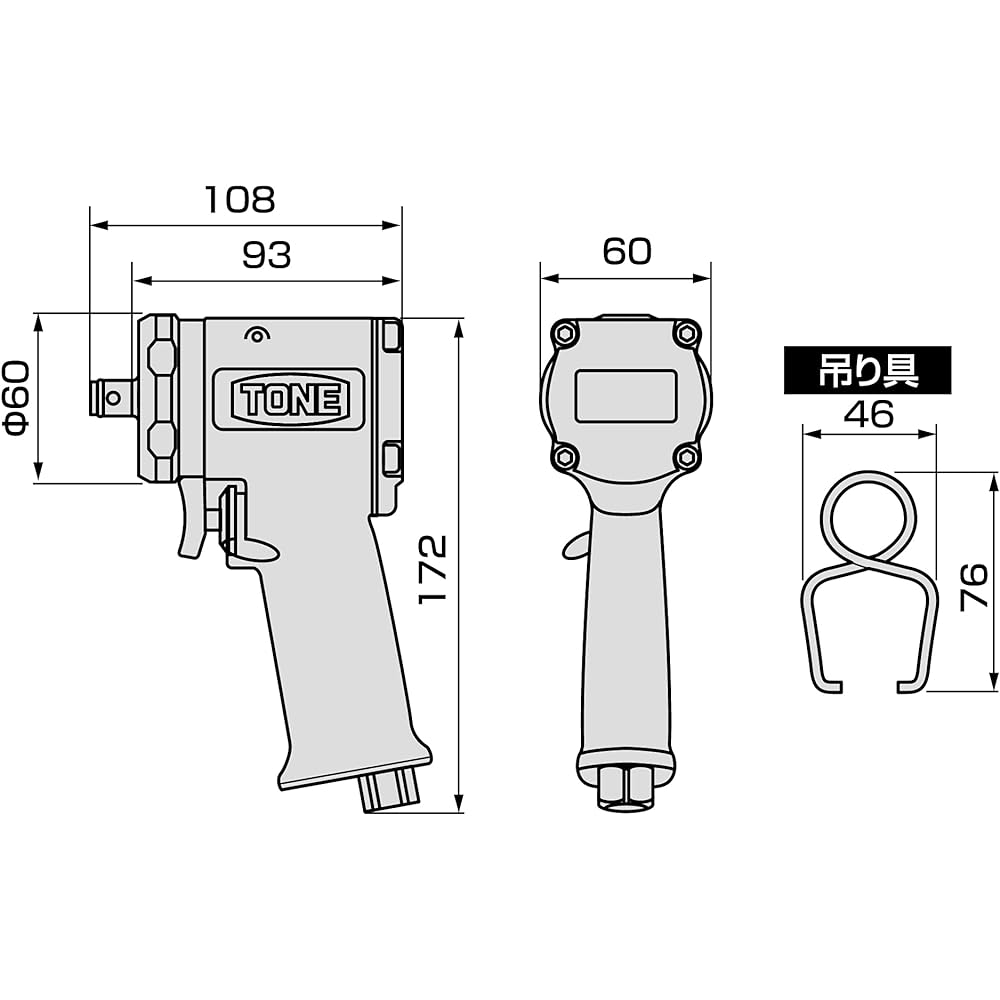

Dimensions: Body total length 108mm x width 60mm x height 172mm Weight: 1.3kg *Socket and plug are not included in the weight. Output angle dr: 12.7mm (with pin hole) Maximum torque for normal use (N・m): 610 clockwise/700 counterclockwise No-load rotation speed (min-1 [r.p.m]): 10000 Operating air pressure (MPa): 0.62 Maximum air Consumption (L/min): (ntp)845/(op)127 *(ntp) indicates air consumption converted to standard conditions (0℃, 1 atm = 0.1MPa). (op) indicates the air consumption under actual operating conditions (20℃, 0.62MPa). Air intake: Rc1/4 (PT1/4) Air hose inner diameter (mm): 10 or more (Reference) Applicable bolt: M20 *Applicable bolt is assumed to be an automobile wheel nut. Accessories: Plug R1/4 (PT1/4) x 1, instruction manual x 1, hanging tool x 1, output adjustment dial, big hammer mechanism, rotation direction switching lever
Note: Please use a compressor with an air tank. We recommend a compressor output of 0.75kW (1PS) or more. Material: Body: Aluminum alloy body Display more items

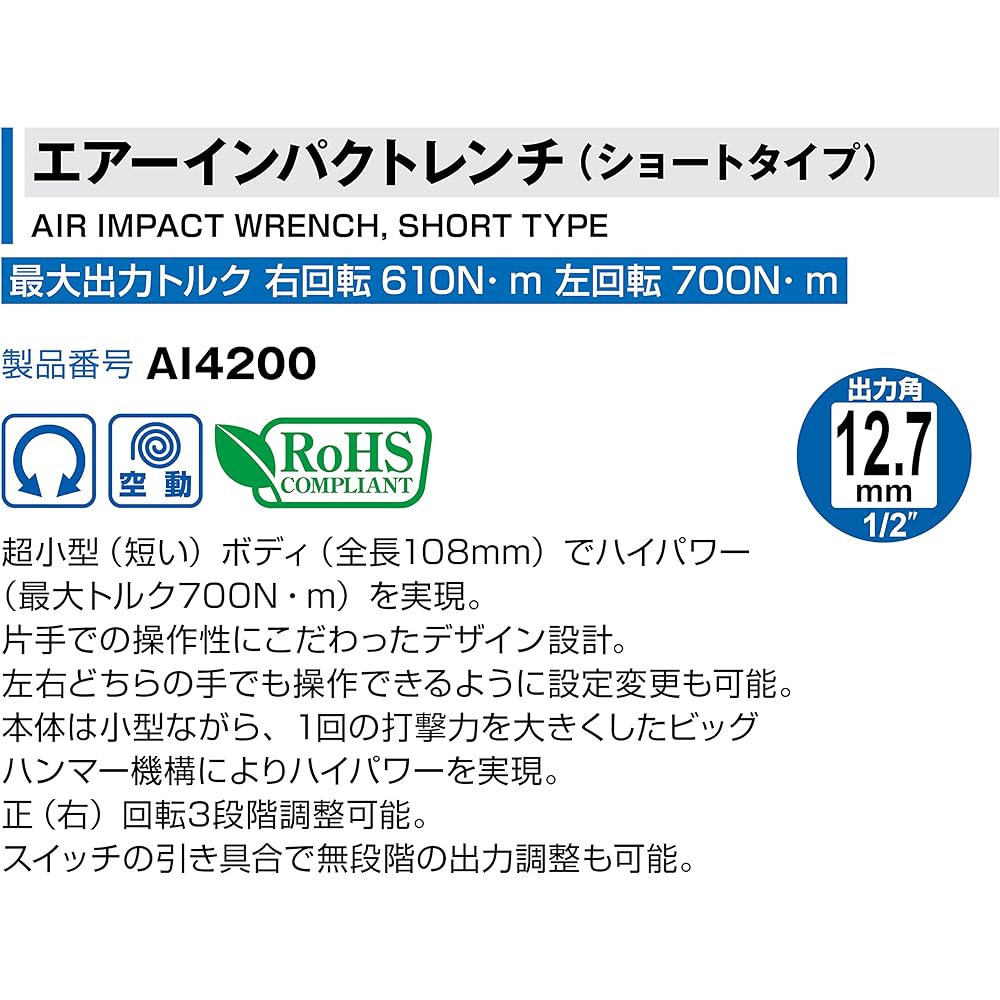

Achieves high power (maximum torque 700N・m) with an ultra-compact (short) body (total length 108mm). Maximum torque and high output for counterclockwise rotation for efficient loosening work. Compact design that can fit into narrow spaces that you could not fit in before. Output adjustment dial, [F] Forward (right) rotation, the output can be adjusted in 3 steps. For counterclockwise rotation, the output cannot be adjusted, but it can be adjusted by pulling the switch. Although the main body is small, it achieves high power with a big hammer mechanism that increases the force of a single impact. The rotation direction switching lever, design focuses on one-handed operation, and settings can be changed so that it can be operated with either the left or right hand. Comes with hanging equipment to support work. Easy-to-grip shape with non-slip surface treatment.
Brand: TONE
Product model number: AI4200
Package size: 20 x 17.9 x 7.1 cm; 1.3 kg
Color: Gray | Red | Black
Nameplate Name: AI4200: Drive 12.7mm (1/2"), 700N・m, Aluminum Body
Voltage: 12 Volts
Torque: 700 Newton Meters
Laser Class: Small, with instructions
Accessories: None
Warranty: None
Product weight: 1.3 Kilograms
Achieves high power (maximum torque 700N・m) with an ultra-compact (short) body (total length 108mm). Maximum torque and high output for counterclockwise rotation for efficient loosening work. Compact design that can fit into narrow spaces that you could not fit in before. Output adjustment dial, [F] Forward (right) rotation, the output can be adjusted in 3 steps. For counterclockwise rotation, the output cannot be adjusted, but it can be adjusted by pulling the switch. Although the main body is small, it achieves high power with a big hammer mechanism that increases the force of a single impact. The rotation direction switching lever, design focuses on one-handed operation, and settings can be changed so that it can be operated with either the left or right hand. Comes with hanging equipment to support work. Easy-to-grip shape with non-slip surface treatment.
Brand: TONE
Product model number: AI4200
Package size: 20 x 17.9 x 7.1 cm; 1.3 kg
Color: Gray | Red | Black
Nameplate Name: AI4200: Drive 12.7mm (1/2"), 700N・m, Aluminum Body
Voltage: 12 Volts
Torque: 700 Newton Meters
Laser Class: Small, with instructions
Accessories: None
Warranty: None
Product weight: 1.3 Kilograms
