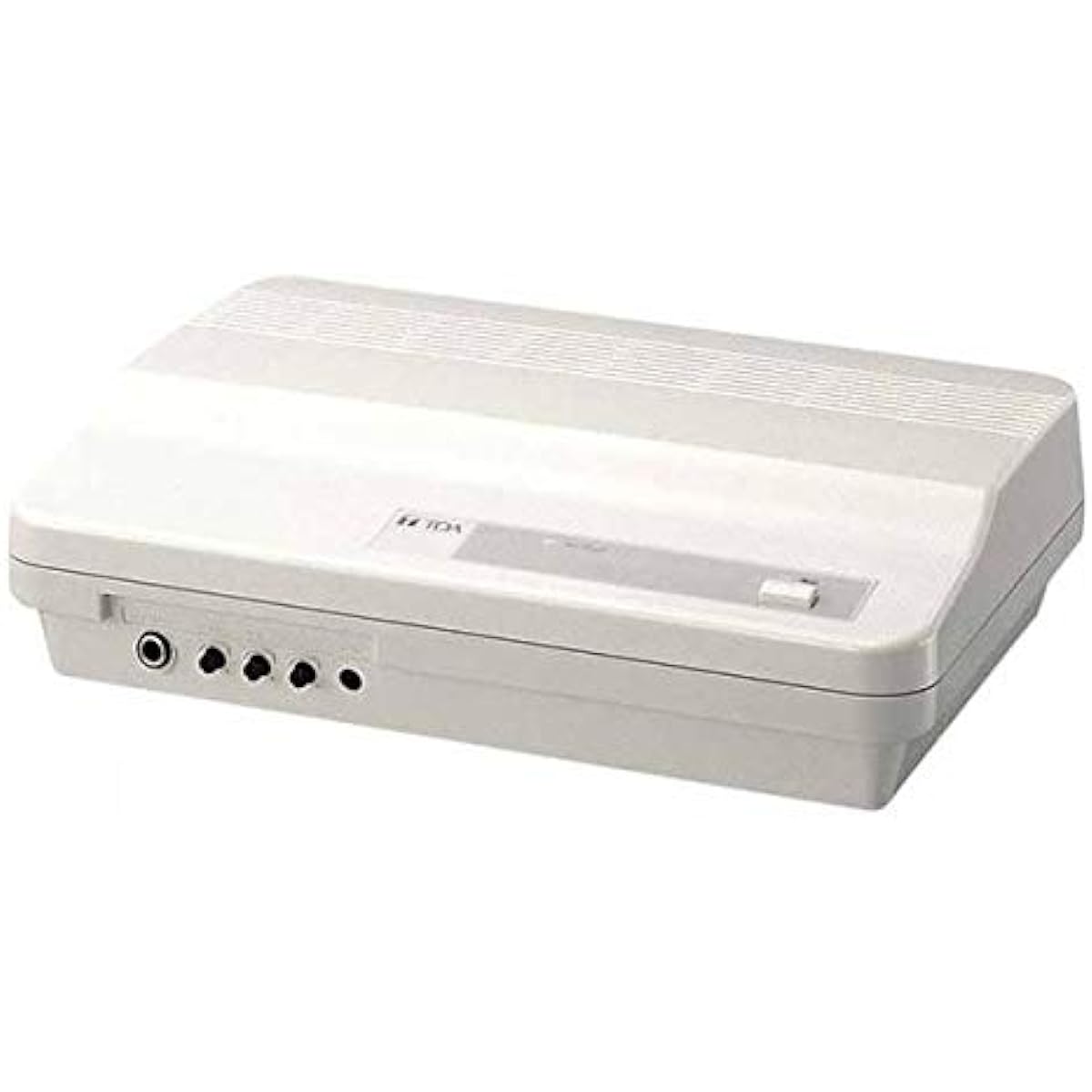

TOA TA-115 High Impedance Power Amplifier

■Power amplifier■High impedance 670Ω■15W■Built-in telephone paging functionPower supply AC100 V 50/60 HzPower consumption 32 W (at rated output), 15 W (according to the Electrical Appliance and Material Safety Act) Rated output 15 WDistortion rate 1% or lessFrequency response 100 Hz to 10 kHz ±3 dBInputPaging microphone with remote switch: -62 dB* 600 Ω unbalanced DIN jackMicrophone: -62 dB* 600 Ω unbalancedPhone jack spare: -12 dB* 5 kΩ unbalancedRCA pin jack paging: -12 dB* 5 kΩ unbalancedPush terminal*Microphone/paging microphone with remote switch is jack switching type (microphone input priority)OutputHigh impedance 100 series: 670 ΩLow impedance: 4 Ω (4 to 16 Ω speakers can be used)Plug-in type terminal block (inside the bottom cover)Usable electric wire (single wire: φ0.4 to φ1.6 mm (AWG26-14), stranded wire: 0.3-1.25 mm (AWG22-16) (stranded wire φ0.18 mm or more) Signal-to-noise ratio 60 dB or more Mute circuit Function to attenuate the signal of the auxiliary input during microphone broadcasting and paging broadcasting (variable mute amount) Telephone paging function, remote power function Product images include images of use. Please note that items other than those specified in the are not included.
