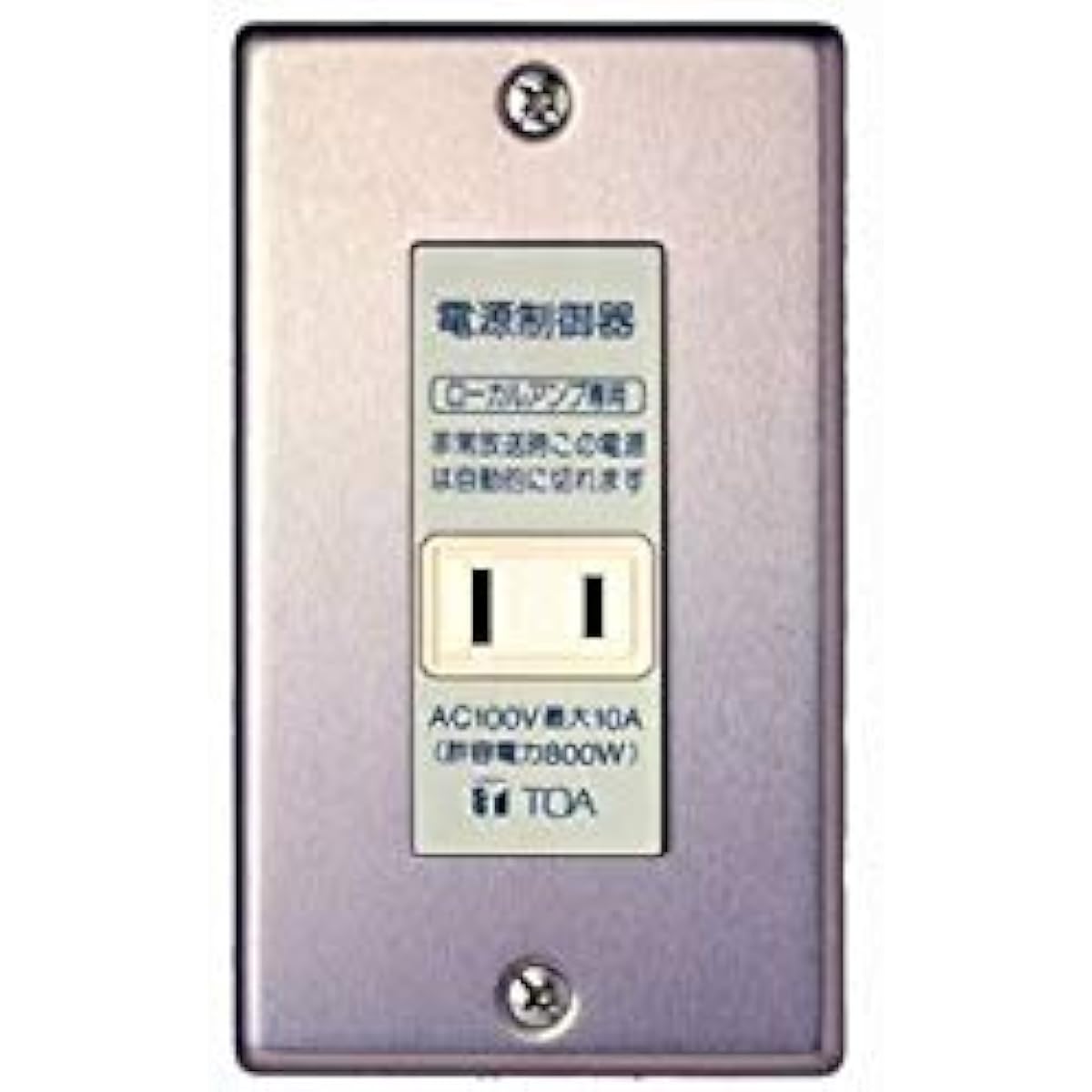

TOA Power Cut Relay E-97P Power Cut Relay

■Control power supply: DC24V 10mA (non-polar) supplied from emergency broadcast equipment ■Power outlet: AC100V 50/60Hz ・Power capacity: Max. 800W・Current treatment: Max. 10A ■Control method: AC100V cut-off control by cutting off DC24V in an emergency ■ Terminal section: AC100V: Screwless terminal (applicable wire type Cu single wire φ1.2 to 2 mm), DC24V: M3.5 screw terminal Barrier spacing 8 mm (applicable wire type Cu single wire or stranded wire, crossover wiring possible) ■Finish: Panel ABS Resin milky white・Case: ABS resin black・Plate: Aluminum silver anodized finish ■Dimensions: 70(W) x 120 (H) x 40.2(D) mm■Weight: 130g■Accessories・Plate x 1・Unit installation screw M4 x 35 x 2■Compatible box・Exposure: JIS C 8340 (Exposed switch box for 1 piece, depth 50mm)・Embedded: JIS C 8340 (For medium square outlet box shallow type and switch cover with painting allowance for 1 piece) Product Images include images used. Please note that items other than those specified in the are not included.
