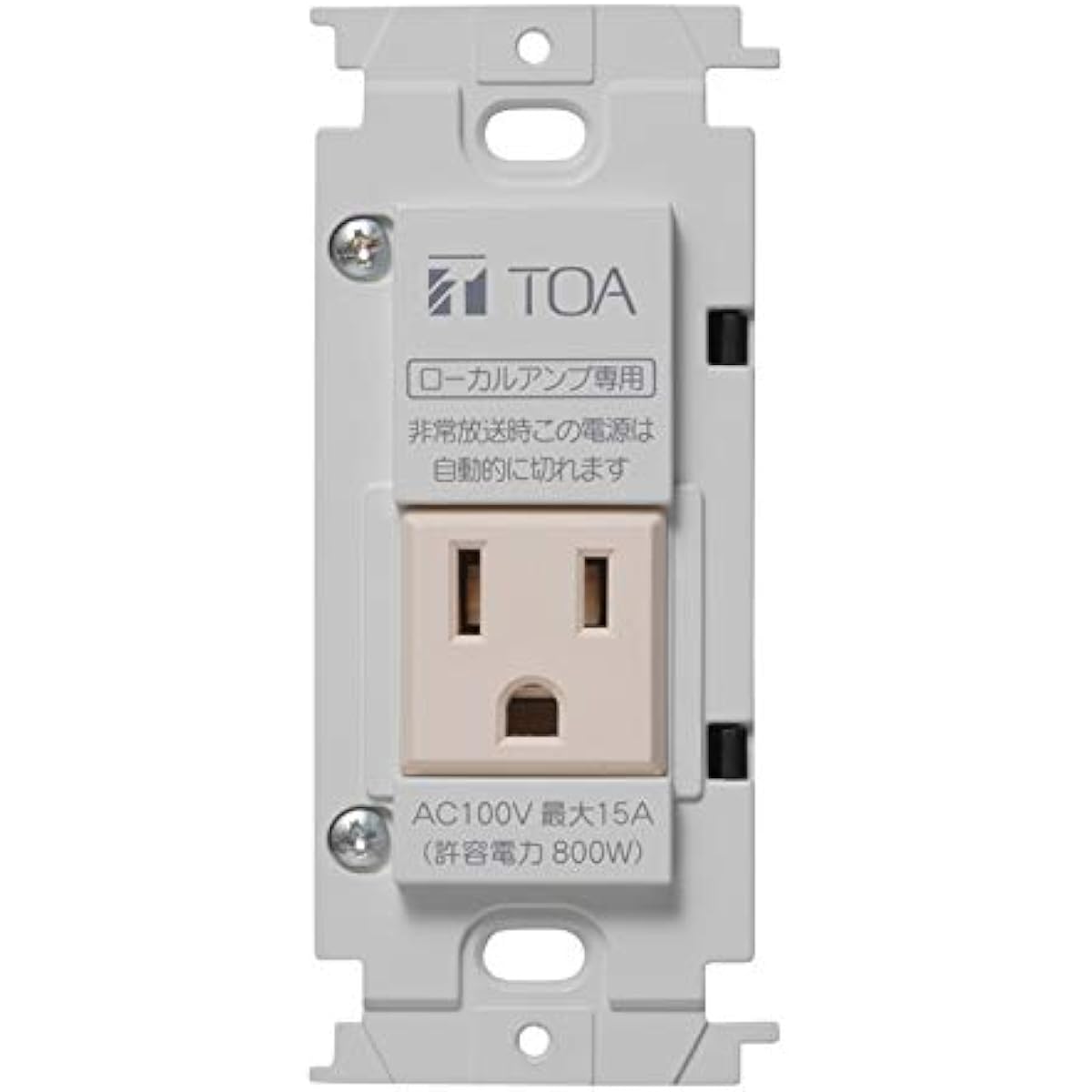

TOA E-17P Power Cut-Off Relay

■Control power supply: DC24 V 10 mA (non-polarized) supplied from emergency broadcast equipment ■Outlet power supply: AC100 V 50/60 Hz ■Power capacity: Max. 800 W ■Current capacity: Max. 15 A ■Control method: AC100 V cutoff control by DC24 V cutoff in emergency ■Terminal section AC100 V: Screwless terminal (suitable wire type Cu solid wire φ1.2 to 2 mm) DC24 V: M3.5 screw terminal Barrier spacing 8 mm (suitable wire type Cu solid wire or stranded wire, crossover wiring possible) Operating temperature range 0 ℃ to +40 ℃ ■Operating humidity range: 80 % RH or less (but no condensation) ■Dimensions: 48 x 110 x 45.7 mm ■Weight: 90 g ■Accessories Unit mounting screw M4 x 35...2 Applicable box Exposed: JIS C 8340 (exposed switch box for 1 unit, depth 50 mm) Embedded: JIS C 8340 (for medium-sized rectangular outlet box with painted shallow and one switch cover) Compatible plates Jinbo Denki Co., Ltd. 1-unit, 3-outlet NK series: NKP-3UF PW, etc. WJD series: WJD-3 Panasonic Co., Ltd. 3-unit plate Full color: WN6003W/WN65039/WN7503, etc. Product images include images of use. Please note that nothing other than what is specified in the is included.
