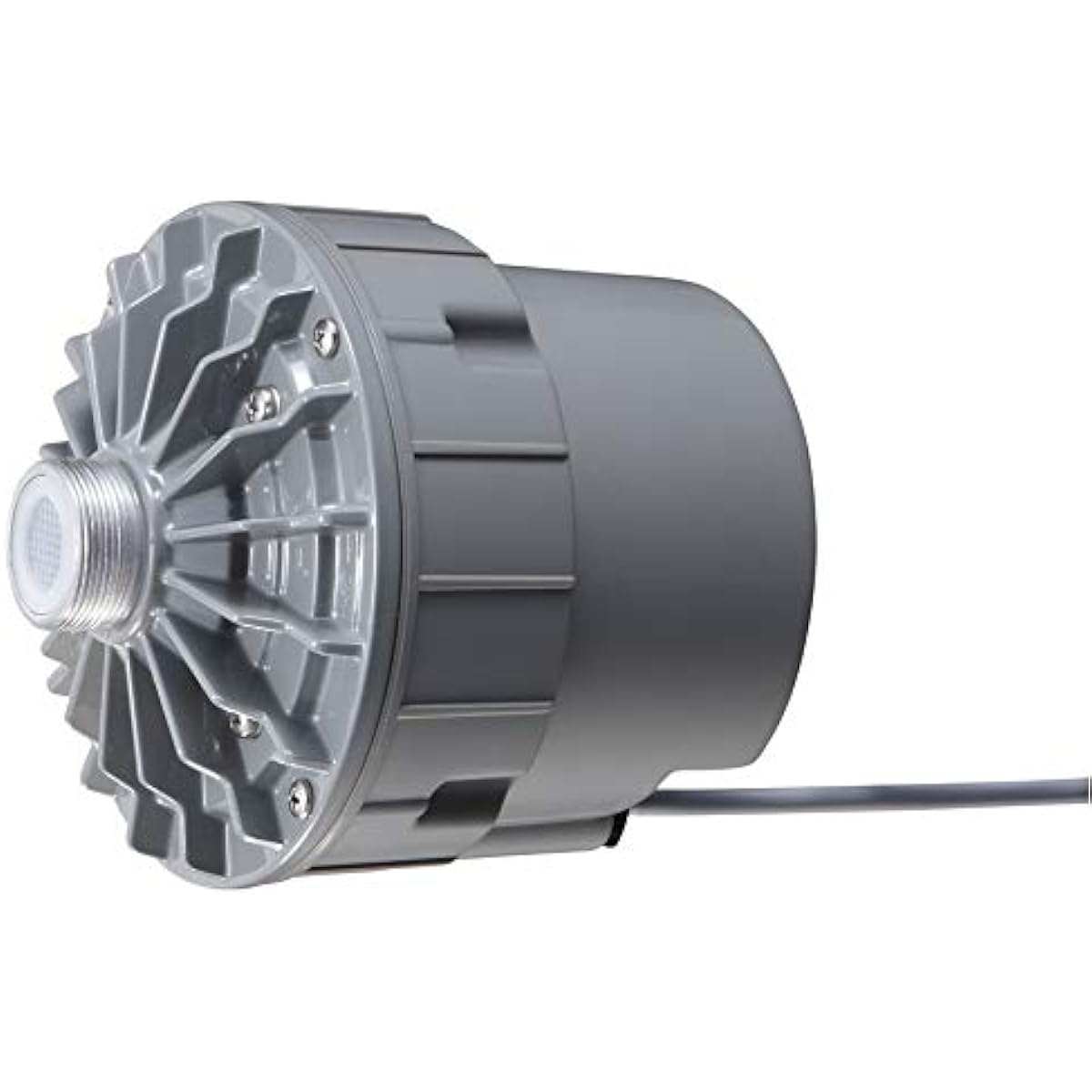

TOA Driver TU-760M

■Driver■60W■With transformer＜Specifications＞■Compatible horn: TH-750, TH-760■Rated input: 60W ■Rated impedance: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W)■Output sound pressure level: 110 dB (1 W, 1 m) (JIS C 5504 standard horn used)■Frequency response: 150 Hz to 8 kHz (JIS C 5504 standard horn used)■Sound power level: 104 dB (1 W) (TH-750, TH-760 combination)■Directivity classification: N0 degrees or more and less than 15 degrees Q=20, 15 degrees or more and less than 30 degrees Q=4, 30 degrees or more and less than 60 degrees Q=05) Powder coating Transformer case: ABS resin gray (approximate color of Munsell N4.5) Screws: Stainless steel ■ Dimensions: φ139 × 151 (D) mm ■ Weight: 2.7 kg ■ Other: Conforms to JIS C 5504 (horn speaker) ■ Sold separately: Unit cover: UC-200A Product images include images of use. Please note that items other than those specified in the are not included.
