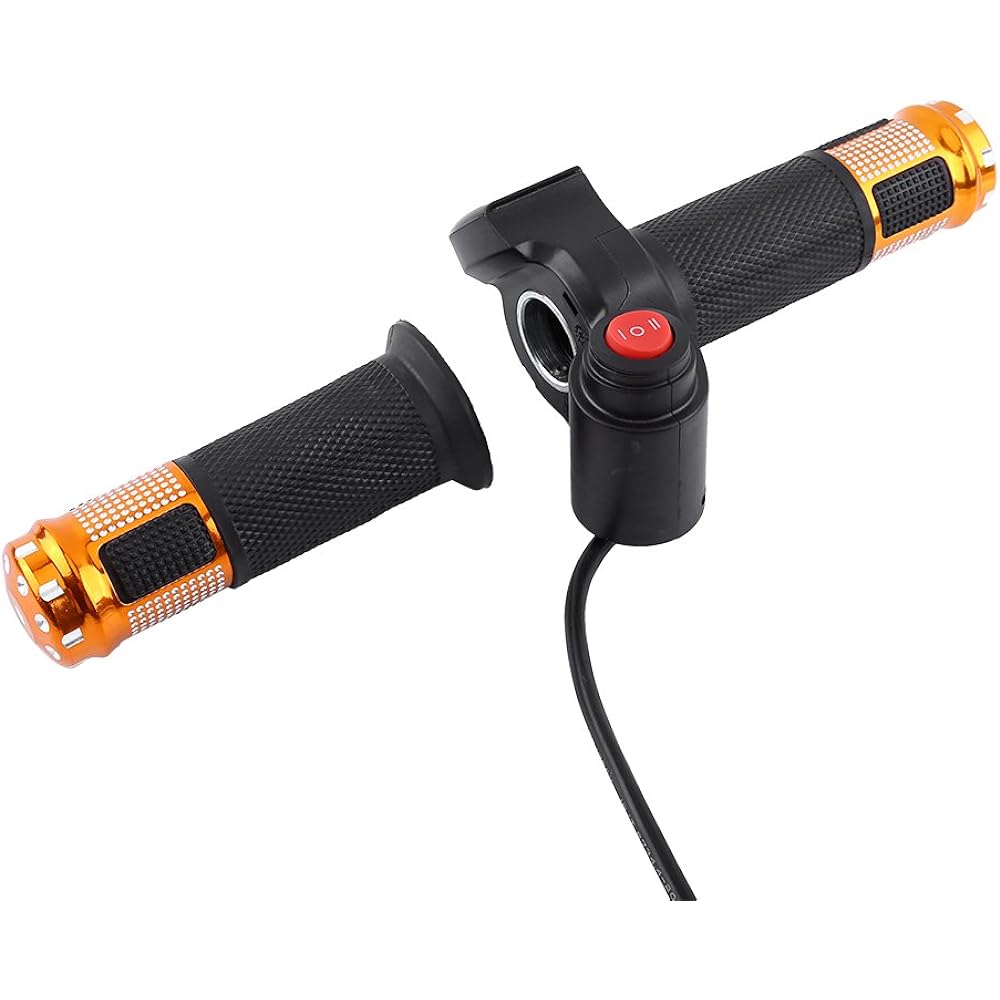

Throttle Grip Handlebar, Aluminum Alloy 3 Speed Throttle Control Handlebar Grip for Electric Bicycle default VGEBYbtshp0o95w-01
Throttle Grip Handlebar, Aluminum Alloy 3 Speed Throttle Control Handlebar Grip for Electric Bicycle default VGEBYbtshp0o95w-01
Regular price
$139.00 USD
Regular price
Sale price
$139.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
This handle replacement set is made of throttle cable and hand grip material: aluminum alloy, and can be stretched on smooth surfaces If you have any problems with this product, you can email it to us any time. We will reply as soon as possible.
Using the digital data display instead of the common analog signal display, accurately determine the remaining battery level and remaining distance, and set the error voltage according to the vehicle. Fits many types of batteries such as lead acid batteries, lithium batteries, water and dry batteries. Specifications: Material: Aluminum Alloy + Rubber Wiring Length Approx. 2m/78.7inch Type: 3 Gear Switch - High Speed, Middle Speed, Low Speed (If you need to adjust the speed of electric vehicle, use the controller Support Compatibility: Suitable for 12V-99V electric bicycle Suitable for 22.2mm diameter handlebar Working voltage: Throttle DC0.8-4.2V, battery level indicator, 12-84V automatically identified.Applications such as needle battery Compatible with lithium battery, lead battery Compatible with: universal throttle electric bicycle scooter, electric car, bicycle, etc. 7 wires: Yellow connects to the battery power, with the positive power normally + 24V 36V 48V 3 throttle wires: Red is the throttle positive +5V; the green is the twisted throttle signal wiring; the black is the negative throttle; the other three are white/blue and size adjustable brown, please check the gears 3 requirements The controller has 3 gear high speed blue white wires, the central shared brown line is low speed Package included: 2 x Handlebar (1pc right handle, 1pc left handle grip) 1 x 2m Note: 1. So if your electric vehicle controller does not support speed regulation, this speed control switch may not have any effect. 2. If you are installing a non-professional, please pay attention to the order line, you can not connect the wrong line, otherwise it will easily cause the Holzer and LED tube to burn
Manufacturer: VGEBY
Brand: VGEBY
Model name: unknown
Manufacturer reference: VGEBYbtshp0o95w-01
Color: Gold
Product weight: 260 g
Using the digital data display instead of the common analog signal display, accurately determine the remaining battery level and remaining distance, and set the error voltage according to the vehicle. Fits many types of batteries such as lead acid batteries, lithium batteries, water and dry batteries. Specifications: Material: Aluminum Alloy + Rubber Wiring Length Approx. 2m/78.7inch Type: 3 Gear Switch - High Speed, Middle Speed, Low Speed (If you need to adjust the speed of electric vehicle, use the controller Support Compatibility: Suitable for 12V-99V electric bicycle Suitable for 22.2mm diameter handlebar Working voltage: Throttle DC0.8-4.2V, battery level indicator, 12-84V automatically identified.Applications such as needle battery Compatible with lithium battery, lead battery Compatible with: universal throttle electric bicycle scooter, electric car, bicycle, etc. 7 wires: Yellow connects to the battery power, with the positive power normally + 24V 36V 48V 3 throttle wires: Red is the throttle positive +5V; the green is the twisted throttle signal wiring; the black is the negative throttle; the other three are white/blue and size adjustable brown, please check the gears 3 requirements The controller has 3 gear high speed blue white wires, the central shared brown line is low speed Package included: 2 x Handlebar (1pc right handle, 1pc left handle grip) 1 x 2m Note: 1. So if your electric vehicle controller does not support speed regulation, this speed control switch may not have any effect. 2. If you are installing a non-professional, please pay attention to the order line, you can not connect the wrong line, otherwise it will easily cause the Holzer and LED tube to burn
Manufacturer: VGEBY
Brand: VGEBY
Model name: unknown
Manufacturer reference: VGEBYbtshp0o95w-01
Color: Gold
Product weight: 260 g
