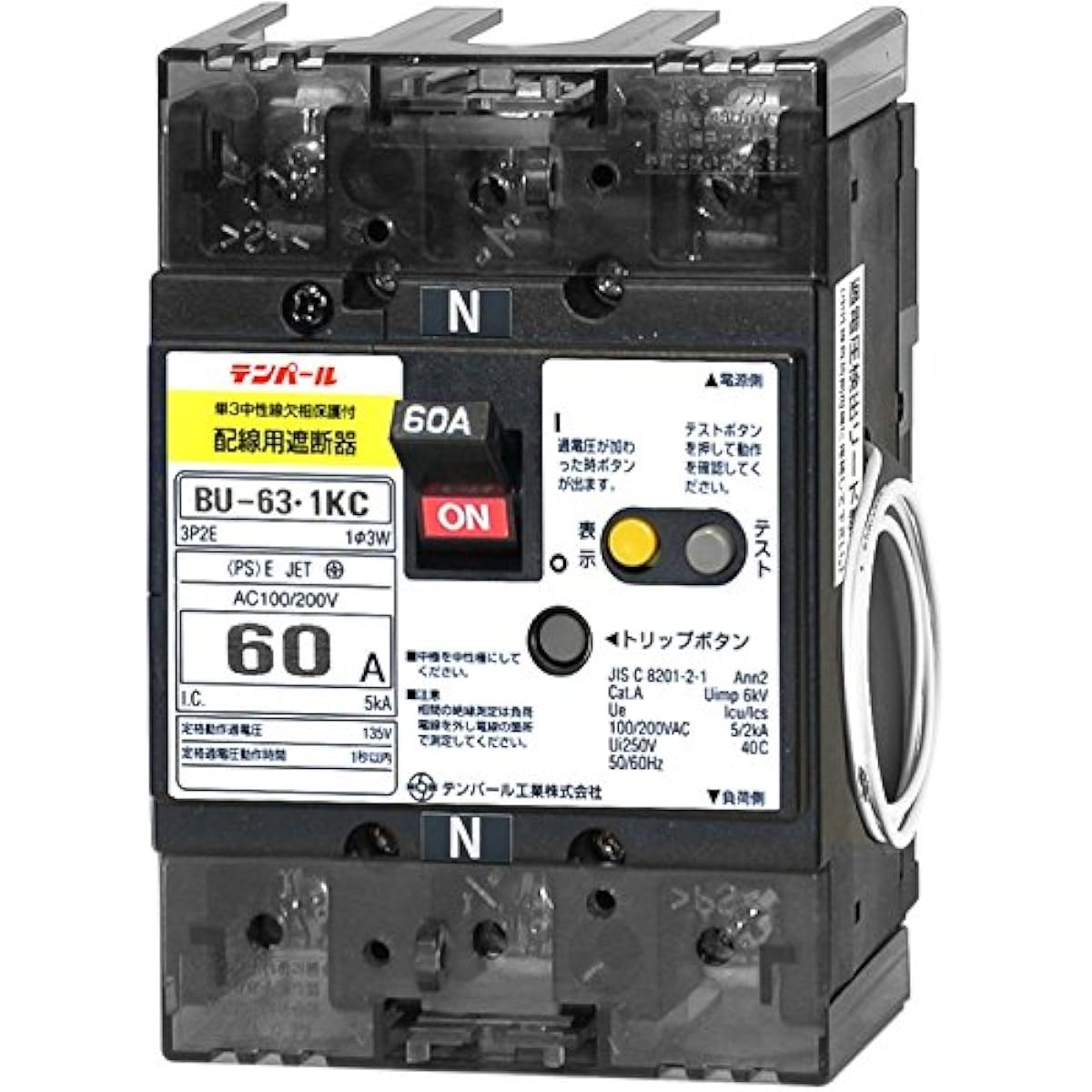

Temparl Industrial AA Neutral Wire Open Phase Protection Molded Circuit Breaker 60A with Lead Wire BU6301KC60V

●Rated voltage: AC100/200V
●Rated impulse withstand voltage Uimp: 6kV
●Rated current: 60A
●Number of poles: 3P
●Number of elements: 2E
●Frame : 60AF
● Surface type terminal used: Wire presser terminal method (crimped terminals can be used)
● Maximum connectable wire (㎟): 22
● Reverse connection not possible

●Rated voltage: AC100/200V●Rated impulse withstand voltage Uimp: 6kV●Rated current: 60A●Number of poles: 3P●Number of elements: 2E●Frame: 60AF●Surface type terminal used: Wire presser terminal method (crimped terminals can be used) ●Maximum connectable wire (㎟): 22 ●Reverse connection not possible ●Compliant JIS standard: JIS C 8201-2-1Ann2 ●Overcurrent tripping method: Thermal electromagnetic ●With lead wire


Manufacturer : ‎Tempearl
Part number: ‎BU6301KC60V
Item weight: ‎430 g
Product size: ‎9.8 x 7.5 x 7.9 cm; 430 g
Voltage: ‎200 volts
>Accessories: Seal plate
Batteries used: No
Product dimensions (Length x Width x Height): 9.8 x 7.5 x 7.9 cm
