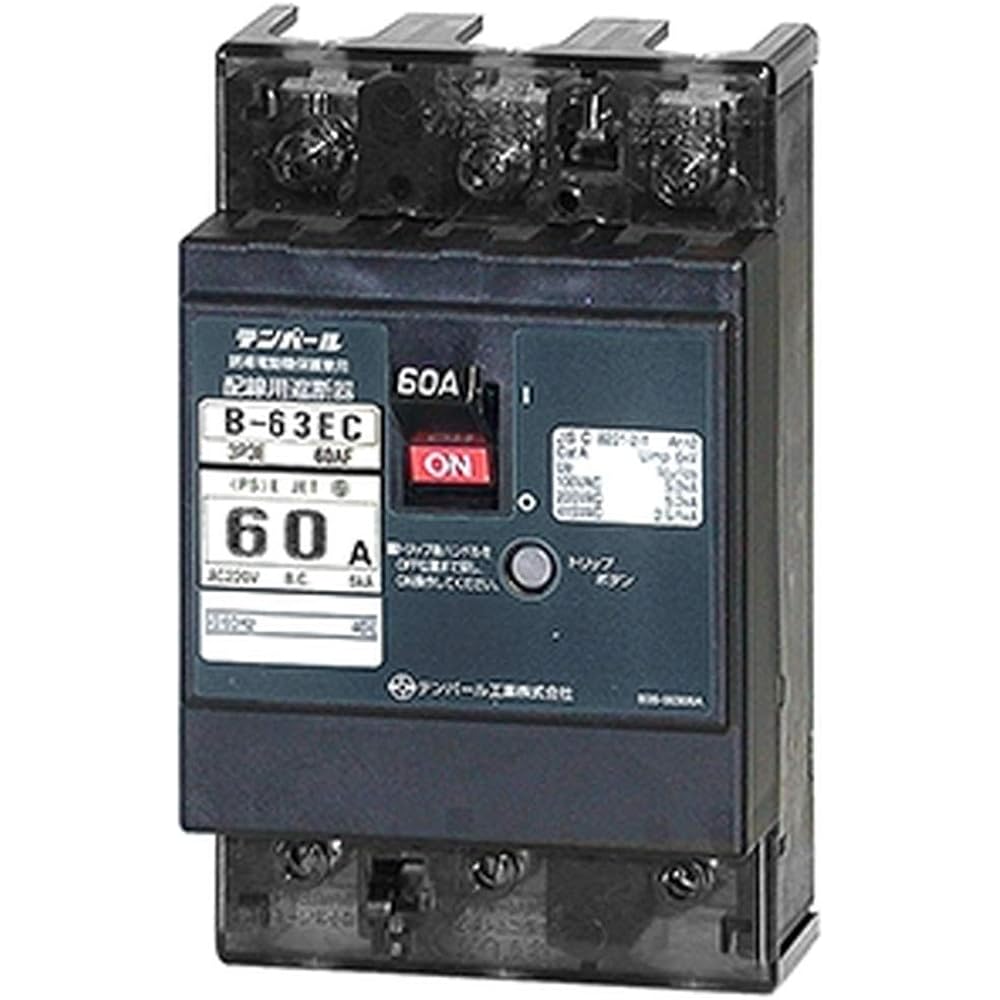

Tempal Industrial Economic Type Hardwired Circuit Breaker 60AF 3P3E 60A B63EC60A

External dimensions Size (mm): 105 x 47 x 49 x 67.5 Weight: 0.33g Compliant standard: JIS C 8201-2-1 Ann2 Type of circuit breaker: Economic type, dual use for motor protection Frame (AF): 60 Number of poles/elements Number: 3P3E Rated working voltage (Ue): 100-200-415V Rated impulse withstand voltage Uimp: 6kV Rated current: 60A Display more items

Molded circuit breaker B-63EC 60A ■Features Eddy current tripping method: Thermal electromagnetic connection method: Surface type Internal accessories: Auxiliary switch Internal accessories, withdrawal method: Lead wire specifications Rated breaking capacity (kA): AC100V5/2 , AC200V5/2, AC415V2.5/1 Standard connection method: Wire holding method (crimped terminals can be used) Maximum connectable wire (mm2): 22 Installation pitch (mm x mm): 95 x 23.5 Terminal pitch size (mm): 23.5 crimp terminal (maximum): 22-6S terminal cover (surface type): TMC-63EC terminal cover (surface type included): Attached handle lock (cap type) model: RC-KA Handle lock (cap type) included: Sold separately Terminal screw size: M5 Reverse connection: Possible Earth leakage indication: None Compliant JIS standard: JIS C 8201-2-1 Ann2


Manufacturer: ‎Tempearl
Part number: ‎ B-63EC 60A
Item weight: 230 g
Product size: 6.75 x 7 x 10.5 cm; 230 g
Discontinued by the manufacturer: ‎No
Voltage: ‎ 415 bolts
Accessories: ‎Sealing plate
Battery usage: ‎No
Product dimensions (Length x Width x Height): ‎6.7 x 7 x 10.5 cm
