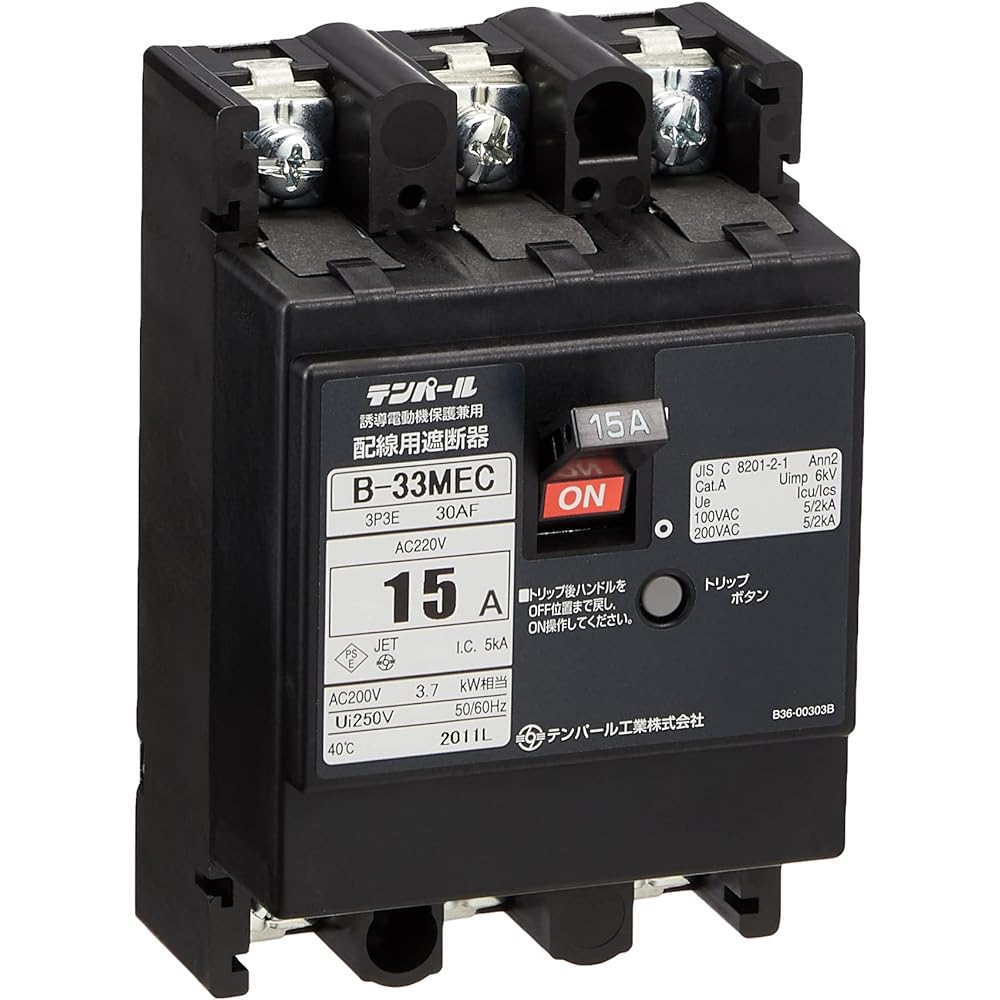

Tempal Industrial Economic Type Hardwired Circuit Breaker 30AF 3P3E 15A B33MEC150

●Rated voltage: AC100-200V
●Rated impulse withstand voltage Uimp: 6kV
●Rated current: 15A (3.7kW)
●Number of poles: 3P
●Number of elements: 3E< br>●Frame: 30AF
●Surface type terminal used: Wire holding method (crimped terminals can be used)
●Maximum connectable wire (㎟): 22
●Reverse connection possible
●Compatible with JIS Standard: JIS C 8201-2-1Ann2
●Overcurrent trip method: Fully electromagnetic

B33MEC150


Manufacturer: Tempearl Part number: B33MEC150 Product weight: 370 g Product size: 10.5 x 7 x 6.75 cm; 370 g
Discontinued by the manufacturer: ‎No
Voltage: ‎200 Volts
Accessories: ‎Sealing plate
Uses batteries: ‎No
Product dimensions (Length x Width) x height): ‎10.5 x 7 x 6.7 cm
