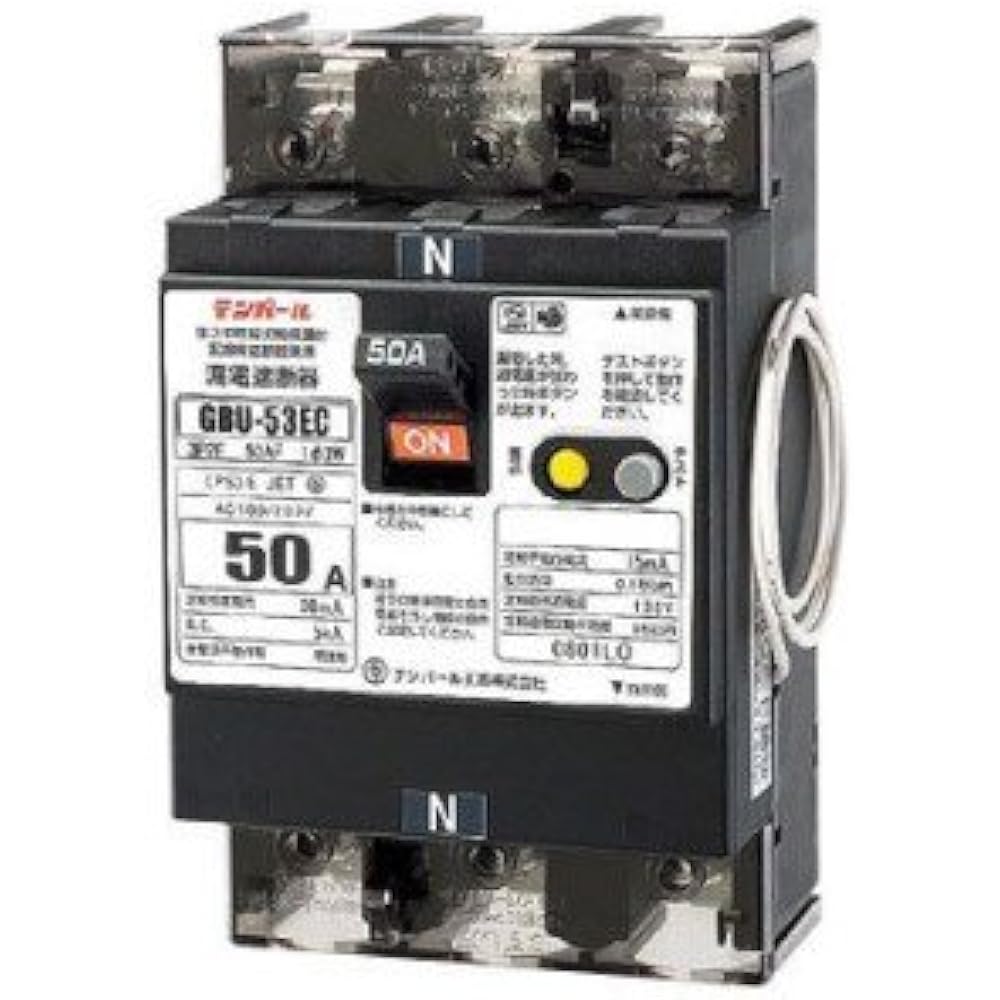

Temparl Industries U53EC5030V AA neutral wire open phase protection earth leakage breaker for solar power generation systems with OC 50A 30mA with lead wire

Rated working voltage: 100/200V Rated current: 50A Rated sensitivity current: 30mA Number of poles: 3P Number of elements: 3E Frame: 50AF Rated impulse withstand voltage Uimp: 4kV Maximum operating time: 0.1 seconds Surface type terminal specifications: Wire press method (crimping) Terminals can be used) Maximum connectable wire (㎟): 22

●Rated working voltage: 100/200V●Rated current: 50A●Rated sensitivity current: 30mA●Number of poles: 3P●Number of elements: 3E●Frame: 50AF●Rated impulse withstand voltage Uimp: 4kV●Maximum operating time: 0.1 seconds●Surface Terminal specifications: Wire holding method (crimped terminals can be used) Maximum connectable wire (㎟): 22 Reverse connection possible (for grid connection) Compliant JIS standard: JIS C 8222 Ann2 Overcurrent tripping method: Heat Dynamic electromagnetic ●With OC


Manufacturer: Tempearl
Part number: U53EC5030V
Product weight: 350 g
Product size: 10.5 x 7 x 6.75 cm; 350 g
Voltage: 200 volts
Accessories: None
Batteries used: No
Product dimensions (L x W x H): 10.5 x 7 x 6.7 cm
