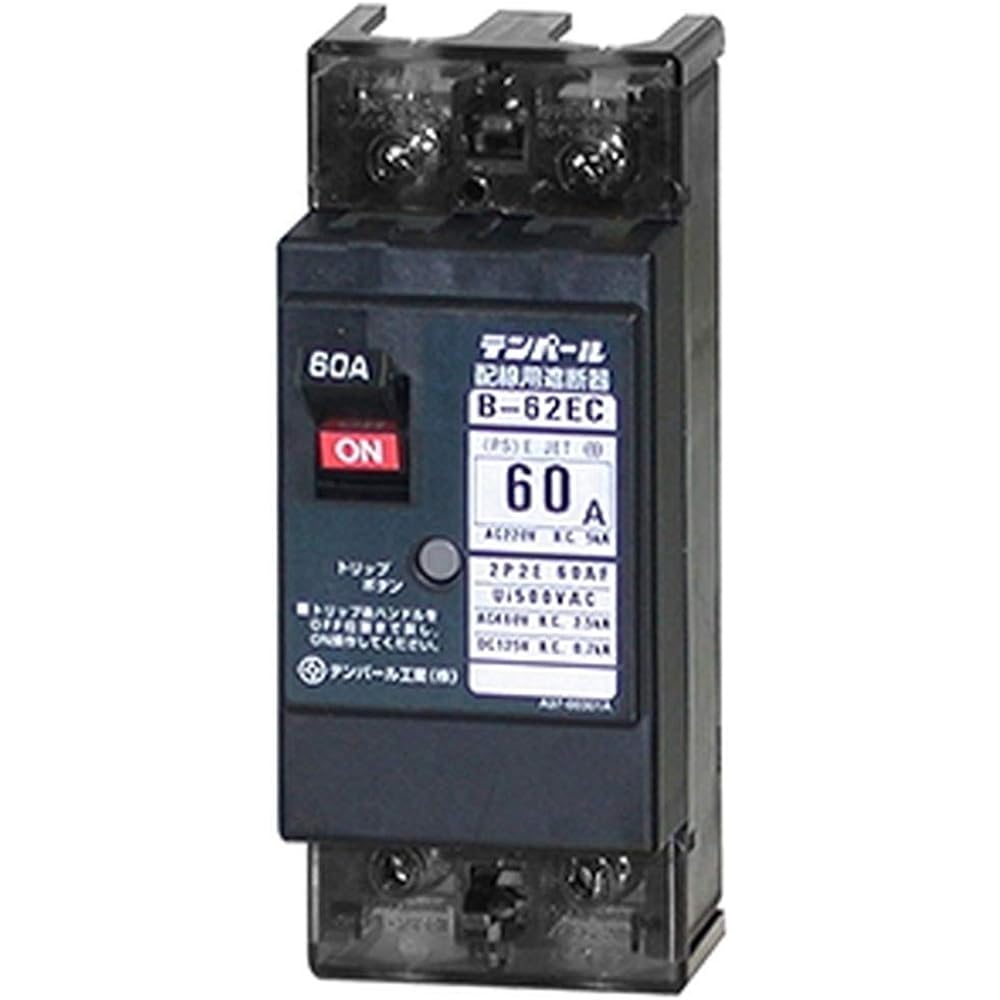

Tempal Industrial Economic Type Hardwired Circuit Breaker 60AF 60A 2P2E B62EC60

●Rated voltage: AC100-100/200-200-415V
●125V
●Rated impulse withstand voltage Uimp: 6kV
●Rated current: 60A
●Number of poles: 2P
>●Number of elements: 2E
●Frame: 60AF
●Surface type terminal used: Wire holding method (crimped terminals can be used)
●Maximum connectable wire (㎟): 22
●Reverse connection Possible

●Rated voltage: AC100-100/200-200-415V●125V●Rated impulse withstand voltage Uimp: 6kV●Rated current: 60A●Number of poles: 2P●Number of elements: 2E●Frame: 60AF●Surface type terminal used: Wire holder Method (crimped terminals can be used) ● Maximum connectable wire (㎟): 22 ● Reverse connection possible ● Applicable JIS standard: JIS C 8201-2-1Ann2 ● Overcurrent tripping method: Thermal electromagnetic

< br>Manufacturer: Tempearl Part number: B62EC60 Product weight: 230 g Product size: 10.5 x 4.7 x 6.75 cm; 230 g Voltage: 125 Bolt
Accessories: ‎Sealing plate
Batteries used: ‎No
Product dimensions (Length x Width x Height): ‎10.5 x 4.7 x 6.7 cm
