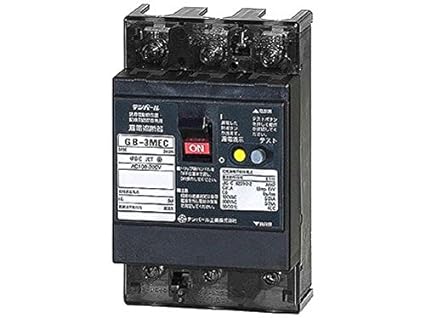

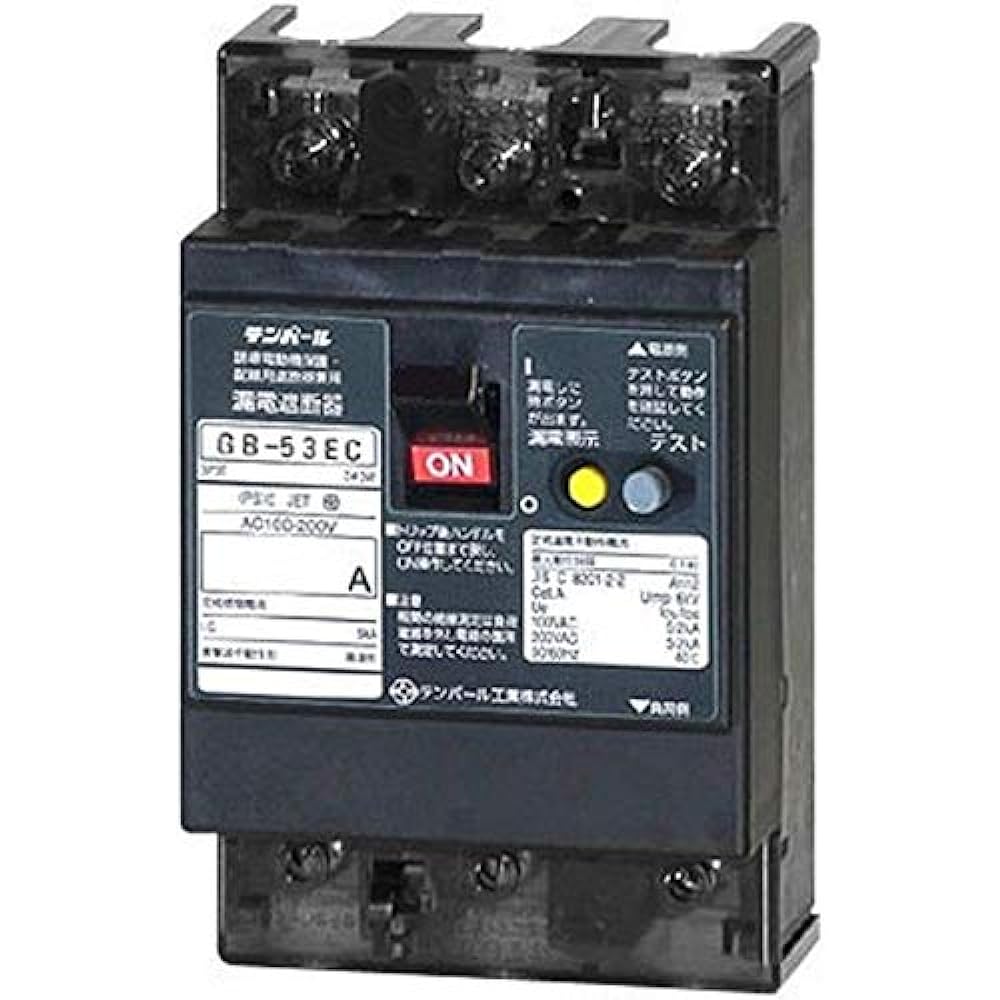

Tempal Industrial E series (economic type) earth leakage breaker (with OC) 50A (11kW) 53EC5030

Rated operating voltage: 100-200V Rated current: 50A (11kW) Rated sensitivity current: 30mA Rated impulse withstand voltage Uimp: 6kV Number of poles: 3P Number of elements: 3E Frame: 50AF Maximum operating time: 0.1 seconds Surface terminal specifications : Wire holding method (crimp terminals can be used)

●Rated working voltage: 100-200V●Rated current: 50A (11kW)●Rated sensitivity current: 30mA●Rated impulse withstand voltage Uimp: 6kV●Number of poles: 3P●Number of elements: 3E●Frame: 50AF●Maximum operating time: 0.1 ● Surface type terminal specifications: Wire holding method (crimped terminals can be used) ● Maximum connectable wire (㎟): 22 ● Reverse connection not possible ● Applicable JIS standard: JIS C 8201-2-2 Ann2 ● Overcurrent tripping method: Thermal electromagnetic ●With OC


Manufacturer: ‎Tempearl
Part number: ‎53EC5030
Product weight: ‎350 g
Product size: ‎10.5 x 7 x 6.75 cm; 350 g
Discontinued by manufacturer: ‎No
Size: ‎50A/11kW
Voltage: ‎200 Volts
Accessories: ‎As per manufacturer
Battery usage: ‎No
Product dimensions (Length x Width x Height): ‎10.5 x 7 x 6.7 cm
