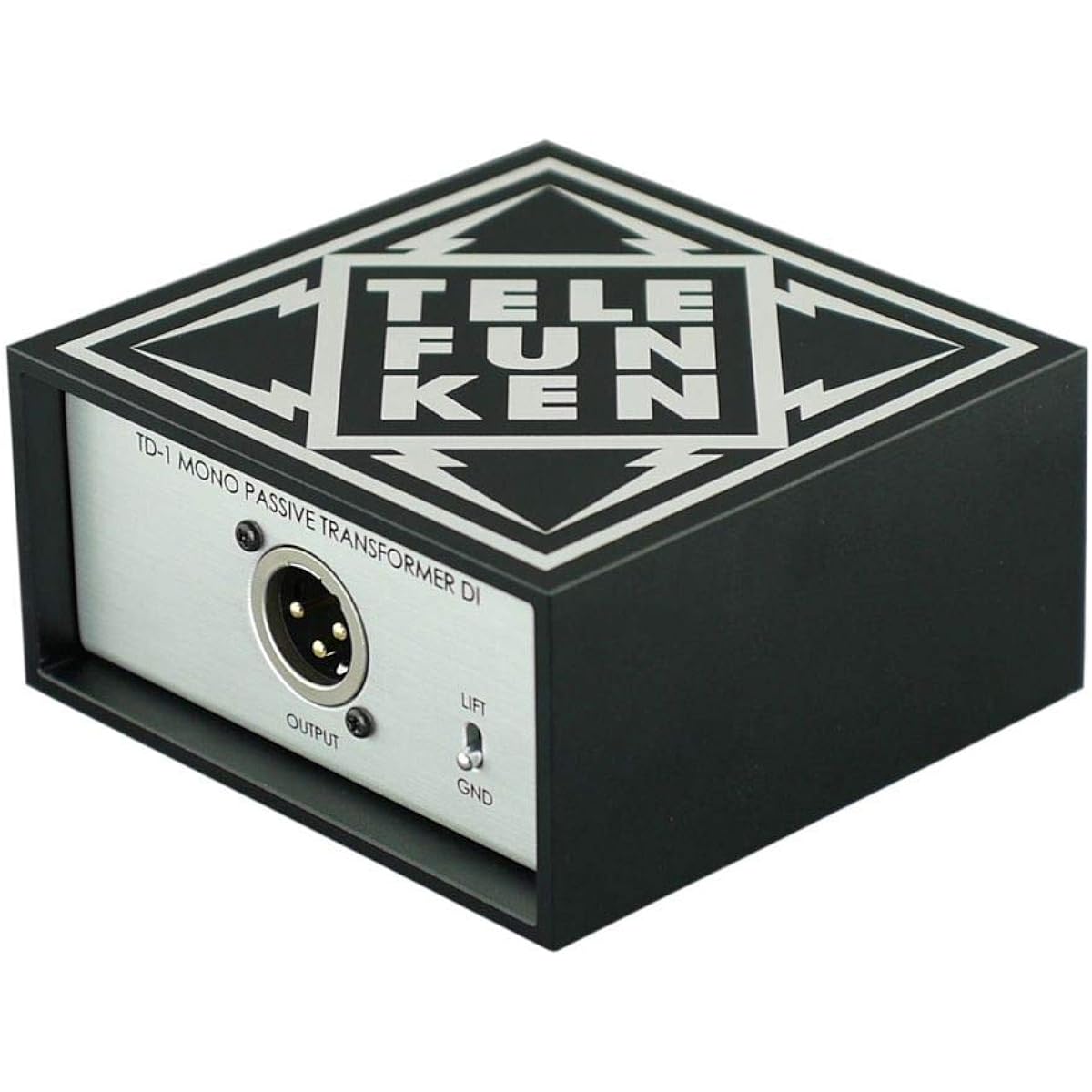

TELEFUNKEN DI TD-1

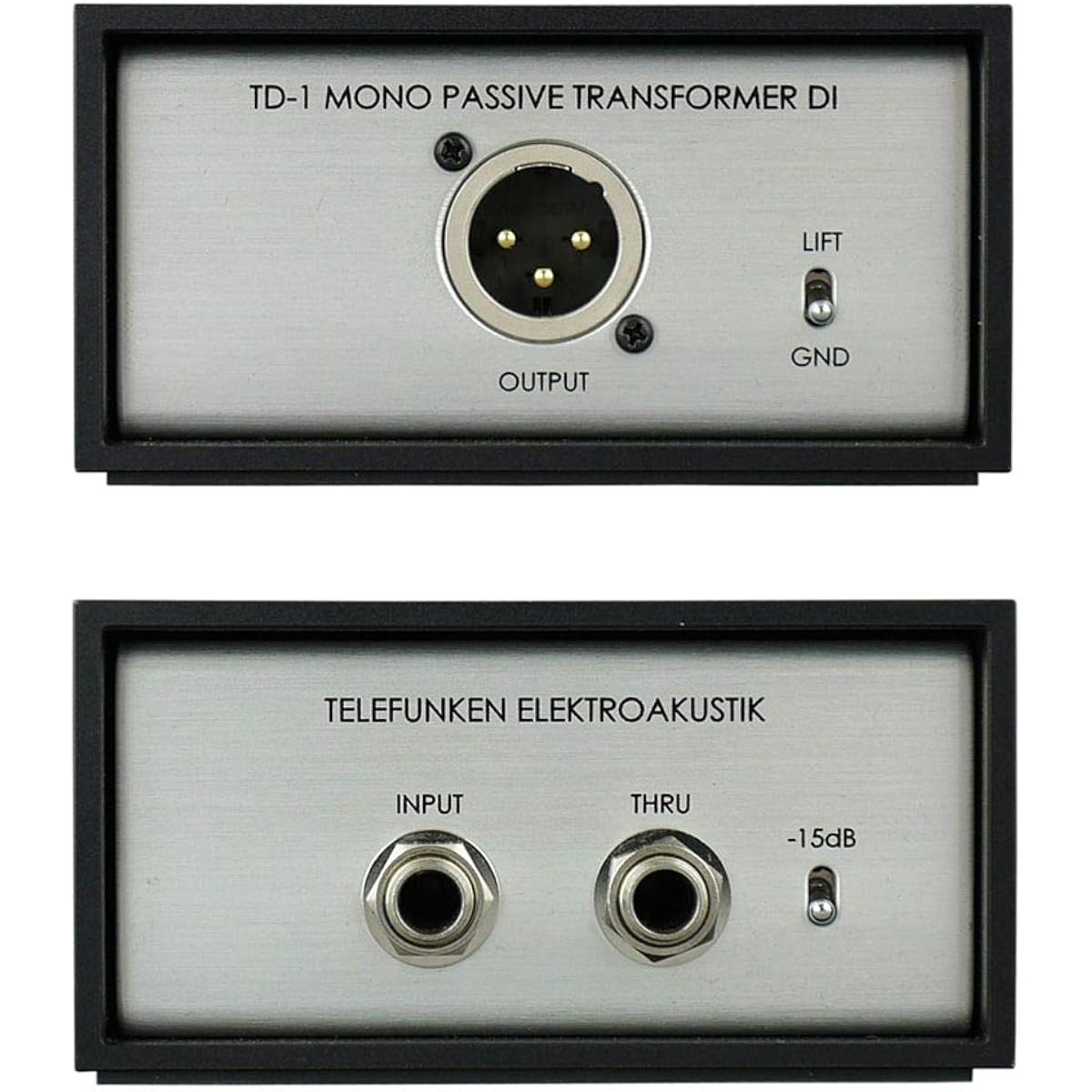

■The Direct Box TD-1 is a new design passive DI that combines premium quality components and sturdy construction to achieve a rich and warm sound. Equipped with a British-made OEP/Carnhill transformer and adopting a design approach that embodies "simple is best", this passive DI provides natural tone and excellent vibes and character to complement it. ■Main features・Equipped with British-made OEP/Carnhill transformer・Equipped with -15dB pad switch・Equipped with ground lift switch・Extruded aluminum housing・100% through-hole mounted components・Uses Amphenol connectors・Uses WIMA and Nichicon capacitors・Uses 1% 1/4W metal film resistors ■SpecificationsChannel: TD-1/1ch TD-2/2chTransformer: Custom-Wound OEP/CarnhillFrequency response: 10 Hz - 40 kHz, ± 2 dBInput Impedance: > 100 kΩOutput Impedance: > 100 kΩWeight: 482 gSize: 100 mm L x 100 mm W x 50 mm HMaximum input: > +18dBVInput terminal: 1/4” JackOutput terminal: XLR Output, 1/4” Thru*Please note that product specifications and appearance may change without notice. Product images include images of use. Please note that nothing other than what is specified in the is included.
