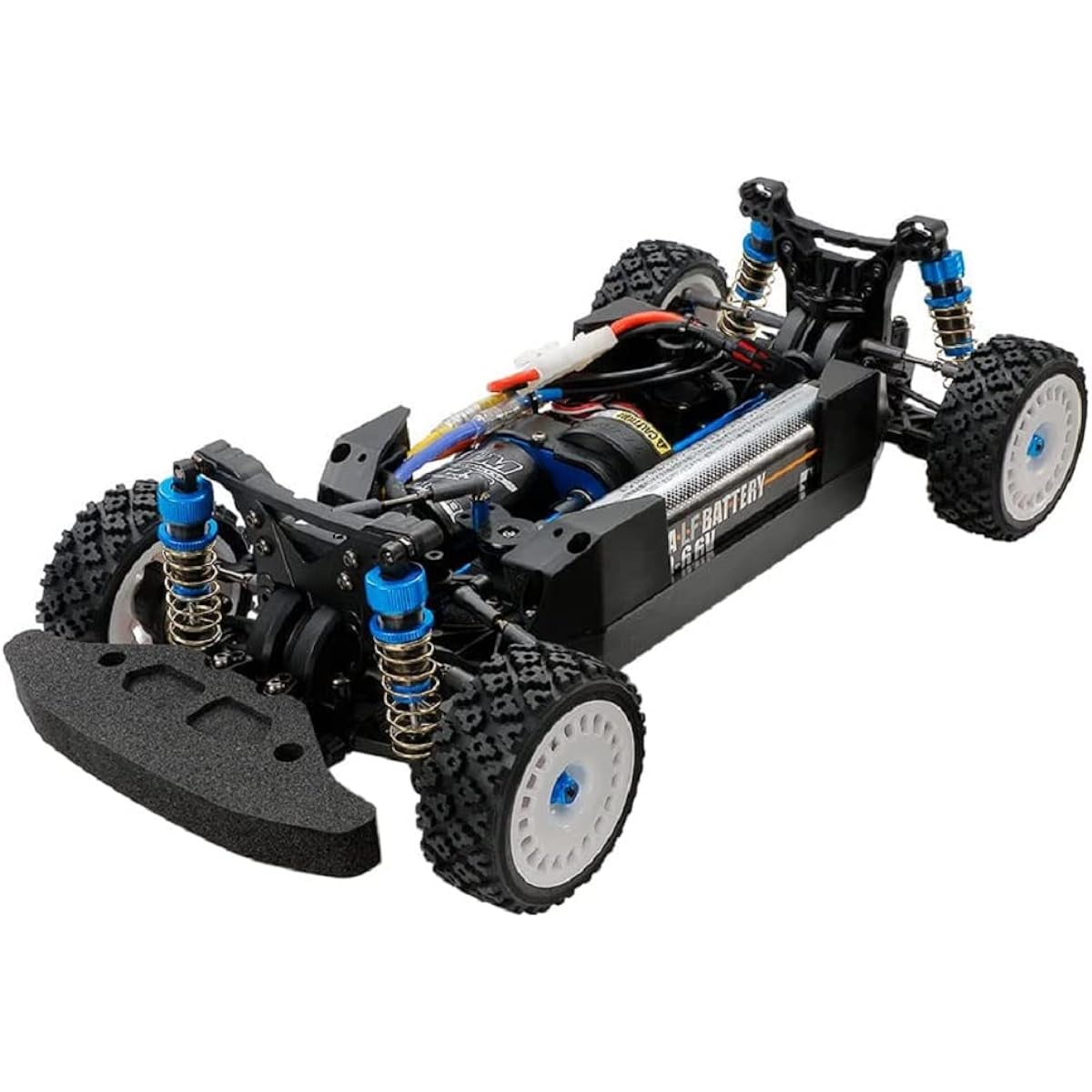

TAMIYA 1/10 Electric RC Car Series No.707 1/10RC XV-02 PRO Chassis Kit 58707

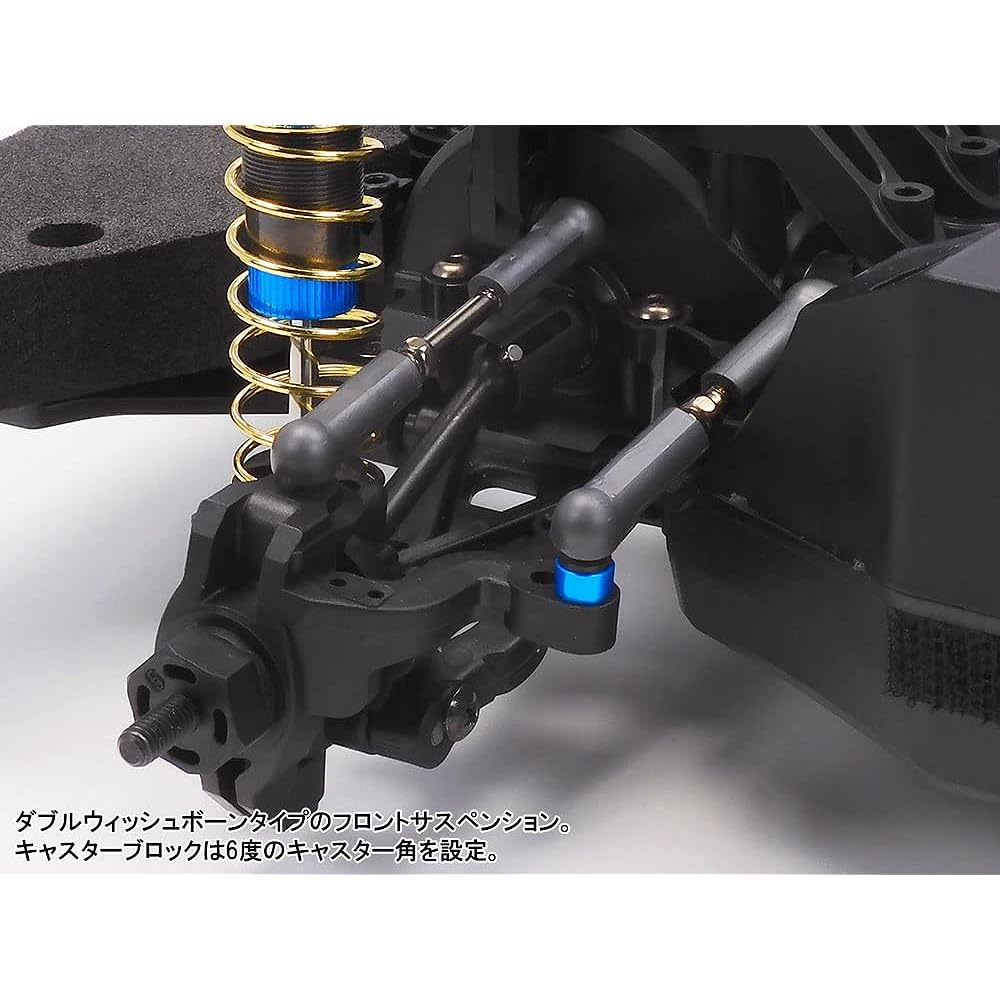

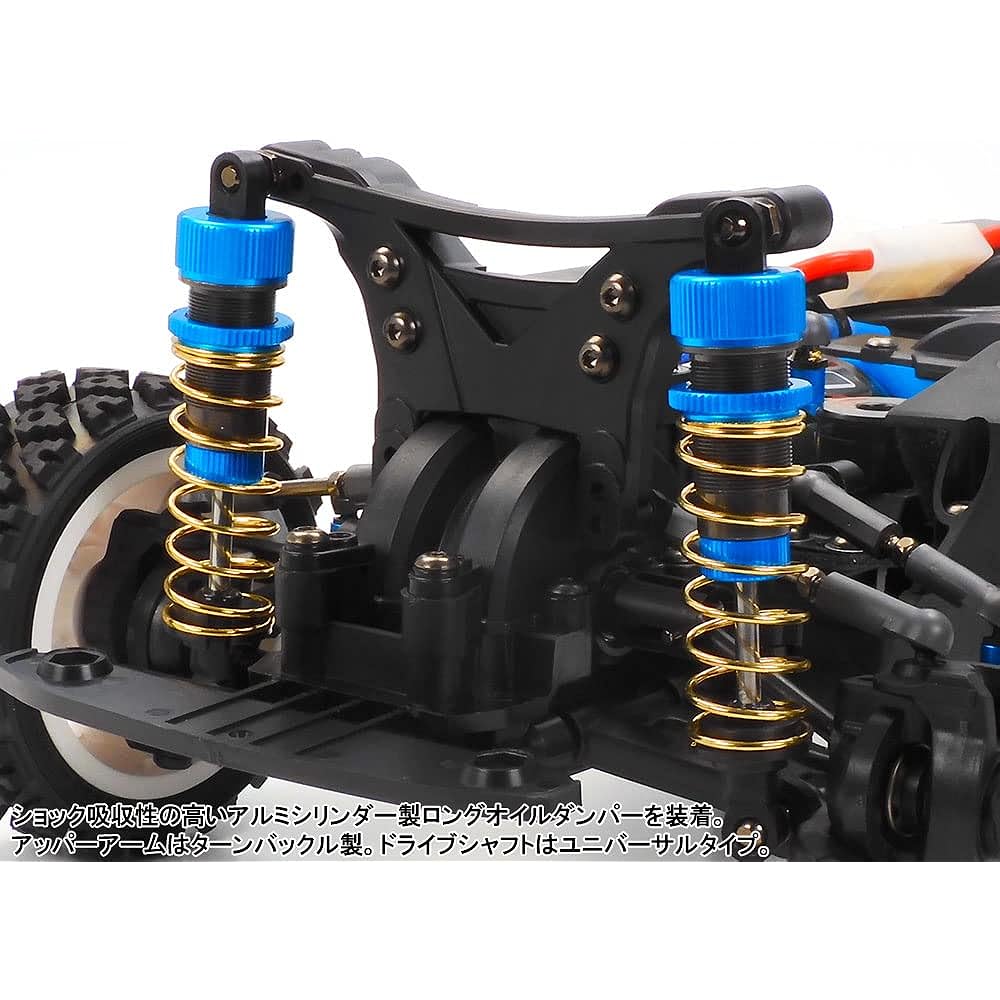

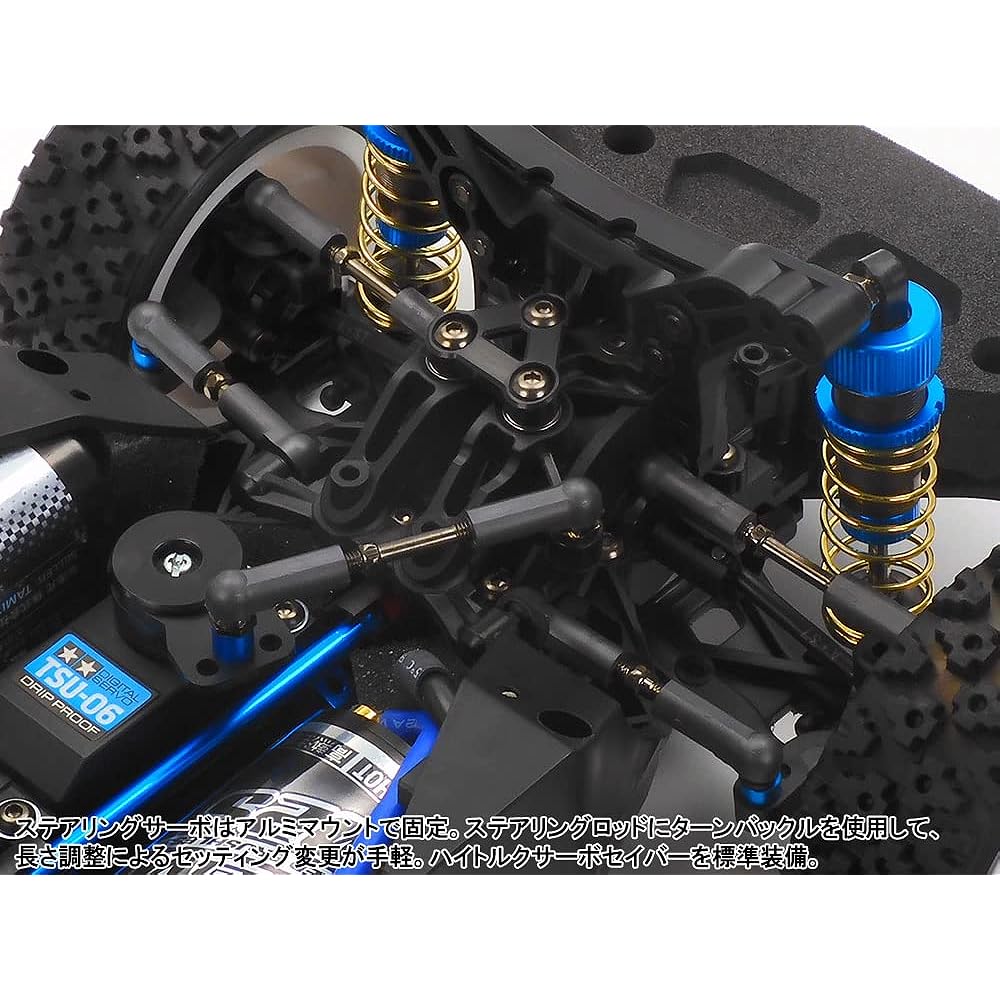

The motor is placed vertically in the front middle, and power is transmitted from the spur gear in the center of the vehicle via the front and rear equal length propeller shafts. This is a shaft drive 4WD chassis that expands the driving field, allowing you to enjoy exciting rally driving on flat dirt as well as on-road. Equipped with 39T gear differentials front and rear, and one 40T gear set for setting. It is also possible to change the front and rear drive distribution by changing the combination. Additionally, heavy items are mounted closer to the center, making the chassis narrower. The double wishbone 4-wheel independent suspension is equipped with an aluminum cylinder long oil damper. [Main equipment parts] Drive system: Full bearing specification, front and rear aluminum propeller shafts, front and rear oil-filled gear differentials (set of 2 39T and 1 40T), front and rear universal drive shafts Suspension: front and rear aluminum long dampers (blue caps) Specifications), caster block with caster angle of 6 degrees, turnbuckle upper arm Chassis area: Front urethane bumper with skid angle, polycarbonate chassis cover, aluminum servo mount, high torque servo saver Assembly required

Chassis length: 368mm (excluding body etc.). Chassis width: 180mm. Wheelbase: 257mm. Frame: Bathtub type. Drive system: Front midship motor shaft drive 4WD. Differential gear: Front and rear oil-filled gear differentials. Steering: 3-split tie rod type. Suspension: 4-wheel double wishbone. Damper: Long oil damper made of aluminum cylinder (blue cap specification). Gear ratio = 9.58:1 when using the 19T pinion included in the kit (14 types of gear ratios from 10.71:1 to 6.28:1 can be selected by combining with the pinion sold separately). Speed ​​controller: ESC specification (sold separately). [What you need to purchase separately] Body, 540 type motor, RC mechanism: 2-channel radio set (transmitter, receiver, ESC, low profile servo recommended), running battery, charger, transmitter power supply. *Batteries, batteries, chargers, etc. are required to operate this product, but they are not included in this product. Also, the body, motor, transmitter, RC mechanism, etc. are not included. Additional parts purchase, assembly, and painting are required before driving. *This product does not use fuel. This product does not contain fuel. *This product does not include paint or adhesive. Safety Warning Please drive in a wide and safe place such as a dedicated RC car circuit. Never run it on the road. Do not run in crowded areas, parks, or near small children. Do not run it in small spaces or indoors. Please do not run it in places where it may be a nuisance to others, such as schools, hospitals, or residences. Please do not run it at night or early in the morning


Product number: ‎58707
Battery usage: ‎Yes
Battery included: ‎No
Main material: ‎Plastic
Applicable Gender: Male
Manufacturer recommended age: 15 years and older
Release date: July 16, 2022
Product model number: 58707
Product size: 13 x 47 x 21.5 cm; 113g
