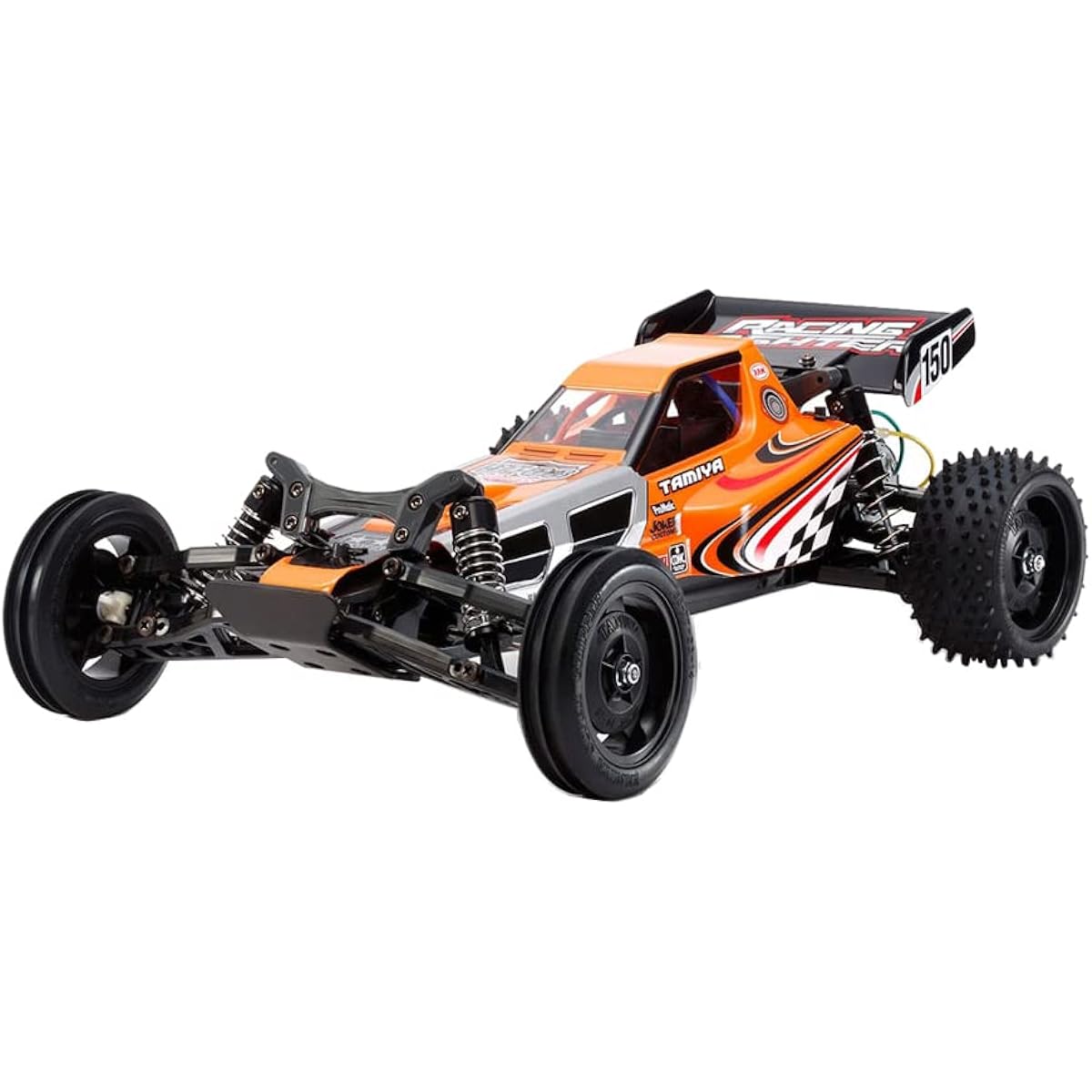

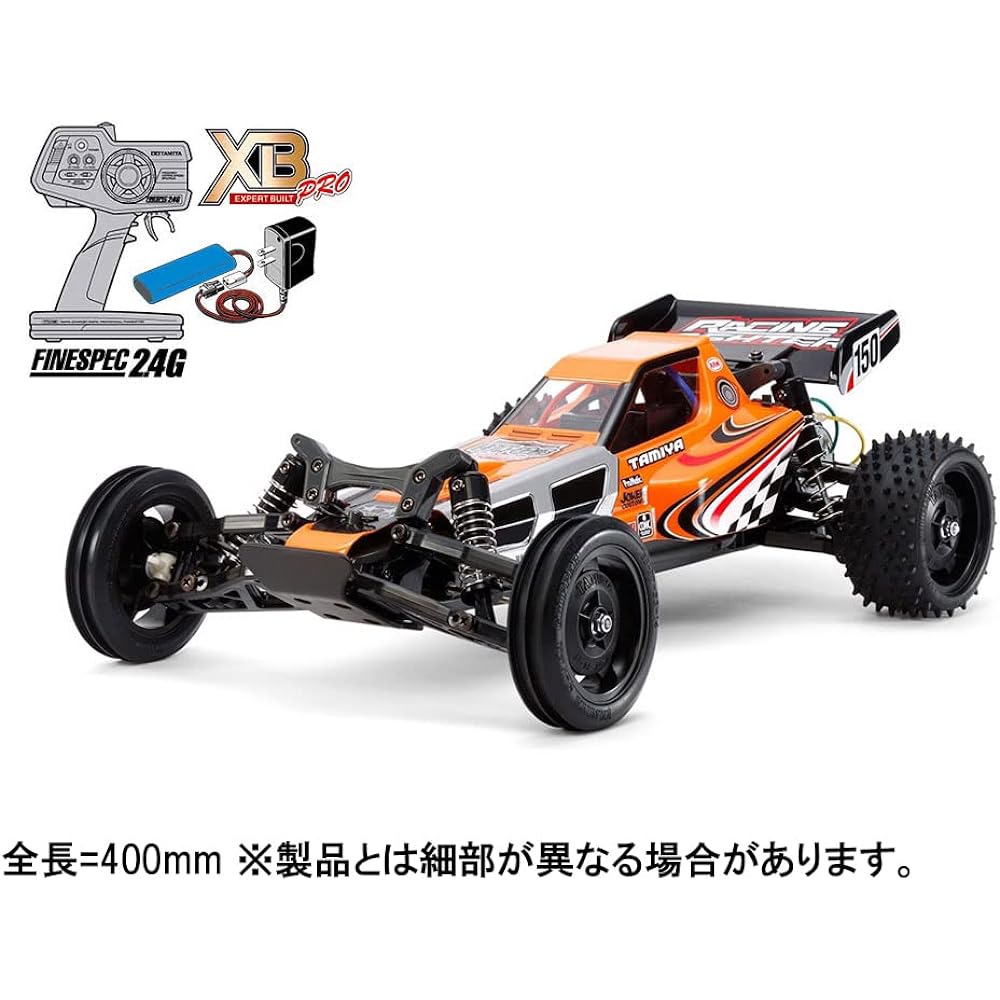

TAMIYA 1/10 XB Series No.195 XB Racing Fighter (DT-03 Chassis) Painted Complete Model with Propo 57895

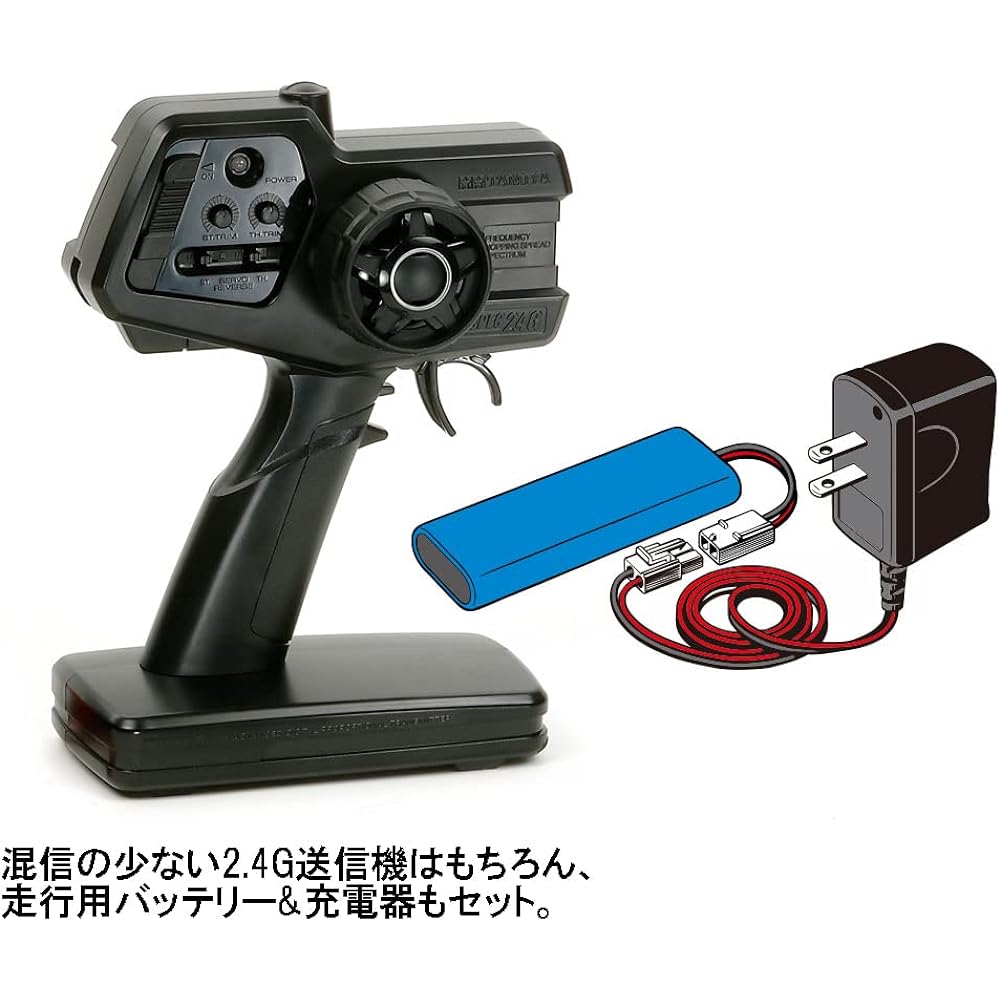

The rear-wheel drive DT-03 chassis uses a lightweight, slim, and strong monocoque frame. The vertically mounted driving battery is mounted from the top of the monocoque, and the RC mechanism is also set on the center line of the vehicle body for a highly balanced design. The wheelbase is set to 287mm, and the long wheelbase allows you to enjoy stable driving even on rough roads. The suspension handles rough roads flexibly with 4 independent long arm double wishbone wheels equipped with friction dampers. The front tires are equipped with a triple rib pattern that provides excellent directionality, and the rear wheels are equipped with square spikes that provide sufficient grip on any road surface. The gearbox is mounted on the rear end to ensure traction for the drive wheels.It is a sealed type that prevents sand and pebbles from entering, and has a built-in differential gear to create smooth cornering. The ESC (electronic speed controller) is equipped with TBLE-04S, a model with a sensor that is compatible with brushless motors of 15.5T or higher. In addition to the complete car body, we also include a wheel trigger type transmitter that is ideal for controlling the car, a 7.2V battery for driving, and a charger. The RC mechanism uses a 2.4GHz radio set that does not require band adjustment such as crystal replacement, and can be easily enjoyed with multiple devices. 2.4GHz, which is also used for computer wireless LAN, has a one-to-one correspondence between the transmitter and receiver (vehicle body), so there is no need to worry about interference, and since the transmitter and receiver are already paired, No need for troublesome setup work. In addition, the transmitter uses a grip cover and trigger cover.

[Basic specifications] Total length: 400mm. Overall width: 244mm. Overall height: 134mm. Wheelbase: 287mm. Tread: Front 222mm/Rear 208mm. Tire width/diameter = front 23/81mm, rear 41/86mm. Frame = monocoque type. Drive system: Rear wheel drive. Differential gear system: 3 bevel differential. Steering tie rod: 2 parts. Suspension front and rear: double wishbone. Gear ratio: 9.28:1. Motor: RS540 type. Equipped with ESC (Electronic Speed ​​Controller) that allows backing. [Required separately (not included in this product)] 4 AA batteries for transmitter. Do not use any other than specified charging equipment to charge the battery. The charger that can be used differs depending on the type and capacity of the battery. Using an unspecified charging device is extremely dangerous as it may cause heat generation, fire, or explosion. Be sure to charge the battery in a place where you can see it and there is nothing nearby. *This product does not use fuel. *This product does not include fuel. *This product does not include paint. *This product does not include adhesive. Safety Warning Please drive in a wide and safe place such as a dedicated RC car circuit. Never run it on the road. Do not run in crowded areas, parks, or near small children. Do not run it in small spaces or indoors. Please do not run it in places where it may be a nuisance to others, such as schools, hospitals, or residences. Do not run at night or early in the morning.


Product number: 57895
Quantity: 1
Battery usage: Yes
Battery included: Yes
Main material: Plastic
Target gender : ‎Unisex
Manufacturer's recommended age: ‎15 years and older
Release date: ‎2022/10/22
Product model number: ‎57895
Product size: ‎40 x 25 x 14 cm; 3.74kg
