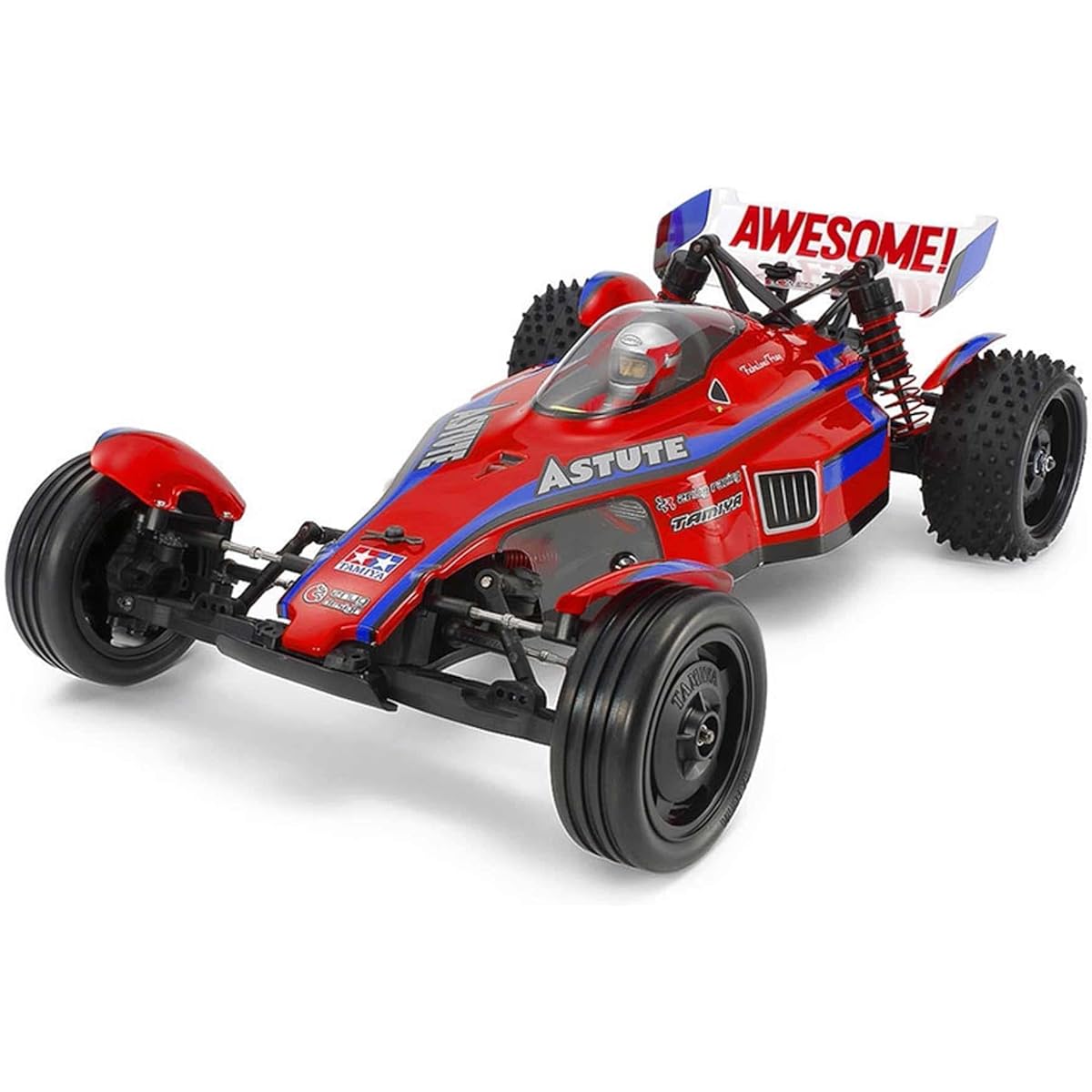

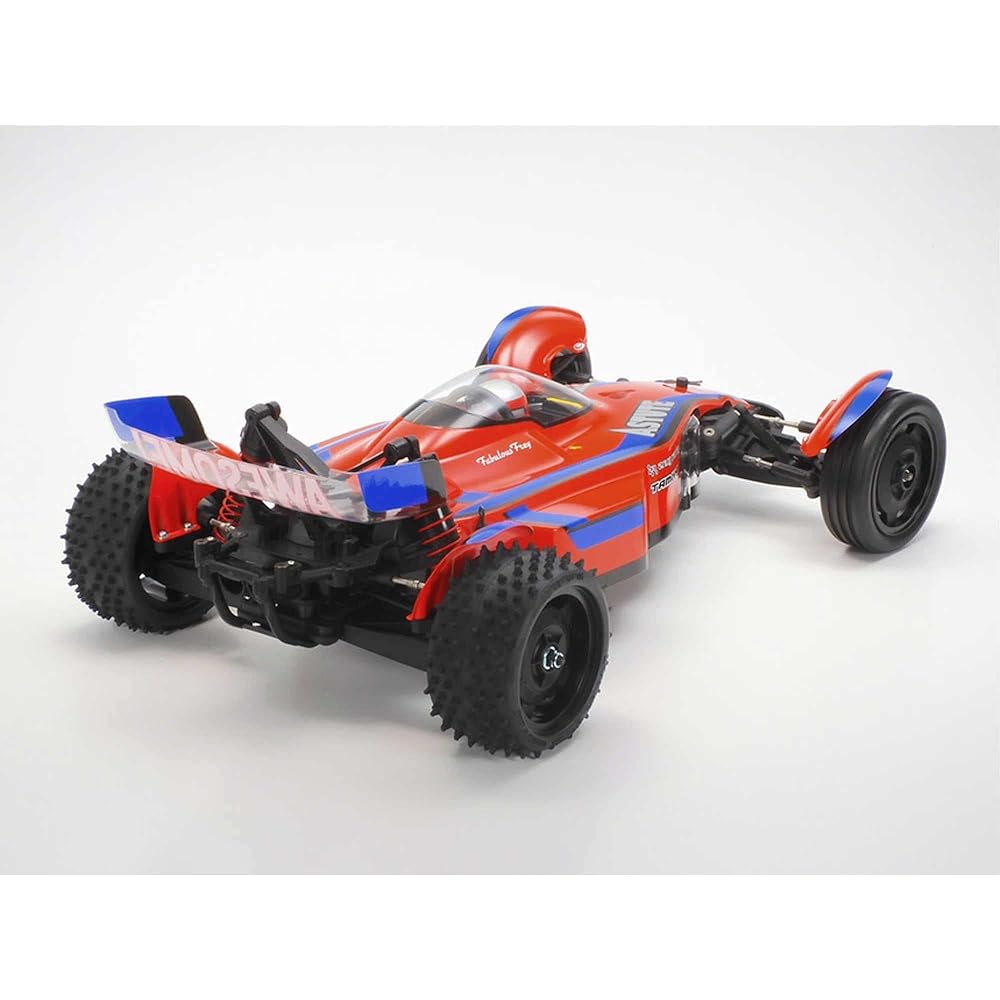

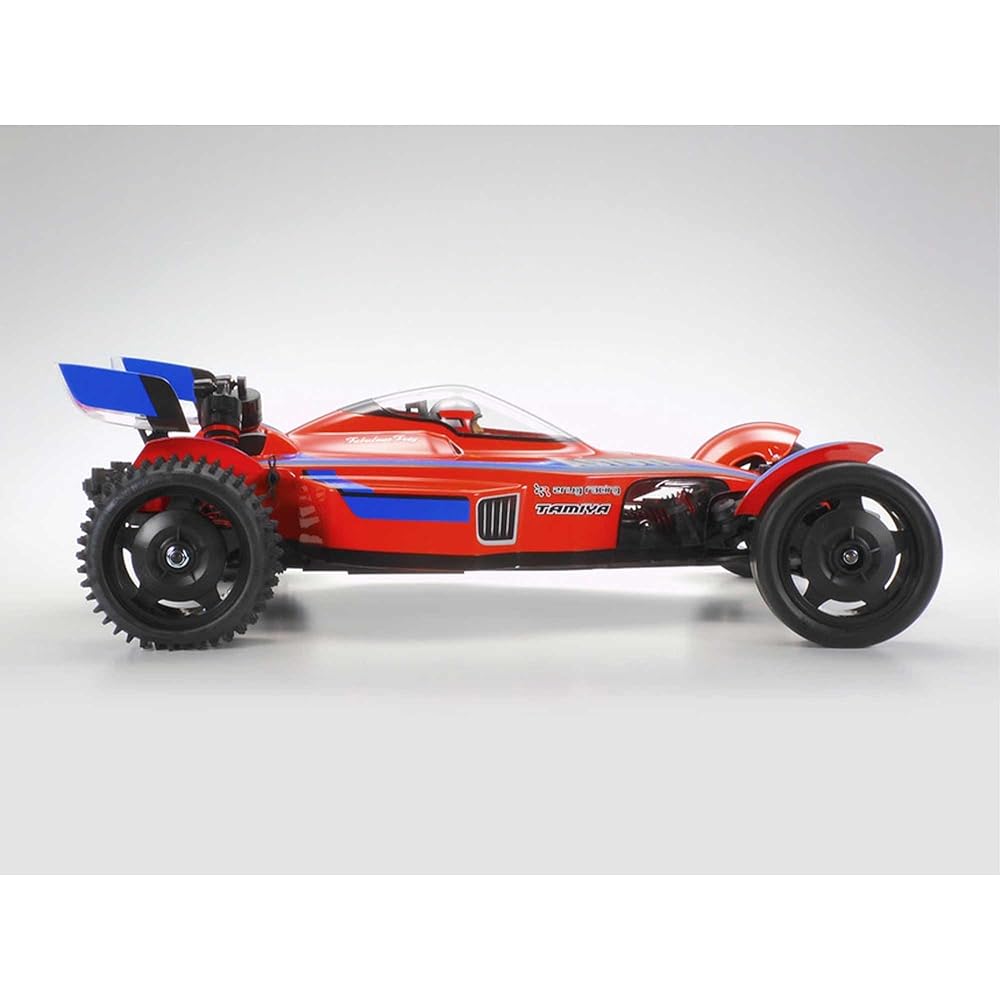

Tamiya 1/10 Electric RC Car Special Project No.182 1/10RC Astute 2022 Painted Body (TD2 Chassis) 47482

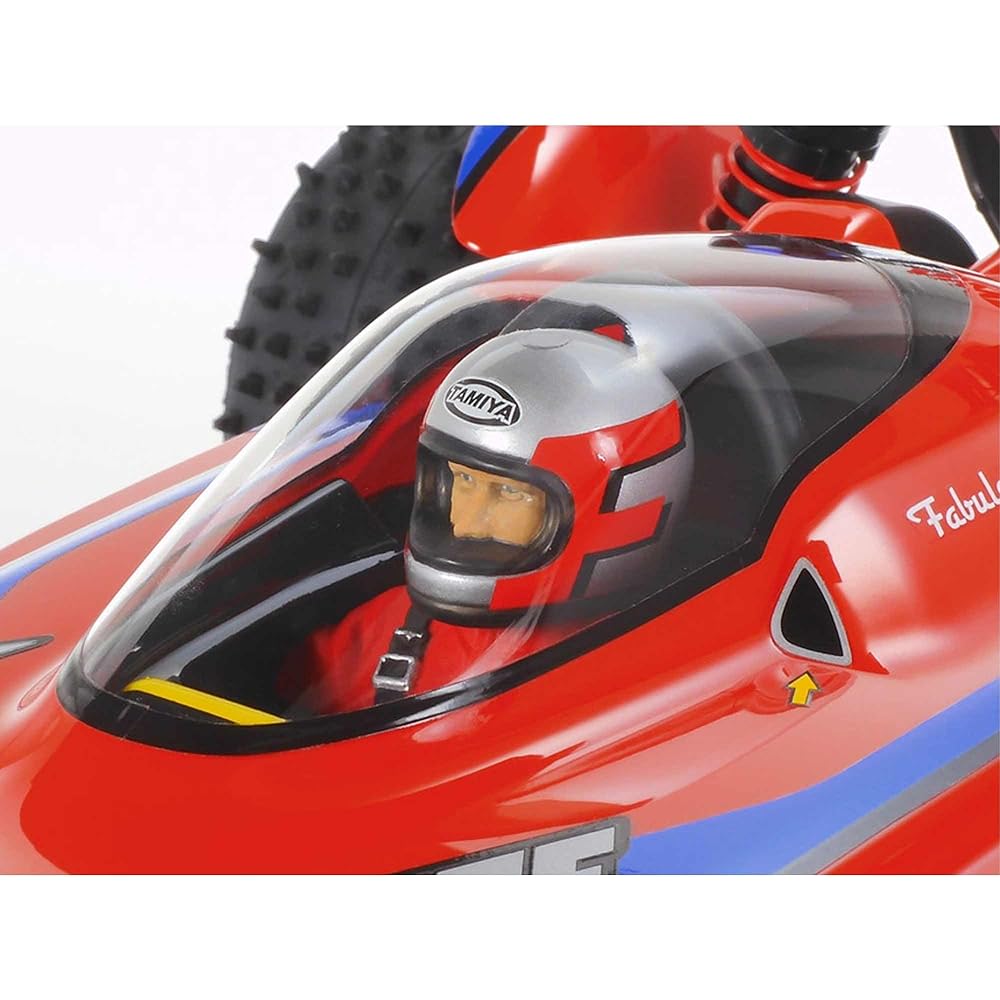

This is a special version of Astute 2022, an electric radio control car assembly kit that inherited the name of Astute, a middle-class rear-wheel drive buggy that was introduced in 1989. The low, smooth polycarbonate body was painted red and cut by Kota Nezu of znug design. The distinctive front and rear mini fenders are also painted/cut in red. Attach marking stickers and paint the doll to complete the body. The chassis uses a monocoque frame, and the motor is mounted midship. The heavy running battery is placed horizontally at the rear to ensure traction from the rear tires. It is a rear-wheel drive chassis that uses an inboard front suspension to keep the vehicle height low, and has a well-balanced and concentrated mechanical arrangement on a monocoque frame. The motor is mounted horizontally in the midship, and the battery for driving is mounted horizontally near the rear, so that sufficient load is applied to the drive wheels. The sealed gearbox has a built-in ball differential with limited slip effect. The suspension has four independent double wishbone wheels equipped with CVA oil dampers with high shock absorption. The camber angle can be adjusted using a turnbuckle shaft on the upper arm. Total length = 387mm The photo shows the kit assembled and partially painted. *The body is painted and cut.

Overall length 387mm, overall width 246mm, overall height 125mm (wing stay low position). Wheelbase: 284mm. Tread = front 215mm, rear 205mm. Main frame = resin bathtub type. Drive system = rear wheel drive. Differential gear = ball differential. Steering = 3-split tie rod type. Suspension: 4 independent double wishbone wheels. Tire width/diameter = front 27/79mm, rear 41/82mm. Damper = CVA oil damper. Gear ratio = 10.71:1 (when using kit standard 17T pinion). 540 type motor (sold separately). Full bearing specification. Speed ​​controller = ESC specification (sold separately) [Required separately] 540 type motor, RC mechanism: 2 channel radio set (transmitter, receiver, ESC, low profile servo), running battery, charger, for transmitter power supply. *This product requires a power source to operate, but batteries, batteries, chargers, etc. are not included. Also, motors, transmitters, RC mechanisms, etc. are not included. Additional parts purchase, assembly, and painting are required before driving. *This product does not use fuel. This product does not contain fuel. *This product does not include paint or adhesive. Safety Warning Please drive in a wide and safe place such as a dedicated RC car circuit. Never run it on the road. Do not run in crowded areas, parks, or near small children. Do not run it in small spaces or indoors. Please do not run it in places where it may be a nuisance to others, such as schools, hospitals, or residences. Do not run at night or early in the morning.


Product number: 47482
Battery usage: Yes
Battery included: No
Main material: Plastic
Target gender: Male
Manufacturer Recommended age: ‎15 years old and above
Release date: ‎2022/7/23
Product model number: ‎47482
Product size: ‎38.7 x 24.6 x 36.6 cm; 2.13 kg
