TAMIYA 1/10 Engine RC Car Series No.53 RCE TG10-Mk.2 FN Chassis Kit 44053

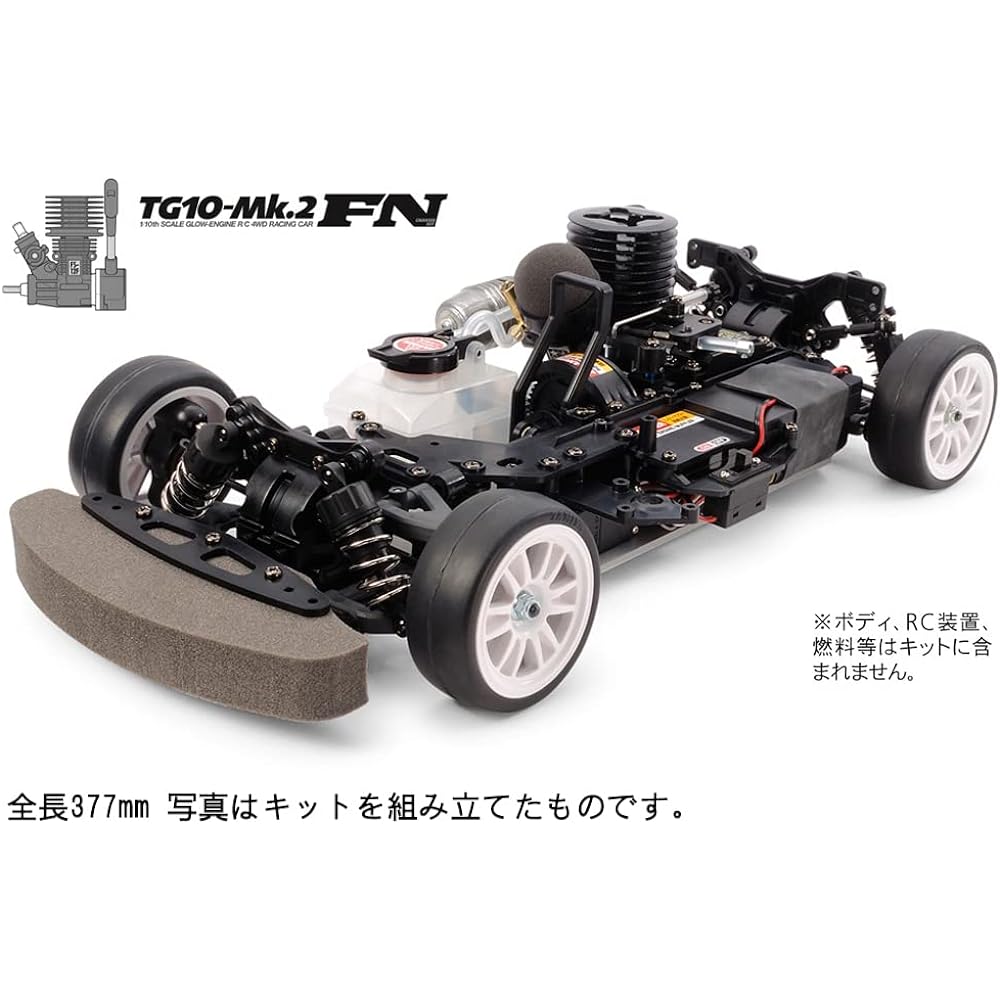

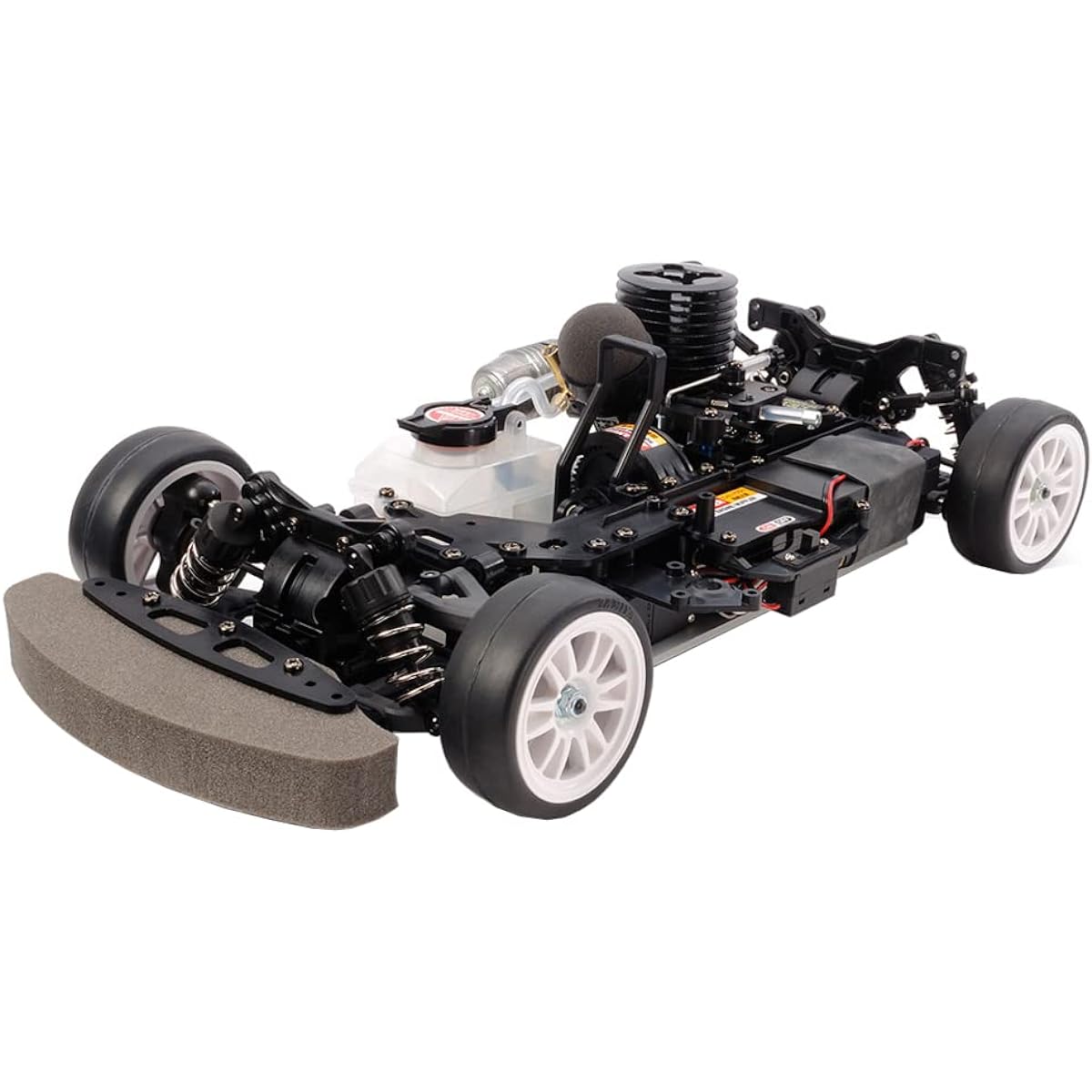

[Engine car chassis compatible with 190mm wide body of electric RC] This is a chassis kit based on the concept of enjoying an engine car with a 190mm wide body, which is common in 1/10 electric RC cars. Tamiya FS-12FN engine with small recoil starter is mounted on a shaft drive 4WD chassis that uses a highly rigid double deck frame with a 3mm thick duralumin lower and resin upper. The suspension is equipped with narrow type arms compatible with the 190mm wide body, and has 4 independent double wishbone wheels equipped with oil dampers. Slick tires are mounted on white-colored 12-spoke wheels. Not only does it use a wide variety of TG10-Mk.2 parts, but it also expands the range of body choices and makes driving even more fun. [Equipped with Tamiya FS-12FN engine with easy-to-handle characteristics] The Tamiya FS-12FN engine with a displacement of 2.1cc is equipped with a slide carburetor with a tapered intake, a die-cast heat sink head, and a TM-4 muffler as standard equipment. It also features linear torque characteristics that make it easy to handle and adjust. Of course, the easy starting with the small recoil starter is also a great feature.

Chassis length: 377mm. Chassis width: 185-190mm (variable) Wheelbase: 257mm. Tread: Front and rear 164-168mm (variable). Chassis material: Double deck with 3mm thick aluminum lower + glass reinforced nylon resin upper. Differential gear system F/R: 4 bevel/2 bevel. Steering tie rod: 3 parts. Suspension: 4-wheel double wishbone. Damper: CVA oil damper super mini front and rear. Tire size (width/diameter): front and rear 24/64mm. Gear ratio: 7.02:1. Muffler: TM-4. Drive system: Shaft drive full-time 4WD. Engine: FS-12FN (2.1cc). Fuel tank: 75cc. [Things to be purchased separately (not included in this product)] RC device: EXPEC GT-II 2.4G (set for engine cars), or 2-channel radio set for engine cars and batteries. Driving fuel: Various fuels for glow engines. Engine starting supplies: plug heater & fuel pump. Body for 1/10 electric RC touring car. *Fuel, batteries, battery chargers, etc. are required to drive this product, but they are not included in this product. *This product does not include the body, transmitter, RC mechanism (receiver, ESC, servo, etc.). *Additional purchase, assembly, and painting of parts are required before driving. *This product does not include paint, adhesive, oil, or grease. Safety Warning Body, RC device, fuel, etc. are not included in the kit
