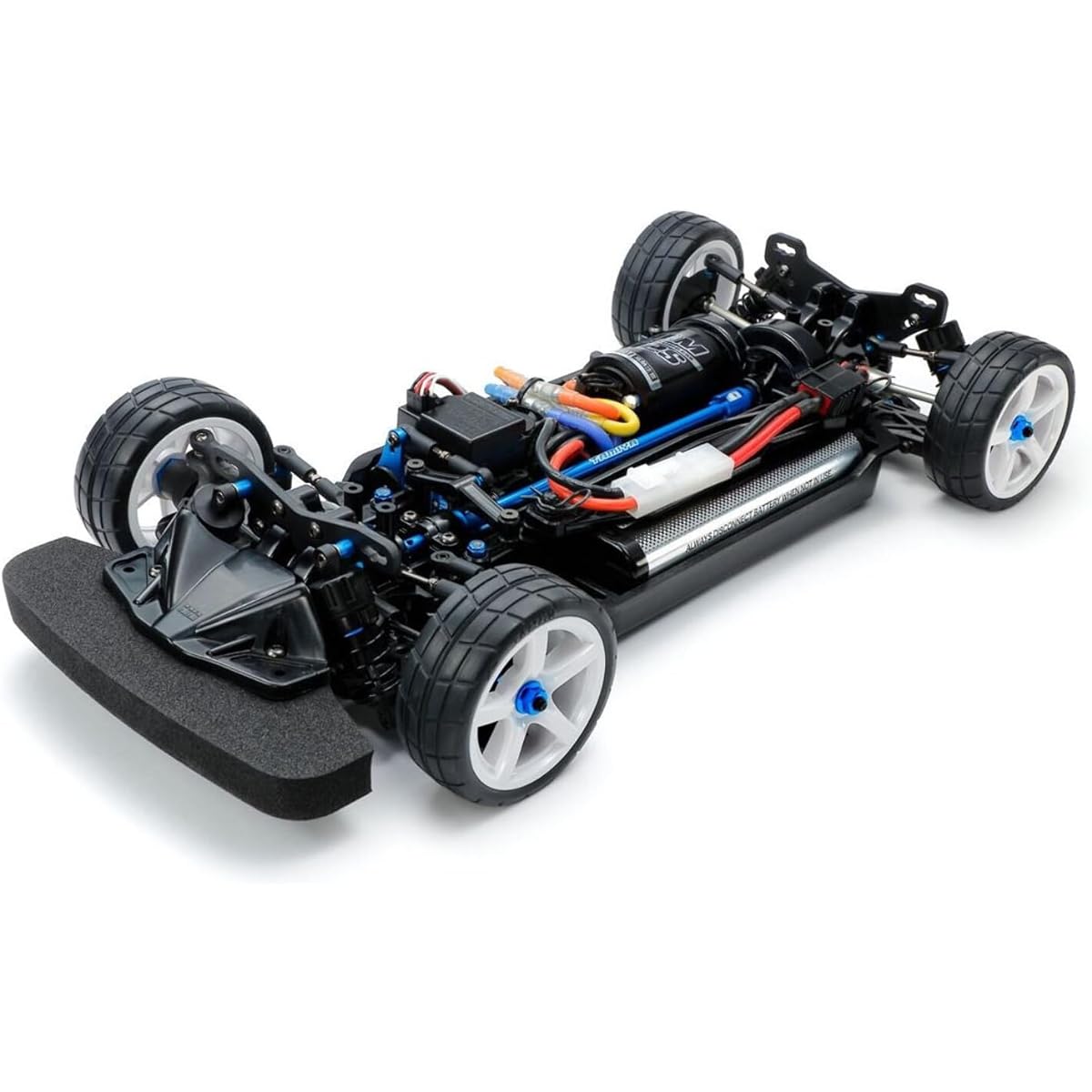

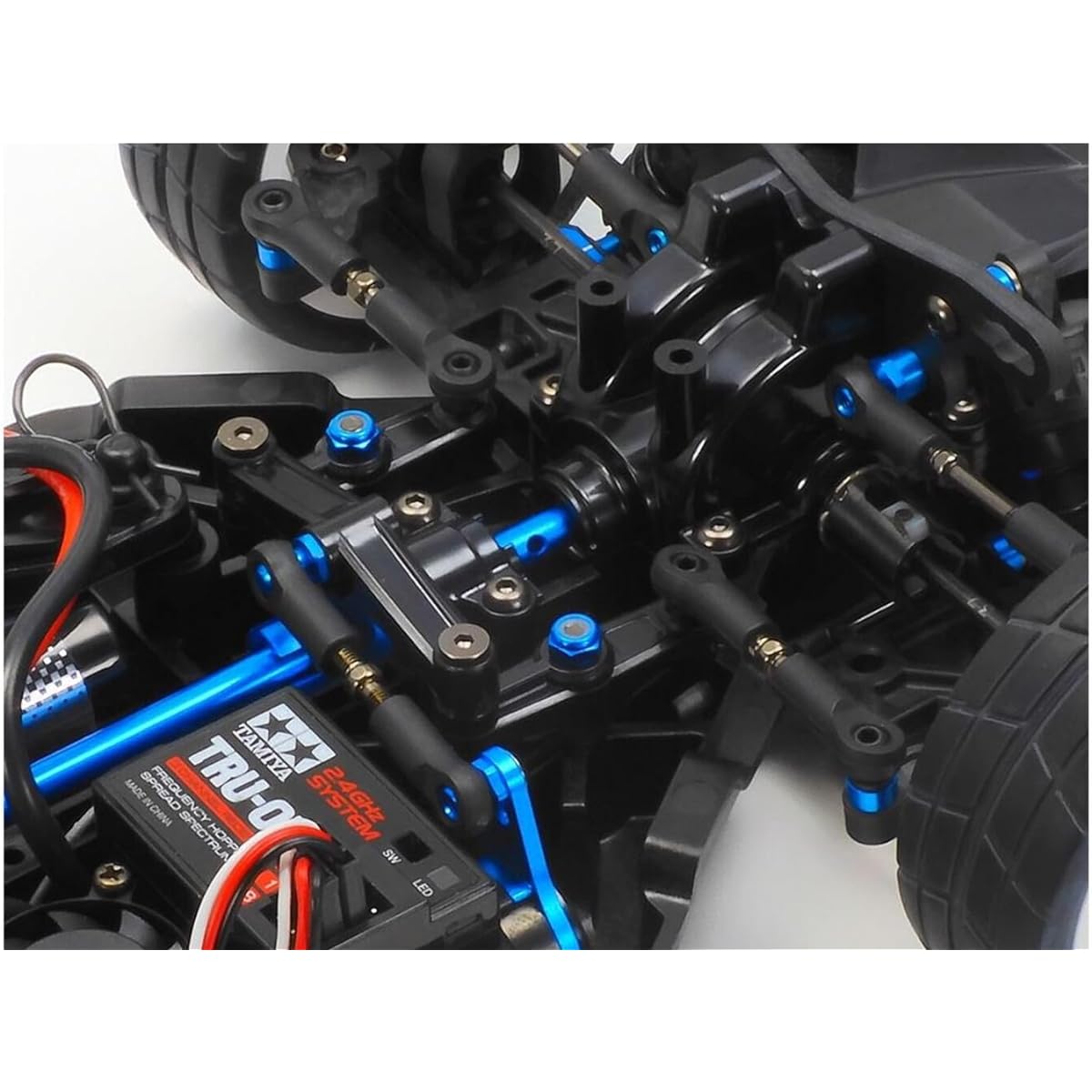

Tamiya 1/10 Electric RC Car Series No.720 1/10RC TT-02 TYPE-SRX Chassis Kit 58720

[Increase the potential of each part for racing] By incorporating optional parts into the basic chassis of 4WD touring cars, the TT-02 has been made into a race-oriented model that improves driving performance and allows you to enjoy the fun of setting it up. The drive system is equipped with a direct cup and double cardan drive shaft in the front and an oil-filled gear differential in the rear to reduce loss. The suspension arms of the TRF420 are used for excellent maneuverability, and the rear uses a bush-type adjustable suspension mount. The combination of a 27T aluminum pinion gear and a 68T spur gear gives it a gear ratio of 6.55:1, making this a chassis kit ideal for participating in the Tamiya Grand Prix and Challenge Cup.

Product Introduction [Basic Specifications] Chassis length: 361mm (excluding body, etc.). Chassis width: 183mm. Wheelbase: 258mm. Frame: Bathtub type. Drive system: Vertical motor shaft drive 4WD. Differential gear: Front: Direct cup, Rear: Oil-filled gear differential unit. Steering: 3-piece tie rod type. Suspension: 4-wheel double wishbone. Dampers: CVA oil dampers on both front and rear. Gear ratio = 6.55:1 (standard 27T pinion, 68T spur gear used). Motor: 540 type (sold separately). Speed ​​controller: ESC specification (sold separately). [Items to be purchased separately (not included with this product)] Body. Brushless motor. Tires. RC mechanism: ESC, 2-channel radio with low-profile servo. Battery for driving, charger. Power supply for transmitter. Safety warning: Please run in a wide and safe place such as a circuit dedicated to RC cars. Never run on roads. Do not run in crowded places, parks, or near small children. Do not run in narrow places or indoors. Do not run in places where it may disturb others such as schools, hospitals, and homes. Do not run at night or early in the morning.
