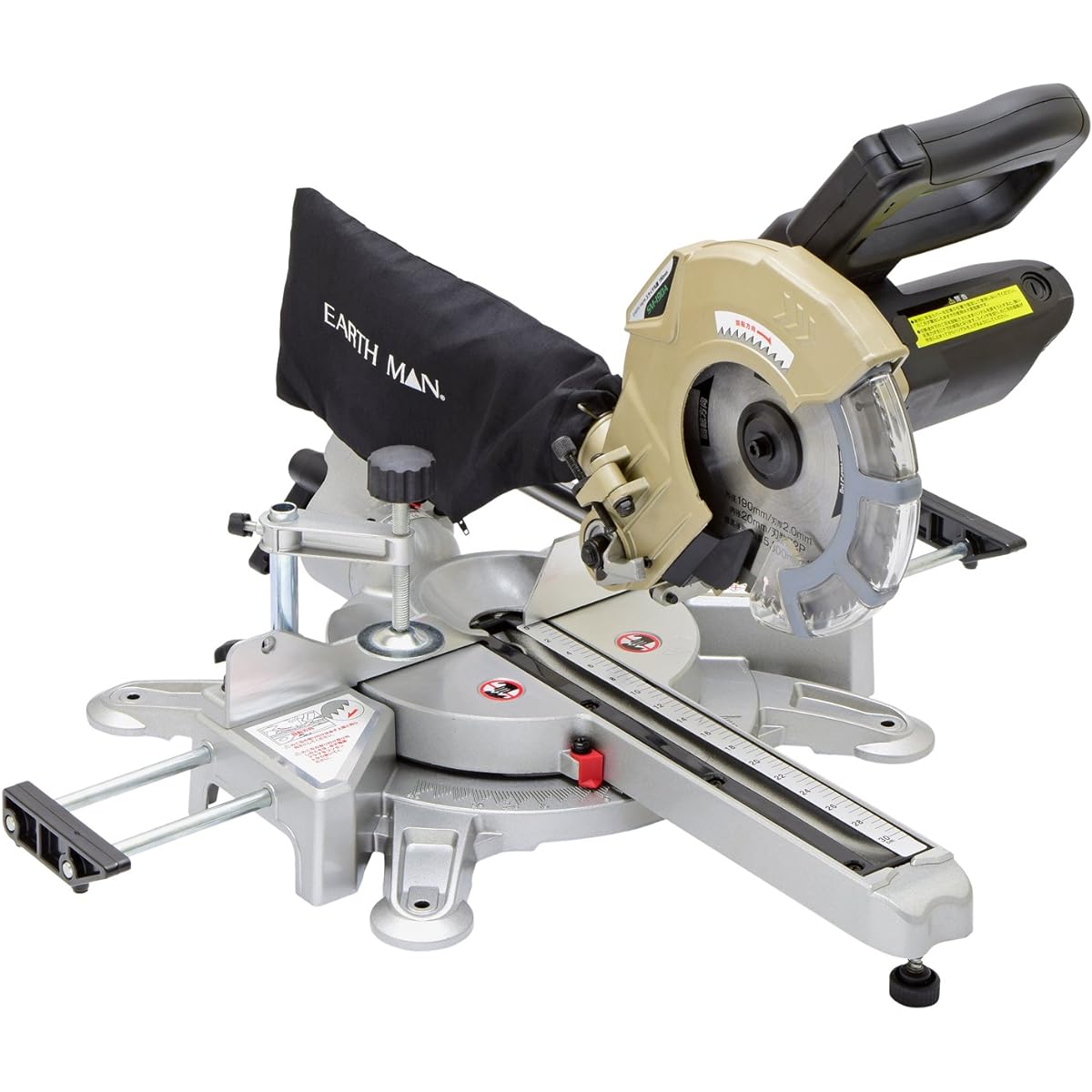

Takagi Slide Circular Saw EARTH MAN 190mm SM-190A [Saw blade tilt angle up to 45 degrees left] TAKAGI Slide Circular Saw Circular Saw Circular Saw Tabletop Circular Saw Slide Circular Saw Table Saw Oshinoko Chip Saw Cutting Machine

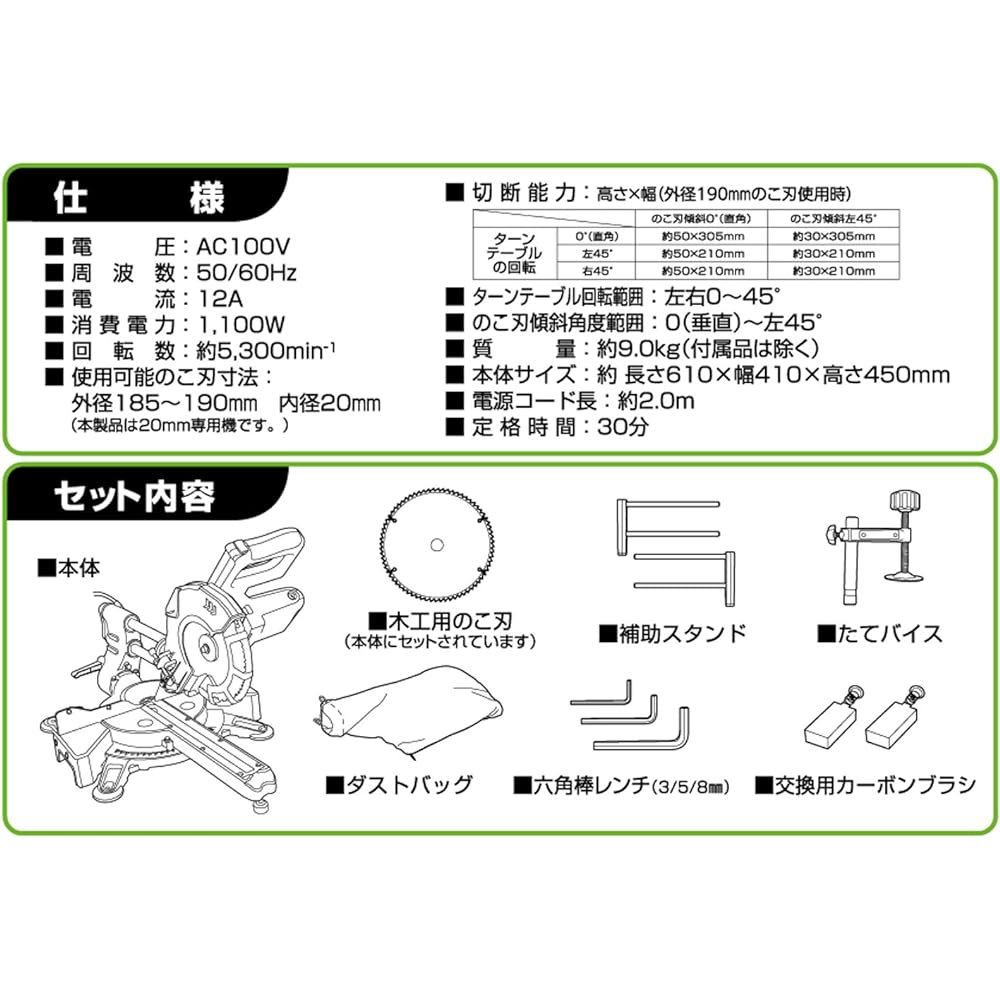

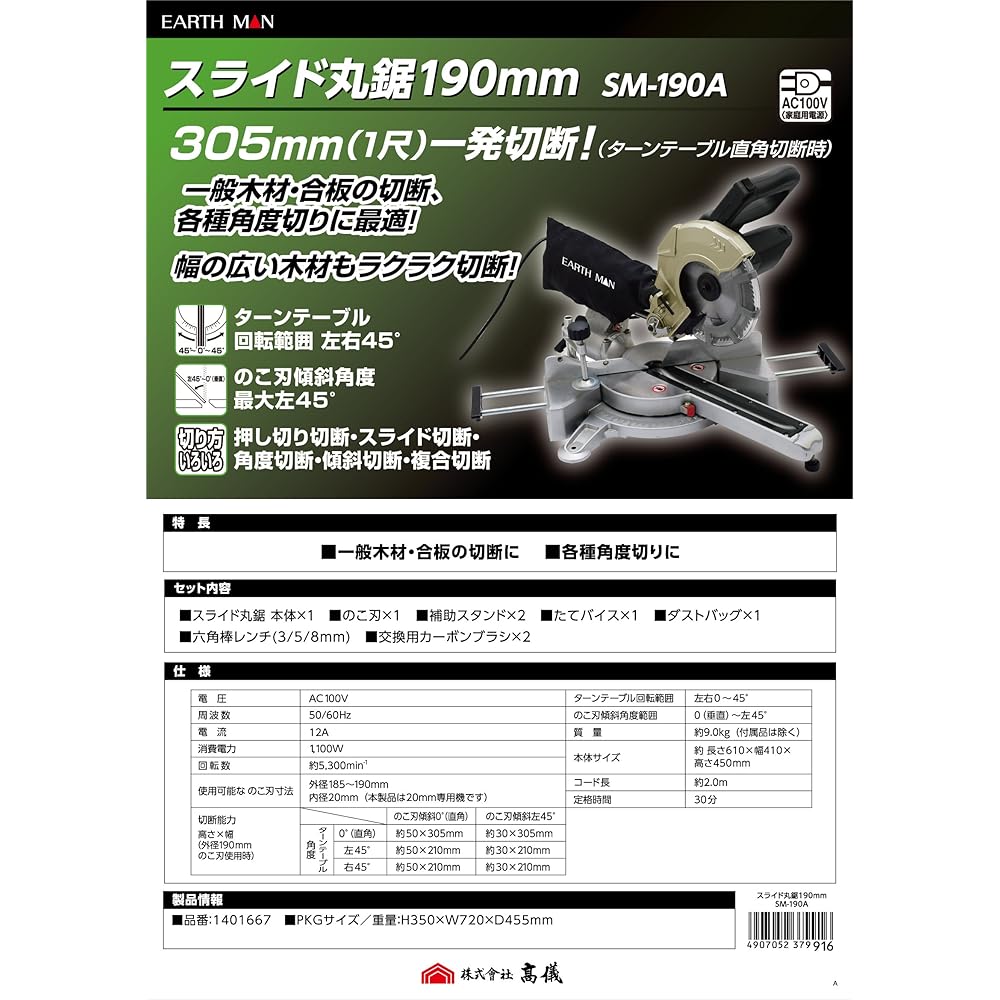

For cutting general wood and plywood, various angle cuts Voltage: AC 100V, Frequency: 50/60Hz Current: 12A, Power consumption: 1,100W Rotation speed: Approx. 5,300min-1 Usable saw blade dimensions: Outer diameter 185~190mm, inner diameter 20mm (This product is a 20mm dedicated machine.) Turntable rotation range: 0~45° left and right Saw blade tilt angle range: 0 (vertical) ~ 45° left Body size: Approx. length 610 x width 410 x height 450 (mm), mass: approx. 9.0 kg (excluding accessories) Cord length: approx. 2 m, rated time: 30 minutes Set contents: main unit, woodworking saw blade (set in the main unit), auxiliary stand x 2, vertical vise, dust bag, hex wrench (3/5/8mm), carbon brush 1 set Increase the number of items displayed

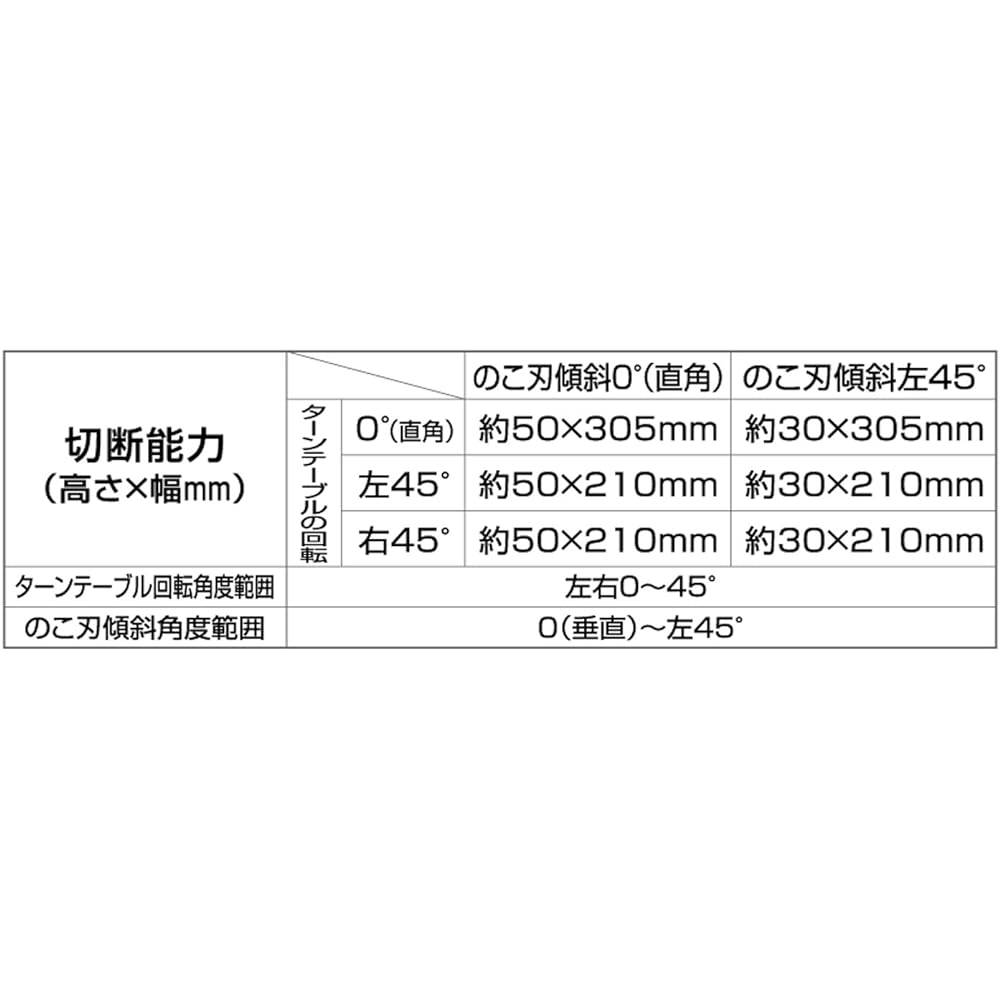

For cutting general wood and plywood, cutting various angles at 305 mm (1 shaku) in one shot (when cutting at right angles with the turntable) Ideal for cutting general wood and plywood, and cutting various angles Easily cuts wide wood Turntable rotation range left and right 45° Saw blade inclination angle Maximum left 45° Push cutting, sliding cutting, angle cutting, inclined cutting, combined cutting possible [Cutting ability Height x Width (when using a saw blade of 190 mm outer diameter)] Saw blade inclination 0° Turntable at 0°: Approx. 50 x 305mm Saw blade inclination 0° Turntable left 45°: Approx. 50 x 210mm Saw blade inclination 0° Turntable right 45°: Approx. 50 x 210mm Saw blade inclination 45° Left Turntable at 0°: Approx. 30 x 305mm Turntable left at 45° with saw blade inclined: Approx. 30 x 210mm Turntable at right 45° with saw blade inclined at 45° left: Approx. 30 x 210mm


Brand: ‎Takagi
Product model number: ‎SM-190A
Product size: ‎61 x 41 x 45 cm; 9 kg
Color: ‎Gray
Wallpaper pattern: Single item
Power supply: Power cord type
Voltage: 100 Volts
Wattage: 1100 W
Quantity: 1
Laser class: Round Saw
Accessories: ‎No
Batteries included: ‎No
Maximum revolutions (revolutions/min): ‎5300 revolutions per minute
Product weight: ‎9 Kilograms
