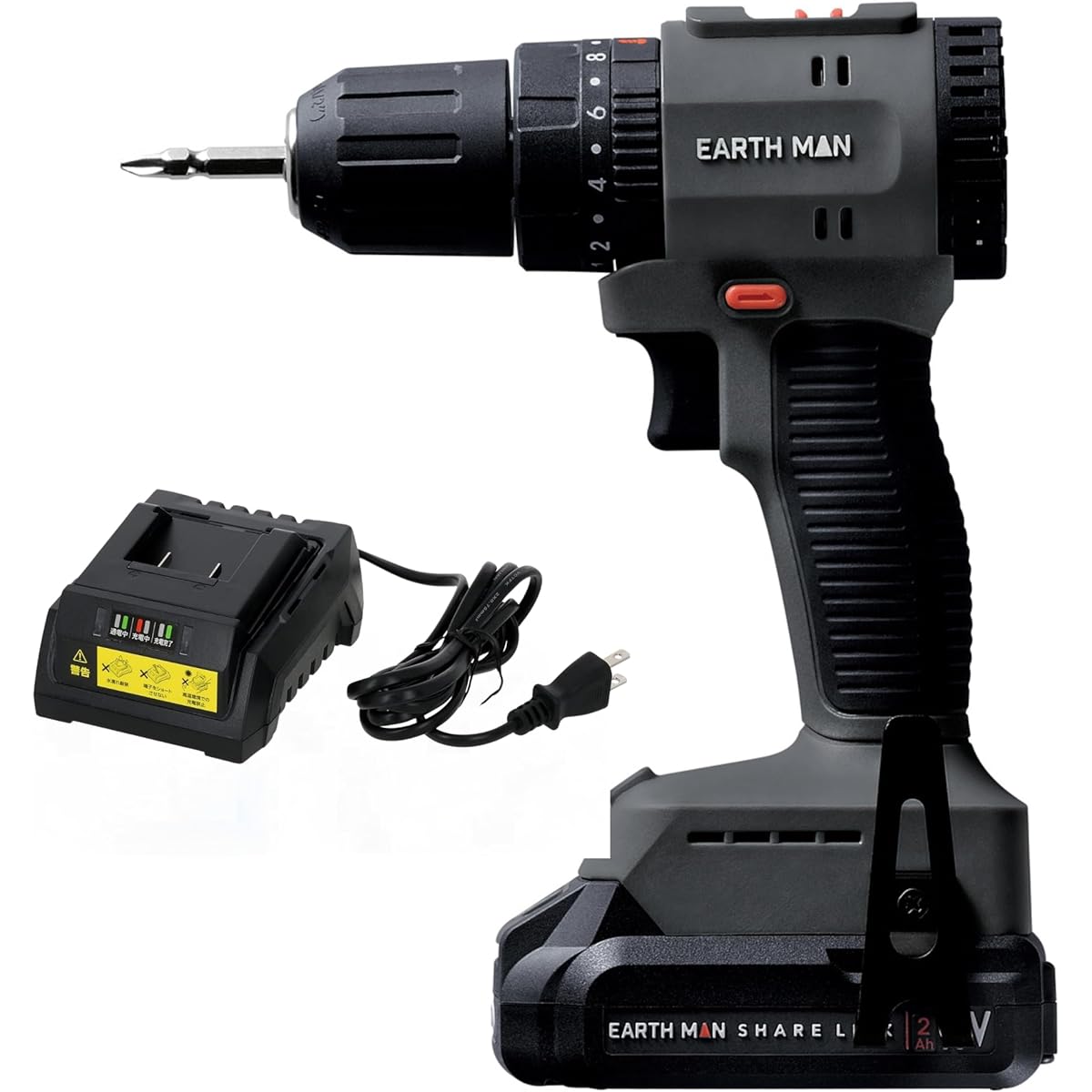

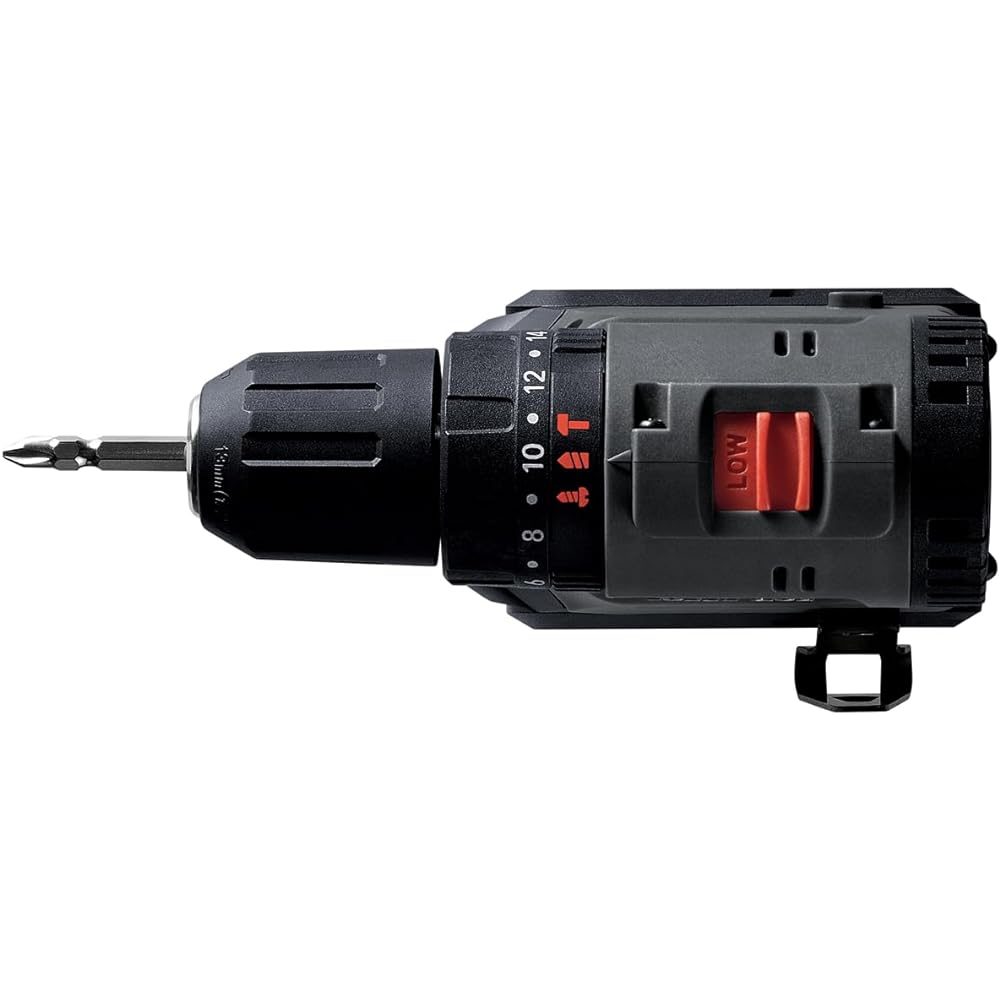

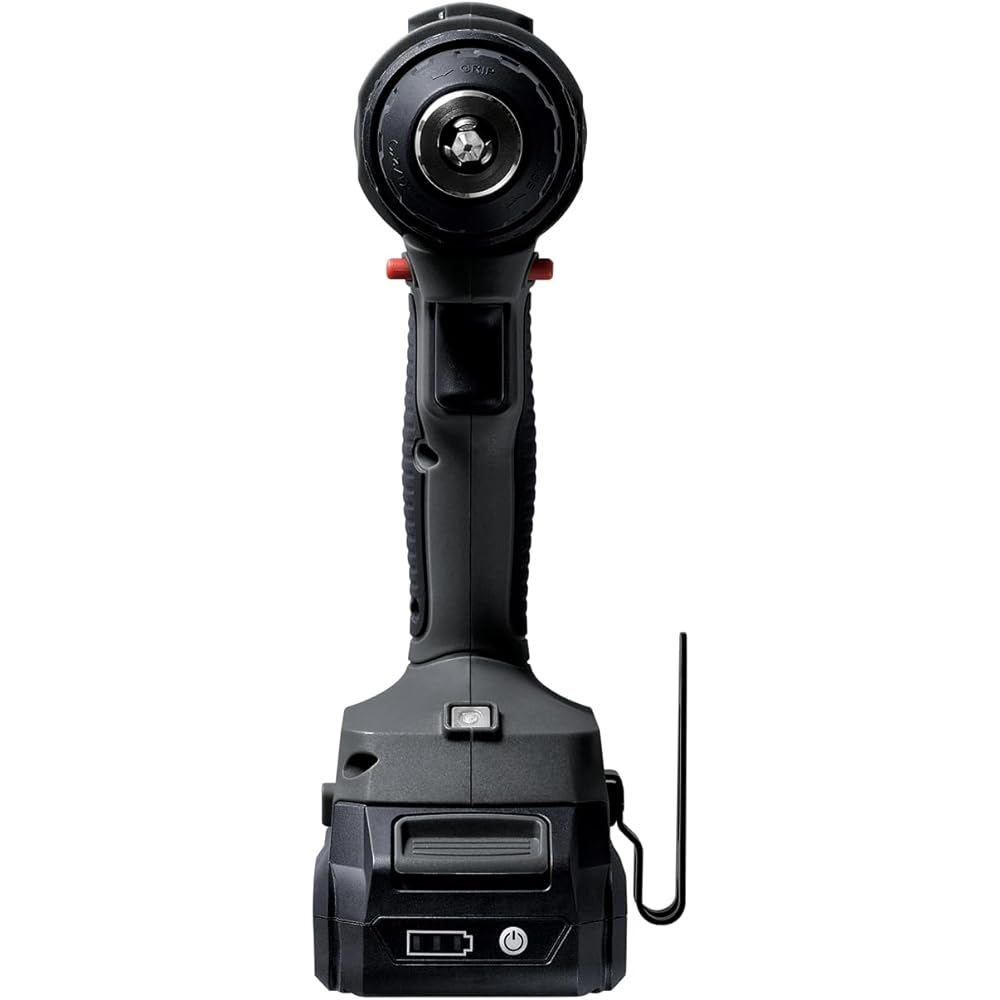

Takagi EARTH MAN SHARE LINK 18V Rechargeable Brushless Vibration Drill SL-BDR40-AS Concrete Drilling Electric Drill Screw Tightening Power Tool Continuously Variable Speed with Clutch Function

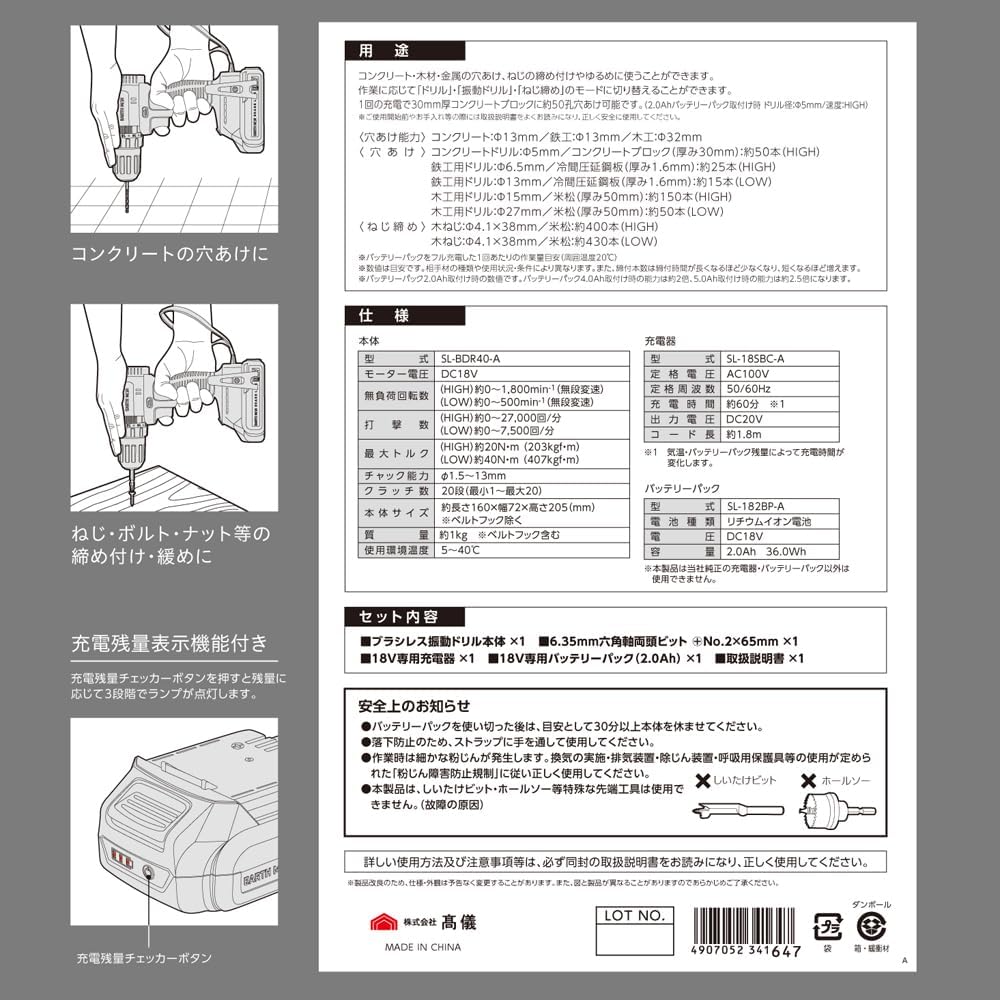

For drilling holes in concrete, wood, and metal, and tightening and loosening screws. You can switch between "drill", "vibration drill", and "screw tightening" modes depending on the task. Approximately 50 holes can be drilled into a 30mm thick concrete block with one charge. (When 2.0Ah battery pack is installed Drill diameter: φ5mm/Speed: HIGH) [Specifications] Main unit (SL-BDR40-AS) Motor voltage: DC18V, No-load rotation speed: (HIGH) Approximately 0 to 1,800 min-1 (LOW) Approximately 0 to 500 min-1 (Infinitely variable speed), Impact number: (HIGH) Approximately 0 to 27,000 times/min (LOW) Approximately 0 to 7,500 times/min, Maximum torque: (HIGH) Approximately 20N・m (203kgf・m) (LOW) Approximately 40N・m (407kgf・m), Chuck capacity: φ1.5 to 13mm, Number of clutches: 20 steps (minimum 1 to maximum 20), Body size: Approx. length 160 x width 72 x height 205 (mm) *excluding belt hook, Weight: Approx. 1 kg *including belt hook, Operating environment temperature: 5 to 40°C, Charger (SL-18SBC-A) Rated voltage: AC 100 V, Rated frequency: 50/60 Hz, Charging time: Approx. 60 minutes, Output voltage: DC 20 V, Cord length: Approx. 1.8 m, Battery pack (SL-182BP-A) Battery type: Lithium-ion battery, Voltage: DC 18 V, Capacity: 2.0 Ah 36Wh [Drilling capacity] Concrete: φ13mm / Ironwork: φ13mm / Woodwork: φ32mm [Drilling] Concrete drill: φ5mm / Concrete block (thickness 30mm): approx. 50 pieces (HIGH), Ironwork drill: φ6.5mm / Cold rolled steel plate (thickness 1.6mm): approx. 25 pieces (HIGH), Ironwork drill: φ13mm / Cold rolled steel plate (thickness 1.6mm): approx. 15 pieces (LOW), Woodworking drill: φ15mm / American pine (thickness 50mm): approx. 150 pieces (HIGH), Woodworking drill: φ27mm / American pine (thickness 50mm): approx. 50 pieces (LOW) [Screw tightening] Wood screw: Φ4.1 x 38mm / American pine: approx. 400 pieces (HIGH), Wood screw: φ4.1 x 38mm / American pine: approx. 430 pieces (LOW) [Set contents] Brushless impact drill body x 1, 6.35 mm hexagonal shaft double-ended bit + No. 2 x 65 mm x 1, 18V dedicated charger x 1, 18V dedicated battery pack (2.0 Ah) x 1, instruction manual x 1

It can be used to drill holes in concrete, wood, and metal, and to tighten and loosen screws. You can switch between "drill", "impact drill", and "screw tightening" modes depending on the task. You can drill about 50 holes in a 30 mm thick concrete block with one charge. (When 2.0Ah battery pack is installed, drill diameter: φ5mm / speed: HIGH)


Brand: Takagi
Product model number: SL-BDR40-AS
Product size: 16 x 7.2 x 20.5 cm; 1 kg
Color: Black x Gray x Red
Nameplate name: Impact drill (brushless)
Wallpaper pattern: Battery + charger
Power source: Battery-powered
Voltage: 18 Volts (DC)
Laser class: Variable speed
Accessories: 6.35mm hexagonal double-ended bit + No.2 x 65mm x 1, Instruction manual x 1, 18V dedicated battery pack (2.0Ah) x 1, 18V dedicated charger x 1
Battery included: Yes
Battery type: Lithium Ion Product Weight: 1 Kilograms
