Auto Parts Tokyo

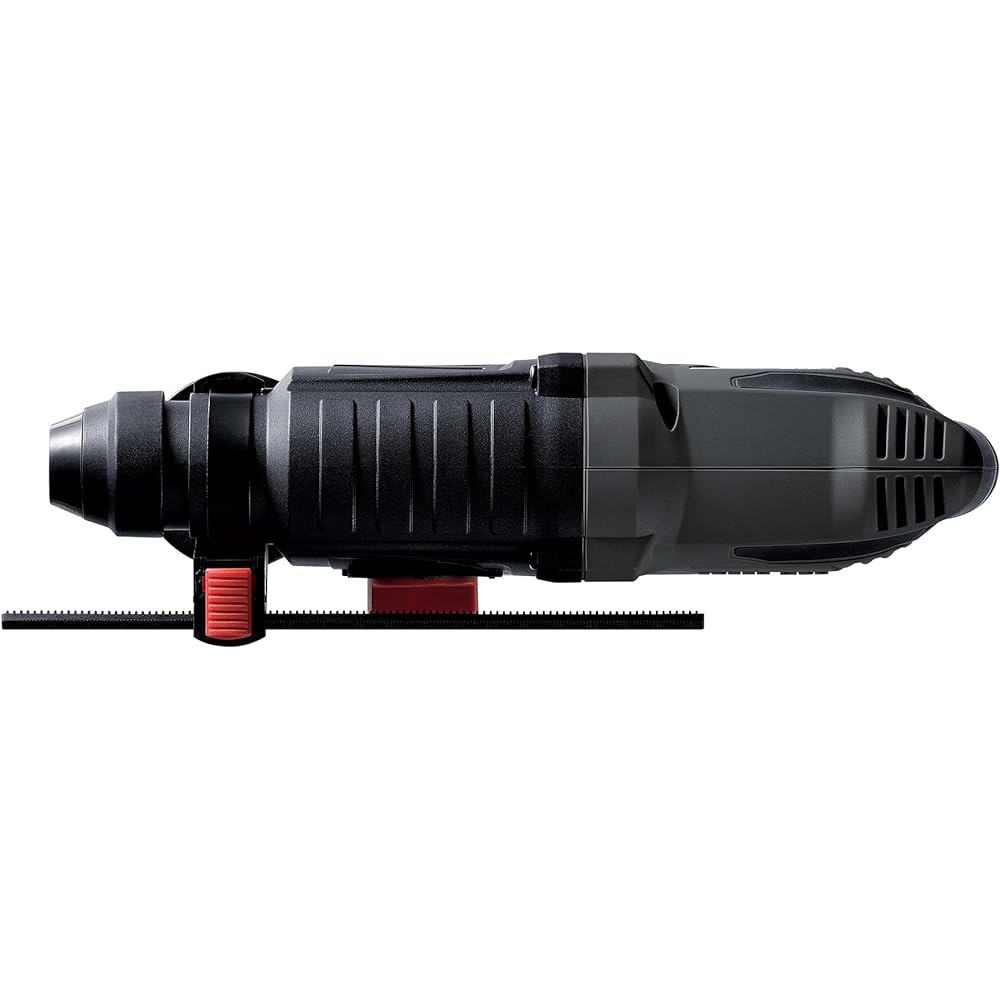

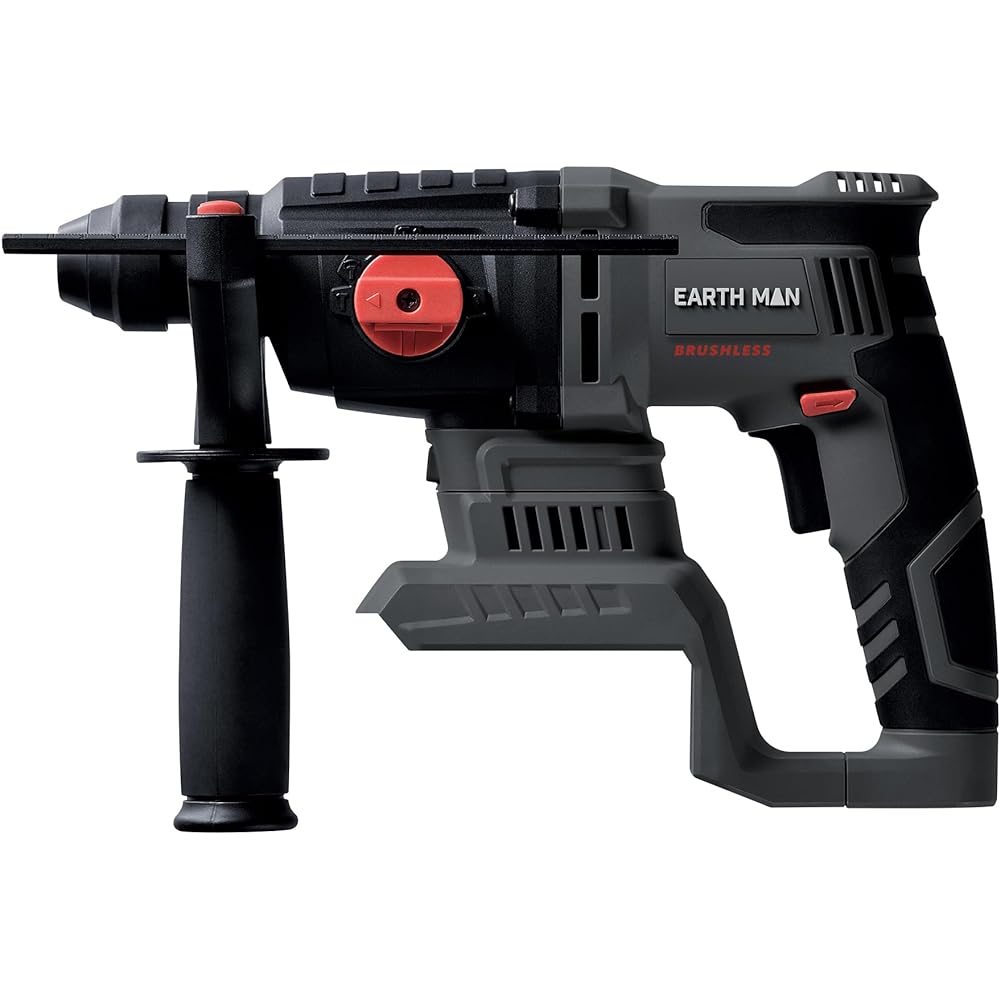

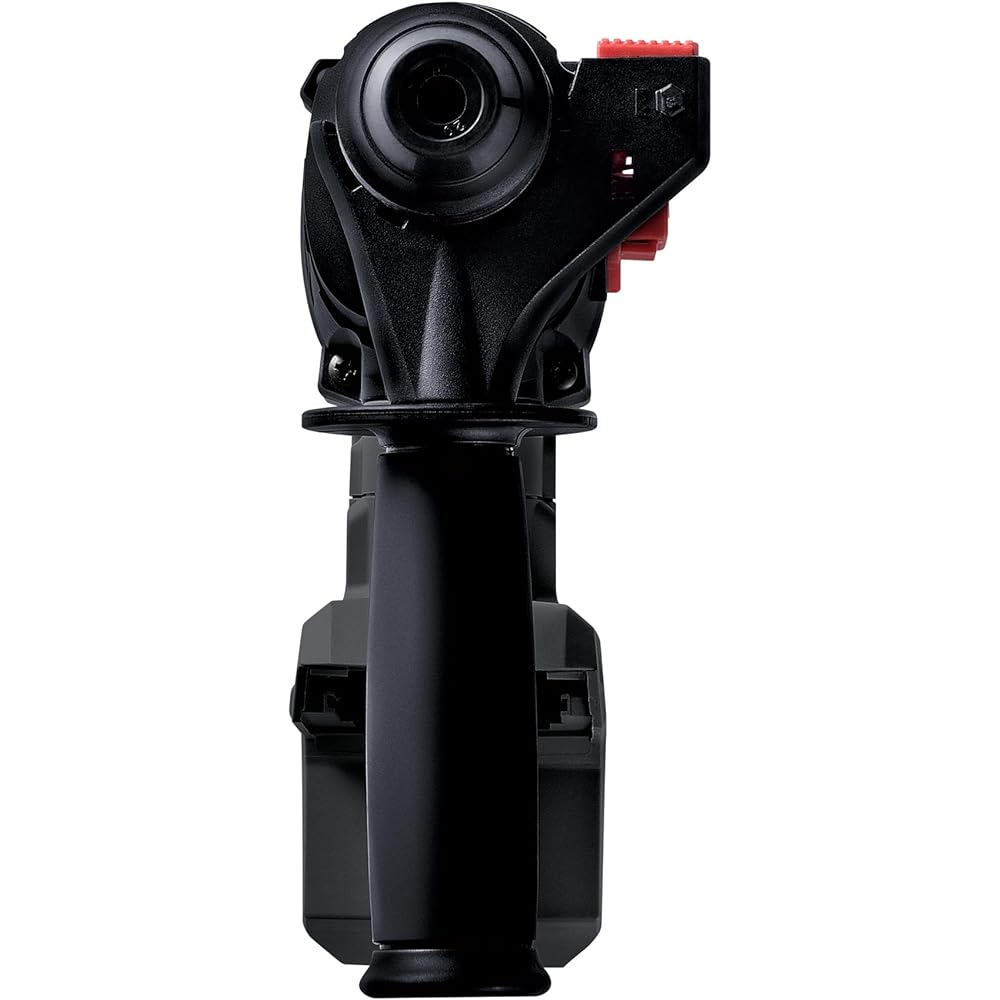

Takagi EARTH MAN SHARE LINK 18V Rechargeable Brushless Rotary Hammer SL-BRH22-A Body Only

Takagi EARTH MAN SHARE LINK 18V Rechargeable Brushless Rotary Hammer SL-BRH22-A Body Only

Regular price $193.00 USD
Regular price Sale price $193.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Condition: New

*Battery pack and charger are sold separately. *Please use a battery pack (SL-184BP-A/SL-185BP-A) with a capacity of 4.0Ah or more. 2.0Ah battery pack cannot be used. For drilling and chiseling work in concrete, stone, brick, etc. [Specifications] Motor voltage: DC18V, No-load rotation speed: Approx. 0 to 1,250 min-1 (steplessly variable speed), Number of blows: Approx. 0 to 4,800 times/min, Applicable Bit: SDS plus type, vibration triaxial composite value: Impact + rotation mode: 6.5m/S2 Impact mode: 5.5m/S2 Rotation mode ≦2.5m/S2 *Measured based on EN60745-2-6 standard. Body size: approx. length 295 x width 90 x height 205 (mm), mass: approx. 2.1 kg, operating environment temperature: 5 to 40 degrees Celsius [Set contents] Rotary hammer body x 1, side grip x 1, depth gauge x 1 , dust cup x 1, instruction manual x 1

*Battery pack and charger are sold separately. Can be used for drilling and chiseling work in concrete, stone, brick, etc. Approximately 35 holes can be drilled in a 60mm thick concrete block with one charge. (Drill diameter: φ16.5mm/Compressive strength: 40MPa/4.0Ah when battery pack is installed) Also, depending on the application, you can switch to three modes: "rotation", "blow", and "blow + rotation". *Values ​​when battery pack 4.0Ah is installed. When a 5.0Ah battery pack is installed, the capacity will be approximately 1.25 times. 2.0Ah battery pack cannot be used. * Estimated amount of work per time when the battery pack is fully charged (ambient temperature 20℃) [Drilling capacity] Concrete: φ22mm / Ironwork: φ13mm / Woodwork: φ18mm


Brand: ‎Takagi ( Takagi)
Product model number: SL-BRH22-A
Product size: 29.5 x 9 x 20.5 cm; 2.1 kg
Color: Black x Gray x Red
Nameplate name: Rotary Hammer (brushless)
Wallpaper pattern: Main body only
Power source: Battery powered
Voltage: 18 Volts (DC)
Laser class: Variable speed

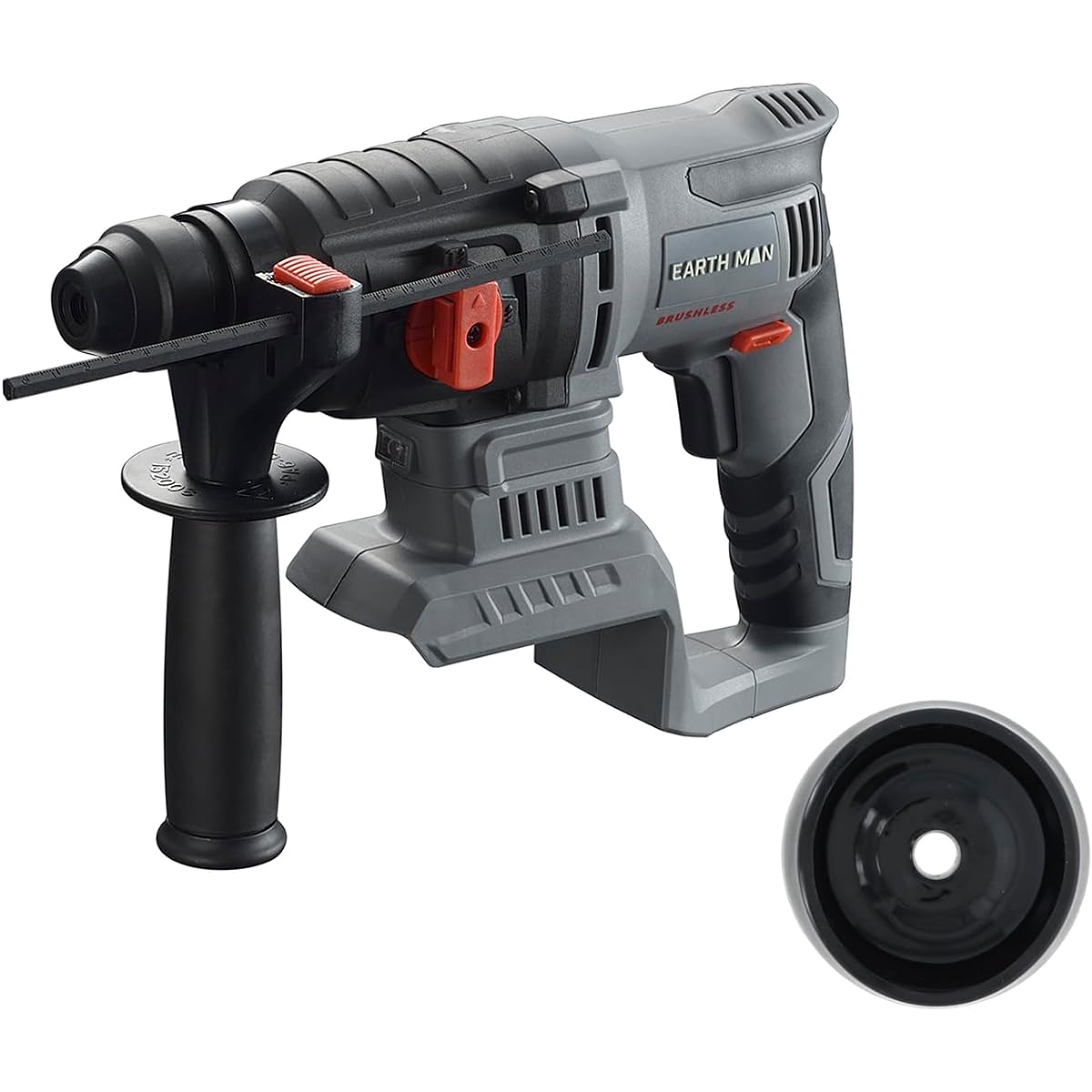

Accessories: ‎Side grip x 1, Depth gauge x 1, Dust cup x 1, Instruction manual x 1
Batteries included: No
About the warranty: ‎6 months from the date of purchase *Based on the terms of the warranty
Product weight: ‎2.1 Kilograms
View full details
