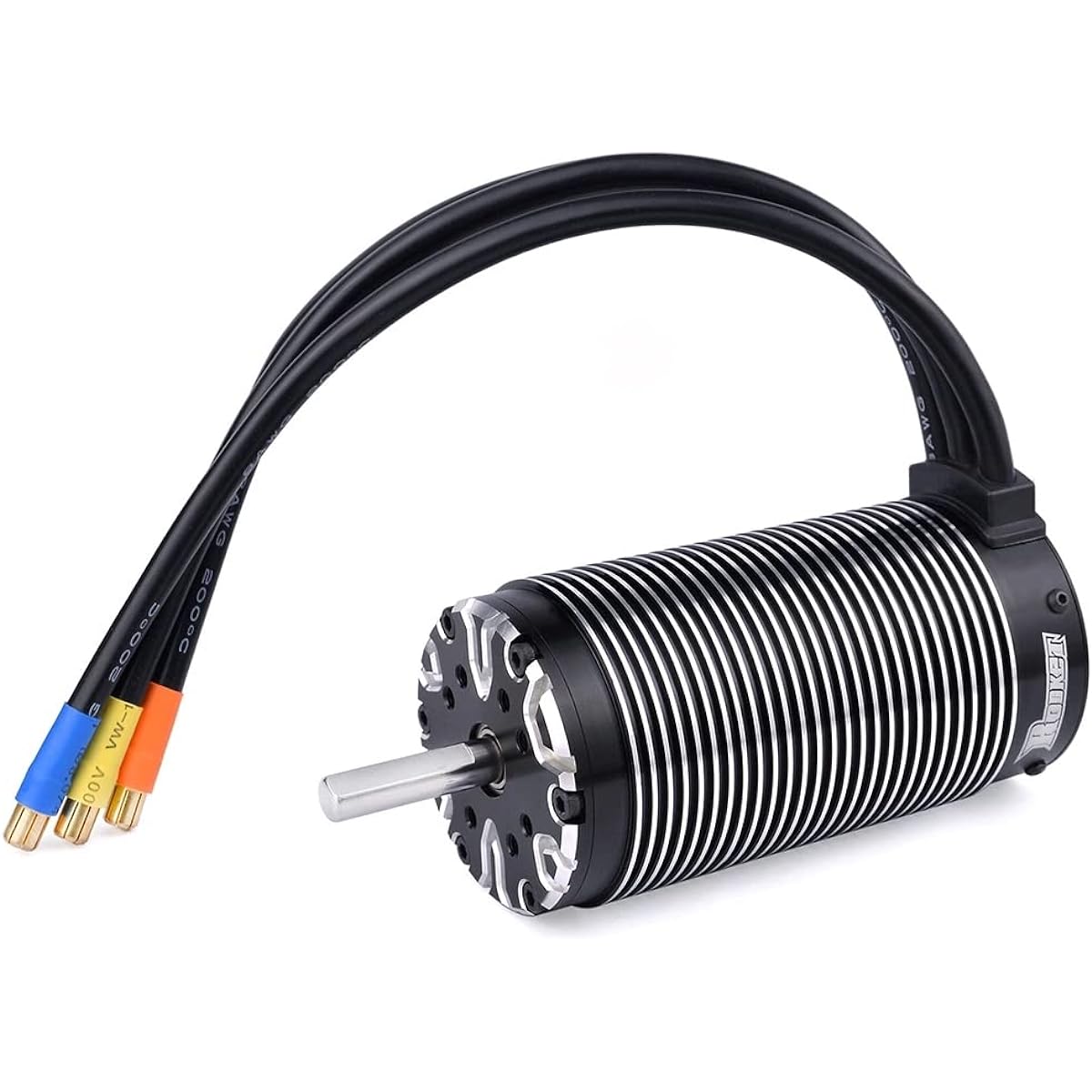

Surpass Hobby Rocket 56112 780KV Sensorless Brushless Motor Shaft Diameter 8.0mm Connector 8.0mm for 1/5 RC Car

4 pole 12 slot high torque motor design; motor shaft diameter and connector are both 8.0mm. CNC machined 6061 T6 billet aluminum heat sink can. High purity copper windings maximize efficiency. High RPM ABEC5 oversized bearings. Universal fit, fits all 1/5 brushless cars. Multi-mount system for M4 screws. Removable/replaceable rotor; Precision engineered for maximum energy conversion.

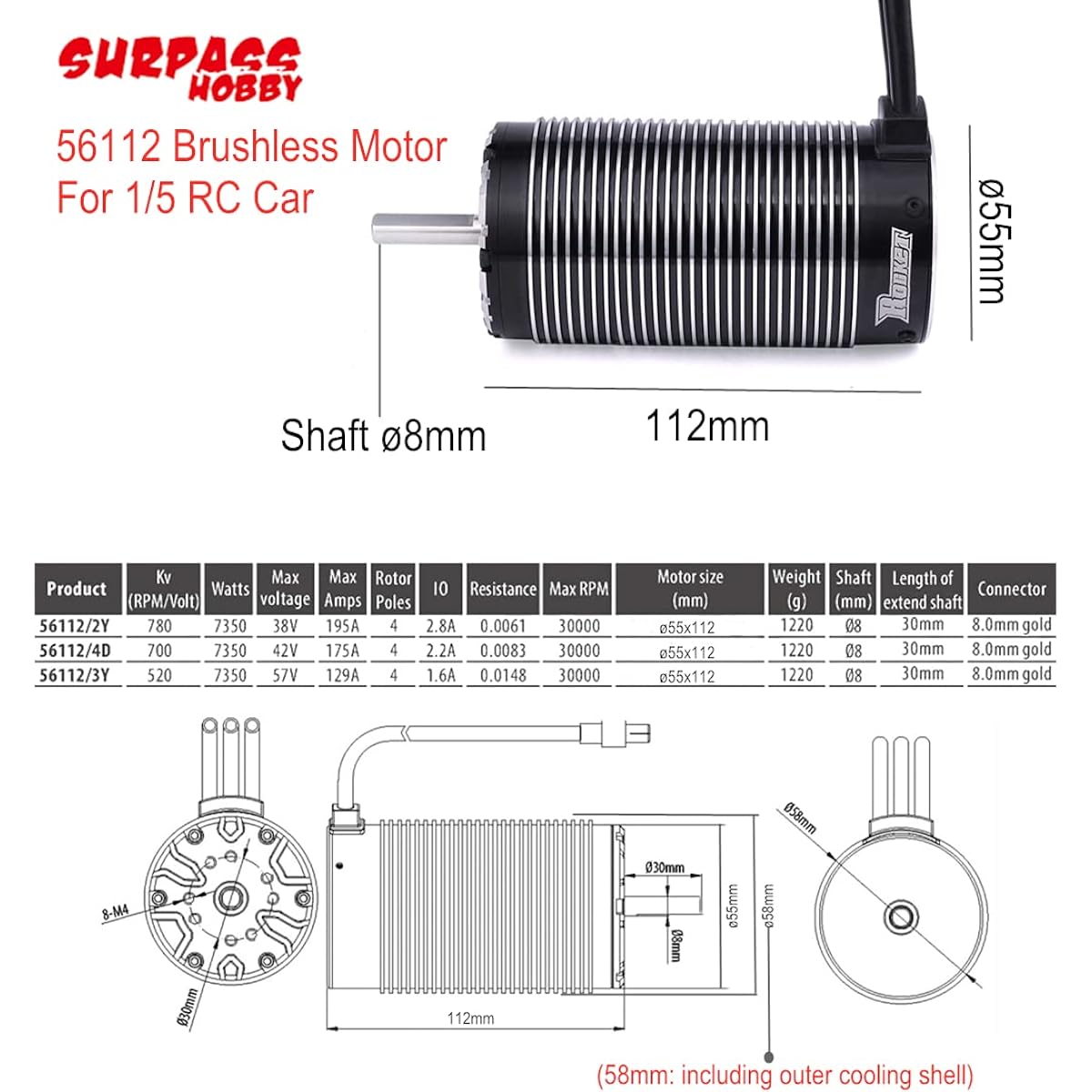

Features: ★4 pole 12 slot high torque motor design. ★CNC machined 6061 T6 billet aluminum heat sink can. ★High purity copper windings maximize efficiency. ★High RPM ABEC5 oversized bearings ★Universal fit, fits all 1/5 brushless cars. Multi-mount system for M4 screws. ★Precision balanced rotor, smooth for best reliability and maximum RPM. ★Stator-Ultra thin (0.2mm) lamination. ★Removable/replaceable rotor. ★Precision engineered for maximum energy conversion. Specification: Brand: Surpass Hobby Product: Rocket 56112 Sensored or Sensorless: Sensorless KV(RPM/Volts): 780KV Wattage: 7350 Max Voltage: <38V Max Amperage: 195A Rotor Poles: 4 IO: 2.8A Resistance: 0.0061 Max RPM: 30000 Shaft Length: 30mm Shaft Diameter: 8mm Connector: 8.0mm Gold Motor Size: ø55x112mm Weight: 1220g Package Includes: 1 x 56112 Brushless Motor 1 x User Manual


Manufacturer: ‎Surpass Hobby
Part Number: ‎56112 780KV
Item Weight: ‎1.35 Kilograms
Product Dimensions: ‎11.2 x 5.8 x 5.8 cm; 1.35 kg
Size: ‎780KV
Style: ‎Rocket 56112.
Material: ‎Aluminum
Voltage: ‎780 Volts
Horsepower: ‎7350 Watts
Speed: ‎30000 RPM
Batteries Included: ‎No
Uses Batteries: ‎No
Item Dimensions (L x W x H): ‎11.2 x 5.8 x 5.8 cm
