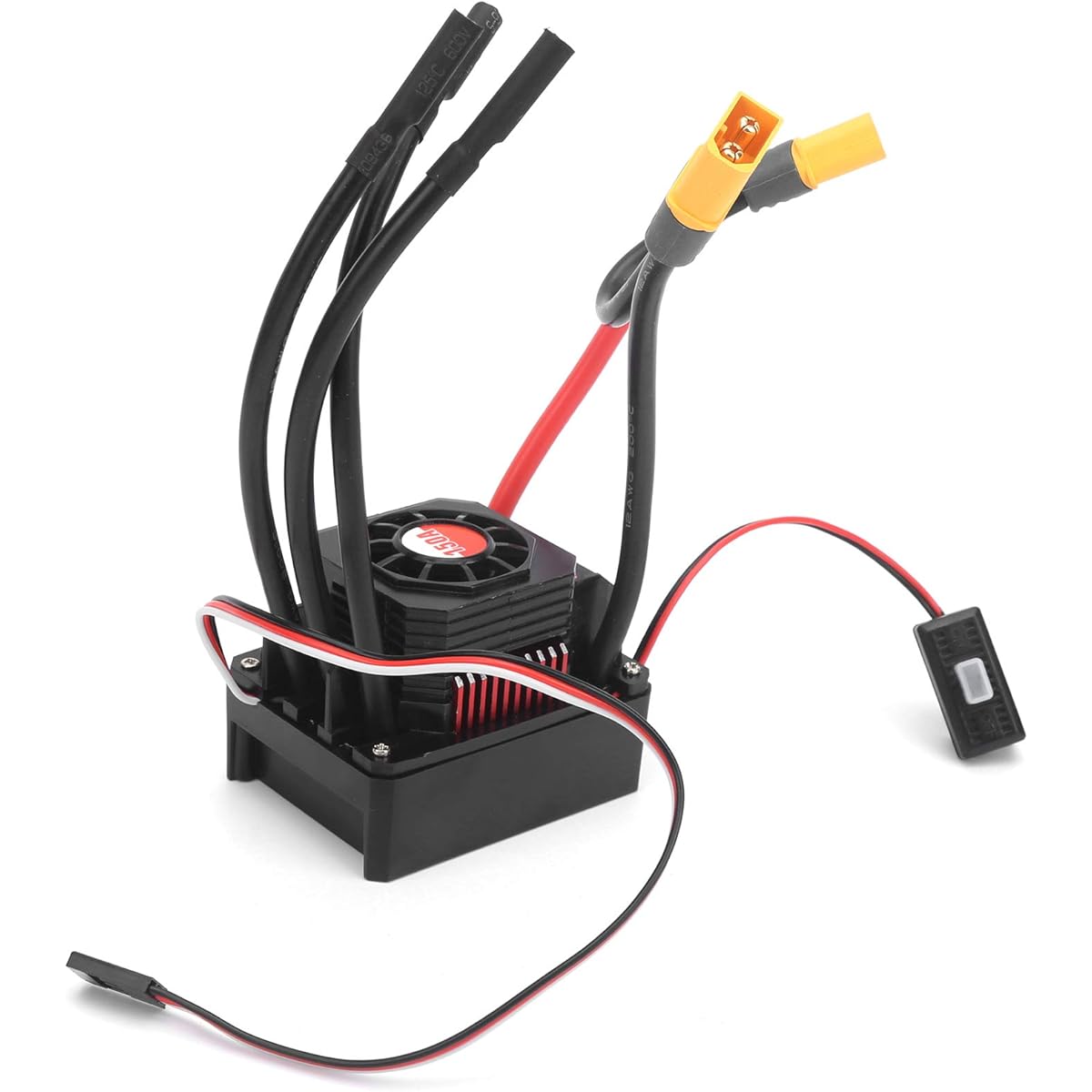

SURPASS‑HOBBY 150A Electric Speed Controller Waterproof ESC with XT60 Plug for 1/10 1/8 Remote Control Car

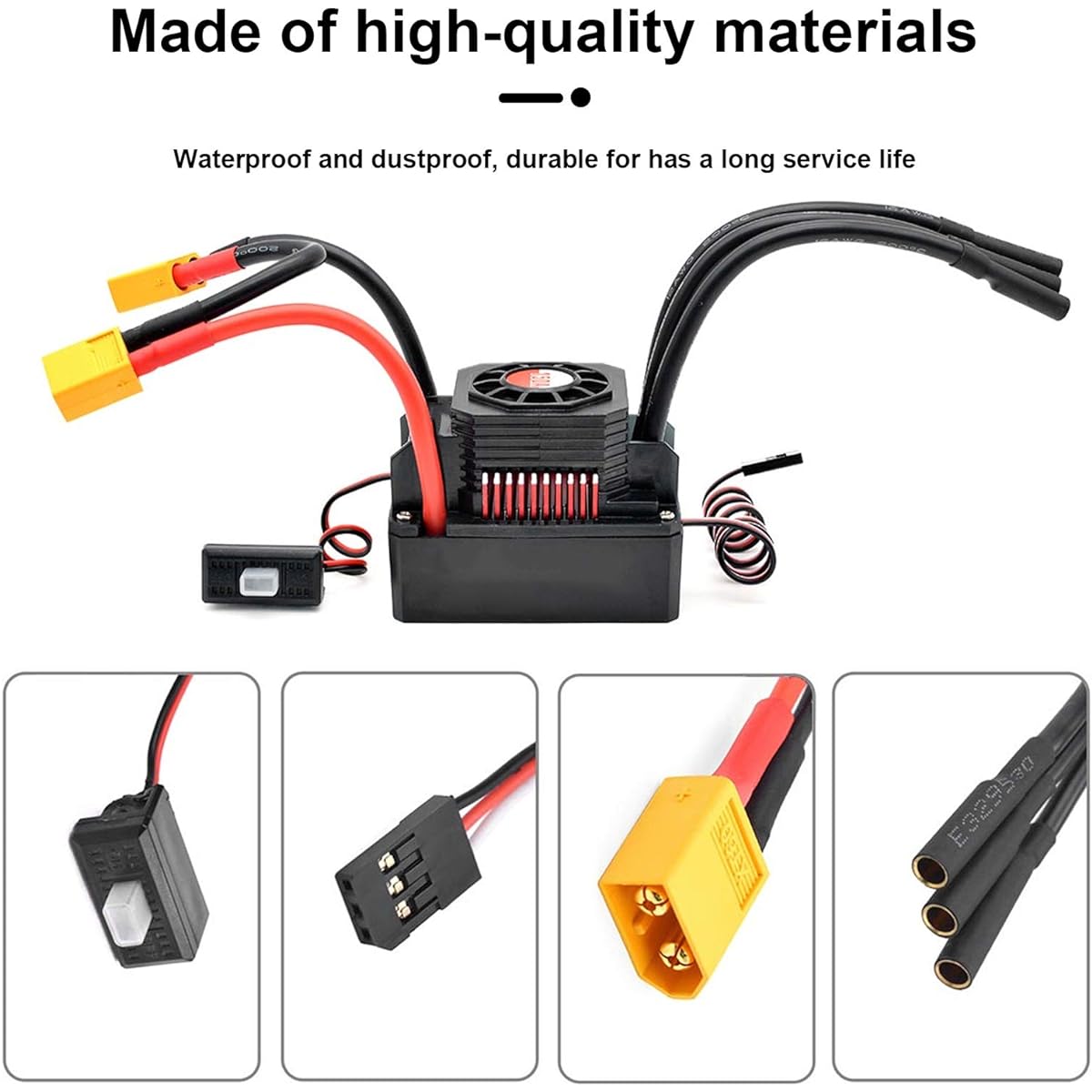

Troubleshooting: 1. After power on, if the LED flashes, please check the voltage of the battery pack. The voltage should be (5V-25.5V) 2. If the motor only emits a "beep" sound (BEC voltage 6.1V) or the motor emits a "beep" sound twice (BEC voltage 7.3V) Please check all connections: BEC wires, transmitter and receiver, throttle signal wires, etc. Please check the transmitter TH. Trim and adjust to fit the motor, it will emit a beep sound. Made of high quality material, waterproof and dustproof, durable and has a long service life. Specially designed for remote control cars with excellent starting, accelerating and linear characteristics. 150A electric speed controller with XT60 plug, compatible with 1/101/8 RC cars, perfect fit. Multiple protection functions Battery low voltage cut-off protection Overheat signal loss protection Motor stall protection. Instructions: 1. 150A BEC voltage change: Turn off the ESC, connect the shorting tip to the BEC, turn on the ESC, the motor will "beep". After 2 seconds, pull out the shorting tip to the BEC. When the BEC voltage change is completed, the motor will beep - "beep" (if there is (if the voltage is 6.1v the motor will beep), if there is (7.3v motor will beep twice) turn off the BEC voltage change. Instructions: 1. Connect the BEC wire to receive2. Connect the motor wire to ESC3. Power on the transmitter4. Connect the battery pack to the ESC, then power on the ESC5. When the motor and battery connection is finished, the motor will "beep". 6. When the throttle stick is in neutral position the motor will "beep" again. Troubleshooting: 1. If the car cannot speed up, please check that the battery pack voltage is too low or the ESC temperature is too high. If the battery pack voltage is too low, please replace the battery pack. If the ESC temperature is too high, please check all connections. If not, press the EPA button on the remote control.

Specification: Item Type: Electric Speed ​​Controller Material: Plastic + Alloy Color: Red Black Size: Approx. 60x45x45mm / 2.4x1.8x1.8in Weight: Approx. 200.0g / 7.1oz Continuous Current: 150A Max Current: 720A Motor Type: Sensorless and Brushless Motor For Lipo 4S or 12 NiMH Batteries: 1. On-Road: 40xx size or smaller engines,


Manufacturer: ‎Alomejor
Packing Size: ‎15 x 9 x 6 cm; 207.5 g
Packing Weight: ‎207.5 grams
Battery Use: ‎No
