Sugatsune Industrial Self Soft & Soft Closing Slide Rail 4670-450 1 set

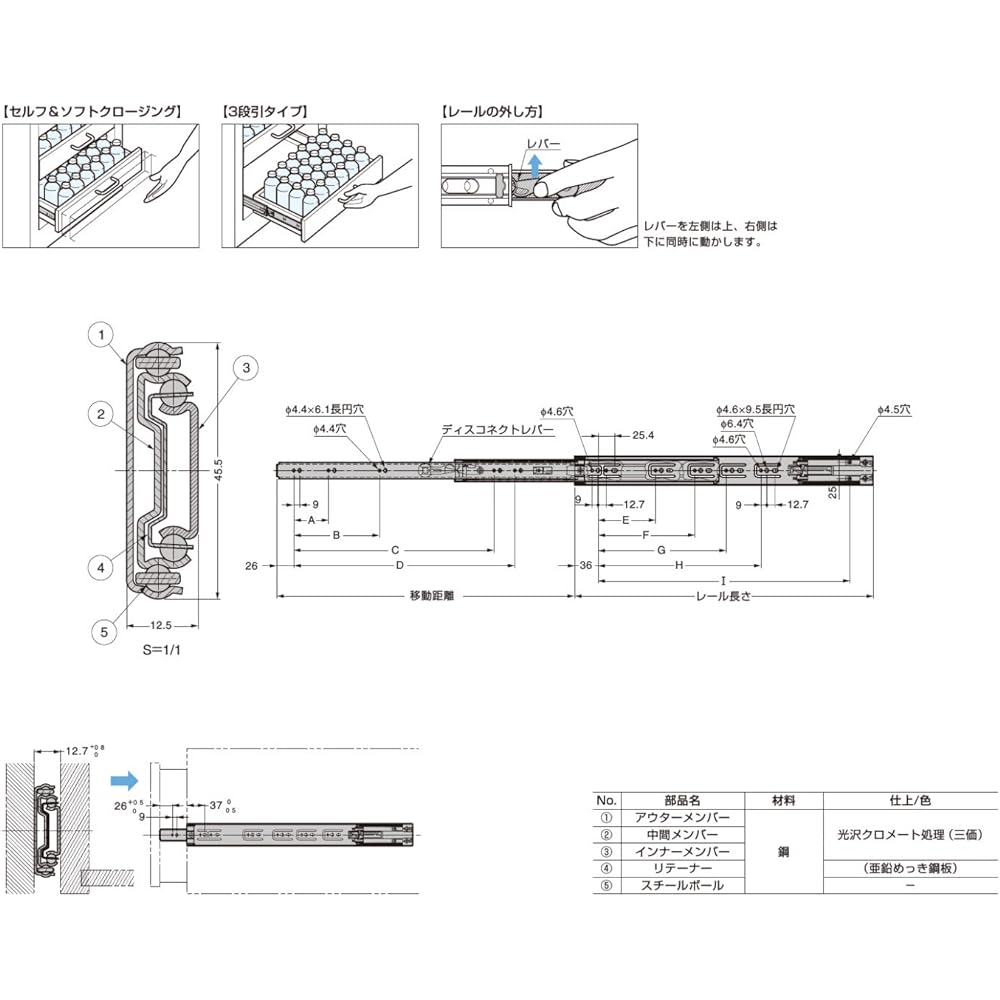

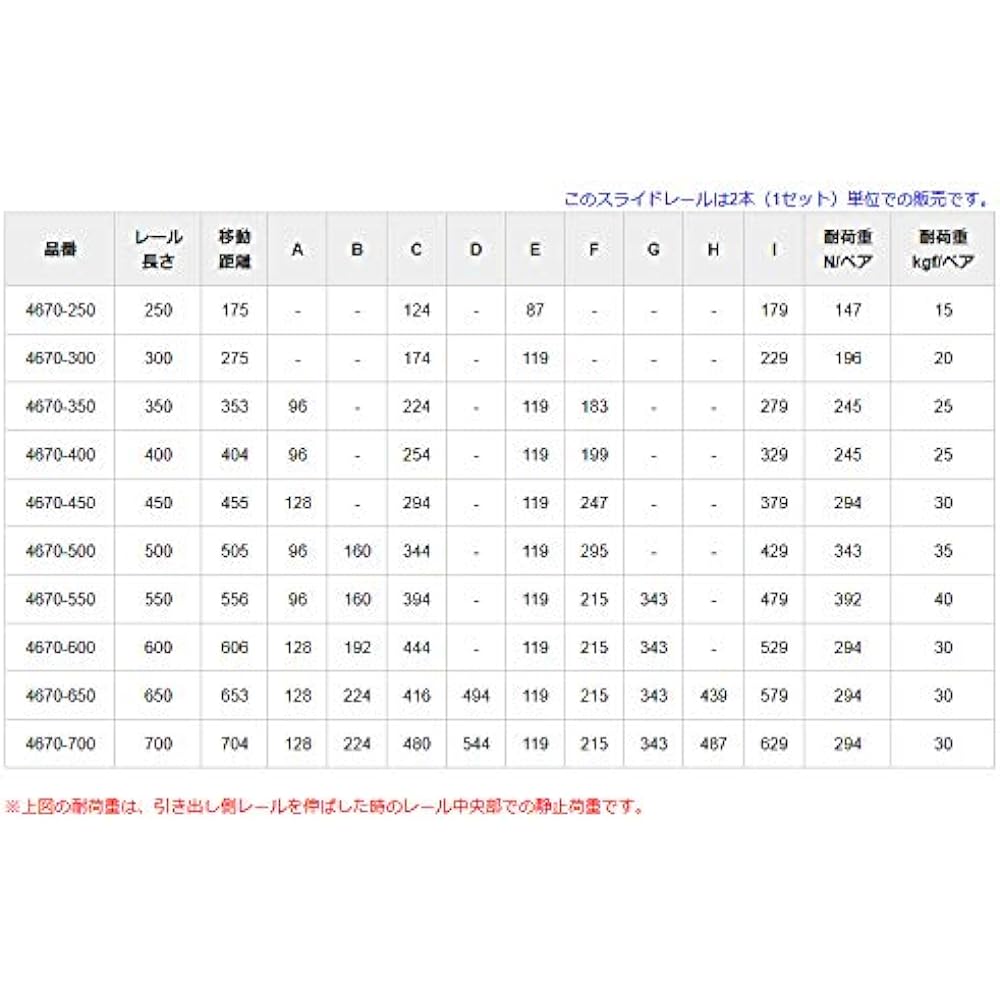

Rail length: 450 Travel distance: 455 A=128, C=294, E=119, F=247, I=379 Load capacity: 294N/pair, 30kgf/pair Slide rail with self & soft closing mechanism. The self and soft-closing mechanism operates 20mm before the drawer is fully closed for rail lengths up to 350mm, and 36mm for rail lengths of 400mm or more. Since the self-closing mechanism is built into the rail, it has a clean appearance similar to conventional rails. The drawer has a 3-stage drawer design that slides wide, allowing you to make effective use of the inside of the drawer. Rails with a length of 350mm or more are overtravel that can be pulled out beyond the rail length. The maximum width of the drawer is rail length + 200mm. Rails with a length of 450mm or more have a load capacity of over 30kgf. The shock absorption effect of the outer rail attachment section allows for smooth sliding even if the cabinet is slightly deformed. Comes with a resin spring that absorbs noise and shock. The inner rail can be removed by operating the lever. Do not change the combination of inner rail and outer rail. Increase number of displayed items




Brand: ‎Sugatsune Industries
Product model number: ‎4670-450
Product size: ‎45 x 1.25 x 4.55 cm ; 1.32 kg
Material: ‎Alloy steel
Quantity: ‎1
Accessories: ‎Accessories: Cross recessed truss tapping screw 4 x 12
Product weight: ‎1.32 Kilograms
