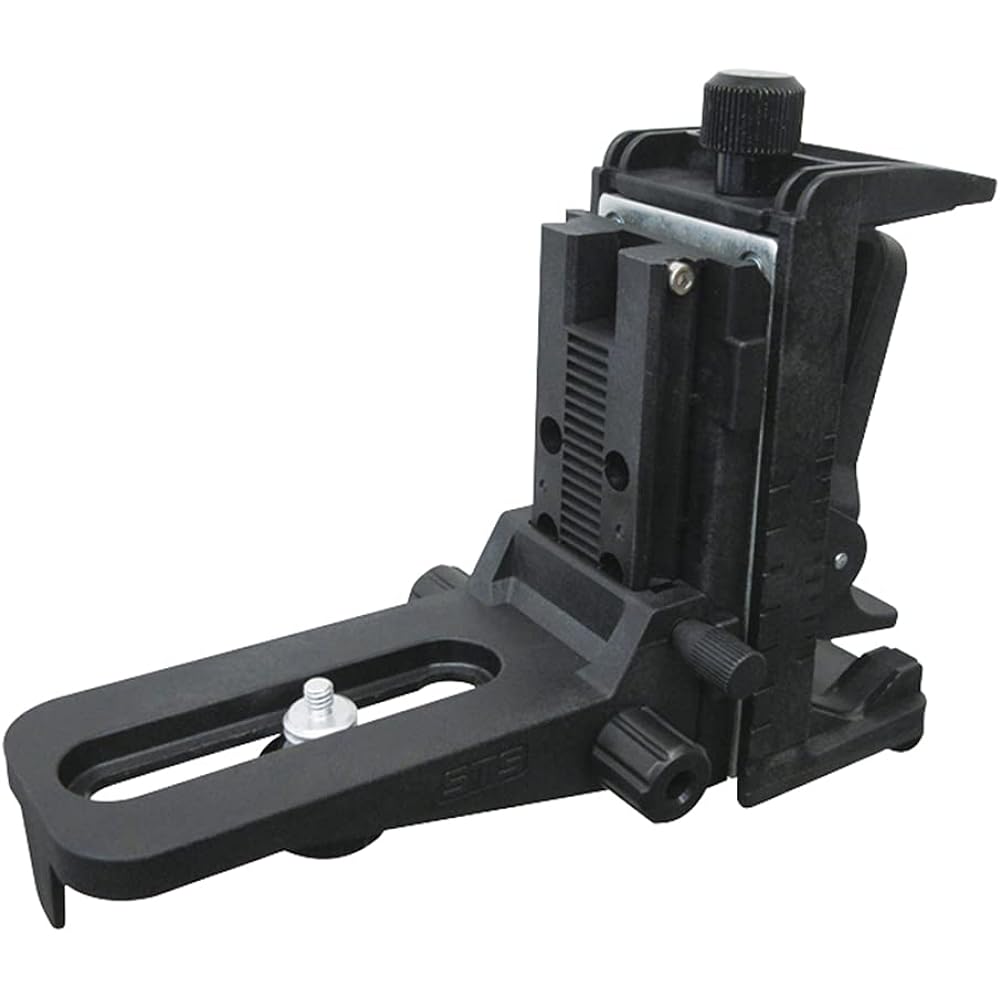

STS Magnetic Clamp with Lifting Function LMC-55SC
STS Magnetic Clamp with Lifting Function LMC-55SC
Regular price
$69.00 USD
Regular price
Sale price
$69.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

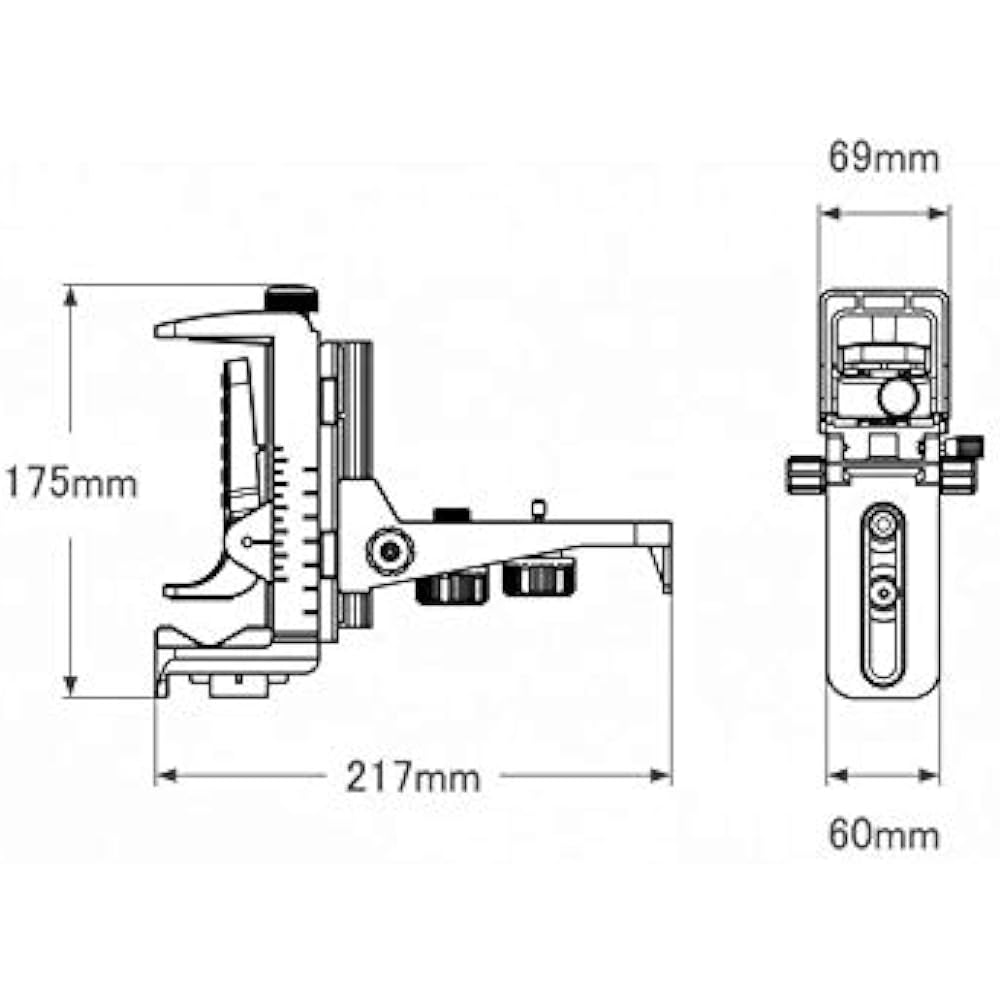

Connection screw diameter (replaceable): 5/8 inch / 1/4 inch Maximum loading weight: 2 kg Elevating platform width: 60 mm, elevating width: 75 mm Number of magnets: 4 Size: 217 x 69 x 175 mm, weight :710g

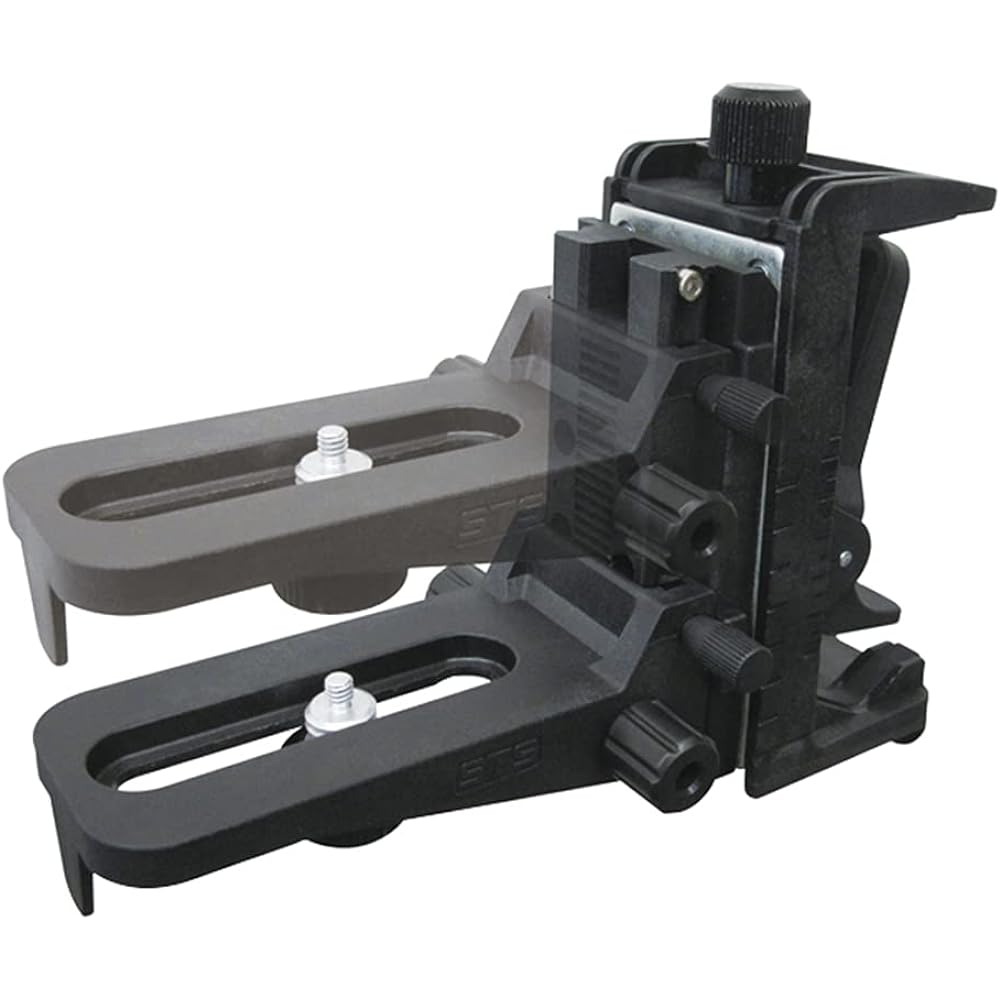

A versatile clamp that can be used for a variety of purposes. [Applications] A versatile clamp for laser marking equipment in construction, civil engineering, interior work, equipment work, etc. [Features] - Can be raised and lowered within a range of 75 mm with an elevator type - Fixed with screws Compatible with clamp fixation and magnet fixation.Equipped with a lift lock screw.Can load up to approximately 2kg.[Notes] *When fixing the lift position, be sure to tighten the lift lock screw. *When using, be sure to attach the four magnets to the metal plate of the clamp part, sandwich the clamp between the objects, and then be sure to tighten the clamp adjustment screw to secure it. *Also, if the laser marker is unstable after installation, please check the weight and installation accuracy of the laser marker. *Please note that the load capacity will vary depending on the fixing method. *Never leave the installed magnetic clamp unattended with the ink marker installed. *Unexpected shock or vibration may cause the clamp to come off and fall, resulting in machine failure, damage, or injury.
Brand: STS
Product model number: LMC-55SC
Product size: 21.7 x 6.9 x 17.5 cm; 710 g
Color: Black
Nameplate Last Name: Industrial
Material: Metal
Power Supply: None
Accessories: None
Product Weight: 710 g
A versatile clamp that can be used for a variety of purposes. [Applications] A versatile clamp for laser marking equipment in construction, civil engineering, interior work, equipment work, etc. [Features] - Can be raised and lowered within a range of 75 mm with an elevator type - Fixed with screws Compatible with clamp fixation and magnet fixation.Equipped with a lift lock screw.Can load up to approximately 2kg.[Notes] *When fixing the lift position, be sure to tighten the lift lock screw. *When using, be sure to attach the four magnets to the metal plate of the clamp part, sandwich the clamp between the objects, and then be sure to tighten the clamp adjustment screw to secure it. *Also, if the laser marker is unstable after installation, please check the weight and installation accuracy of the laser marker. *Please note that the load capacity will vary depending on the fixing method. *Never leave the installed magnetic clamp unattended with the ink marker installed. *Unexpected shock or vibration may cause the clamp to come off and fall, resulting in machine failure, damage, or injury.
Brand: STS
Product model number: LMC-55SC
Product size: 21.7 x 6.9 x 17.5 cm; 710 g
Color: Black
Nameplate Last Name: Industrial
Material: Metal
Power Supply: None
Accessories: None
Product Weight: 710 g
