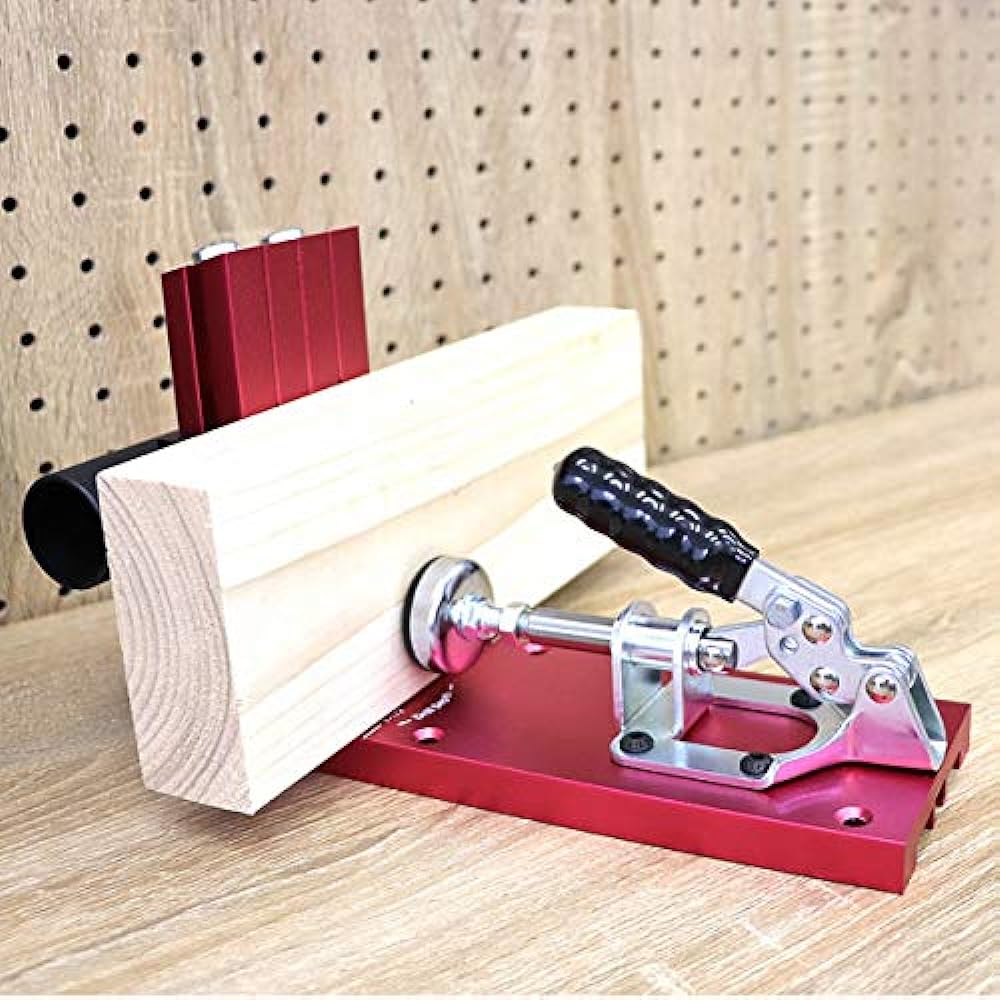

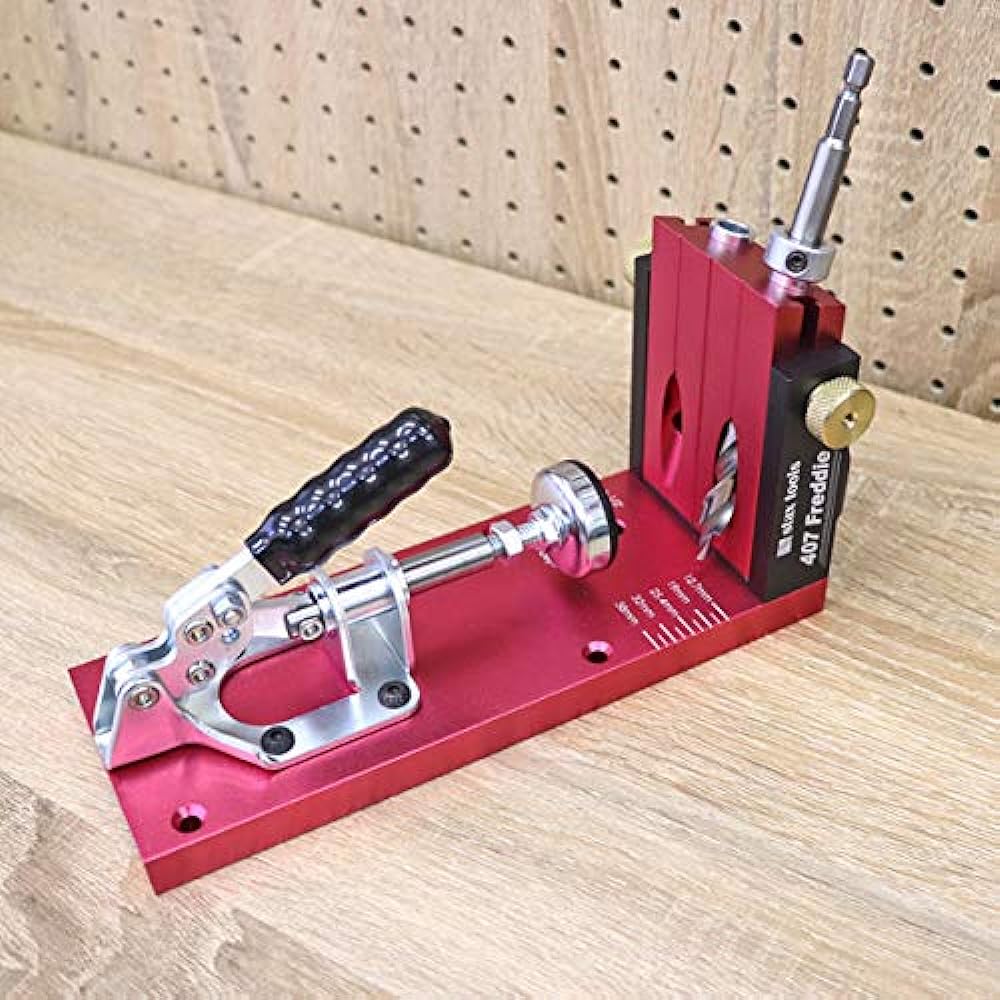

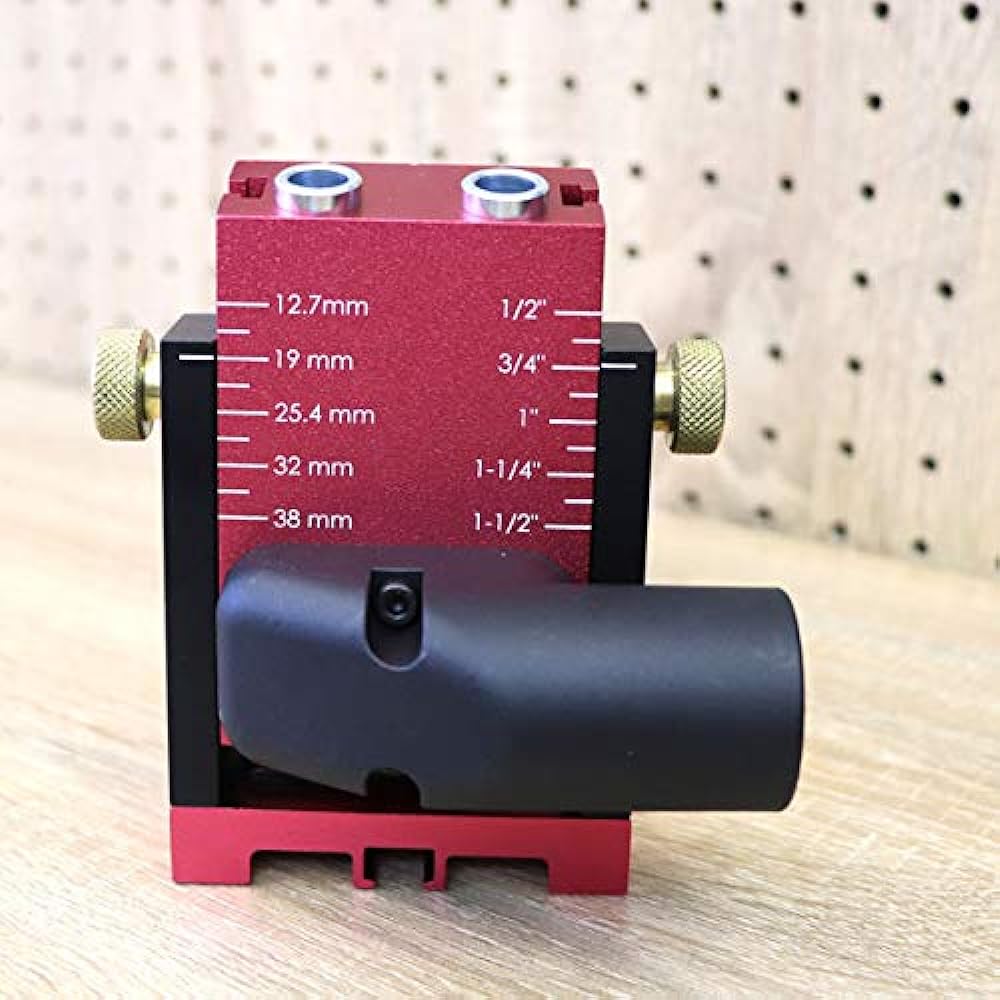

staxtools 407 FREDDIE Pocket Hole Jig 1928246
staxtools 407 FREDDIE Pocket Hole Jig 1928246
Regular price
$222.00 USD
Regular price
Sale price
$222.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

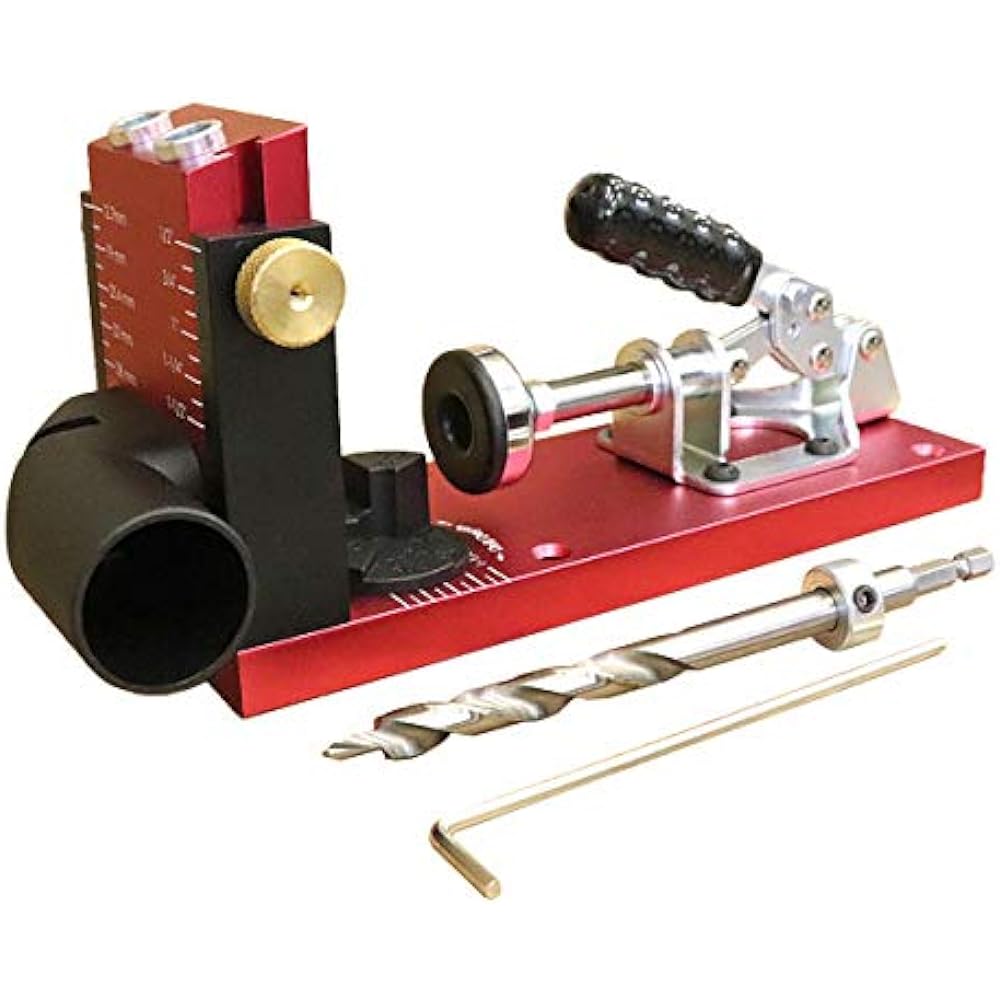

Specifications: For solid wood and plywood, Compatible wood width: 12.7mm to 38.1mm Drill bit size: Diameter 9.5mm (3/8"), Hole pitch: 30mm (1-3/16") Pocket hole spacing : Approximately 170mm, Dust port diameter: Inner diameter 1-1/4" (31.75) mm, Outer diameter 34mm Body size: 110mm x 255mm x 120mm Accessories: Step drill diameter 9.5mm (3/8"), 1 HSS, Step Drill depth collar, 3mm hex wrench (for tightening step drill depth collar), turret stop, base plate, instruction manual (Japanese)
Recommended for easy and speedy pocket hole creation [Applications] [Features] - One-touch clamping is possible according to the thickness of the material, and the fixed width is memorized, so there is no need to readjust it every time. - For fine-tuning the fixing force. - Turn the clamp pad like a screw and fix it with a fixing nut - By setting the height of the guide block according to the thickness of the material, you can use an impact driver to obtain the drill hole position suitable for the material - Turret stop Equipped with a dust port that allows you to easily obtain the drill collar position using the tool, so you can work cleanly without scattering wood chips. - Two pocket holes can be created at one time (hole spacing: approx. 170 mm)
Brand: stax tools
Product model number: 1928246
Package size: 27.5 x 13.8 x 11.8 cm; 1.68 kg
Color: Black/Red
Nameplate Name: Indarial
Power supply: None
Accessories: Step drill diameter 9.5mm (3/8"), 1 HSS, step drill depth collar, 3mm hex wrench (step drill depth collar tightening) )・Turret stop・Base plate・Instruction manual (Japanese)
Product weight: 1.68 Kilograms
Recommended for easy and speedy pocket hole creation [Applications] [Features] - One-touch clamping is possible according to the thickness of the material, and the fixed width is memorized, so there is no need to readjust it every time. - For fine-tuning the fixing force. - Turn the clamp pad like a screw and fix it with a fixing nut - By setting the height of the guide block according to the thickness of the material, you can use an impact driver to obtain the drill hole position suitable for the material - Turret stop Equipped with a dust port that allows you to easily obtain the drill collar position using the tool, so you can work cleanly without scattering wood chips. - Two pocket holes can be created at one time (hole spacing: approx. 170 mm)
Brand: stax tools
Product model number: 1928246
Package size: 27.5 x 13.8 x 11.8 cm; 1.68 kg
Color: Black/Red
Nameplate Name: Indarial
Power supply: None
Accessories: Step drill diameter 9.5mm (3/8"), 1 HSS, step drill depth collar, 3mm hex wrench (step drill depth collar tightening) )・Turret stop・Base plate・Instruction manual (Japanese)
Product weight: 1.68 Kilograms
