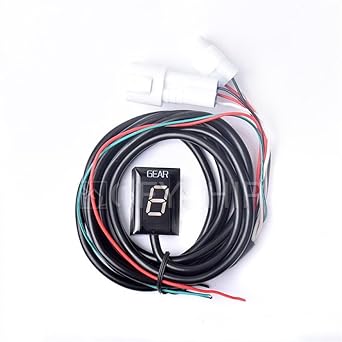

Speed Display Meter Yamaha TDM 850 1999-2001 WR250R/X 2008-2018 2019 TDM 900 TDM 850 Motorcycle Gear Indicator 1-6 Level Digital Gear Meter
Speed Display Meter Yamaha TDM 850 1999-2001 WR250R/X 2008-2018 2019 TDM 900 TDM 850 Motorcycle Gear Indicator 1-6 Level Digital Gear Meter
Regular price
$174.00 USD
Regular price
Sale price
$174.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Application: Motorcycle Speed Gear Indicator for Yamaha TDM 850 1999-2001 WR250R/X 2008-2018 2019 TDM 900 TDM 850. Function: Will not damage the motorcycle gear indicator line or cause damage to the motorcycle. Exterior: This motorcycle gear indicator is bright and soft, making the gear display clearly visible and preventing gear errors from damaging your motorcycle. Instalación: Medidor de velocidad de la pantalla de la motocicleta el proceso de instalación es simple, práctico y fácil de usar. Con perfecta adaptabilidad, sólo tiene que sustituir y montar. Maquina antes de comprar.

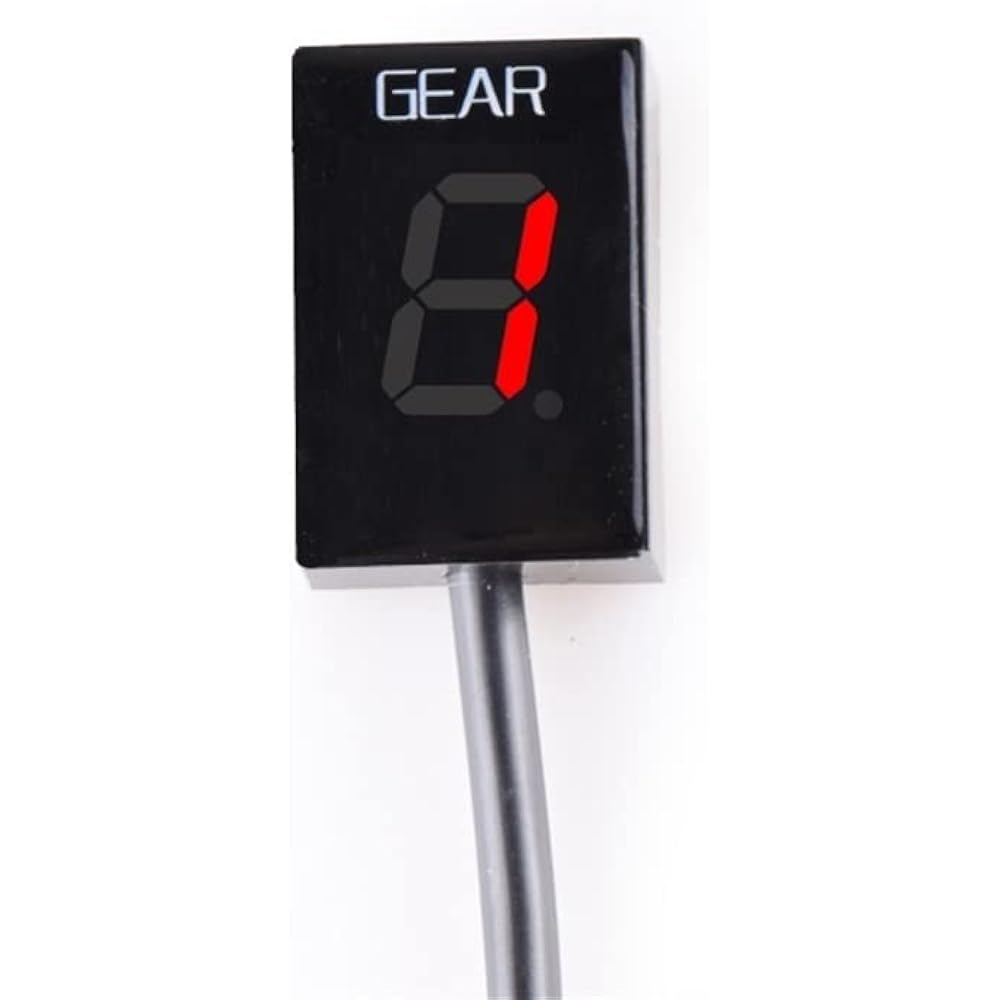

Bienvenido a nuestra tienda y le deseamos una agradable experiencia de compra.somos fabricantes profesionales de piezas de motocicletas.Para cualquier pregunta o inquietud, no dude en ponerse en contacto con nuestro equipo de servicio al cliente. Features: Color: Black Light Color: Red/Blue/Green 1-6 Gear Display Plug and Play. After connecting the connector, you need to connect two additional wires. No need to break the line. Fitment: For Yamaha TDM850 1999-2001 Yamaha TDM900 Non-ABS 2002-2013 For Yamaha TDM900 ABS 2004-2006 For Yamaha WR250R/X 2008-2019 Steps: 1.Remove the seat and find the speed sensor coupler. of. The speed sensor is usually located at the top of the gearbox and reads the rotation of the countershaft. b. The 3-pole speed sensor coupler is located 20-40 cm (8"-16") from the sensor. The connector is usually accessible under the fuel tank or by removing the side fairing. If the speedometer is located away from the front wheels, the sensor coupler is usually located in the headlight bucket. Verify: Separate the speed sensor coupler (you may need to use a small flathead screwdriver to separate the coupler). Rotate the wheels with the ignition on. The speedometer should read 0. If so, turn off the ignition and proceed to the next step. Otherwise, if the speedometer registers a non-zero speed, you did not disconnect the correct coupler and should look again. 2. After separating the speed sensor coupler, plug in both the male and female 3-pole GFY harness connector. Make sure the connector is fully seated. 3. Locate the two-pole natural (or black) color plug at the crankshaft location sensor (pickup coil). There are his two wires from the crankcase. One is gray and the other is usually black/blue. Check the color on both sides of the plug (if in doubt, make a temporary connection, such as by backprobing the connector pins with a fine needle). ). The two-pole connector is usually located under the fuel tank. XVS1100 models only: Locate and use the orange (ignition coil wire). On some models you will need to find a two-prong plug for the AC magneto (crankshaft position sensor/pickup coil). There are two wires coming out of the crankcase. One is red and the other is usually white. 4. With the wire identified in the previous step, peel off the black sleeve (tape) near the two-prong plug to expose approximately 3 cm (1.2 inches) of wire. 5. Connect the GFY black/green wire to this bike wire using the provided red wire tap connector. Package Contents: 1 x Gear Indicator (with installation instructions)
Manufacturer: MUTYNE
Part number: MUTYNE
Item weight: 150 g
Packing size: 3 x 2 x 1 cm; 150 g
Size: One Size
br>Color: Red Light
Quantity: 1
Bienvenido a nuestra tienda y le deseamos una agradable experiencia de compra.somos fabricantes profesionales de piezas de motocicletas.Para cualquier pregunta o inquietud, no dude en ponerse en contacto con nuestro equipo de servicio al cliente. Features: Color: Black Light Color: Red/Blue/Green 1-6 Gear Display Plug and Play. After connecting the connector, you need to connect two additional wires. No need to break the line. Fitment: For Yamaha TDM850 1999-2001 Yamaha TDM900 Non-ABS 2002-2013 For Yamaha TDM900 ABS 2004-2006 For Yamaha WR250R/X 2008-2019 Steps: 1.Remove the seat and find the speed sensor coupler. of. The speed sensor is usually located at the top of the gearbox and reads the rotation of the countershaft. b. The 3-pole speed sensor coupler is located 20-40 cm (8"-16") from the sensor. The connector is usually accessible under the fuel tank or by removing the side fairing. If the speedometer is located away from the front wheels, the sensor coupler is usually located in the headlight bucket. Verify: Separate the speed sensor coupler (you may need to use a small flathead screwdriver to separate the coupler). Rotate the wheels with the ignition on. The speedometer should read 0. If so, turn off the ignition and proceed to the next step. Otherwise, if the speedometer registers a non-zero speed, you did not disconnect the correct coupler and should look again. 2. After separating the speed sensor coupler, plug in both the male and female 3-pole GFY harness connector. Make sure the connector is fully seated. 3. Locate the two-pole natural (or black) color plug at the crankshaft location sensor (pickup coil). There are his two wires from the crankcase. One is gray and the other is usually black/blue. Check the color on both sides of the plug (if in doubt, make a temporary connection, such as by backprobing the connector pins with a fine needle). ). The two-pole connector is usually located under the fuel tank. XVS1100 models only: Locate and use the orange (ignition coil wire). On some models you will need to find a two-prong plug for the AC magneto (crankshaft position sensor/pickup coil). There are two wires coming out of the crankcase. One is red and the other is usually white. 4. With the wire identified in the previous step, peel off the black sleeve (tape) near the two-prong plug to expose approximately 3 cm (1.2 inches) of wire. 5. Connect the GFY black/green wire to this bike wire using the provided red wire tap connector. Package Contents: 1 x Gear Indicator (with installation instructions)
Manufacturer: MUTYNE
Part number: MUTYNE
Item weight: 150 g
Packing size: 3 x 2 x 1 cm; 150 g
Size: One Size
br>Color: Red Light
Quantity: 1
