Auto Parts Tokyo

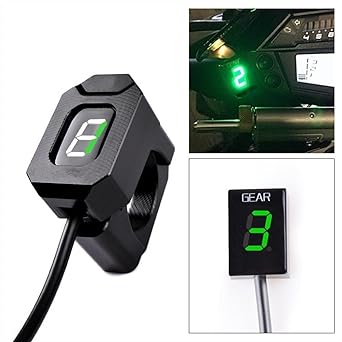

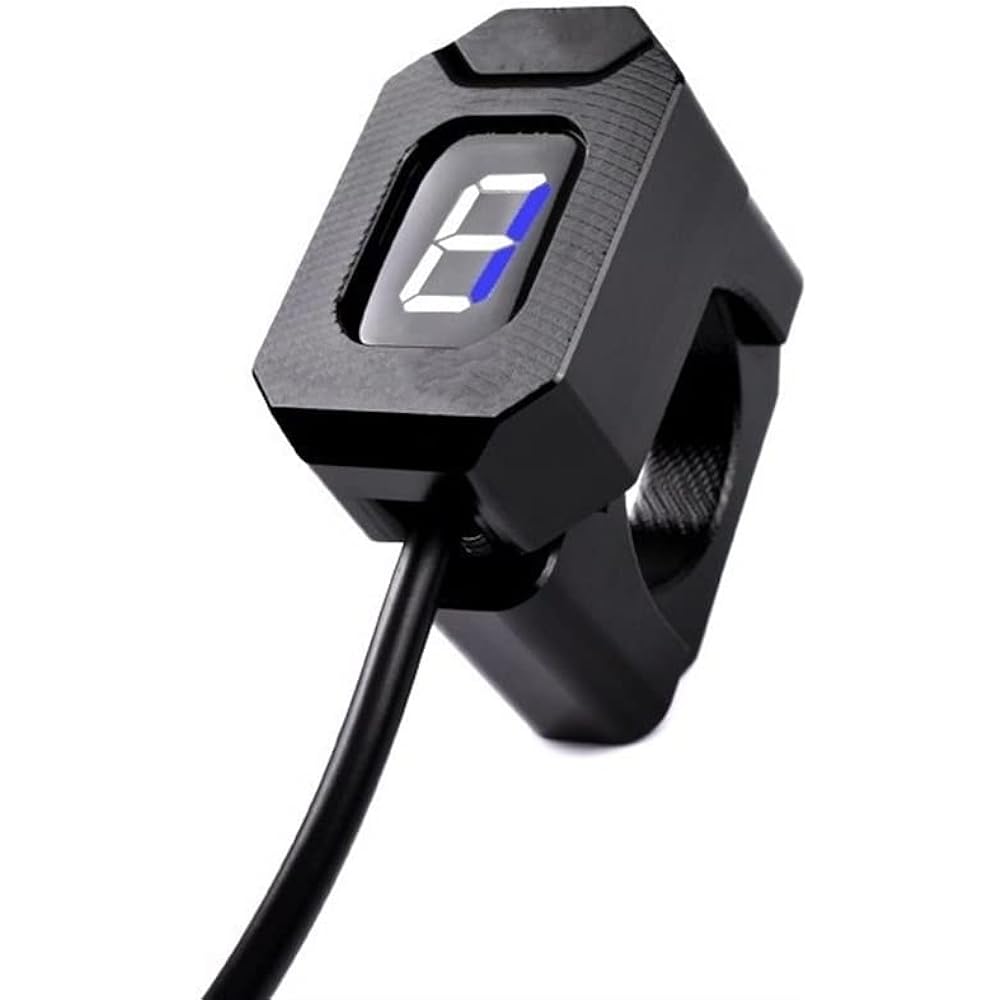

Speed Display Meter Moto Gear Indicator Du&cati ST4S Non-ABS ST4-S ST 4S ST-4S 4S 2004 2005 L 1-6 Level Waterproof Digital Meter Fixed Ring
Speed Display Meter Moto Gear Indicator Du&cati ST4S Non-ABS ST4-S ST 4S ST-4S 4S 2004 2005 L 1-6 Level Waterproof Digital Meter Fixed Ring
Regular price
$89.00 USD
Regular price
Sale price
$89.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Usage: Motorcycle Speed Gear Indicator for Du&cati ST4S Non-ABS ST4S ST 4S ST-4S 4S 2004 2005. Features: Mount the gear indicator at eye level for easy viewing. EXTERIOR: With this speed digital gear indicator display, you can stop guessing your current gear with just a glance at the display. Instalación: Medidor de velocidad de la pantalla de la motocicleta el proceso de instalación es simple, práctico y fácil de usar. Con perfecta adaptabilidad, sólo tiene que sustituir y montar. Maquina antes de comprar.

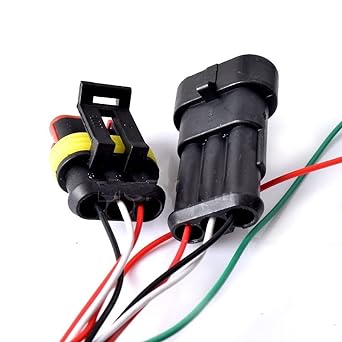

Bienvenido a nuestra tienda y le deseamos una agradable experiencia de compra.somos fabricantes profesionales de piezas de motocicletas.Para cualquier pregunta o inquietud, no dude en ponerse en contacto con nuestro equipo de servicio al cliente. Color: Black Light Color: Red/Blue/Green 1-6 Gear Display Plug & Play Instructions Guide: Locate the speed sensor connector. Verification: 1. Separate the speed sensor connector (you may need to use a small flat head screwdriver to separate the connector). With the ignition on, rotate the rear wheels. The speedometer should read 0. If so, turn off the ignition and proceed to the next step. Otherwise, if the speedometer registers a non-zero speed, you did not disconnect the correct coupler and should look again. 2. After separating the speed sensor connector, plug in both male and female his 3-pole GFYSHIP harness connector. Make sure the connector is fully seated. 3. Locate the RPM/timing sensor (pickup) connector. The sensor is mounted on the top or side of the crankcase. Follow the cable from the sensor until you find the 3-prong connector. Here are the connector locations for some common models: Monster S2R, Multistrada: On the left side, above the horizontal cylinder, zipped to the frame. Monster S4RS: Behind the left side cover under the seat. ST3: On the right side of the engine, zipped to the frame. If you are unsure, check your bike's service manual or ask your dealer for the location of the RPM/timing sensor connector. 4. Pull the large rubber boot back from the plug to disconnect the connector and leave the three wires exposed. 5. Thread the GFYSHIP black/green wire through the rubber boot from the back. Make sure the wires do not touch the exhaust pipe or cylinder block. 6. Using the supplied red wire tap connector, connect the GFYSHIP black/green wire to the wire in connector slot position 1. Package contents: 1 x gear indicator 1 x fixing ring (optional) The maximum installation diameter of the fixing ring is 1 inch (about 2.6cm). Fitment: Fits Ducati ST4S Non-ABS 2004-2005
Manufacturer: MUTYNE
Part number: MUTYNE
Item weight: 150 g
Packing size: 3 x 2 x 1 cm; 150 g
Size: One Size
br>Color: Fixed Ring Blue
Quantity: 1
Bienvenido a nuestra tienda y le deseamos una agradable experiencia de compra.somos fabricantes profesionales de piezas de motocicletas.Para cualquier pregunta o inquietud, no dude en ponerse en contacto con nuestro equipo de servicio al cliente. Color: Black Light Color: Red/Blue/Green 1-6 Gear Display Plug & Play Instructions Guide: Locate the speed sensor connector. Verification: 1. Separate the speed sensor connector (you may need to use a small flat head screwdriver to separate the connector). With the ignition on, rotate the rear wheels. The speedometer should read 0. If so, turn off the ignition and proceed to the next step. Otherwise, if the speedometer registers a non-zero speed, you did not disconnect the correct coupler and should look again. 2. After separating the speed sensor connector, plug in both male and female his 3-pole GFYSHIP harness connector. Make sure the connector is fully seated. 3. Locate the RPM/timing sensor (pickup) connector. The sensor is mounted on the top or side of the crankcase. Follow the cable from the sensor until you find the 3-prong connector. Here are the connector locations for some common models: Monster S2R, Multistrada: On the left side, above the horizontal cylinder, zipped to the frame. Monster S4RS: Behind the left side cover under the seat. ST3: On the right side of the engine, zipped to the frame. If you are unsure, check your bike's service manual or ask your dealer for the location of the RPM/timing sensor connector. 4. Pull the large rubber boot back from the plug to disconnect the connector and leave the three wires exposed. 5. Thread the GFYSHIP black/green wire through the rubber boot from the back. Make sure the wires do not touch the exhaust pipe or cylinder block. 6. Using the supplied red wire tap connector, connect the GFYSHIP black/green wire to the wire in connector slot position 1. Package contents: 1 x gear indicator 1 x fixing ring (optional) The maximum installation diameter of the fixing ring is 1 inch (about 2.6cm). Fitment: Fits Ducati ST4S Non-ABS 2004-2005
Manufacturer: MUTYNE
Part number: MUTYNE
Item weight: 150 g
Packing size: 3 x 2 x 1 cm; 150 g
Size: One Size
br>Color: Fixed Ring Blue
Quantity: 1
