Speed Display Meter Kawasaki Ninja ZX9R 1998 1999 2000 2001 2002 2003 / Ninja ZX9R 1998-2003 Motorcycle Gear Indicator Digital Gear Meter
Speed Display Meter Kawasaki Ninja ZX9R 1998 1999 2000 2001 2002 2003 / Ninja ZX9R 1998-2003 Motorcycle Gear Indicator Digital Gear Meter
Regular price
$183.00 USD
Regular price
Sale price
$183.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

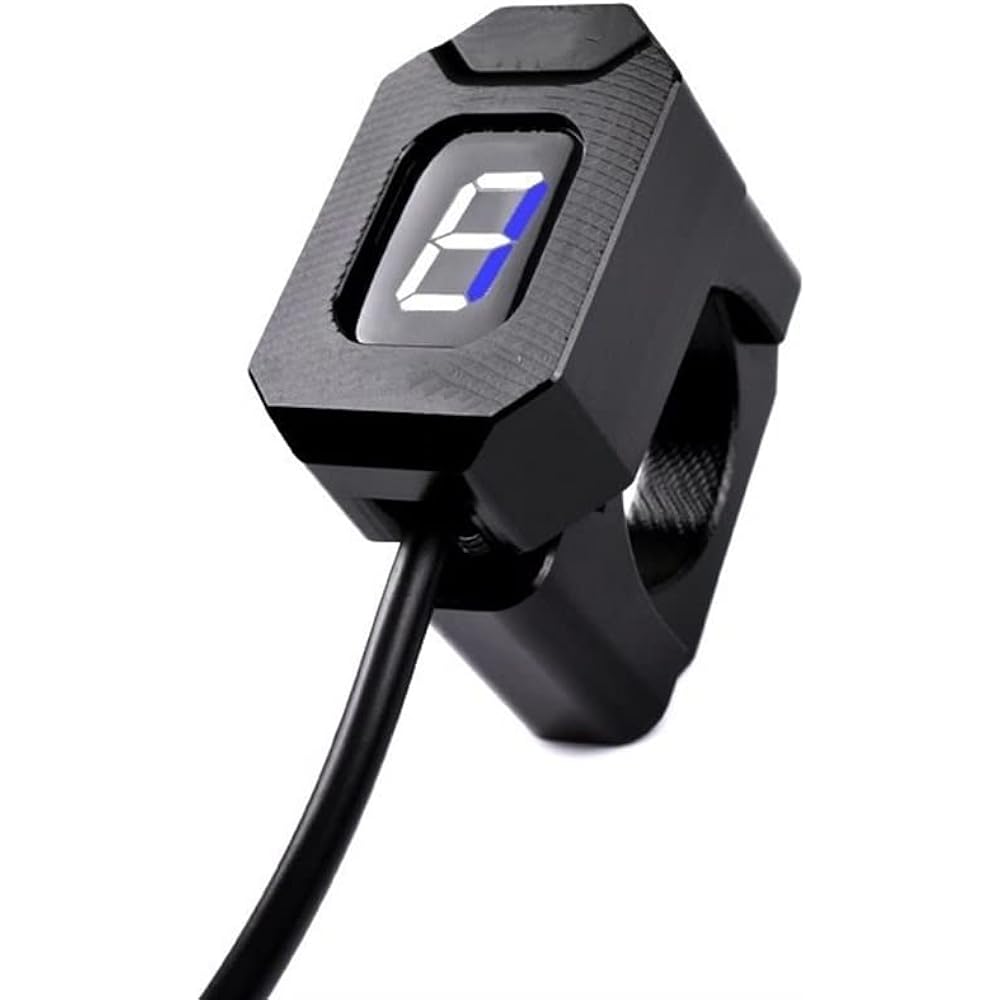

Motorcycle Gear Indicator Digital Gear Meter Kawasaki Ninja ZX9R 1998 1999 2000 2001 2002 2003 / Ninja ZX9R 1998-2003 Features: This is a gear indicator display assembly that can accurately display the current gear number. The motorcycle gear indicator has a good display effect, small and beautiful design. Instalación: Medidor de velocidad de la pantalla de la motocicleta el proceso de instalación es simple, práctico y fácil de usar. Con perfecta adaptabilidad, sólo tiene que sustituir y montar. Maquina antes de comprar.
Bienvenido a nuestra tienda y le deseamos una agradable experiencia de compra.somos fabricantes profesionales de piezas de motocicletas.Para cualquier pregunta o inquietud, no dude en ponerse en contacto con nuestro equipo de servicio al cliente. Features: Color: Black Light Color: Red/Blue/Green 1-6 Gear Display Fitment: Instruction Guide for Kawasaki Ninja ZX9R 1998-2003: 1. Remove the seat and lift the fuel tank. 2. Locate the speed sensor coupler. The speed sensor is mounted on the front sprocket cover and a 3-pole black speed sensor coupler is located 20-40 cm (8"-16") from the sensor. The connector is accessible under the fuel tank (W650: behind the left side cover). Verify: Separate the speed sensor coupler (you may need to use a small flathead screwdriver to separate the coupler). Rotate the wheels with the ignition on. The speedometer should read 0. If so, turn off the ignition and proceed to the next step. Otherwise, if the speedometer registers a non-zero speed, you did not disconnect the correct coupler and should look again. 3. After separating the speed sensor coupler, plug in both the male and female 3-prong GFYSHIP harness connectors. Make sure the connector is fully seated. 4. Locate the RPM signal wire. ZX-6R, ZZR600: Tachometer wire light blue (solid light blue wire) on dashboard connector or ECU connector ZX-9R: Pickup coil (crankshaft sensor) connector under fuel tank 3-pole, white triangular connector yellow (solid yellow line) W650: Pickup coil (crankshaft sensor) 4-pole connector behind left side cover Black/White (solid black line with thin white stripe) 5. Peel off the black sleeve (tape). Leave approximately 3 cm (1.2 inches) of this wire exposed. 6. Connect the GFYSHIP black/green wire to this wire using the supplied red wire tap connector.
Manufacturer: MUTYNE
Part number: MUTYNE
Item weight: 150 g
Packing size: 3 x 2 x 1 cm; 150 g
Size: One Size
br>Color: Fixed Ring Blue
Quantity: 1
Bienvenido a nuestra tienda y le deseamos una agradable experiencia de compra.somos fabricantes profesionales de piezas de motocicletas.Para cualquier pregunta o inquietud, no dude en ponerse en contacto con nuestro equipo de servicio al cliente. Features: Color: Black Light Color: Red/Blue/Green 1-6 Gear Display Fitment: Instruction Guide for Kawasaki Ninja ZX9R 1998-2003: 1. Remove the seat and lift the fuel tank. 2. Locate the speed sensor coupler. The speed sensor is mounted on the front sprocket cover and a 3-pole black speed sensor coupler is located 20-40 cm (8"-16") from the sensor. The connector is accessible under the fuel tank (W650: behind the left side cover). Verify: Separate the speed sensor coupler (you may need to use a small flathead screwdriver to separate the coupler). Rotate the wheels with the ignition on. The speedometer should read 0. If so, turn off the ignition and proceed to the next step. Otherwise, if the speedometer registers a non-zero speed, you did not disconnect the correct coupler and should look again. 3. After separating the speed sensor coupler, plug in both the male and female 3-prong GFYSHIP harness connectors. Make sure the connector is fully seated. 4. Locate the RPM signal wire. ZX-6R, ZZR600: Tachometer wire light blue (solid light blue wire) on dashboard connector or ECU connector ZX-9R: Pickup coil (crankshaft sensor) connector under fuel tank 3-pole, white triangular connector yellow (solid yellow line) W650: Pickup coil (crankshaft sensor) 4-pole connector behind left side cover Black/White (solid black line with thin white stripe) 5. Peel off the black sleeve (tape). Leave approximately 3 cm (1.2 inches) of this wire exposed. 6. Connect the GFYSHIP black/green wire to this wire using the supplied red wire tap connector.
Manufacturer: MUTYNE
Part number: MUTYNE
Item weight: 150 g
Packing size: 3 x 2 x 1 cm; 150 g
Size: One Size
br>Color: Fixed Ring Blue
Quantity: 1
