Special Parts Takekawa Square Multi LCD Meter XTZ125 (JYM125-9) 05-05-0046
Special Parts Takekawa Square Multi LCD Meter XTZ125 (JYM125-9) 05-05-0046
Regular price
$342.00 USD
Regular price
Sale price
$342.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
“Square Multi-LCD Meter” has multiple functions mounted on the LCD monitor with a digital display, and is compact by placing indicators on the left and right. Compatible models: XTZ125 2015 model (JYM125-9) Multi-functions combined into one. Compact meter Equipped with numerous functions such as speedometer, tachometer, gasoline gauge, odometer, trip meter, engine oil trip meter, engine hour meter, clock, etc.

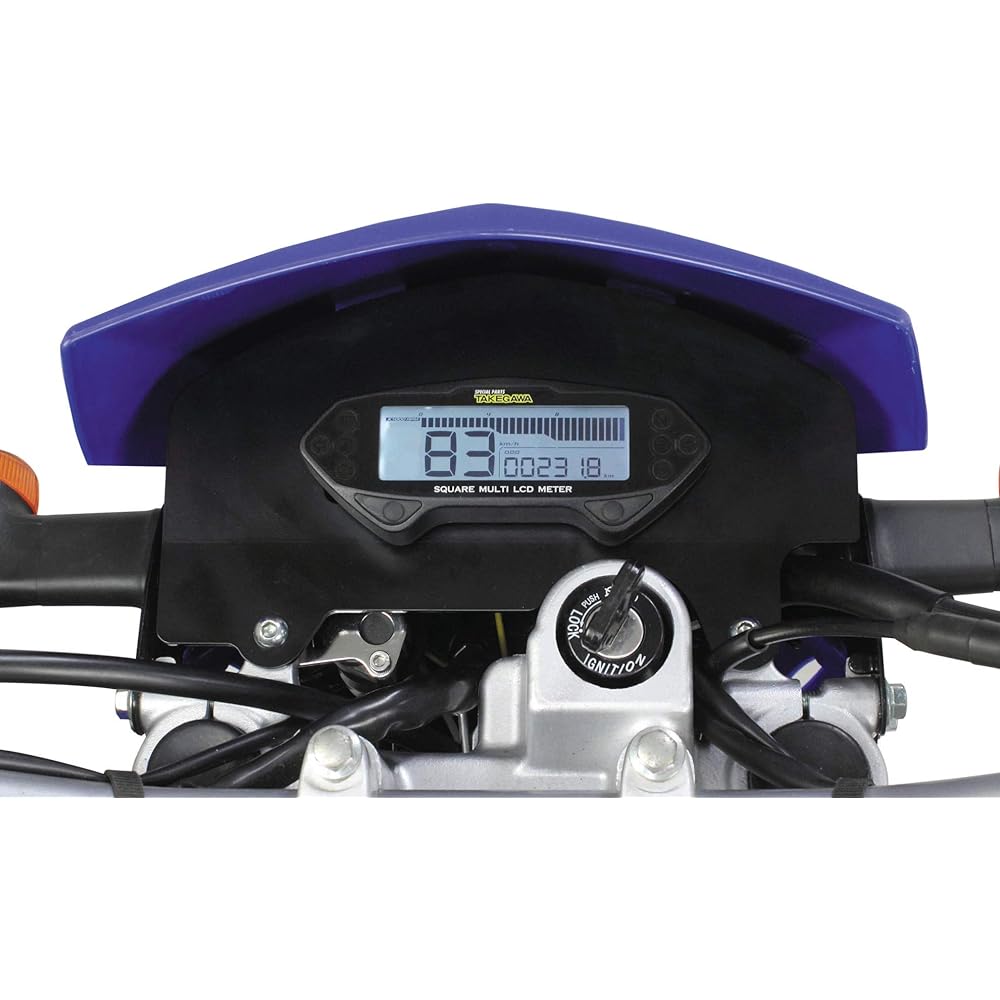

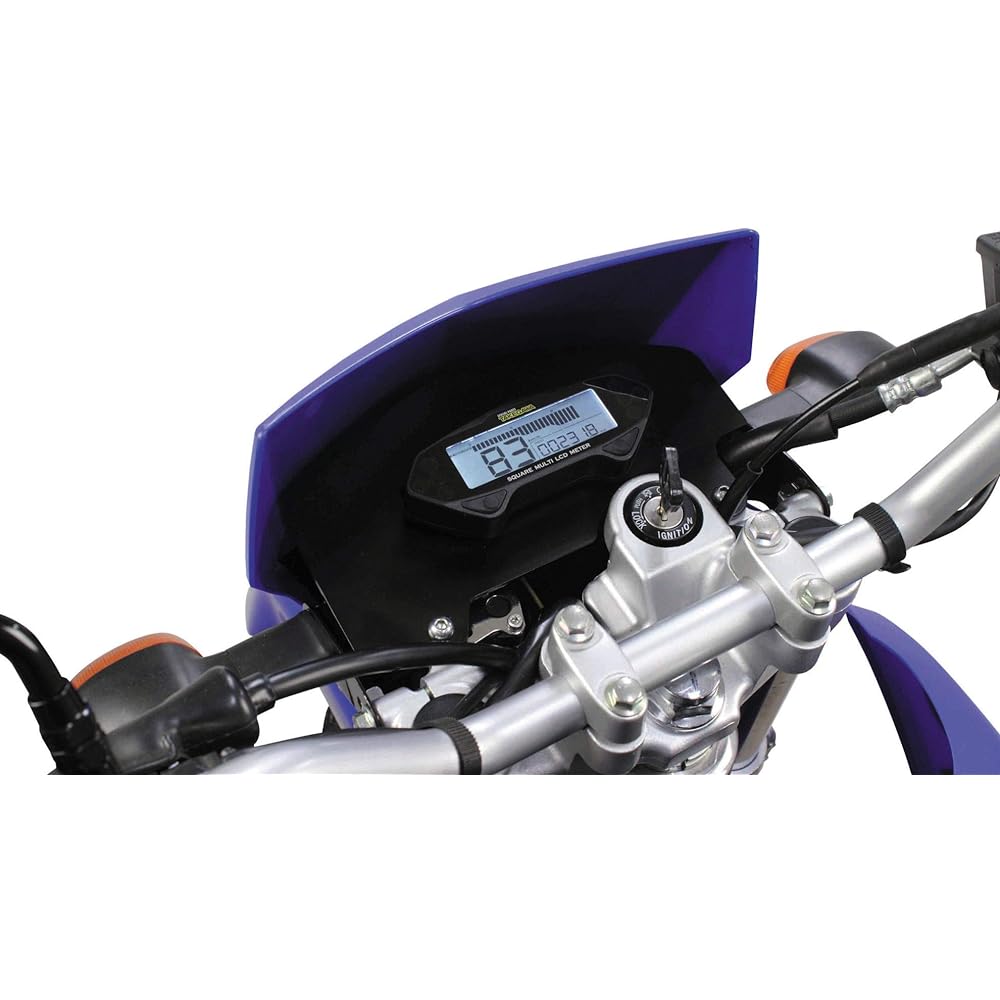

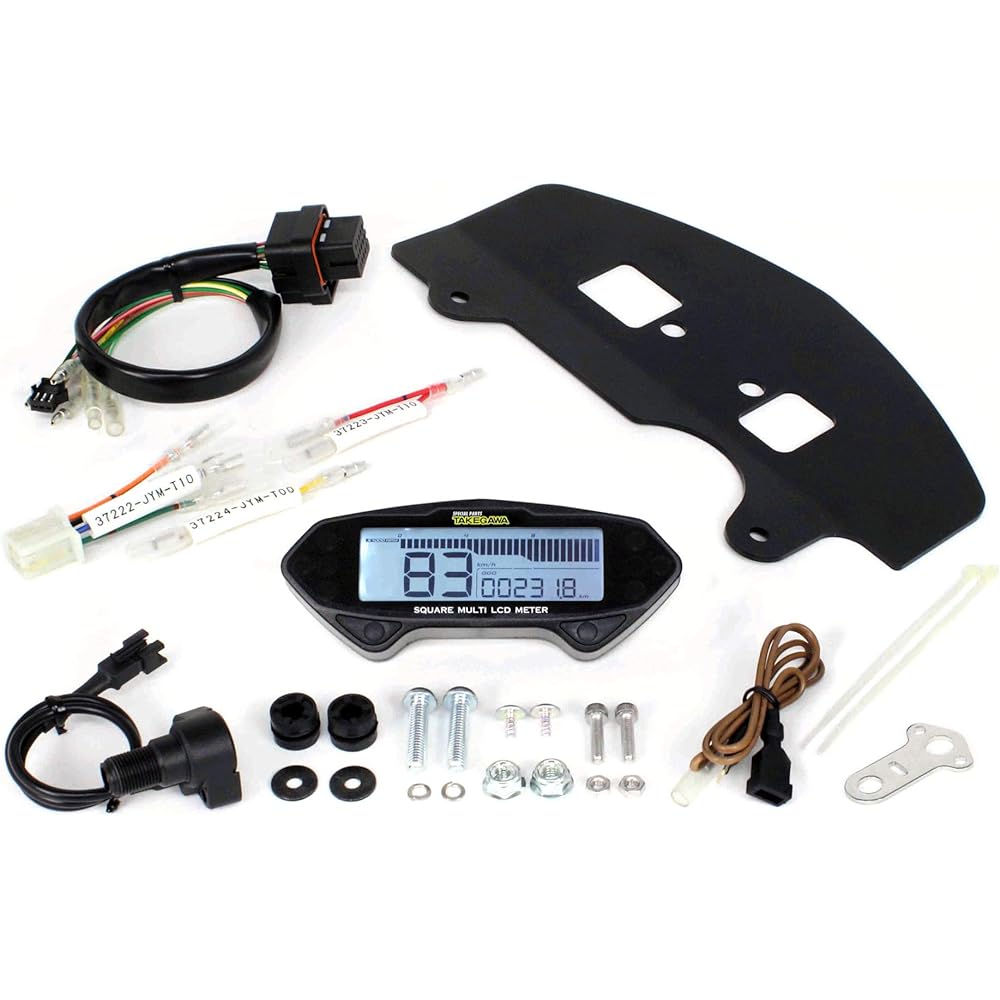

The square multi-LCD meter is equipped with a speedometer, tachometer, odometer, trip meter, engine oil trip meter, engine hour meter, clock, etc. in a compact body. This product is a special kit that allows you to attach a square multi-LCD meter to the XTZ125 without any modification. Since it comes with a meter stay specifically for XTZ125, it fits inside the headlight cowl while ensuring the visibility of the meter display. In addition, since a dedicated sub-harness is included, there is no need for wiring, and installation is easy by simply inserting and removing the coupler. ■Speedometer display range: 0 ~ 360km/h Display unit 1km Metal reaction type speed sensor standard equipment Tire circumference setting (300 ~ 2500mm Setting unit 1mm) Speed sensor setting (1 ~ 20 Setting unit 1) Tire circumference / speed sensor setting , set when displaying the speedometer using the standard metal reaction type speed sensor. Enter the measured tire circumference (mm) and the number of bolts (number of signals) for the sprocket and brake disc for the metal reaction speed sensor. In addition, by purchasing the JIS cable type speed sensor set (sold separately), it is possible to install it on cars with speedometer cable specifications. ■Optional parts (sold separately) JIS cable type speed sensor set (cord length 300mm) Product number 05-06-0012 Maximum speed record: 0 ~ 360km/h Display unit 1km/h Average speed record: 0 ~ 360km/h Display unit 1km/h hEach record can be viewed by switching the display when the vehicle is stopped. Resettable ■Tachometer display range: 0 ~ 15000rpm (maximum) Display unit 10rpm) Rotation speed display range setting (3 types of display possible) Display range 1: 0 ~ 10000rpm in units of 333rpm Display range 2: 0 ~ 12000rpm in units of 400rpm display Range 3: 0 ~ 15000rpm Unit 500rpm Depending on the vehicle specifications (displacement and number of cylinders), the maximum rotation speed display can be set from 3 types. Maximum rotation speed record (0~15,000rpm, display unit 10rpm) Records can be viewed by switching the display when the vehicle is stopped. Resettable tachometer input signal (number of inputs P-0.5, P-1 ~ P-25) Number of firings P-0.5 (2 revolutions 1 fire) / P-1 (1 revolution 1 fire) ~ P-25 (1 revolution 25 Ignition) Tachometer program (Signal type lo-Act/ Hi-Act) Tachometer input signal/Tachometer program input is a signal input task required to display the tachometer. The RPM cord connection method and RPM signal type settings vary depending on the vehicle, so please refer to our manual when making your selection. ■Odometer display range: 0 ~ 99999.9km Display unit: Returns to 0 when the range exceeds 0.1km User odometer setting (Display range: 0 ~ 99999.9km) Set the odometer distance to any number. You can enter the vehicle's mileage when changing the meter. ■Trip meter A, B display range: 0 ~ 9999.9km (Display unit: 0.1km) Returns to 0 when the range is exceeded Engine oil trip meter (Display range: 0 ~ 9999km) Prompts a warning to change or refuel the engine oil. By entering the specified warning distance (km), a warning will be displayed on the engine oil indicator when the specified distance is reached. ■Engine hour meter display range Display range 0 ~ 99999.9 Time display unit 0.1 hour Measures engine operating time. ■Voltmeter display range: 8 ~ 16V Display unit 0.1V) ■Clock 12-hour/24-hour system Setting unit 1 minute ■Gasoline meter display range: 10 levels *Requires installation of fuel sensor. Gasoline level resistance value setting (Setting range: 100Ω 250Ω 270Ω 510Ω 1200Ω) Select the target resistance value within the setting range and display the gasoline level. Gasoline level User setting The gasoline level will be displayed by entering the resistance value described in the service manual of the target vehicle. Gasoline level resistance automatic detection setting Automatically detects the resistance value when the tank capacity is full and empty and displays the gasoline level. Gasoline warning light setting The gasoline gauge will flash when the remaining fuel falls below the set value. (Setting values: 10%, 20%, 30%, 40%, 50%) ■Indicator lamp left side of meter panel
Manufacturer: Special Parts TAKEGAWA
Brand: Special Parts TAKEGAWA
Model name: 05-05-0046
Package size: 30.2 x 17.5 x 11.4 cm; 1.23 kg
Product model number: 05-05-0046
Product weight: 1.23 Kilograms
The square multi-LCD meter is equipped with a speedometer, tachometer, odometer, trip meter, engine oil trip meter, engine hour meter, clock, etc. in a compact body. This product is a special kit that allows you to attach a square multi-LCD meter to the XTZ125 without any modification. Since it comes with a meter stay specifically for XTZ125, it fits inside the headlight cowl while ensuring the visibility of the meter display. In addition, since a dedicated sub-harness is included, there is no need for wiring, and installation is easy by simply inserting and removing the coupler. ■Speedometer display range: 0 ~ 360km/h Display unit 1km Metal reaction type speed sensor standard equipment Tire circumference setting (300 ~ 2500mm Setting unit 1mm) Speed sensor setting (1 ~ 20 Setting unit 1) Tire circumference / speed sensor setting , set when displaying the speedometer using the standard metal reaction type speed sensor. Enter the measured tire circumference (mm) and the number of bolts (number of signals) for the sprocket and brake disc for the metal reaction speed sensor. In addition, by purchasing the JIS cable type speed sensor set (sold separately), it is possible to install it on cars with speedometer cable specifications. ■Optional parts (sold separately) JIS cable type speed sensor set (cord length 300mm) Product number 05-06-0012 Maximum speed record: 0 ~ 360km/h Display unit 1km/h Average speed record: 0 ~ 360km/h Display unit 1km/h hEach record can be viewed by switching the display when the vehicle is stopped. Resettable ■Tachometer display range: 0 ~ 15000rpm (maximum) Display unit 10rpm) Rotation speed display range setting (3 types of display possible) Display range 1: 0 ~ 10000rpm in units of 333rpm Display range 2: 0 ~ 12000rpm in units of 400rpm display Range 3: 0 ~ 15000rpm Unit 500rpm Depending on the vehicle specifications (displacement and number of cylinders), the maximum rotation speed display can be set from 3 types. Maximum rotation speed record (0~15,000rpm, display unit 10rpm) Records can be viewed by switching the display when the vehicle is stopped. Resettable tachometer input signal (number of inputs P-0.5, P-1 ~ P-25) Number of firings P-0.5 (2 revolutions 1 fire) / P-1 (1 revolution 1 fire) ~ P-25 (1 revolution 25 Ignition) Tachometer program (Signal type lo-Act/ Hi-Act) Tachometer input signal/Tachometer program input is a signal input task required to display the tachometer. The RPM cord connection method and RPM signal type settings vary depending on the vehicle, so please refer to our manual when making your selection. ■Odometer display range: 0 ~ 99999.9km Display unit: Returns to 0 when the range exceeds 0.1km User odometer setting (Display range: 0 ~ 99999.9km) Set the odometer distance to any number. You can enter the vehicle's mileage when changing the meter. ■Trip meter A, B display range: 0 ~ 9999.9km (Display unit: 0.1km) Returns to 0 when the range is exceeded Engine oil trip meter (Display range: 0 ~ 9999km) Prompts a warning to change or refuel the engine oil. By entering the specified warning distance (km), a warning will be displayed on the engine oil indicator when the specified distance is reached. ■Engine hour meter display range Display range 0 ~ 99999.9 Time display unit 0.1 hour Measures engine operating time. ■Voltmeter display range: 8 ~ 16V Display unit 0.1V) ■Clock 12-hour/24-hour system Setting unit 1 minute ■Gasoline meter display range: 10 levels *Requires installation of fuel sensor. Gasoline level resistance value setting (Setting range: 100Ω 250Ω 270Ω 510Ω 1200Ω) Select the target resistance value within the setting range and display the gasoline level. Gasoline level User setting The gasoline level will be displayed by entering the resistance value described in the service manual of the target vehicle. Gasoline level resistance automatic detection setting Automatically detects the resistance value when the tank capacity is full and empty and displays the gasoline level. Gasoline warning light setting The gasoline gauge will flash when the remaining fuel falls below the set value. (Setting values: 10%, 20%, 30%, 40%, 50%) ■Indicator lamp left side of meter panel
Manufacturer: Special Parts TAKEGAWA
Brand: Special Parts TAKEGAWA
Model name: 05-05-0046
Package size: 30.2 x 17.5 x 11.4 cm; 1.23 kg
Product model number: 05-05-0046
Product weight: 1.23 Kilograms
