Special Parts TAKEGAWA Square Multi LCD Meter General Purpose (12V Vehicle) 05-05-0037

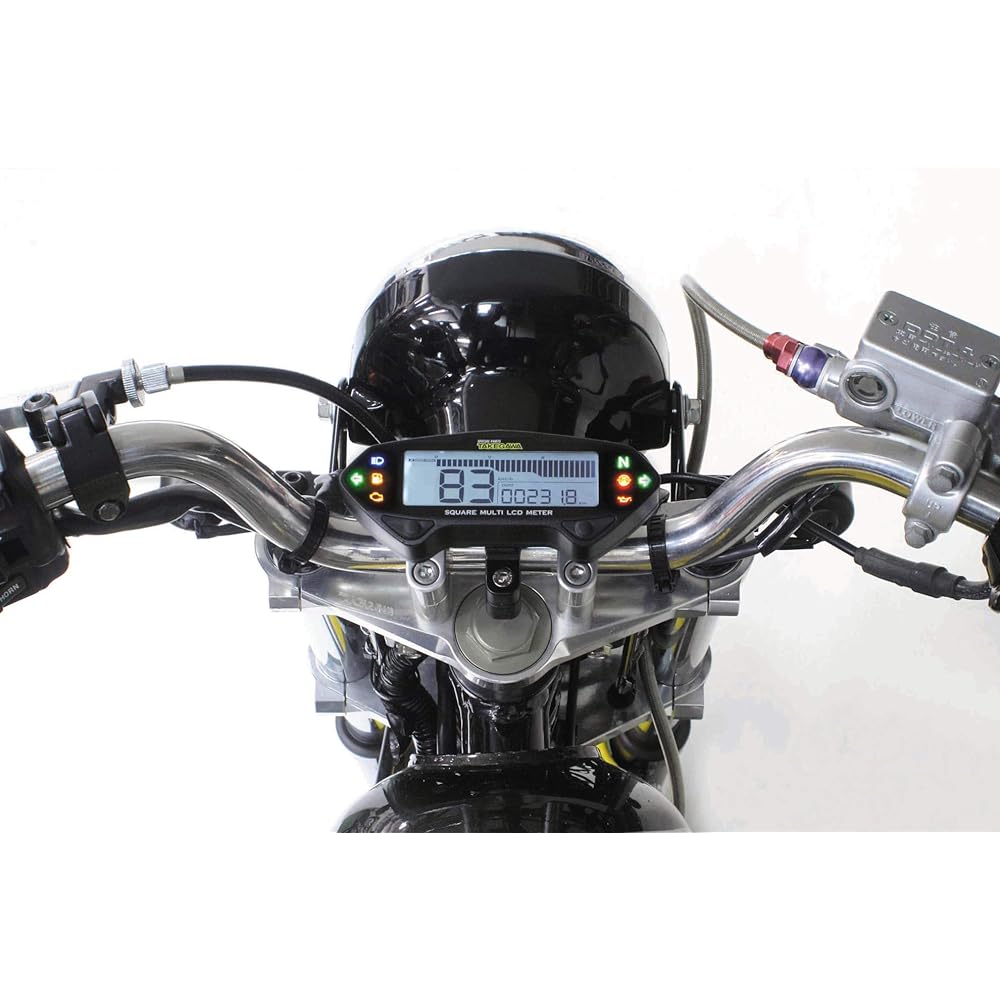

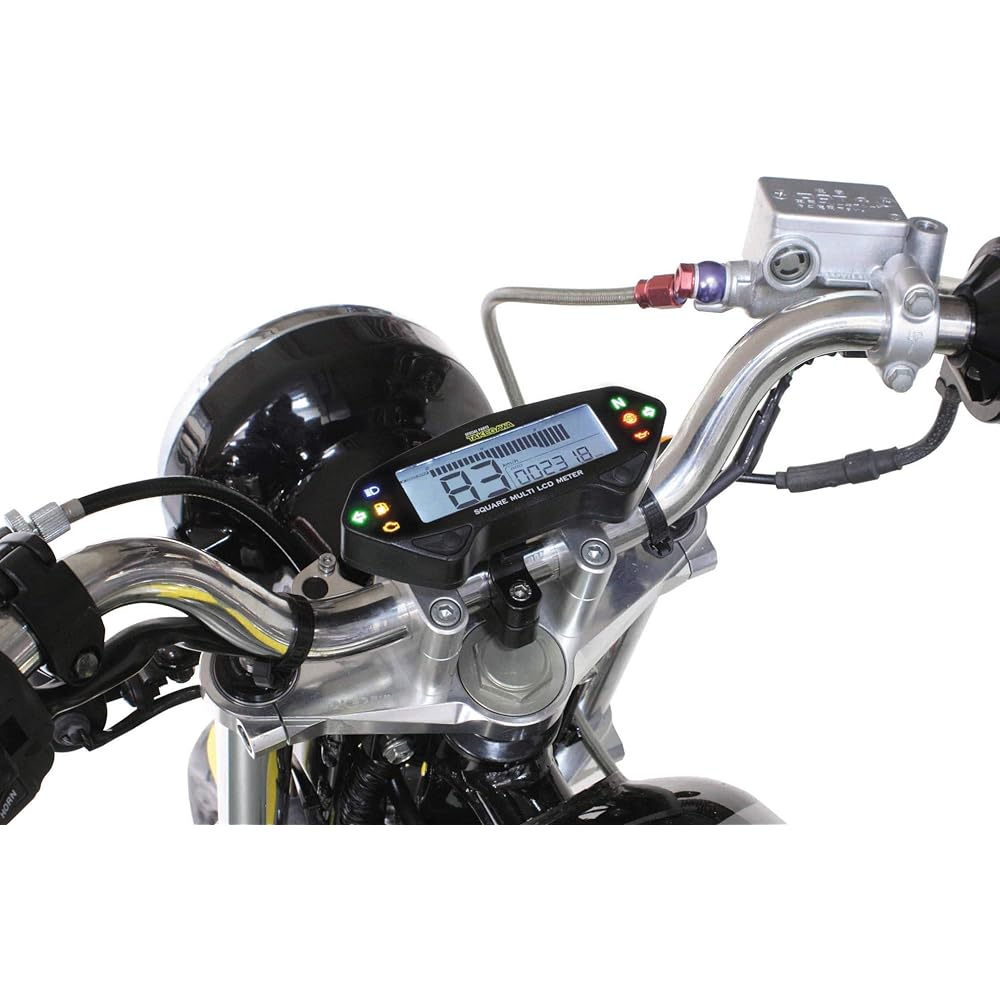

"Square Multi-LCD Meter" is a compact meter with multi-functions mounted on the LCD monitor with digital display and indicators placed on the left and right.1km User odometer setting (Display range: 0 ~ 99999. By entering the specified warning distance (km), a warning will be displayed on the engine oil indicator when the specified distance is reached. ■Engine hour meter display range Display range 0 ~ 99999.9 Time display unit 0.1 hour Measures engine operating time. ■Voltmeter display range: 8 ~ 16V Display unit 0.1V) ■Clock 12-hour/24-hour system Setting unit 1 minute ■Gasoline meter display range: 10 levels *Requires installation of fuel sensor. Gasoline level resistance value setting (Setting range: 100Ω 250Ω 270Ω 510Ω 1200Ω) Select the target resistance value within the setting range and display the gasoline level. Gasoline level User setting The gasoline level will be displayed by entering the resistance value described in the service manual of the target vehicle. Gasoline level resistance automatic detection setting Automatically detects the resistance value when the tank capacity is full and empty and displays the gasoline level. Gasoline warning light setting The gasoline gauge will flash when the remaining fuel falls below the set value. (Setting values: 10%, 20%, 30%, 40%, 50%) ■Indicator lamp Left turn signal on the left side of the meter panel (green) High beam (blue) Gas gauge (yellow) Engine warning light (yellow) Neutral on the right side of the meter panel ( Green) Right turn signal (green) Warning light (red) Oil warning light (red) ■Backlight brightness setting range: 1 (dark) ~ 5 (bright) ■Meter size: 120mm × 46mm × 20mm■Operating voltage: DC12V used Up


Manufacturer: Special Parts TAKEGAWA
Brand: Special Parts TAKEGAWA
Model name: 05-05-0037
Package size: 15.6 x 13.5 x 10.3 cm; 500 g
Product model number: ‎05-05-0037
Product weight: ‎500 g
