Special parts Takegawa Super Cam Chain Tensioner Super Cub 50/110 Cross Cub 50/110 01-14-0009
Special parts Takegawa Super Cam Chain Tensioner Super Cub 50/110 Cross Cub 50/110 01-14-0009
Regular price
$106.00 USD
Regular price
Sale price
$106.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

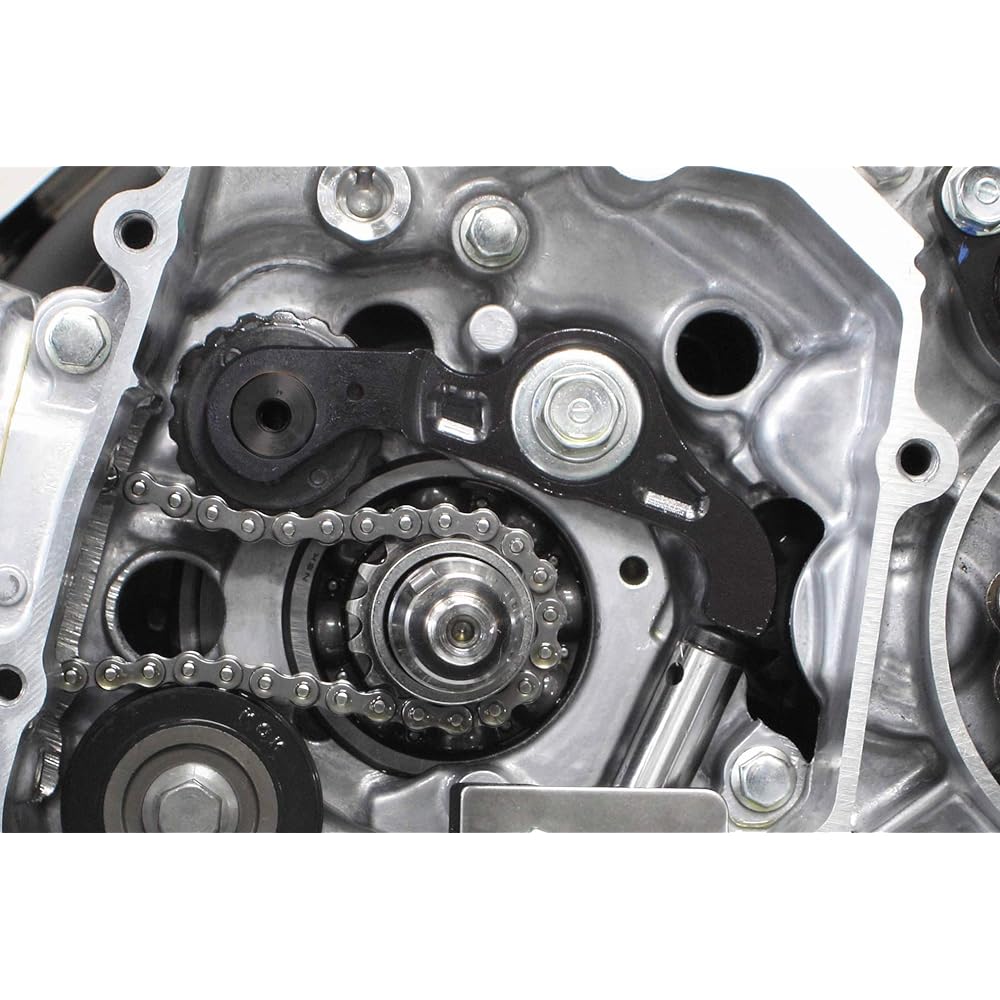

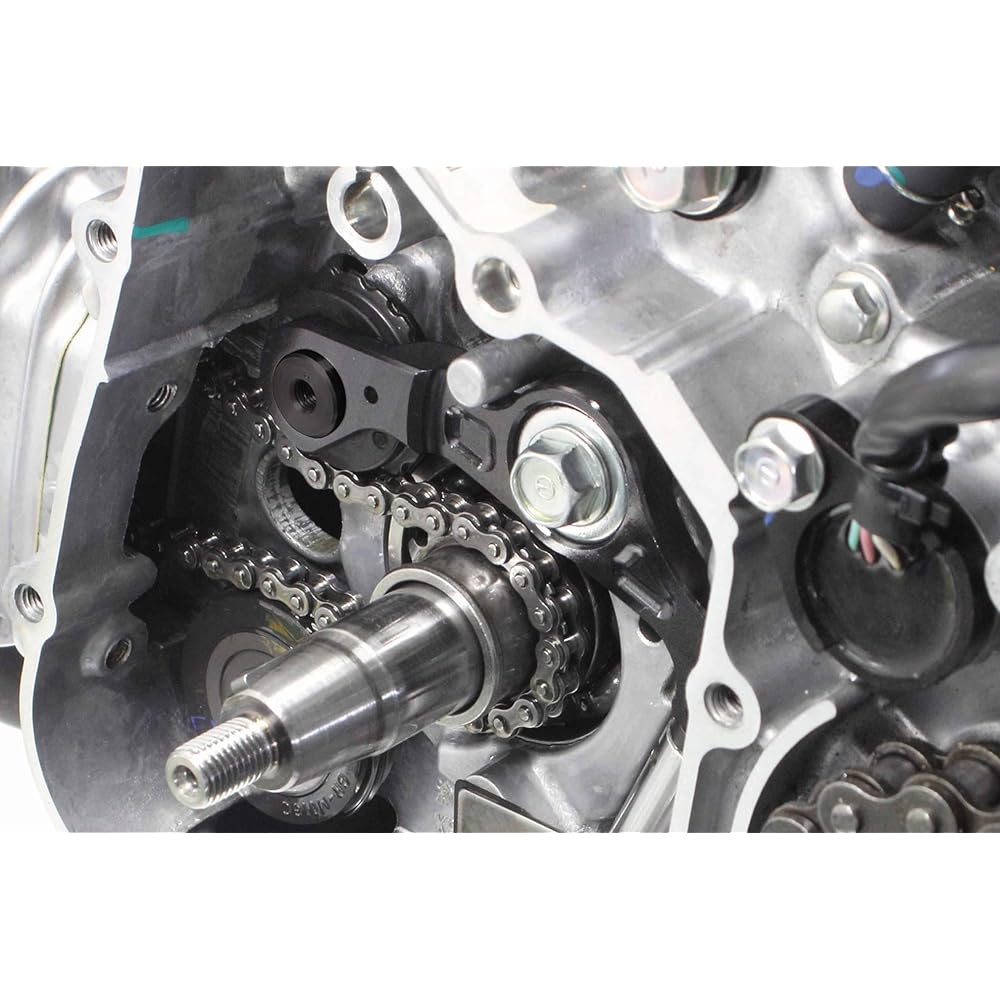

High-strength cam chain tensioner that can follow the cam chain and maintain appropriate tension Compatible models: Super Cub 50 (AA04-1000001~), Super Cub 50 (AA09-1000001~), Super Cub 50 Pro (AA04-) 1100001~), Super Cub 50 Pro (AA07-1000001~), Super Cub 110 (JA07-1000001~), Super Cub 110 (JA10-1000001~), Super Cub 110 (JA44-1000001~), Super Cub 110 Pro (JA07 -3000001~), Super Cub 110 Pro (JA10-1100001~), Super Cub 110 Pro (JA42-1000001~), Cross Cub 50 (AA06-1000001~), Cross Cub 110 (JA45-1000001~), Cross Cub (JA10-4000001~) )

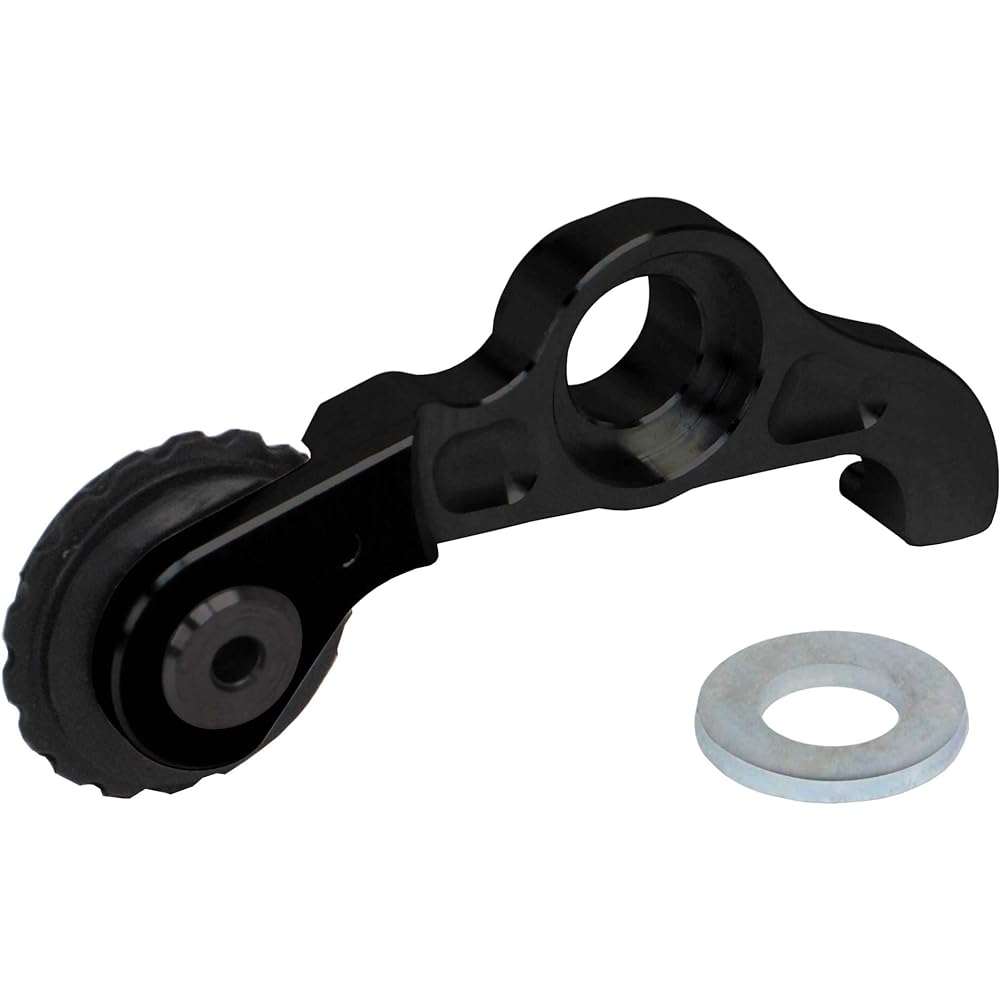

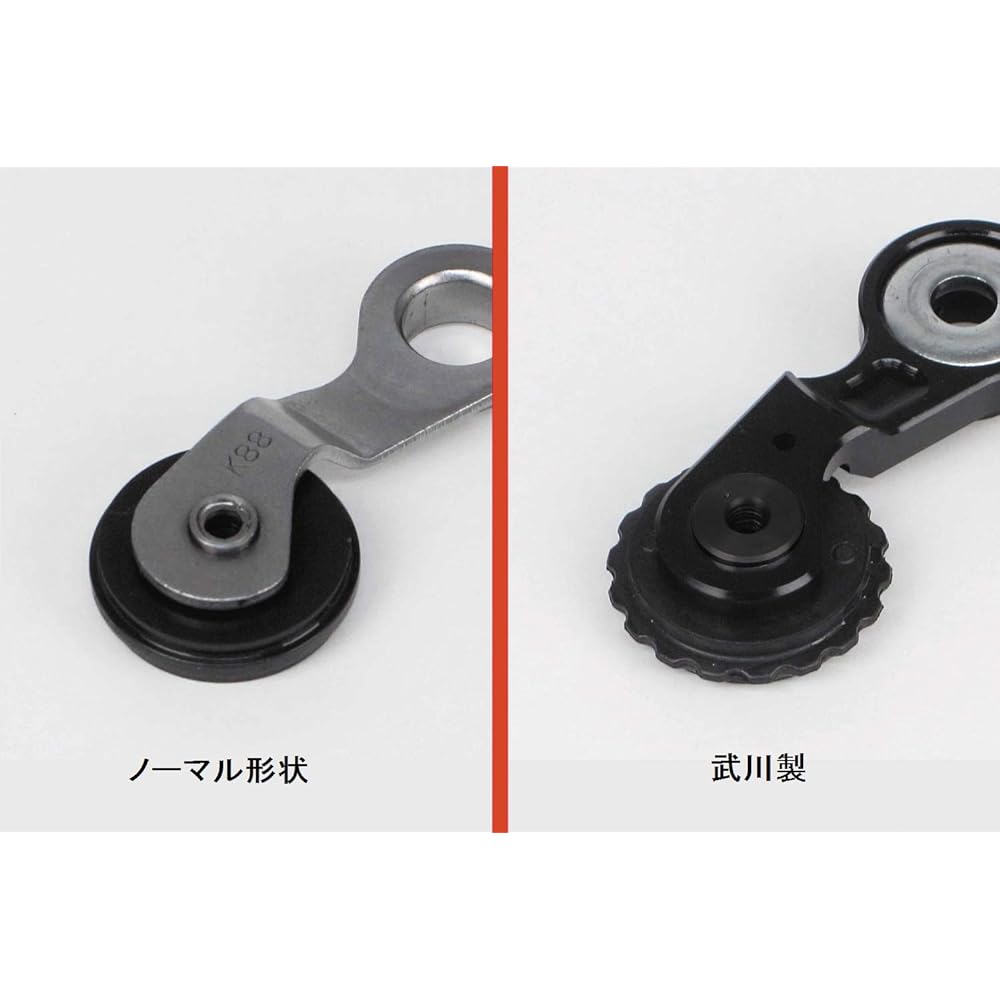

TAKEGAWA's tensioner arm is precision machined from high-strength extra-super duralumin material, increasing the thickness to increase the strength of the arm body and further increasing the contact area to the push rod. This reduces the possibility of caving in or breaking the rubber at the tip of the pushrod, greatly extending the life of the pushrod. The arm body has an oil hole to lubricate the moving parts with oil. The arm surface is hard anodized. ■Comparison of normal tensioner arm and Takegawa tensioner arm Because the normal tensioner arm is molded from plate material, the contact area with the push rod is small, and the rubber at the tip of the push rod sinks into the shape of the plate thickness. Also, if used for a long time with a high-power engine, the stock tensioner arm may become severely deformed and the push rod head may be damaged. In this case, the proper tension will not be applied to the cam chain, which may cause engine trouble. The TAKEGAWA tensioner arm is precision machined from highly strong extra-super duralumin material, increasing the thickness to increase the strength of the arm body and further increasing the contact area to the push rod. This not only strengthens the tensioner arm, but also reduces the possibility of caving in or breaking the rubber at the tip of the push rod, greatly extending the life of the push rod. Additionally, an oil hole is provided in the arm body to lubricate the moving parts with oil. Precautions for use If the cam chain tensioner push rod head is worn or damaged, replace it with a new genuine part. Please note that hard reinforced push rod heads sold by other companies should not be used together as they will place a high load on the cam chain. L. Crankcase cover gasket is required separately. ■L. Crankcase cover gasket 00-02-0433 ¥1,000 (excluding tax) Special tools such as rotor holder and flywheel puller are required for installation.
Manufacturer: Special Parts TAKEGAWA
Brand: Special Parts TAKEGAWA
Model name: 01-14-0009
Package size: 13.6 x 9.4 x 2.8 cm; 100 g
Product model number: 01-14-0009
Product weight: 100 g
TAKEGAWA's tensioner arm is precision machined from high-strength extra-super duralumin material, increasing the thickness to increase the strength of the arm body and further increasing the contact area to the push rod. This reduces the possibility of caving in or breaking the rubber at the tip of the pushrod, greatly extending the life of the pushrod. The arm body has an oil hole to lubricate the moving parts with oil. The arm surface is hard anodized. ■Comparison of normal tensioner arm and Takegawa tensioner arm Because the normal tensioner arm is molded from plate material, the contact area with the push rod is small, and the rubber at the tip of the push rod sinks into the shape of the plate thickness. Also, if used for a long time with a high-power engine, the stock tensioner arm may become severely deformed and the push rod head may be damaged. In this case, the proper tension will not be applied to the cam chain, which may cause engine trouble. The TAKEGAWA tensioner arm is precision machined from highly strong extra-super duralumin material, increasing the thickness to increase the strength of the arm body and further increasing the contact area to the push rod. This not only strengthens the tensioner arm, but also reduces the possibility of caving in or breaking the rubber at the tip of the push rod, greatly extending the life of the push rod. Additionally, an oil hole is provided in the arm body to lubricate the moving parts with oil. Precautions for use If the cam chain tensioner push rod head is worn or damaged, replace it with a new genuine part. Please note that hard reinforced push rod heads sold by other companies should not be used together as they will place a high load on the cam chain. L. Crankcase cover gasket is required separately. ■L. Crankcase cover gasket 00-02-0433 ¥1,000 (excluding tax) Special tools such as rotor holder and flywheel puller are required for installation.
Manufacturer: Special Parts TAKEGAWA
Brand: Special Parts TAKEGAWA
Model name: 01-14-0009
Package size: 13.6 x 9.4 x 2.8 cm; 100 g
Product model number: 01-14-0009
Product weight: 100 g
