Special parts TAKEGAWA φ48 small DN tachometer kit (orange LED) Rebel 250 (MC49)/500 (PC60) 05-05-0120
Special parts TAKEGAWA φ48 small DN tachometer kit (orange LED) Rebel 250 (MC49)/500 (PC60) 05-05-0120
Regular price
$260.00 USD
Regular price
Sale price
$260.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Installed next to the normal meter with simple wiring processing Applicable vehicles: Rebel 250 (MC49-1000001~) / Rebel 500 (PC60-1000001~) ~16000 rpm display Black panel Orange LED lighting

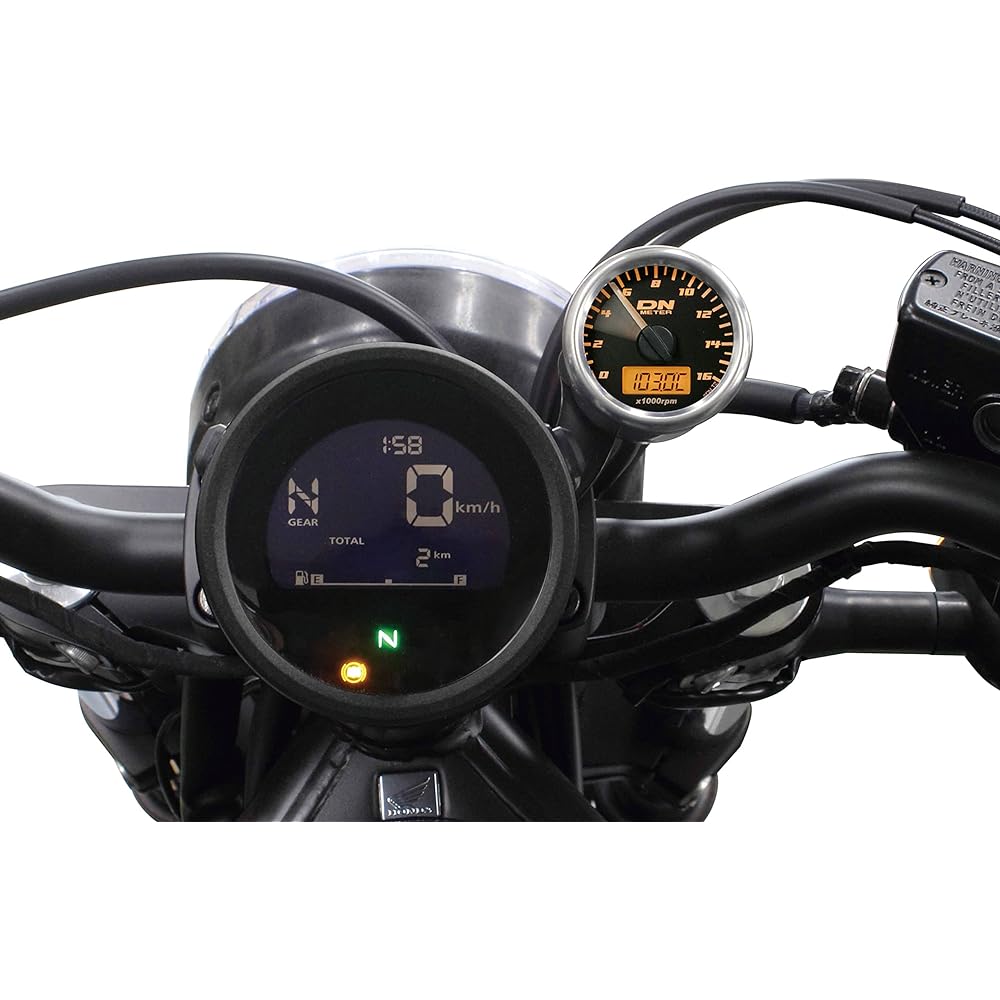

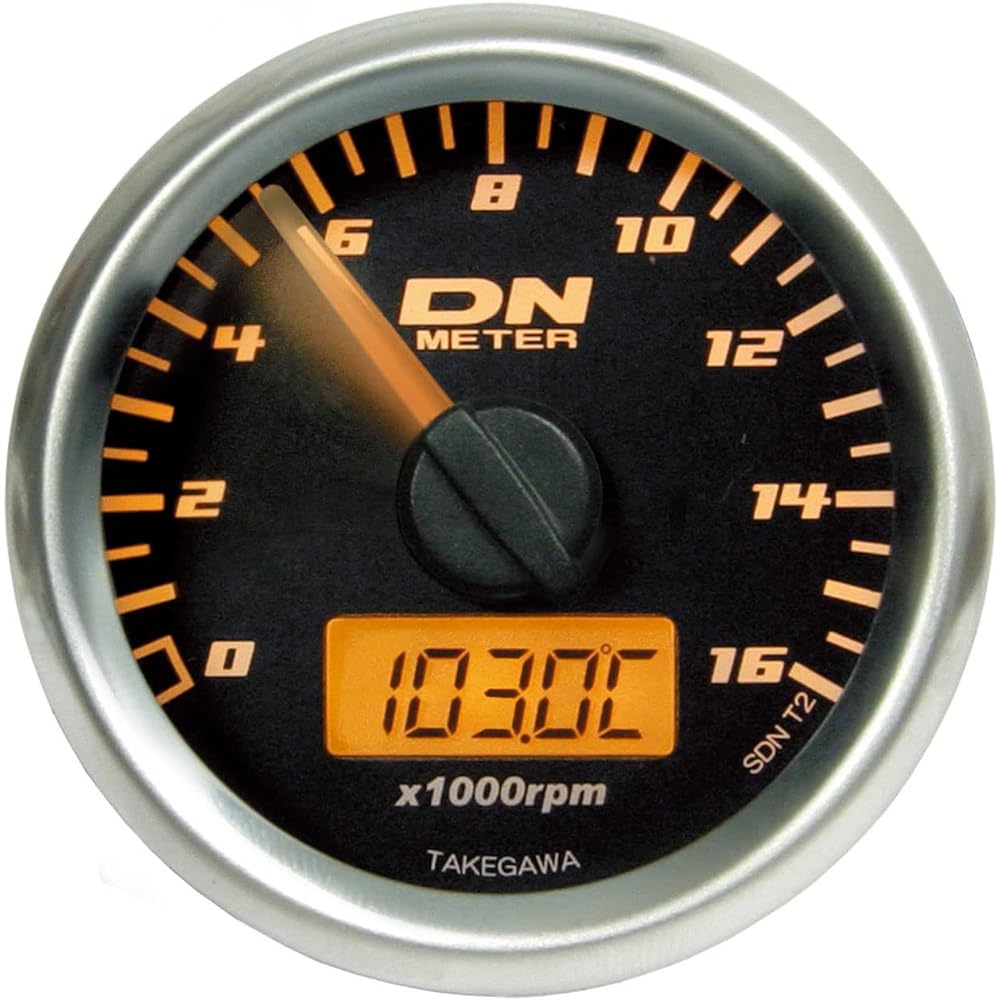

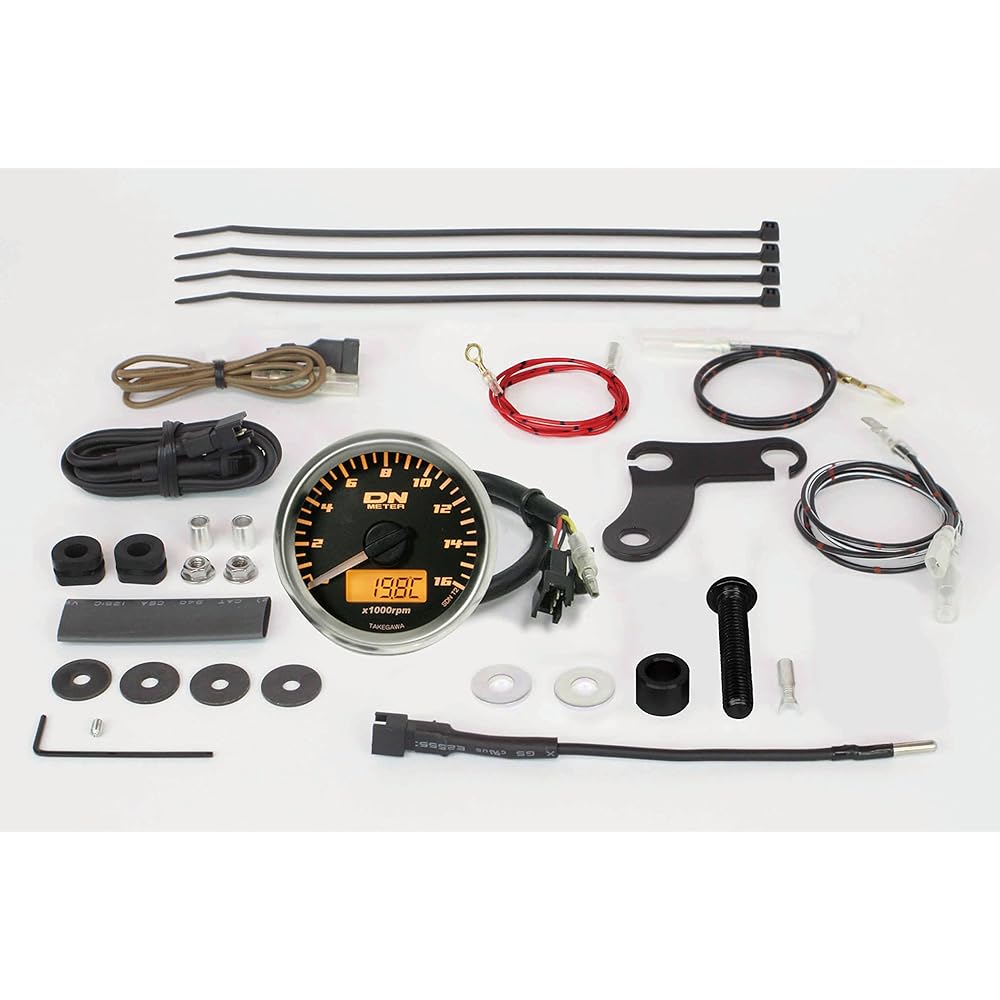

"Φ48 small DN tachometer kit" that can be installed next to the stock meter with simple wiring processing.This product comes with a meter stay that can be placed next to the genuine speedometer and a sub cord that allows installation with simple wiring processing. Because of this, a Φ48 small DN tachometer (orange LED) can be installed on the Rebel 250/500. The meter stay is made of steel and has a black painted finish ■Φ48 Small DN Tachometer Details DN = Digital needle The pointer angle is completely controlled by digital signals and a small motor, so the pointer retention force is high and reliability is excellent. In addition to the rotation speed function, the meter body also has a thermometer, clock, engine work timer, and automatic measurement function (maximum temperature record/maximum rotation speed record). The black panel and orange LED lighting are highly visible at night. Adopts a stainless steel body. Rubber mount type stay included ■Pointer type electric tachometer: ~16000rpm display ■Monitor is equipped with various functions (digital display) ・Thermometer (can measure up to 120℃) Comes with a stick temperature sensor, so you can easily monitor the temperature By placing the sensor inside the cowl, you can measure the outside temperature. In addition, by installing the separately sold SP Takekawa drain bolt with magnet (M12 x P1.5), you can measure the temperature at the drain bolt part. - Automatic measurement function: Maximum temperature recording/maximum rotation speed recording is performed automatically when the meter is installed. After driving, you can check the record by switching the meter display, and the record will be saved until you reset it.・Engine work timer: A timer that automatically adds engine operating time above 500 rpm. It will stop when the speed drops below 500rpm. Maximum time: 9999 hours (Up to 100 hours are recorded in minutes, and after 100 hours are recorded in 1 hour units. Can be reset. Hide setting available - Clock: 24-hour display Hide setting available *External product) Never install H.I.D. kits, LED headlights or fog lamps made by other companies at the same time.The ballast/inverter (voltage converter) may emit high voltage noise that can adversely affect digital circuits, resulting in product failure or malfunction. *Simple wiring processing is required when installing. *It is not completely waterproof as it has a moisture release hole. It is located on the back of the main unit.
Manufacturer: Special Parts Takegawa
Brand: Special Parts Takegawa (TAKEGAWA)
Model name: Small DN Tachometer
Packaging size. : 17.7 x 13.4 x 12.8 cm; 550 g
Product model number: 05-05-0120
Certification: None
Product weight: 550 g
"Φ48 small DN tachometer kit" that can be installed next to the stock meter with simple wiring processing.This product comes with a meter stay that can be placed next to the genuine speedometer and a sub cord that allows installation with simple wiring processing. Because of this, a Φ48 small DN tachometer (orange LED) can be installed on the Rebel 250/500. The meter stay is made of steel and has a black painted finish ■Φ48 Small DN Tachometer Details DN = Digital needle The pointer angle is completely controlled by digital signals and a small motor, so the pointer retention force is high and reliability is excellent. In addition to the rotation speed function, the meter body also has a thermometer, clock, engine work timer, and automatic measurement function (maximum temperature record/maximum rotation speed record). The black panel and orange LED lighting are highly visible at night. Adopts a stainless steel body. Rubber mount type stay included ■Pointer type electric tachometer: ~16000rpm display ■Monitor is equipped with various functions (digital display) ・Thermometer (can measure up to 120℃) Comes with a stick temperature sensor, so you can easily monitor the temperature By placing the sensor inside the cowl, you can measure the outside temperature. In addition, by installing the separately sold SP Takekawa drain bolt with magnet (M12 x P1.5), you can measure the temperature at the drain bolt part. - Automatic measurement function: Maximum temperature recording/maximum rotation speed recording is performed automatically when the meter is installed. After driving, you can check the record by switching the meter display, and the record will be saved until you reset it.・Engine work timer: A timer that automatically adds engine operating time above 500 rpm. It will stop when the speed drops below 500rpm. Maximum time: 9999 hours (Up to 100 hours are recorded in minutes, and after 100 hours are recorded in 1 hour units. Can be reset. Hide setting available - Clock: 24-hour display Hide setting available *External product) Never install H.I.D. kits, LED headlights or fog lamps made by other companies at the same time.The ballast/inverter (voltage converter) may emit high voltage noise that can adversely affect digital circuits, resulting in product failure or malfunction. *Simple wiring processing is required when installing. *It is not completely waterproof as it has a moisture release hole. It is located on the back of the main unit.
Manufacturer: Special Parts Takegawa
Brand: Special Parts Takegawa (TAKEGAWA)
Model name: Small DN Tachometer
Packaging size. : 17.7 x 13.4 x 12.8 cm; 550 g
Product model number: 05-05-0120
Certification: None
Product weight: 550 g
